Kramer Electronics KDS-DEC7 High–Performance Highly–Scalable AVoIP Decoder

  • Description
  • Specifications
  • Downloads

  • Kramer Electronics KDS-DEC7 High–Performance Highly–Scalable AVoIP Decoder

    KDS−DEC7 decoder is an advanced receiver for streaming 4K video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS−232, or CEC signal over IP network.


    Outstanding end–user experience
    Rich set of inputs and interfaces

    Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming

    Large scale video wall — up to 16×16

    Instantaneous switching time — 1 second

     Ideal for large–scale deployments —

    Highly scalable — 999 channels build in support

    State of the art management device

    Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration

    Robust security
    Enterprise IT–grade security — 802.1x and HTTPS/TLS

    Security certification — OWASP Top 10 certificate

    Separate ETH ports for optimal security and experience

    New HW architecture that enables robust FW update

    Simple planning and rollout:
    Cost–effective from day one

    Full product range for any site, any application

    Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, etc.

    PoE Support
    Using PoE switch — up to 13W consumption

    Alternative sources/destinations
    HDMI Loop–Through on Encoder and HDMI Input on Decoder

    Analog Audio
    Embedding and De–embedding

    Control gateway
    Through P3K control/communicate with IR, RS232, or CEC to the connected devices

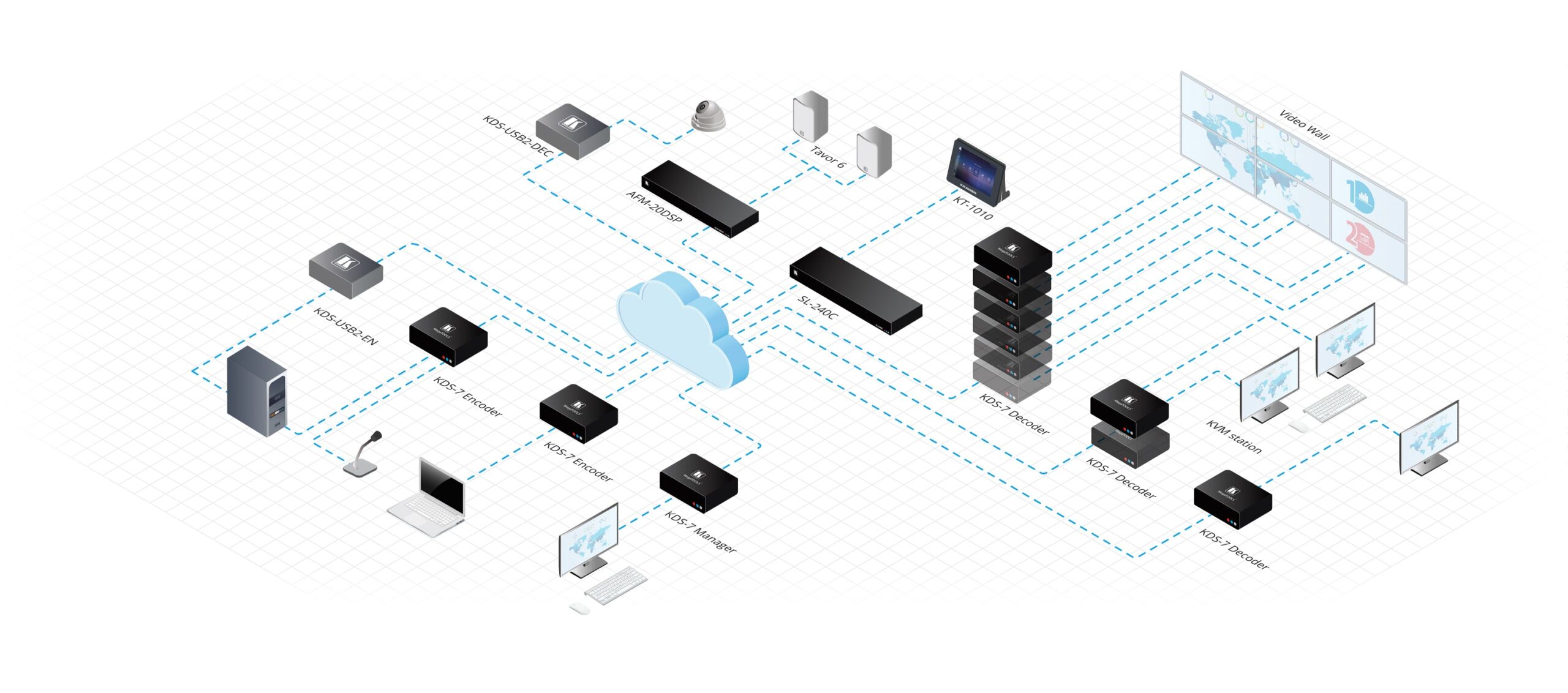

    Applications
    For real–time essential installations such as command and control rooms

    For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications

    AV distribution systems with one or more sources and many displays in schools, universities, and public venues

    For AV installations where low latency KM/KVM capabilities are required

  • Category Specification
    Inputs 1 HDMI: On a female HDMI connector
    Outputs 1 HDMI: On a female HDMI connector
    Ports 2 Ethernets: On RJ-45 connectors
    1 Balanced Audio: On a 5-pin terminal block connector
    1 RS-232: On a 3-pin terminal block connector
    1 IR: On a 3.5mm TRS connector
    2 USB: On USB-A connectors
    USB Features Integrated USB Hubs: 1-layer when connecting to KDS-EN7
    Network Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non-blocking, Layer 2
    Unicast: Through RTSP (Real Time Streaming Protocol)
    Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
    Video Compression Compression Standard: JPEG based, private stream
    Video Resolution Max Resolution: 4K@30Hz 4:4:4
    Video Streaming Compression Standard: JPEG2K based, proprietary stream
    Max Input Resolution: 4K@60Hz (4:2:0)
    Max Output Resolution: 4K@30Hz (4:4:4)
    Max End-to-End Resolution: 4K@30Hz (4:4:4)
    Scaler: Yes
    End-to-End Latency: 33ms
    Switching Time: 1s
    Resolution Support 4096×2160@60Hz, 3840×2160@60Hz, 1920×1080@60Hz, 1280×720@60Hz, 720×480@50Hz, 1600×1200@60Hz, 1280×960@60Hz, 848×480@60Hz, 1600×900@60Hz, 1280×800@60Hz, 800×600@60Hz, 1920×1200@50Hz, 1440×900@60Hz, 1280×768@60Hz, 720×576@60Hz, 1400×1050@60Hz, 1366×768@60Hz, 1224×768@70Hz, 640×480@60Hz, 1792×1344@60Hz, 1360×768@60Hz, 1152×864@70Hz, 640×400@85Hz, 1680×1050@60Hz, 1024×768@60Hz, 640×350@85Hz
    Audio Supported Formats LPCM, Dolby and DTS
    LPCM: Up to 7.1/24-bit/192kHz
    Dolby: Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
    DTS: DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1
    Security HTTPS, 802.1x, OWASP-10, AES-128 encryption of AV streaming with changeable key
    User Interface Indicators: LINK, NET, and ON LEDs, front panel LCD Display
    Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
    Power PoE (Power over Ethernet): 37V to 57V, max power 13W
    Optional power supply: 24V DC, 5A
    Environmental Conditions Operating Temperature: 0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing
    Storage Temperature: –20 to +70°C (–4 to +158 °F), 10% to 90%, non-condensing
    Humidity: 10% to 90%, non-condensing
    Product Dimensions 18.90cm x 14.50cm x 2.76cm (7.44″ x 5.71″ x 1.09″) W, D, H
    Product Weight 0.7kg (1.5lbs) approx.
    Shipping Dimensions 31.20cm x 17.90cm x 7.60cm (12.28″ x 7.05″ x 2.99″) W, D, H
    Shipping Weight 0.9kg (2.1lbs) approx.
