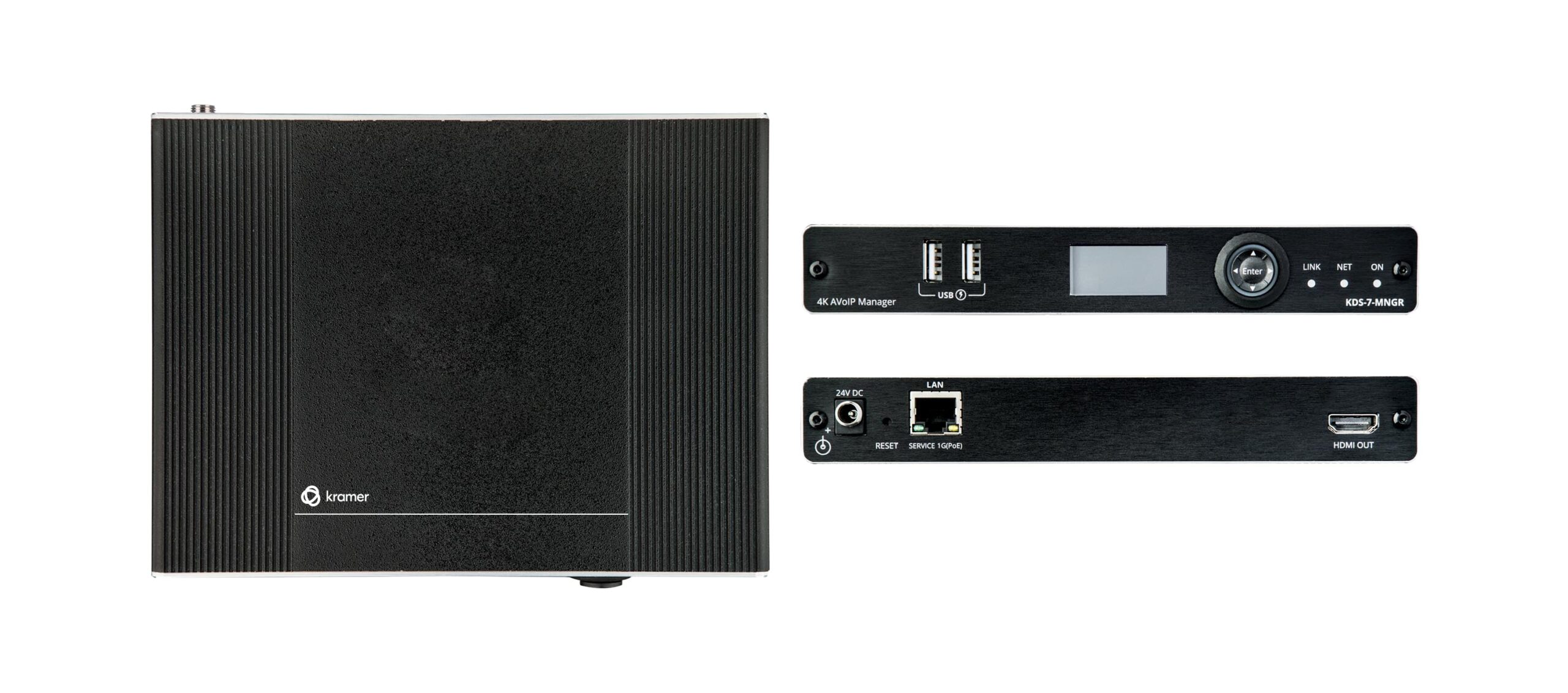

• Kramer Electronics KDS-7-MNGR AVoIP Manager for KDS–7 Series

  KDS−7−MNGR Manager is the solution for configuration and management of KDS−7 deployments within the same network. Simply install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages.

  Additionally, this unit supports controlling and configuring the matrix, video wall, and KVM modes of connected KDS−7 devices as well as device grouping and group operations.

  The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily updated.


  Outstanding end–user experience
  Instant auto–discovery and status with preview

  Access via Remote Web UI or using local monitor with a USB keyboard and mouse

  Ideal for multiple device deployments
  Manages 120 encoders and decoders

  Configuration of Virtual Video Matrix, KVM, and Video Walls

  Configuration of Device Grouping, Preset Definition, and Activation via UI or APIs

  Configuration — FW for single or group of devices

  Robust security
  Enterprise IT–grade security — 802.1x and HTTPS/TLS

  Security certification — OWASP Top 10 certificate

  Can be deployed in the same LAN used for AV data streaming or in a separate LAN

  Simple planning and rollout
  Cost–effective from day one

  Full product range for any site, any application

  Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

• Category	Specification
  Outputs	1 HDMI: On a female HDMI connector
  Ports	1 Ethernet: On RJ45 connector 2 USB: On USB-A connectors
  USB Features	Integrated USB Hubs: 1
  Video	Max Resolution: 1080P@60Hz
  Video Streaming	Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60Hz (4:2:0) Max Output Resolution: 4K@30Hz (4:4:4) Max End-to-End Resolution: 4K@30Hz (4:4:4) + HDR 10bit Scaler: Yes End-to-End Latency: 33ms Switching Time: 1s
  User Interface	Indicators: LINK, NET, and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
  Power	PoE (Power over Ethernet): 37V to 57V, max power 13W Optional power supply: 24V DC, 5A
  Environmental Conditions	Operating Temperature: 0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing Storage Temperature: –20 to +70°C (–4 to +158 °F), 10% to 90%, non-condensing Humidity: 10% to 90%, non-condensing
  Product Dimensions	18.90cm x 14.50cm x 2.76cm (7.44″ x 5.71″ x 1.09″) W, D, H
  Product Weight	0.7kg (1.5lbs) approx.
  Shipping Dimensions	31.20cm x 17.90cm x 7.60cm (12.28″ x 7.05″ x 2.99″) W, D, H
  Shipping Weight	0.9kg (2.1lbs) approx.
