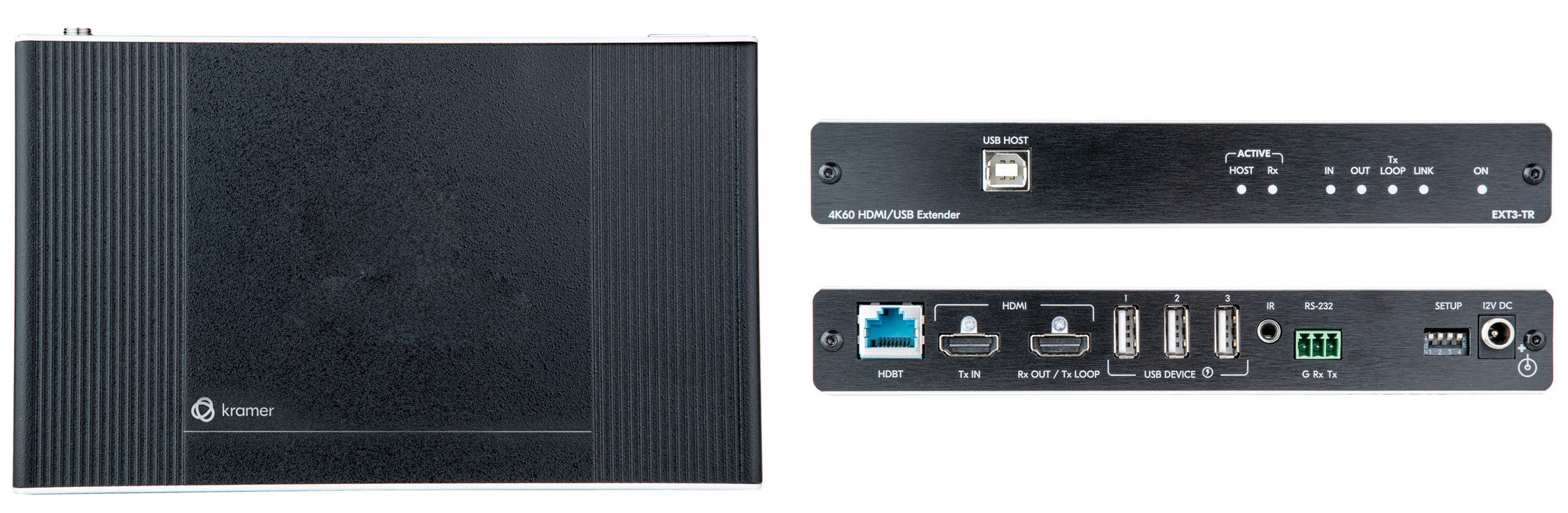

• Kramer Electronics EXT3-TR 4K60 4:4:4 HDMI Extender with USB, RS–232 & IR over Long–Reach HDBaseT 3.0

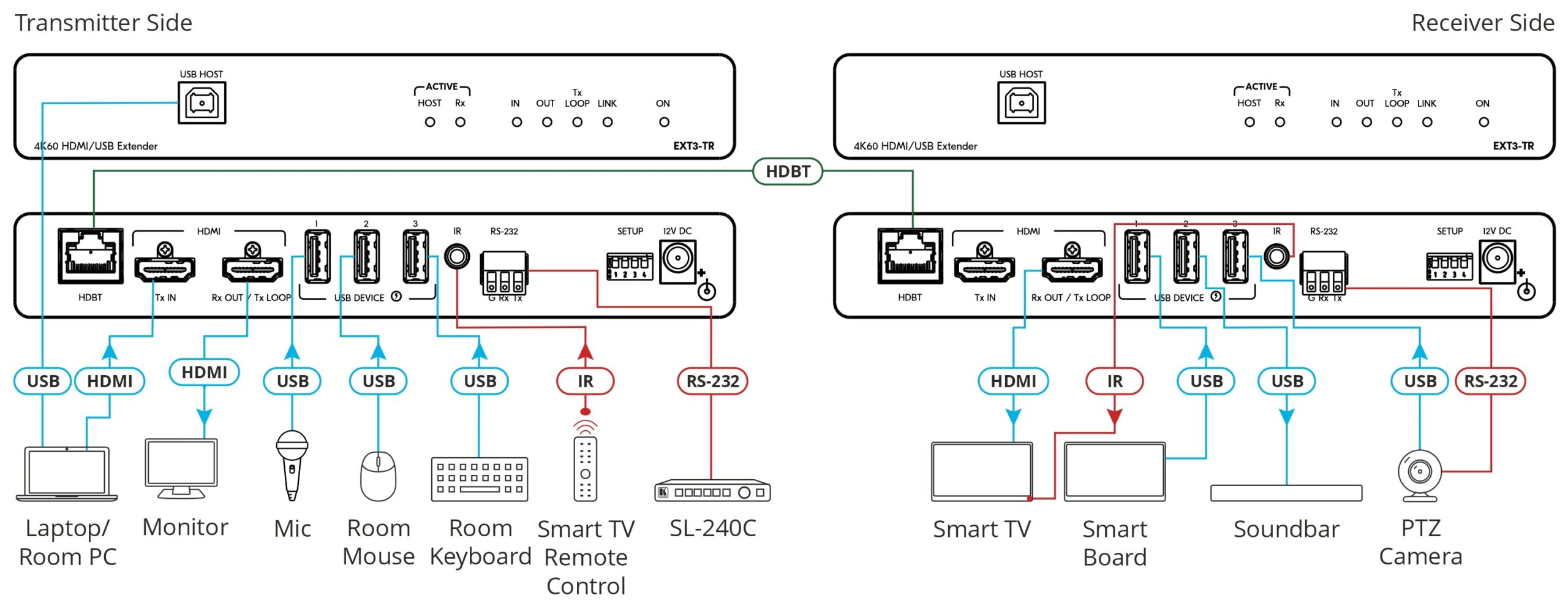

  EXT3−TR is a high−performance, long−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device. EXT3−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−TR receiver−side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.


  High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. EXT3–TR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

  HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.

  HDMI Mirroring — Transmitter–side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain.

  Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.

  Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.

  Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.

  Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

  Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.

  Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.


  Applications
  Corporate — Hybrid and online meetings
  Education — Hybrid and online learning and training
  Any AV, Ethernet and USB room extension applications such as conference rooms, boardrooms, and training facilities

• Category	Specification
  Inputs
  Transmitter-Side Inputs	1 HDMI (female connector)
  Receiver-Side Inputs	1 HDBT (RJ–45 female connector)
  Outputs
  Transmitter-Side Outputs	1 HDBT (RJ–45 female connector) 1 LOOP (HDMI female connector)
  Receiver-Side Outputs	1 HDMI (female connector)
  Ports
  USB 2.0 Host	1 USB-B (female connector)
  USB 2.0 Device	3 USB Type-A (female connectors)
  IR	1 (3.5mm mini jack for IR link extension)
  RS-232	1 (3-pin terminal block for serial link extension)
  USB Features
  Integrated USB Hubs	1
  Extension Line	Up to 40m (130ft) at 4K@60Hz (4:4:4) Up to 70m (230ft) at 4K@30Hz (4:4:4)
  Standards Compliance	HDBaseT 3.0
  Video
  Max Data Rate	18Gbps bandwidth (6Gbps per channel)
  Max Resolution	4K@60Hz (4:4:4) 24bpp
  Content Protection	HDCP 2.3
  HDMI Support	4K as specified in HDMI 2.0b
  Extended USB
  Data Rate	Up to 480Mbps
  Transmitted Data Bandwidth	Up to 300Mbps
  Standards Compliance	USB 1.1 and 2.0
  Extended RS-232	Baud Rate: 300 to 115200
  Power
  Source	12V DC, 2A
  Consumption	600mA
  USB Device Charging Max Total Current	2A
  Enclosure
  Size	Mega Tools
  Material	Aluminum
  Cooling	Convection ventilation
  Environmental Conditions
  Operating Temperature	0° to +40°C (32° to 104°F)
  Storage Temperature	–40° to +70°C (–40° to 158°F)
  Humidity	10% to 90%, RHL non-condensing
  Vibration	ISTA 1A in carton
  Regulatory Compliance
  Safety	CE
  Environmental	RoHS and WEEE
  Accessories	Power adapter, bracket, rubber feet
  Product Dimensions	19.00 cm x 11.60 cm x 2.70 cm (7.48″ x 4.57″ x 1.06″) W, D, H
  Product Weight	0.6 kg (1.2 lbs) approx.
  Shipping Dimensions	34.50 cm x 16.20 cm x 5.20 cm (13.58″ x 6.38″ x 2.05″) W, D, H
  Shipping Weight	1.1 kg (2.5 lbs) approx.
