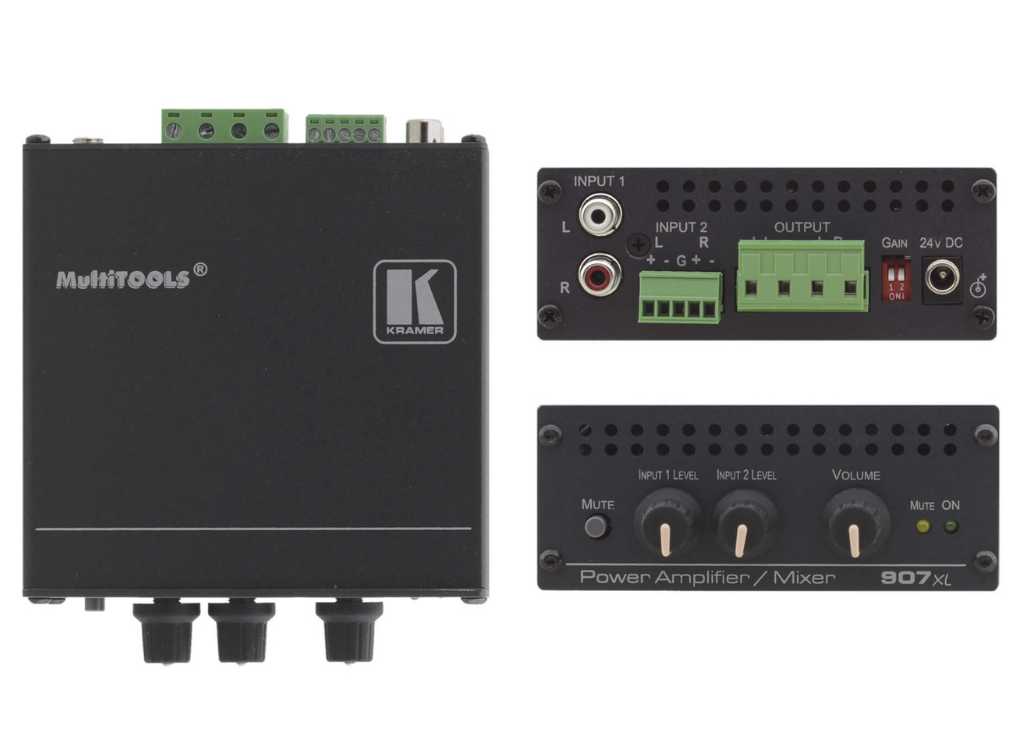

• Kramer Electronics 907XL Stereo Power Amplifier/Mixer (40 Watts per Channel)

  The 907xl is a high−performance power amplifier for line−level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8Ω load.

  High Efficiency — Class D operation.
  Controls — 1 volume control knob for each input & mute button.
  Gain Control DIP–Switches.
  Mute and On Indicator LEDs.
  Compact MultiTOOLS® — Up to 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.


  Applications

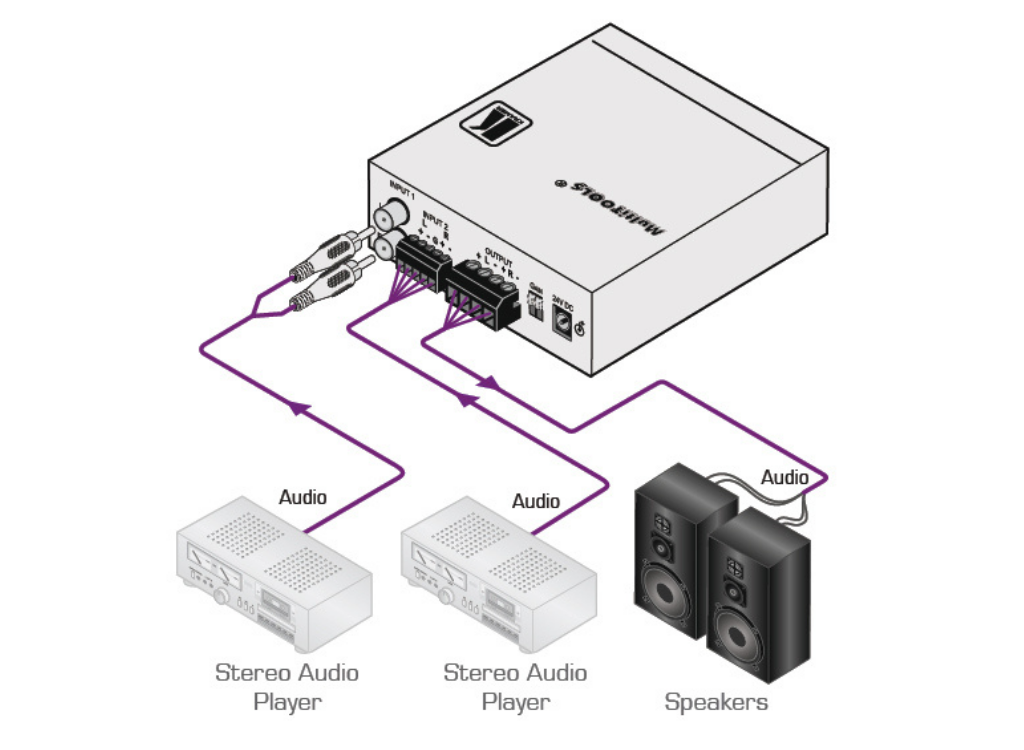

  Presentation rooms and multimedia applications for quick, local audio amplification.
  Personal audio listening (for example, a PC and portable CD player).

• Category	Details
  Inputs	1 balanced stereo audio (terminal block), 1 unbalanced stereo audio (RCA connectors)
  Output	Speaker output (terminal block connector)
  Output Power	40W per channel into 8Ω
  Output Music Power	150W per channel into 8Ω
  Input Sensitivity	1.2Vrms
  Amplifier Type	Class D
  Voltage Gain	36dB (x10)
  Bandwidth (-3dB)	25kHz
  S/N Ratio	66dB
  Coupling	Inputs: AC, Outputs: DC
  Audio THD + Noise	1.2%
  Audio 2nd Harmonic	1%
  Power Consumption	24V DC, 2.2A
  Controls	2 gain DIP-switches, mute button, 2 input level knobs, 1 volume knob
  Operating Temperature	0° to +40°C (32° to 104°F)
  Storage Temperature	–40° to +70°C (–40° to 158°F)
  Humidity	10% to 90%, RHL non-condensing
  Included Accessories	Power supply
  Product Dimensions	10.68cm x 10.35cm x 4.36cm (4.20″ x 4.07″ x 1.72″) W, D, H
  Product Weight	0.4kg (0.8lbs) approx.
  Shipping Dimensions	35.10cm x 21.20cm x 7.20cm (13.82″ x 8.35″ x 2.83″) W, D, H
  Shipping Weight	1.3kg (2.9lbs) approx.
