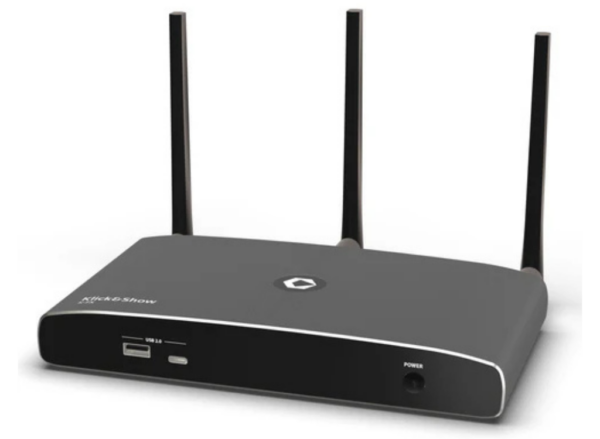

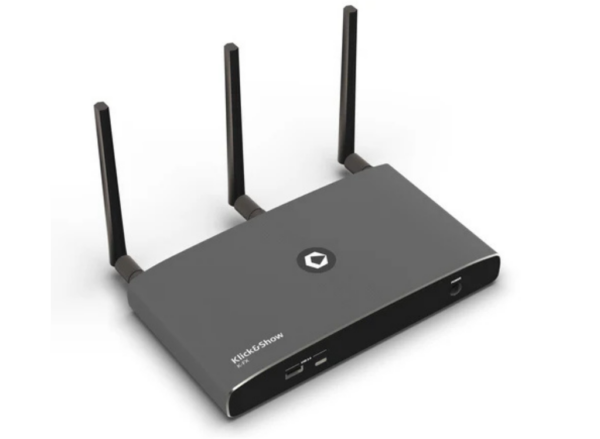

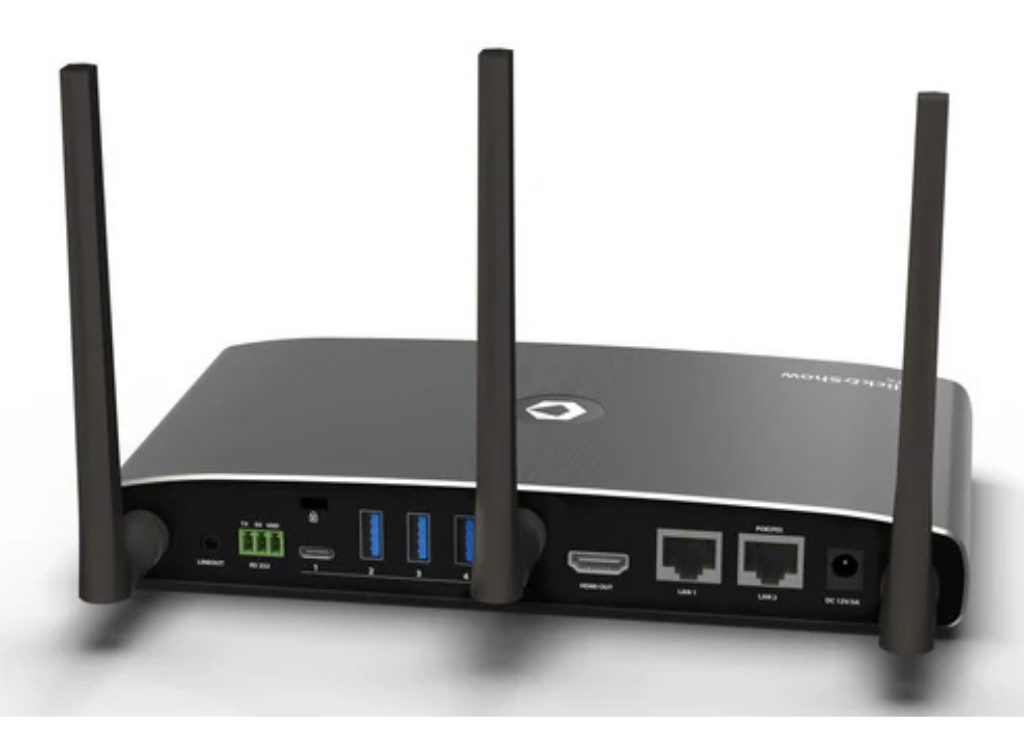

Kindermann Klick&Show K-FX Base Unit | 7488000340

• Description
• Specifications
• Downloads

• Kindermann Klick&Show K-FX Base Unit | 7488000340

  Klick&Show K-FX is the perfect solution for hybrid meetings. The next generation wireless presentation system supports video meetings with software based UC clients like Teams, Zoom, Webex and many others. Say good bye to cables in your conference room! Klick&Show K-FX supports wireless screensharing and room based UC equipment like USB- cameras and USB-speakerphones to attend meetings using your own computer and UC account. Klick&Show K-FX is a real all-rounder it supports screensharing using intuitive transmitters, native software clients and AirPlay, Miracast or GoogleCast.





• Feature	Description
  Wireless Mirroring (BYOD)	Yes
  Wireless Transmission (BYOM)	Yes
  Compatible Transmitters	HDMI, USB-C, 4K HDMI, 4K USB-C
  OS Compatibility	– Windows 10/11: Transmitter, Klick&Show App, Miracast, Google Cast – macOS: Transmitter, Klick&Show App, AirPlay, Google Cast – Mobile devices: USB-C transmitter (DP ALT mode), Android App, AirPlay, Miracast, Google Cast
  Miracast Support	Yes, integrated, supports Miracast-Direct (P2P) and Miracast-over-Infrastructure (MS MICE)
  Maximum Resolution, Wireless	4K with 4K transmitter; 1080p with Full-HD transmitter / Klick&Show App / Airplay / Miracast / Google Cast
  Simultaneous Connections (RJ45)	More than 30
  Simultaneous Connections (WLAN)	Up to 16
  Splitscreen	Up to 4 simultaneously, layout adjustable
  Low Latency Mouse Cursor	Yes, with Klick&Show App for Windows / macOS
  Touch-back / USB-HID Support	Yes, for use with interactive displays, whiteboards, projectors
  WiFi Frequency Band	2.4 / 5 GHz
  WiFi Standard	WiFi 5 (IEEE 802.11b/g/n/ac)
  WiFi Antennas	2×2 MIMO + 1×1 MIMO (Miracast)
  WiFi Bandwidth	Up to 1200 Mbps
  Security Standard	WiFi: WPA PSK, WPA2 PSK; Video transmission encrypted with AES-256 bit + RSA1024 bit
  HDMI Output	1× HDMI 2.0 / 3840×2160@60/30 Hz, 1920×1080@60Hz, 1280×720@60Hz
  HDCP Version	HDCP 1.4, HDCP 2.0
  HDMI Input / Max. Resolution	via HDMI transmitter (4K30 or 1080p60)
  Audio Input	Transmitter, Klick&Show App, AirPlay, Miracast, Google Cast
  Audio Output (Analog)	1× 3.5 mm stereo jack

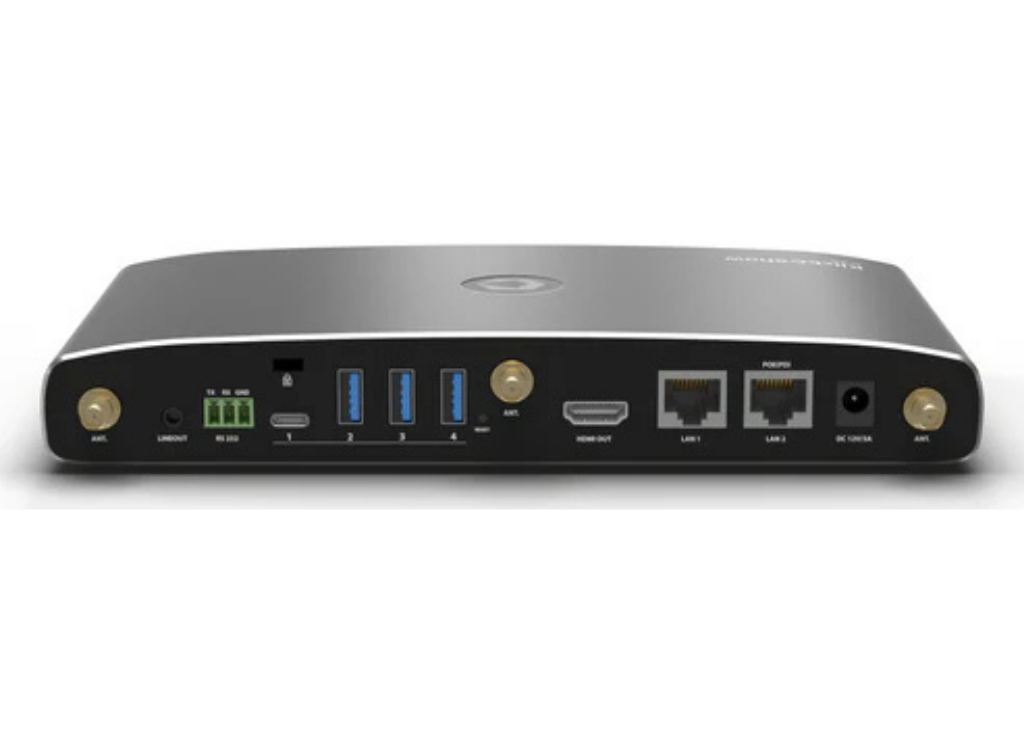

  USB Ports	– USB 2.0 (Type C): 1× (front) – USB 2.0 (Type A): 1× (front) – USB 3.0 (Type C): 1× (rear), 5V/1.5 A – USB 3.0 (Type A): 3× (rear), 5V/1.5 A
  LAN (RJ45)	PoE plus – IEEE802.3at PoE standard
  Control	Network: Web GUI, Telnet; RS232: 1× 3-pin Euroblock (rear); 2× GPI: 1× 3-pin Euroblock (rear)
  Power Consumption Max.	36 W
  Part Number	7488000340

• Description	Downloads
  Datasheet	Downloads
