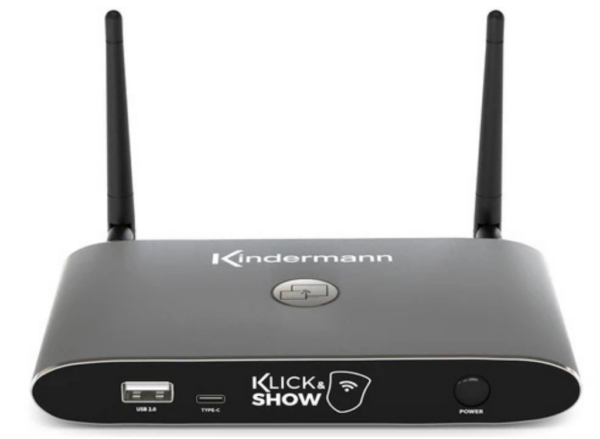

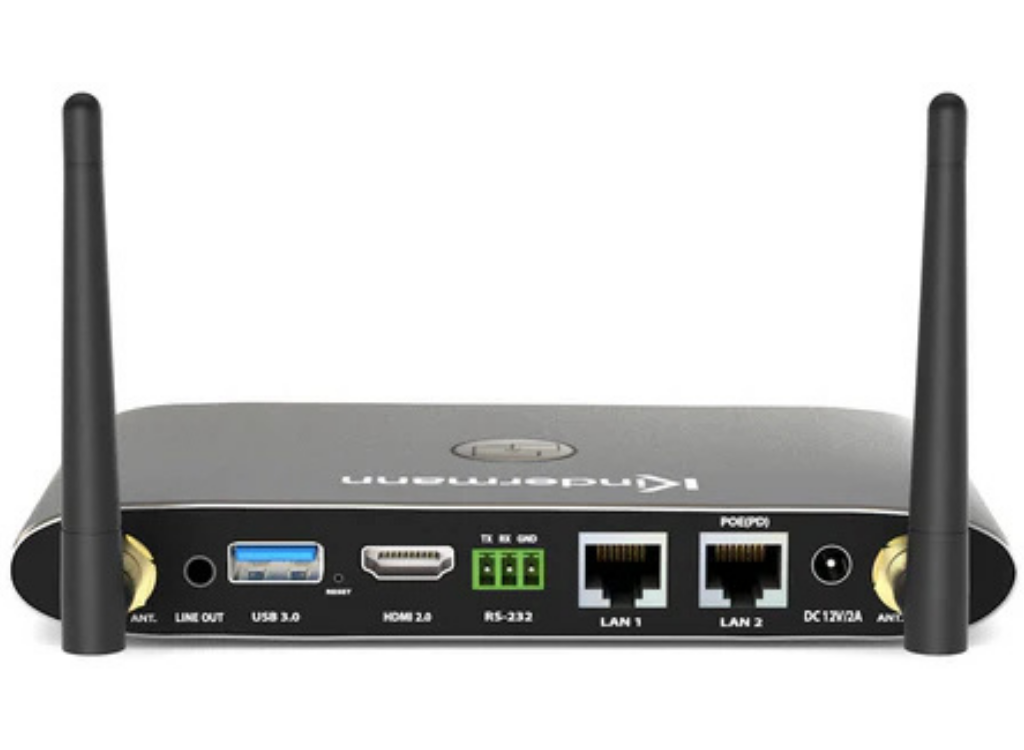

Kindermann Klick&Show K-40 Base Unit | 7488000315
Klick&Show K-40 is a cost-effective Wireless Presentation System for small to mid-sized meeting rooms, classrooms and huddle spaces. Klick&Show K-40 allows users to share content from their laptops or mobile devices in a simple way – without configuration, cables and wasted time. Computer users simply launch the WirelessMedia Client software to mirror content on the main screen. Android isers download the free app from GooglePlay Store, while Apple users can share the content via AirPlay. HDMI or USB-C transmitters are available as an option.
-
Feature Description Wireless mirroring (BYOD) Yes Wireless transmission (BYOM) USB camera/audio compatible Compatible transmitters HDMI, USB-C, 4K HDMI, 4K USB-C, USB-A Operating System Compatibility – Windows 10/11: Transmitter, Klick&Show App, Google Cast, Miracast (optional adapter)
– macOS: Transmitter, Klick&Show App, AirPlay, Google Cast
– Mobile devices: USB-C transmitter (DP ALT mode), Android App, AirPlay, Google Cast, Miracast (optional adapter)Miracast support Optional, supports Miracast-Direct (P2P) and Miracast-over-Infrastructure (MS MICE) Maximum resolution, wireless 4K with 4K transmitter; 1080p with Full-HD transmitter/Klick&Show App/Airplay/Miracast/Google Cast Simultaneous connections (RJ45) More than 30 Simultaneous connections (WLAN) Up to 16 Splitscreen Up to 4 simultaneously, layout adjustable Low latency mouse cursor Yes, with USB-A transmitter and Klick&Show App for Windows/macOS Touch-back / USB-HID support Yes, e.g., for use with interactive displays (touchscreens), whiteboards, projectors WiFi frequency band 2.4 / 5 GHz WiFi standard WiFi 5 (IEEE 802.11b/g/n/ac) WiFi antennas 2×2 MIMO WiFi bandwidth Up to 1200 Mbps Security standard WiFi: WPA PSK, WPA2 PSK; Video transmission encrypted with AES-256 bit + RSA1024 bit HDMI output 1× HDMI 2.0 / 3840×2160@60/30 Hz, 1920×1080@60Hz, 1280×720@60Hz HDCP version HDCP 1.4, HDCP 2.0 HDMI input / max. resolution via HDMI transmitter (4K30 or 1080p60) Audio input Transmitter, Klick&Show App, AirPlay, Google Cast, Miracast (with optional Miracast USB WiFi adapter) Audio output (analog) 1× 3.5 mm stereo jack USB ports – USB 2.0 (type C): 1× (front)
– USB 2.0 (type A): 1× (front)
– USB 3.0 (type C): USB 3.0 (type A) 1× (rear)
– USB 3.0 (type B)LAN (RJ45) IEEE802.3af PoE standard Control Network: Web GUI, Telnet; RS232: 1× 3-pin Euroblock (rear); 2× GPI: 1× 3-pin Euroblock (rear) Power consumption max. 18 W Part number 7488000330 -
Description Downloads Datasheet Downloads
