Kiloview D260 SRT/RTSP/RTMP/HLS to SDI/HDMI/DVI Decoder

• Description
• Specifications
• Downloads

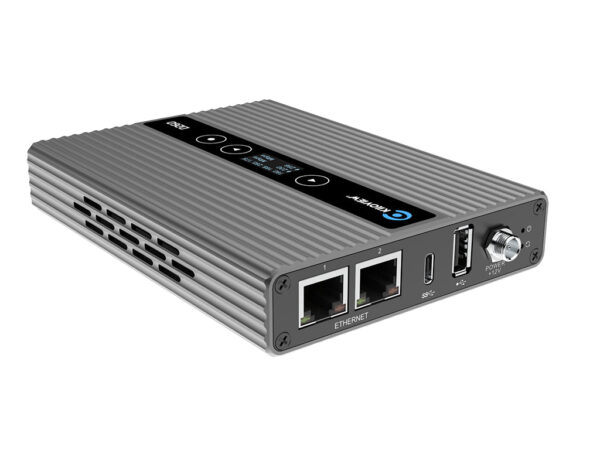

• Kiloview D260 SRT/RTSP/RTMP/HLS to SDI/HDMI/DVI Decoder


  Upgrading Decoding Performance with H.265/H.264
  D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom  to single display or PIP with adjustable figures.

  D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.

  Upgrading Decoding Performance with H.265/H.264
  D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

  More Protocols Supported
  For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP

  * Support of NDI|HX3 is still in beta version.

  Extended Output Interfaces
  As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.

  16 Preview + 4 Output
  D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
  Powerful Audio Decoding
  D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

  Custom Layouts
  Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

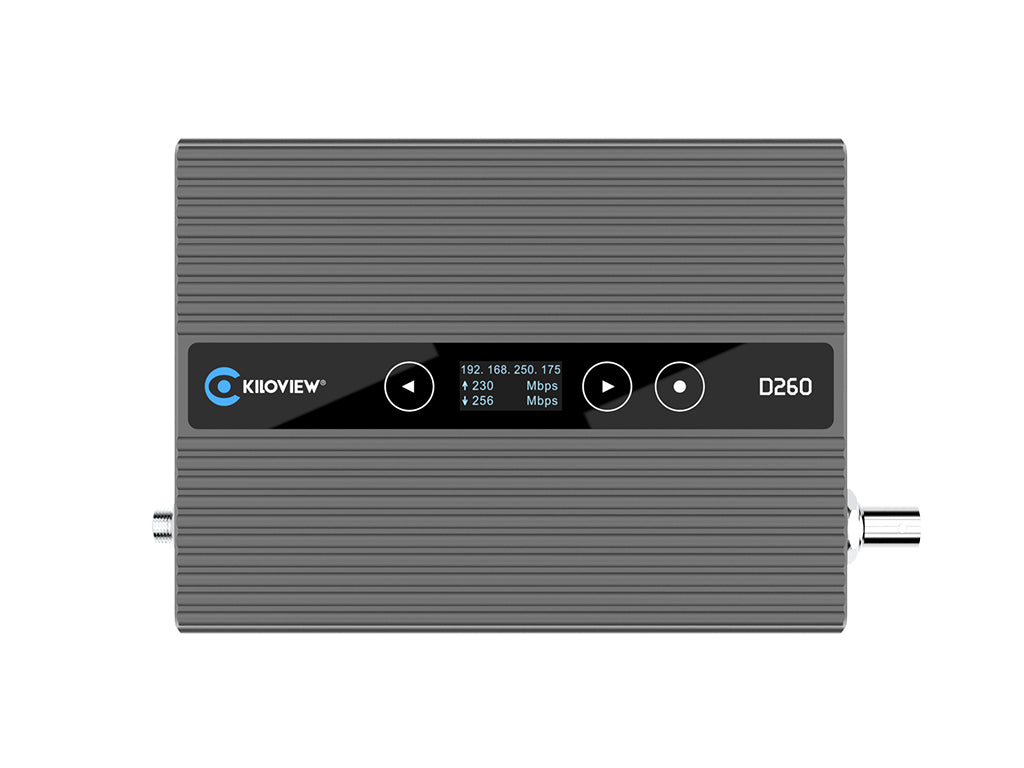

  Display and Touch Button
  D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

• Category	Specifications
  Model	D260
  Video Output	2x HDMI, 1x 3G-SDI
  Audio Output	HDMI, SDI, 1x 3.5mm Line Out
  Video Formats	H.264 (AVC) up to Level 5.2, H.265 (HEVC) up to Level 5.1
  Video Decoding	4 channels of H.264/H.265, up to 1080p60 resolution
  Audio Formats	AAC, MPEG-4, MPEG-2, G.711, Opus, LPCM
  Streaming Protocols	NDI
  Display	0.96” LCD Display with Touch Button
  Layouts	Custom 1/2/3/4 Layouts
  Intercom	Yes
  OSD (On-Screen Display)	Yes
  Tally Light	Yes
  Network Connections	2x Ethernet Ports (10/100/1000M)
  USB Ports	1x USB 2.0 Type-C, 1x USB 2.0 Type-A
  Power Supply	DC 12V/1A
  Management	WebUI, KiloLink Server
  Power Consumption	7W (MAX)
  Size	162.85mm x 104.00mm x 25.00mm
  Weight	328.18g
  Operating Temperature	-20°C to 60°C

• Description	Downloads
  Kiloview D260 SRT/RTSP/RTMP/HLS to SDI/HDMI/DVI Decoder User Manual	Downloads
