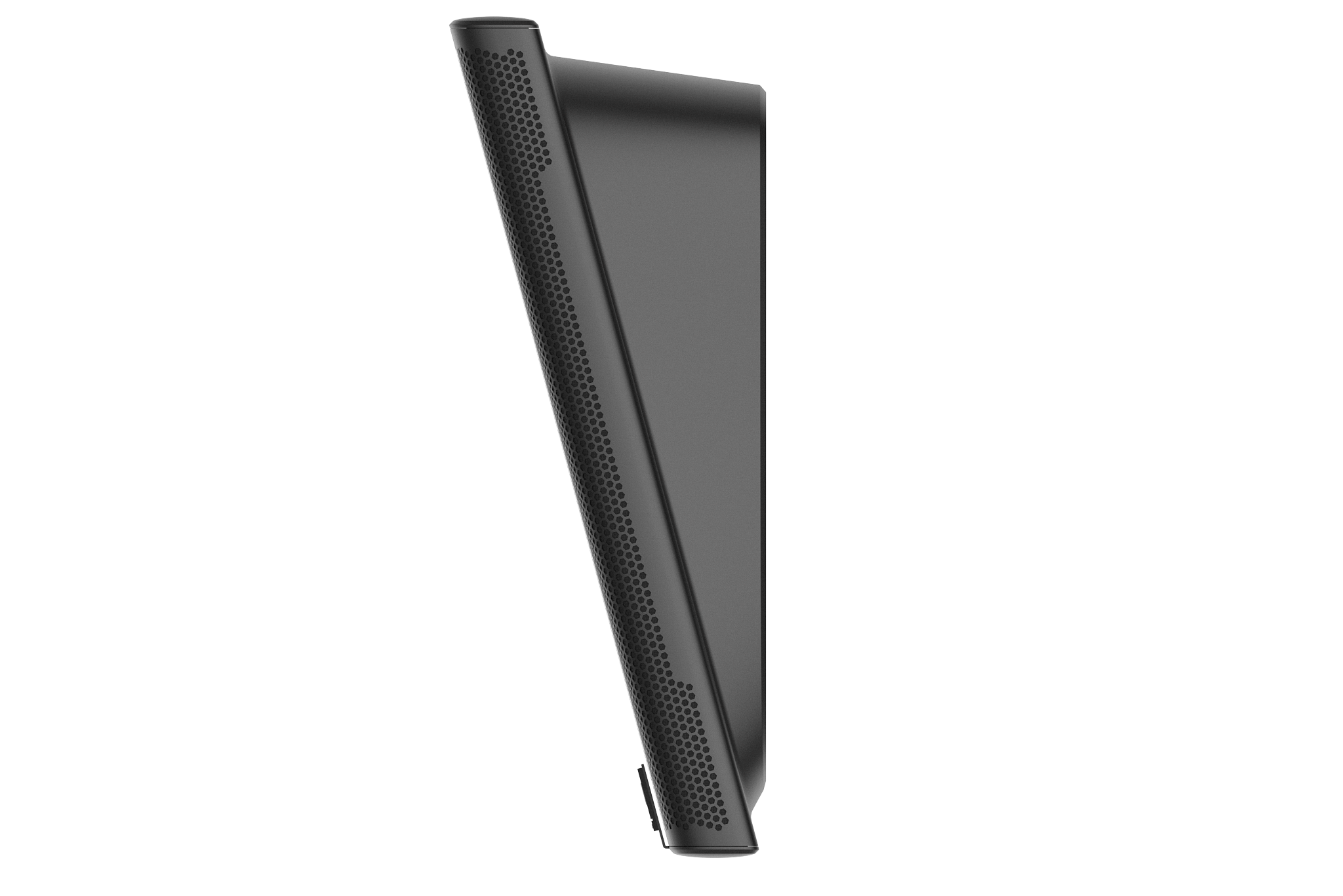

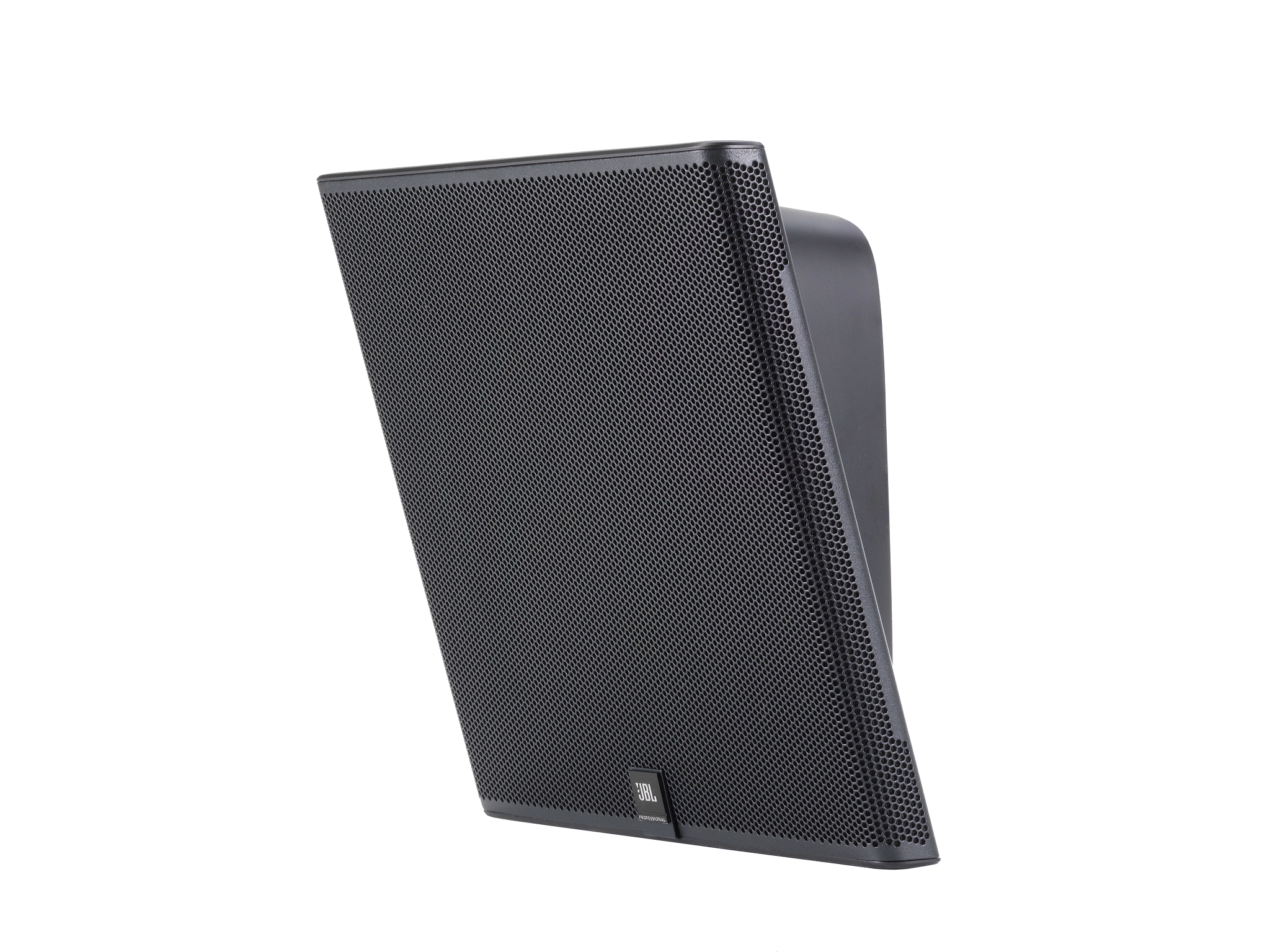

• JBL PRO SLP14/T-BK Sleek, Low-Profile On-Wall Loudspeaker

  Sleek, Low-Profile On-Wall Loudspeaker
  The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

  Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

  The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.


  Features
  Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  Power handling: 50W continuous pink noise, 100W continuous program
  15° down-tilted coverage allows flush-to-wall mounting
  Included slide-in wall bracket makes installation a breeze
  Included rain cover protects terminal compartment in protected outdoor applications
  Multi-tap transformer for use in 70V/100V systems
  ADA-compliant at less than 4 inches deep
  Available in black or white finishes

• Feature	Specification
  Frequency Range (-10dB)	70 Hz – 20 kHz (on wall)
  Frequency Response (+/-3 dB)	80 Hz – 18 kHz (on wall)
  Power Rating	100W Continuous Program (2 hrs)
  	50W (200W peak) Continuous Pink Noise (2 hrs)
  	30W (120W peak) Continuous Pink Noise (100 hrs)
  Sensitivity	85 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
  Maximum SPL	108 dB peak (102 dB continuous, 2 hr) @ 1m
  Coverage Angle	140°H x 120°V
  Directivity Factor (Q)	6.9
  Directivity Index (DI)	8.4 dB
  Nominal Impedance	8Ω (at 8Ω tap setting)
  Transformer Taps	70V: 25 W, 12.5 W, 6.3 W, 3.2 W
  	100V: 25 W, 12.5 W, 6.3 W
  Driver	120 mm (4.5 in) woofer, polypropylene cone
  	25 mm (1 in) voice coil on Kapton™ voice coil former
  	20 mm (0.79 in) titanium dome tweeter with neodymium magnet
  Terminals	4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge
  Enclosure Material	Polycarbonate + ABS Fireproof, UL94V-0 flammability rated
  Color	Available in black or white (-WH). Paintable
  Dimensions	286mm W x 263mm H x 100mm D (11.3 x 10.4 x 3.9 in)
  Net Weight	2.8kg (6.2 lbs)
  Included Accessories	Wall-mount slide-on bracket, 4-pin Euroblock plug, protective cover
