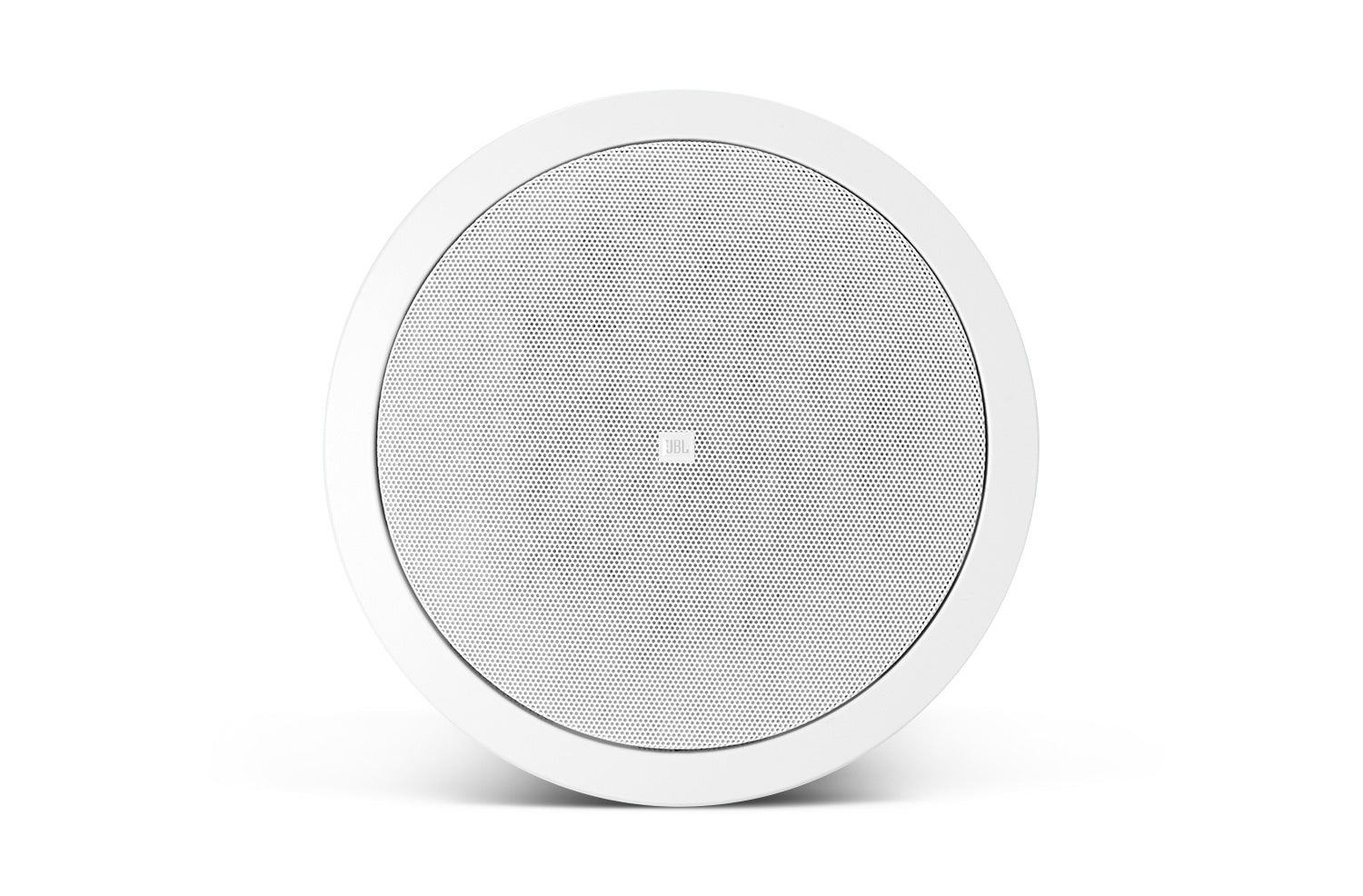

• JBL PRO Control 26CT 6.5″ Ceiling Loudspeaker | JBL0109

  6.5″ Ceiling Loudspeaker Transducer Assembly
  The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5″ woofer and 3/4″ titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.


  Features
  Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  High power, wide frequency response and low distortion for high sound level capability.
  Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

• Feature	Specification
  Frequency Range	75 Hz – 20 kHz
  Power Rating	See transformer taps
  Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
  Coverage Angle	110° conical
  Directivity Index (DI)	4.6 dB
  Maximum SPL (1m)	107 dB (top 70V/100V tap)
  Drivers	LF Driver: 165 mm (6.5 in), HF Driver: 19 mm (¾ in)
  Input Connectors	Removable 4-pin locking connector with screw-down terminals
  Dimensions (H x Dia)	210 mm x 252 mm (8.3 in x 9.9 in)
  Net Weight (each)	4.2 kg (10 lbs)
  Shipping Weight (pair)	9.7 kg (21 lbs)
  Color	White
  Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849
  Backcan	Formed steel (included “blind-mount”)
  Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
  Ceiling Cutout Size	220 mm (8.75 in) diameter (cardboard cutout template included)
  Included Accessories	C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), Cutout template, Paint shield, Removable locking wiring connector
  Plenum Usage	Yes, backcan included
