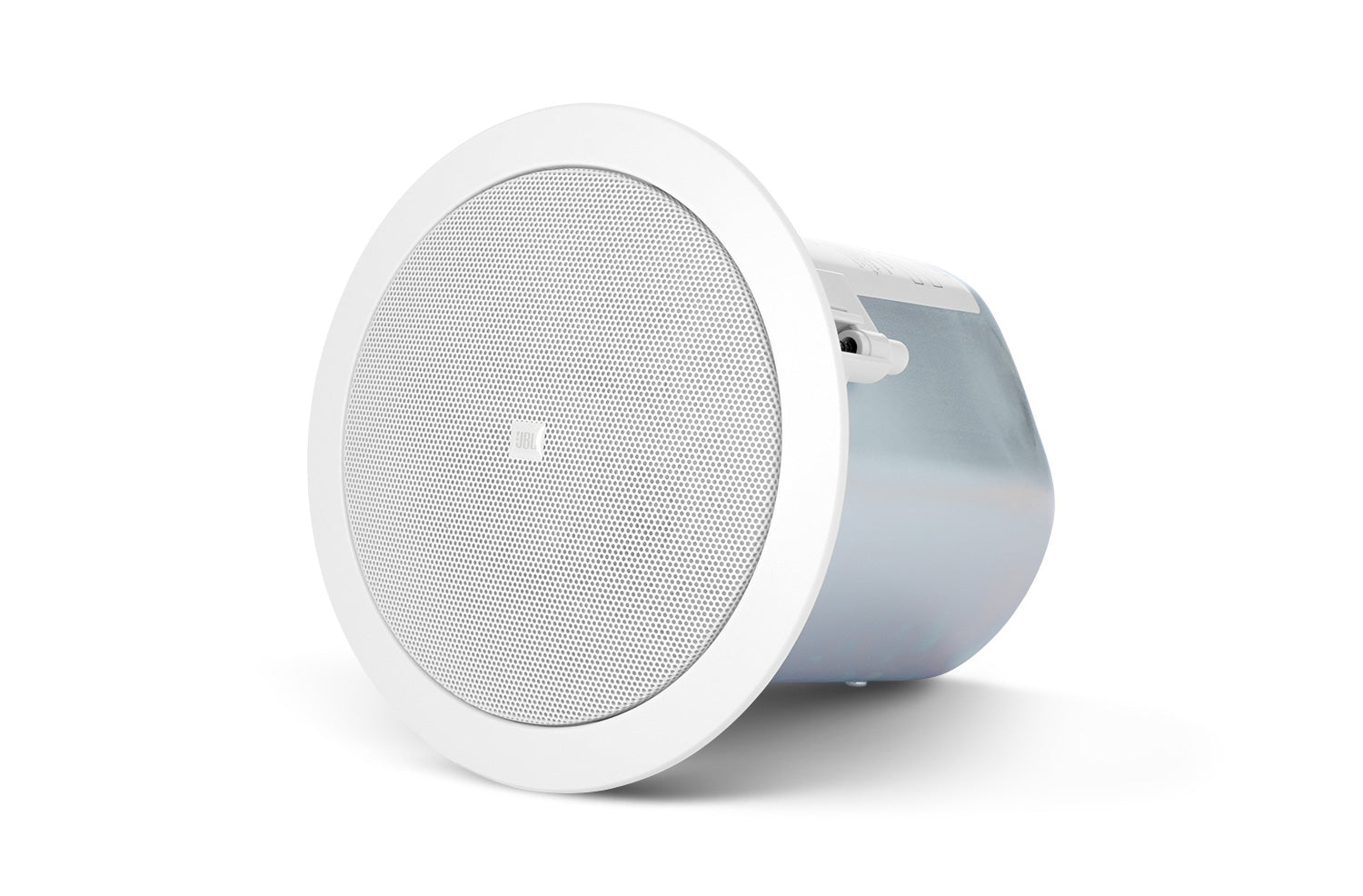

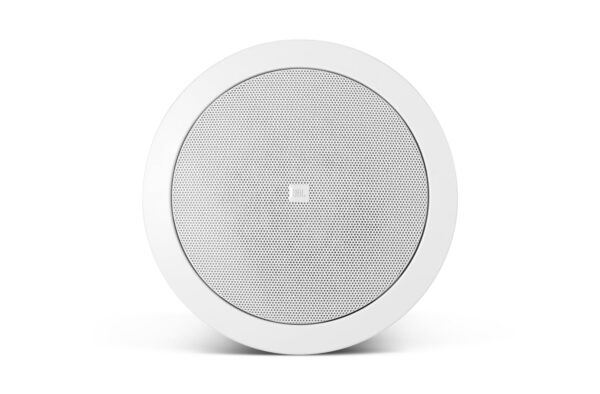

• JBL Control 24CT Background/ Foreground Ceiling Loudspeakers – White

  Background/ Foreground Ceiling Loudspeakers
  The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

  Features

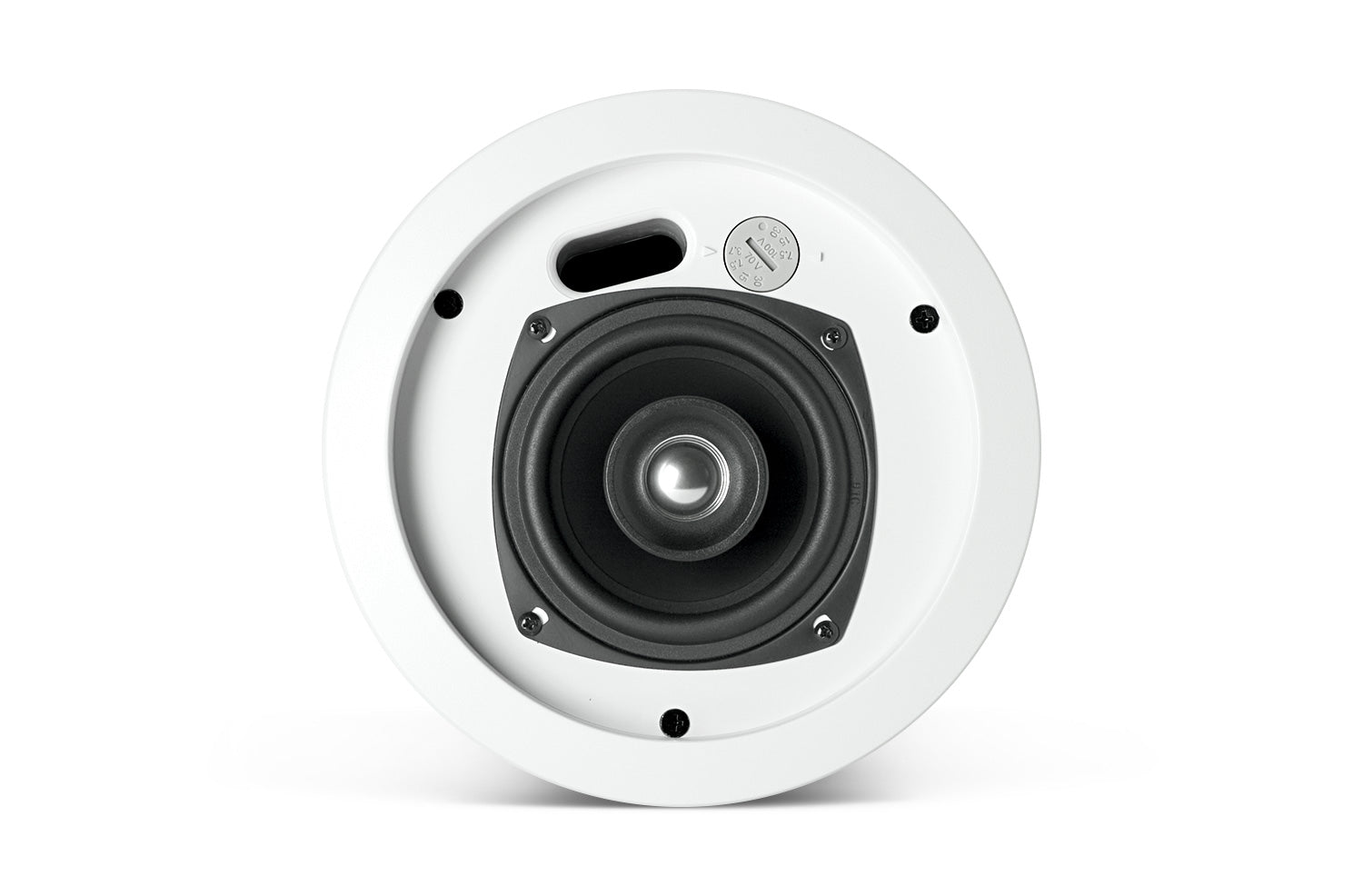

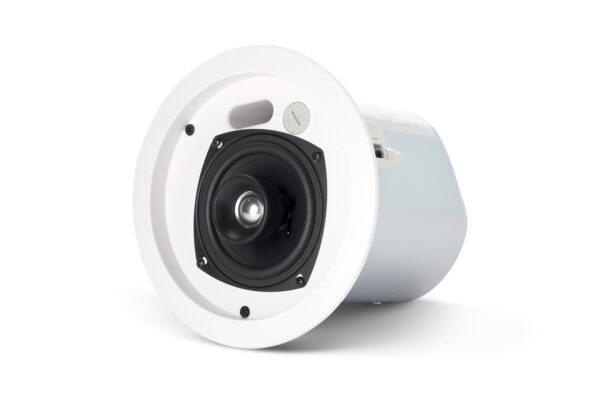

  Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  High power, wide frequency response and low distortion for high sound level capability.
  Wide coverage allows fewer speakers, reducing the cost of
  Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

• Specification	Description
  Frequency Range	80 Hz – 20 kHz
  Power Rating	See transformer taps
  Transformer Taps	70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
  Coverage Angle	130° conical
  Directivity Factor (Q)	2.4 dB averaged 500 Hz to 4 kHz
  Directivity Index (DI)	3.8 dB averaged 500 Hz to 4 kHz
  Maximum SPL (1m)	102 dB (top 70V/100V tap)
  Nominal Impedance	16 ohms (Min Z 16.1 ohms @ 320 Hz)
  Sensitivity	86 dB (100 Hz – 10 kHz)
  Input Connectors	Removable 4-pin locking connector with screw-down terminals.
  Drivers	LF Driver: 100 mm (4.0 in)<br>HF Driver: 19 mm (0.75 in)
  Color	White
  Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  Backcan	Formed steel (included “blind-mount”)
  Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
  Ceiling Cutout Size	168 mm (6.6 in) diameter (cardboard cutout template included)
  Included Accessories	C-shaped support backing plate<br>2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)<br>Cutout template<br>Paint shield<br>Removable locking wiring connector
  Plenum Usage	Yes, backcan included
