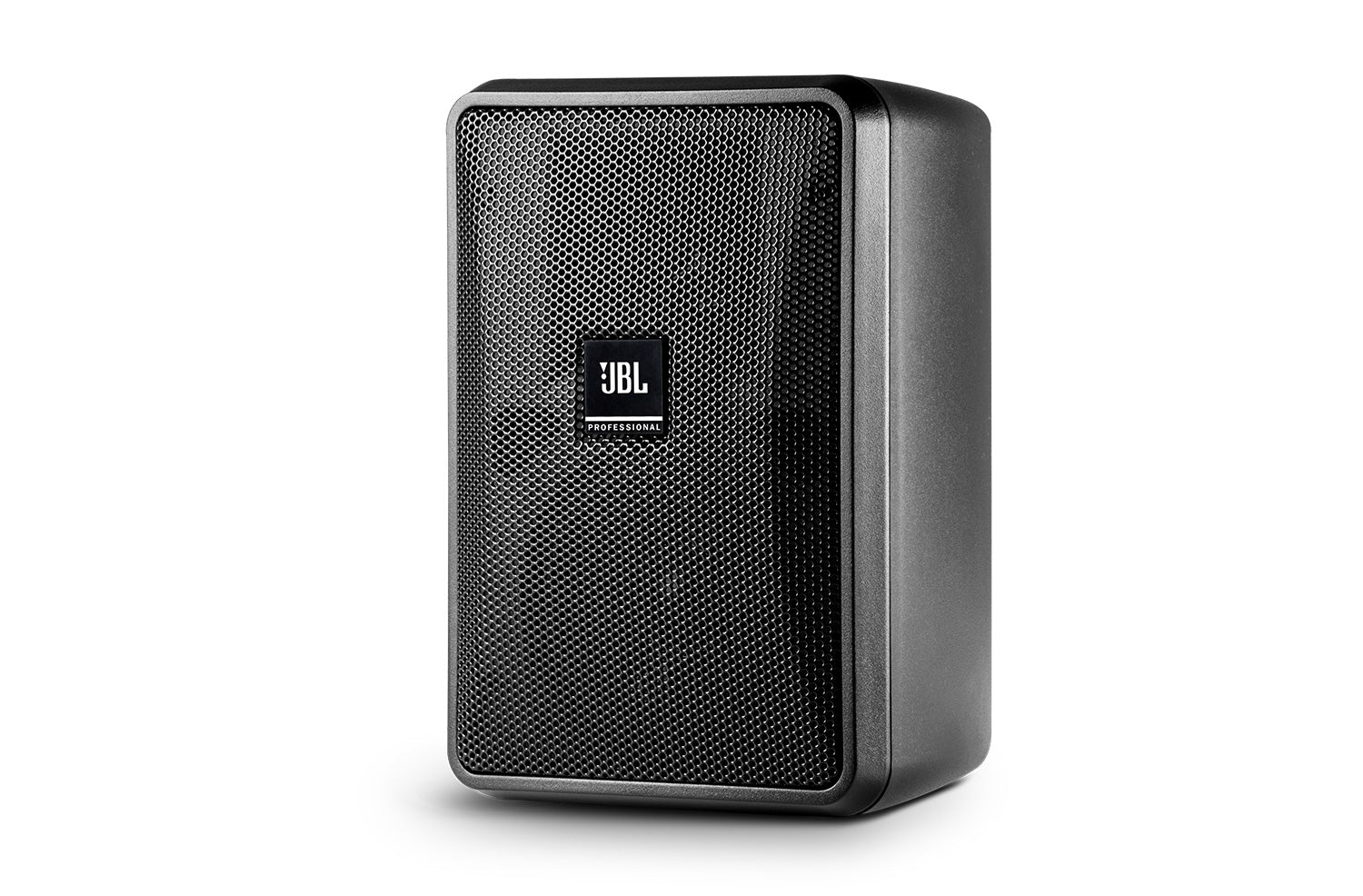

• JBL Control 23-1 Ultra-Compact Indoor/OutdoorBackground/Foreground Speaker – Black

  Ultra-Compact Indoor/Outdoor Background/Foreground Speaker
  The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

  Features
  Components:
  • 3” woofer with woven fiberglass cone
  • 1/2” PEI diaphragm tweeter with fluid cooling
  Contemporary, high-design appearance
  Built-in InvisiBall® mounting hardware*, plus available U-bracket
  Weather resistant enclosure and transducers
  Wide 100° x 100° coverage
  50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
  High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

• Specification	Description
  Frequency Range (-10dB)	70 Hz to 20 kHz
  Frequency Response (±3 dB)	95 Hz – 19 kHz
  Power Rating	100W Continuous Program (2 hrs)<br>50 W (200W peak), Continuous Pink Noise (2 hrs)<br>40 W (160W peak) Continuous Pink Noise (100 hrs)
  Maximum Input Voltage	17.2 V RMS (2 hrs), 34.4 V peak
  Maximum SPL (1m)	103 dB ave. Continuous Pink Noise (109 dB peak)
  Sensitivity	86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  Coverage Angle	100°H x 100°V
  Directivity Factor (Q)	5.8 (averaged 1kHz – 16kHz)
  Directivity Index (DI)	7.2 dB (averaged 1kHz – 16kHz)
  Impedance	8 ohms (THRU setting)
  Crossover Type	2nd order low-pass, 2nd order high-pass
  Transformer Taps	70V: 15W, 7.5W, 3.7W, 1.8W<br>100V: 15W, 7.5W, 3.7W<br>Insertion Loss <0.43 dB at any tap setting<br>Thru Setting: 8Ω nominal
  Recommended Protective High-Pass	70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
  Drivers	LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.<br>HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  Enclosure	High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  Grille	Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  Mounting Hardware	InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
  Outdoor Capability	IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
  Input Connectors	Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
  Agency Rating	ROHS-compliant; Transformer UL Recognized per UL1876
  Colors	Black (RAL9004) or white (-WH, RAL9016)
  Dimensions (H x W x D)	200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
  Net Weight	1.8 kg (4.0 lbs)
  Shipping Weight	3.85 kg (8.5 lbs) for the pair-pack (for 2 speakers)<br>12.0 kg (26.5 lbs) for the master-pack (for 6 speakers)
  Included Accessories	InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key
  Optional Accessories	MTC-23UB-1 – Yolk-type U-bracket (&-WH)<br>MTC-23WMG-1 – WeatherMax grille with backing (&-WH)<br>MTC-23CM – Ceiling-Mount InvisiBall adapter (&-WH)
