• JBL Control 14C/T Two-Way 4″ Coaxial Ceiling Loudspeaker – White

  Two-Way 4″ Coaxial Ceiling Loudspeaker

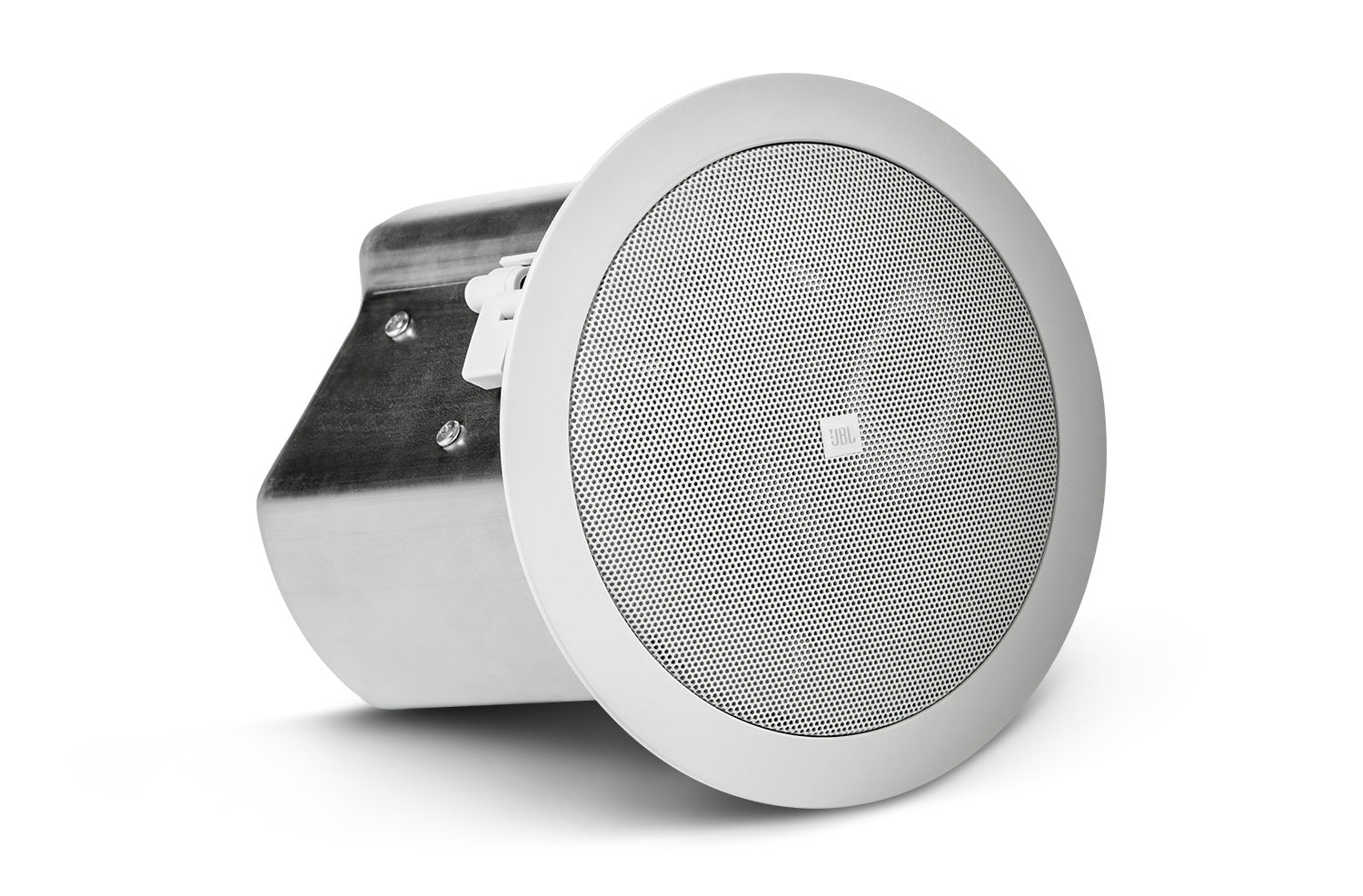

  Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

  Features
  Components:
  • 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  Blind-mount backcan for quick and easy install
  Dual conduit/cable clamps
  Combined 70V/100V and low impedance direct operation
  • 30 Watts at 8Ω nominal setting
  • 25W multi-tap at 70V/100V
  74 Hz – 20 kHz bandwidth with wide 120° coverage
  White or black (-BK)

• Feature	Description
  Frequency Range (-10dB)	74 Hz – 20 kHz
  Power Rating	– 60 Watts Continuous Program Power – 30 Watts Continuous Pink Noise (120W peak), 100 hr
  Transformer Taps	– 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
  Frequency Response (±3 dB)	100 Hz – 20 kHz
  Sensitivity	87 dB (1kHz – 16 kHz)
  Coverage Angle	120° conical
  Directivity Factor (Q)	7.6
  Directivity Index (DI)	8.1 dB
  Maximum SPL (1m)	– 101 dB (low-impedance, 108 dB peak) – 101 dB (top 70V/100V tap)
  Impedance	8 ohms (in direct/bypass 8Ω setting)
  Crossover Network	12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
  Drivers	– LF Driver: 100 mm (4.0 in) – HF Driver: 19 mm (3/4 in)

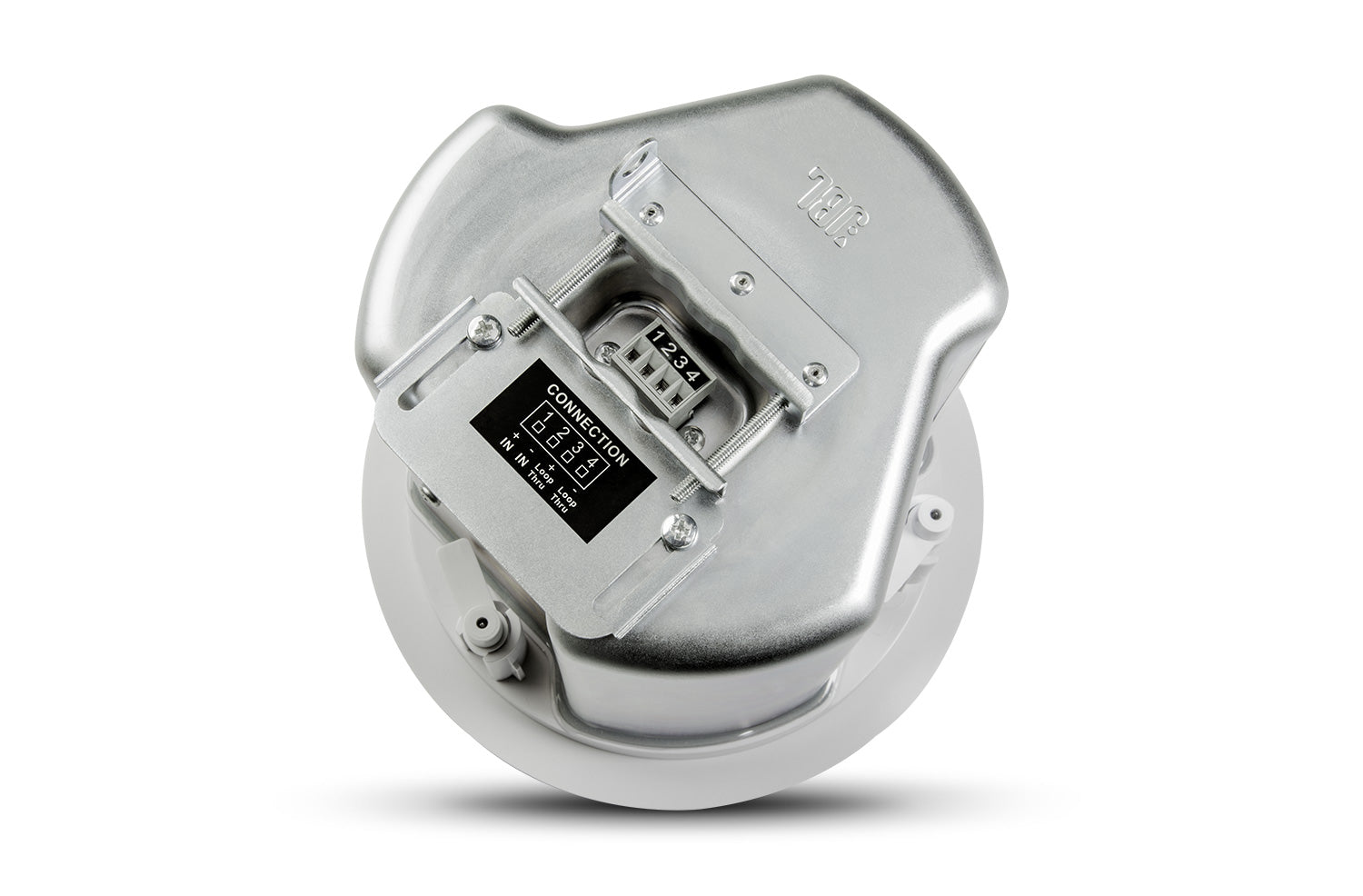

  Input Connectors	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
  Connector Wiring	Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru
  Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
  Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
  Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  Dimensions	196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
  Ceiling Cutout Size	170 mm (6.7 in) diameter (cardboard cutout template included)
  Ceiling Thickness Range	Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
  Safety Seismic Attachment	One point, top surface
  Net Weight	2.2 kg (4.8 lbs, one speaker)
  Shipping Weight	8.2 kg (17.9 lbs, pair in master carton)
  Included Accessories	C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
  Optional Accessories	MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
  Color	White or Black
  Backcan	Formed steel (included “blind-mount”)
  Baffle/Rim	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
  Plenum Usage	Yes, backcan included

• JBLCONTROL14CTW : Datasheet
