Intel Gigabit CT Desktop Adapter PCI-express | EXPI9301CTBLK
- Description
- Specifications
-

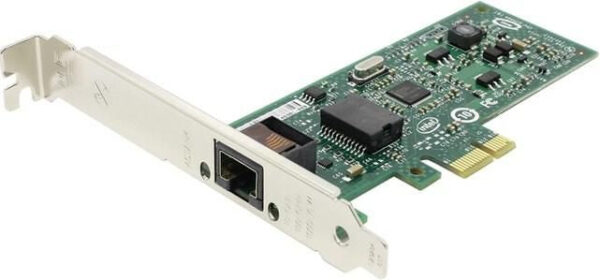

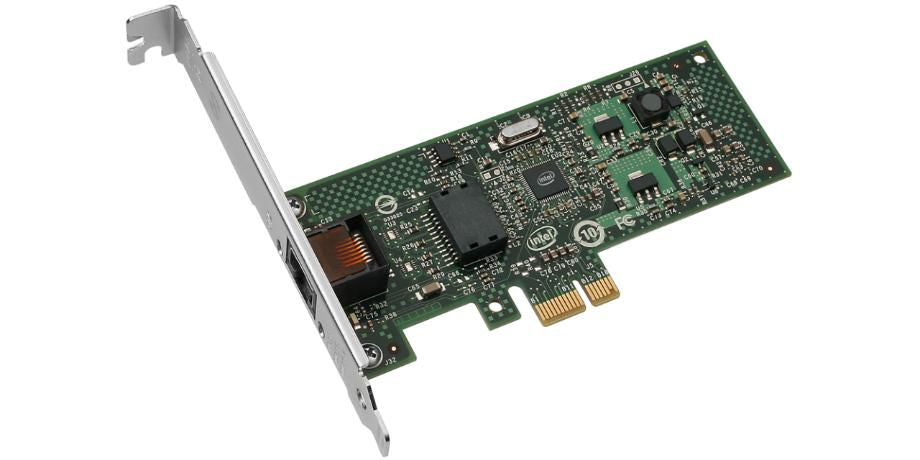

Intel Gigabit CT Desktop Adapter PCI-express
Gigabit CT Desktop Adapter PCI-express – Bulk packed
For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well. -
Category Details Design Internal: Yes, Certification: FCC B, UL, CE Legal Information EU ECCN: N/A, US ECCN: 5A991, UNSPSC Code (Icecat): 43201404 Logistics Data HS Code: 85176990 Network LAN Controller: Intel® 82574L Max Data Transfer Rate 1000 Mbit/s Max Operating Distance 100 m Supported Data Transfer Rates 10/100/1000 Mbit/s Operational Conditions Temp: 0 – 55°C, Storage Temp: -40 – 70°C Other Features Bracket Height: Low-Profile & Full-Height, Cabling Type: Cat-5 (100m) Compliance Standards IEEE 802.3z PCI Interface PCIe v1.1 (2.5 GT/s, x1 Lane) Ports & Interfaces Wired, 1 × RJ-45 Ethernet Port, PCI Express Power Consumption Typical: 1.9W, TDP: 1.9W Package Dimensions 13.5 cm (D) × 14.7 cm (W) × 2.5 cm (H), Gross Weight: 0.084 kg Product Dimensions 11.92 cm (D) × 5.53 cm (W) × 12 cm (H), Net Weight: 0.08 kg System Requirements Windows 2000/XP/Vista/Server 2003/2008, Linux, DOS Vendor Information Brand: Intel, Warranty: 3 Years Categories Server & Computer Parts, System Components, Networking Cards
