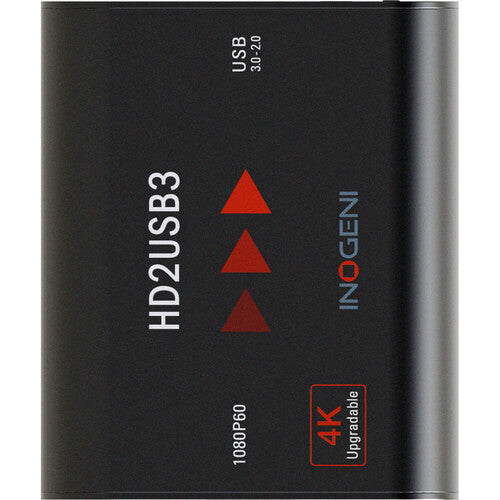

Inogeni 4K Upgradable 1080p / 60 HDMI to USB 3.0 Converter | HD2USB3

• Description
• Specifications

• Inogeni 4K Upgradable 1080p / 60 HDMI to USB 3.0 Converter


  The INOGENI HD2USB3 Converter requires no drivers and works on all motherboards and USB 3.0 chipsets. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera’s HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux, and Android operating systems. The INOGENI HD2USB3 features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to 1080p60, as well as most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. The HD2USB3 supports 1080p resolutions up to 60 fps.

   HDMI capture to USB 3.0.
   Field upgradable to 4K at minimal fee ($95).
   Supports 1080p, 1080i, 720p, 480p, and 576p video formats.
   Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats.
   Up to 1080p at 60 fps.
   HDMI audio support.
   Digital Fluid technology – Internal frame buffers maximize frame rate with any PC.
   Hardware-based color space and sampling conversion.
   Automatic scaling and frame rate conversion.
   Customizable video processing functions.
   Image controls: Brightness, contrast, saturation and hue settings.
   Supports multiple devices on the same PC.
   Powered from a USB 3.0 port.
   A USB 3.0 cable is included.

• Main Feature	Description
  Converts HDMI to USB 3.0	Converts 1080p HDMI video and audio to USB 3.0 without compression; field upgradable to 4K.
  Video Input	1x HDMI 1.4a; supports resolutions up to 1080p, 720p, 1080i, etc.
  Frame Rates	Supports 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions.
  Color Space	RGB, YCbCr, 4:4:4, and 4:2:2 for video output.
  USB – Connector & CODECs	1x USB 3.0 Type-B; YUY2 4:2:2 8-bit for USB 3.0, MJPEG for USB 2.0 (serial numbers >= HD2035XXX).
  Compatibility	Works with Windows 7+, macOS 10.10+, Linux; no driver installation needed. Supports all UVC-compliant software.
  Dimensions & Weight	8.3 cm x 7.0 cm x 2.3 cm; 110 g (0.24 lb).
  Power Supply	Powered by USB (5V, 580mA).
  Certifications	HDCP-compliant; certifications include FCC, CE, RoHS, IEC62368, and more. TAA-compliant.
