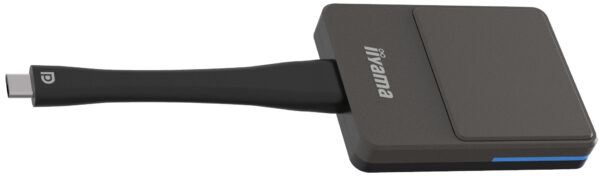

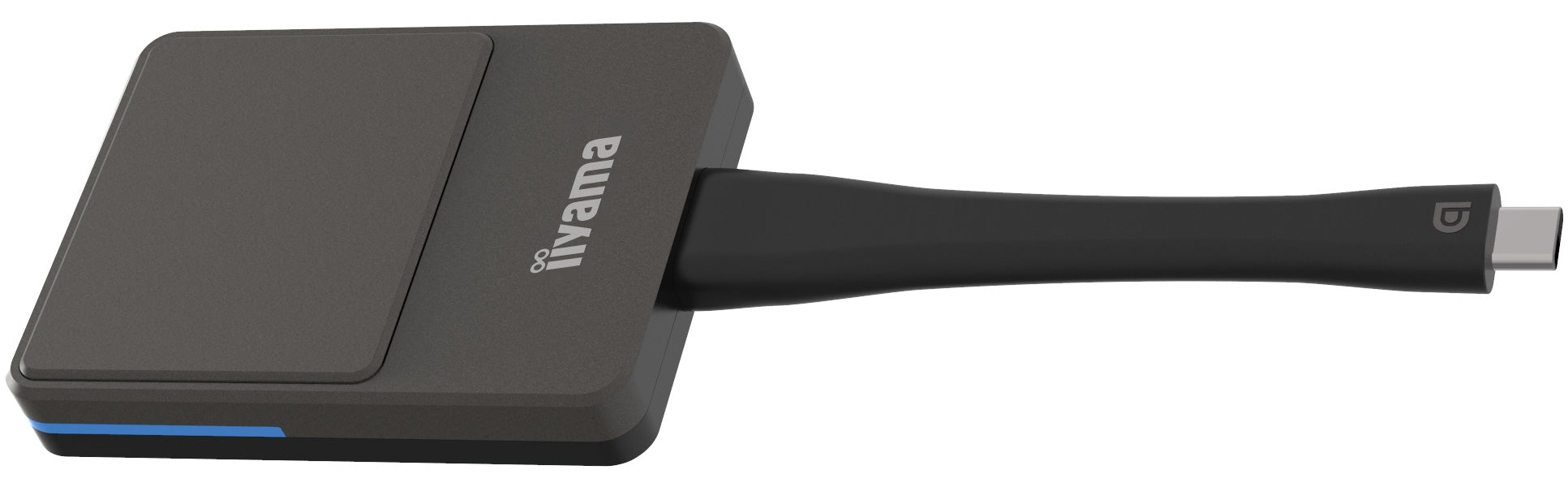

• iiyama WP D002C Wireless Presentation USB-C Dongle

  The wireless presentation dongle allows to share content (e.g. videos, applications) from your computer to an iiyama (i)LFD with the pre-installed EShare app. It is compatible with computers equipped with USB-C (DP-Alt mode) and supports smooth video streaming up to 4K.

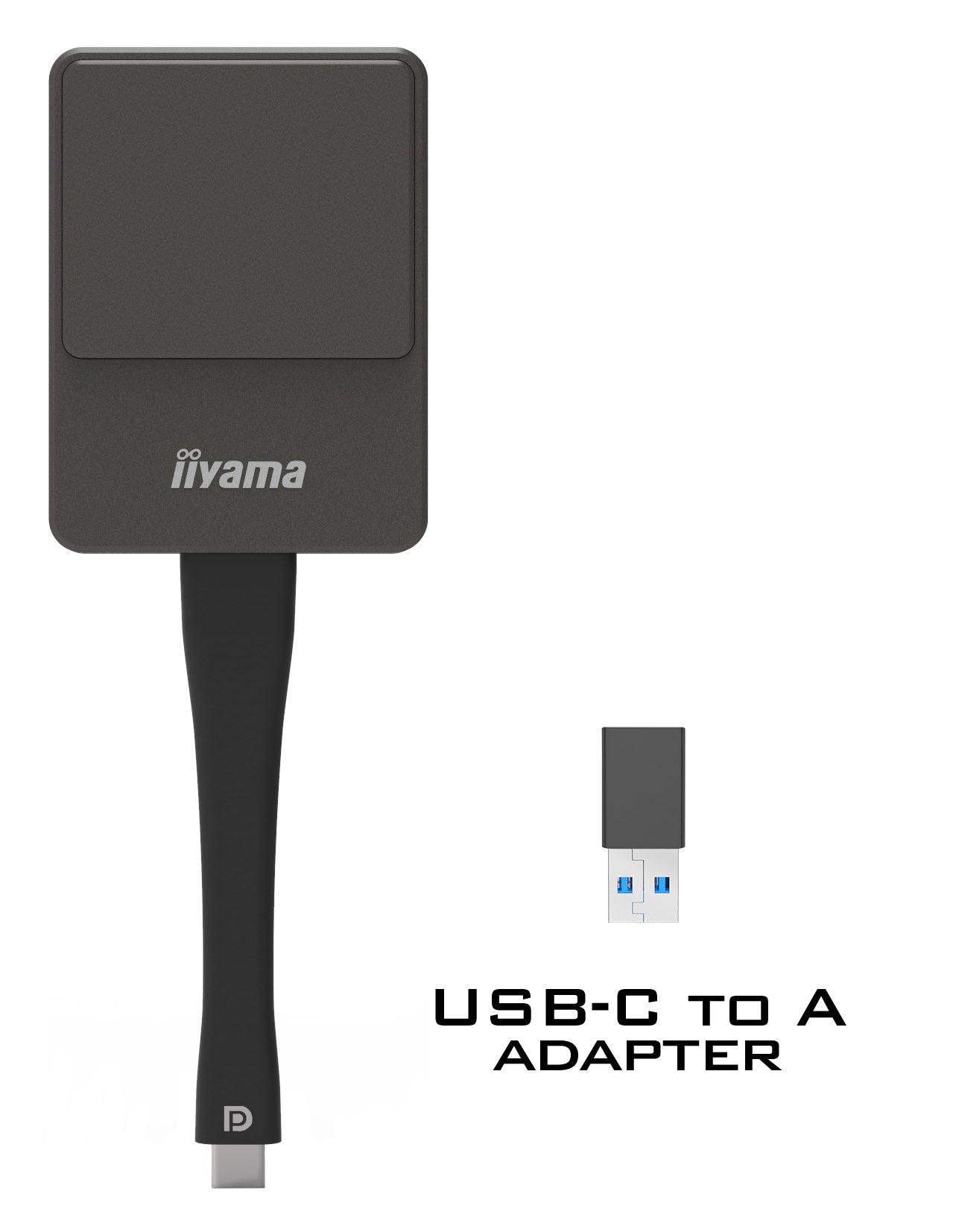

  To use the dongle you need to pair it with the Android receiver. The included USB Type-C to A adapter can be used if the Android receiver doesn’t have a Type-C connection.

• DEVICE
  Supported platforms	Windows, MAC, Chrome, Any OS which supports full feature Type-C (DP-Alt supported)
  DisplayPort Out	x1 (1.2, complies with HDCP)
  Audio	Stereo, radio quality 16bits 48kHz
  Frame rate	Up to 60 fps depending on environment (FHD) and 30fps for 4K
  Output resolution	720×480, 720×576, 1280×720, 1920×1080(1080P), 3840×2160@30Hz
  Features	Included: USB type-C to A adapter (to pair devices)
  Input resolution	Video: 480p, 576p, 720p, 1080p
  Wireless	IEEE 802.11n, 5GHz
  Data rate wireless	Up to 300Mbps
  Authentication protocol	WPA2(WPA2-PSK (Pre-Shared key) / WPA2- Enterprise)
  Security (encryption)	WPA2
  Reach	20 m max.

  TECHNICAL SPECIFICATION
  Colour	Silver, black
  Software	Connects with EShare app version 7.3 and higher.

  POWER MANAGEMENT
  Power supply unit	External
  Power usage	4.5W typical

  SUSTAINABILITY
  Regulations	CE, RoHS support, WEEE, REACH

  DIMENSIONS / WEIGHT
  Product dimensions	57 x 175 x 17mm
  Box dimensions	100 x 123 x 33mm
  Weight (without box)	0.81kg
  Weight (with box)	0.217kg
  EAN code	4948570032891

  ENVIRONMENTAL CONDITIONS
  Operation temperature range	0°C – 40°C
  Operation humidity	10% – 80%
  Storage temperature range	-10°C – 60°C
  Storage humidity	5% – 90%

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Description	Downloads
  User manual	Download
  Technical specification	Download
  Drawing	Download
