iiyama UC CAM120ULB-1 All-In-One Conference Bar
- Descriptions
- Specifications
- Warranty
-

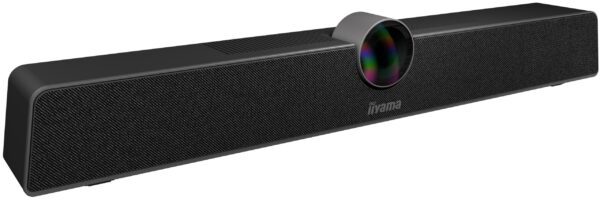

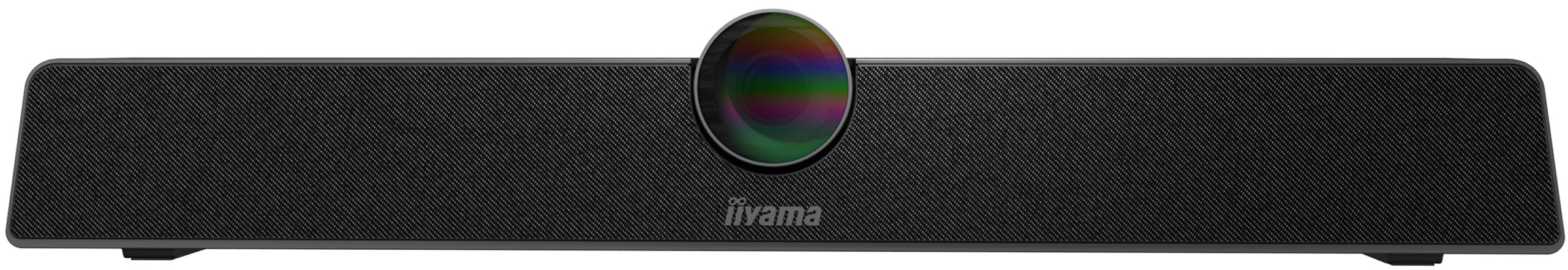

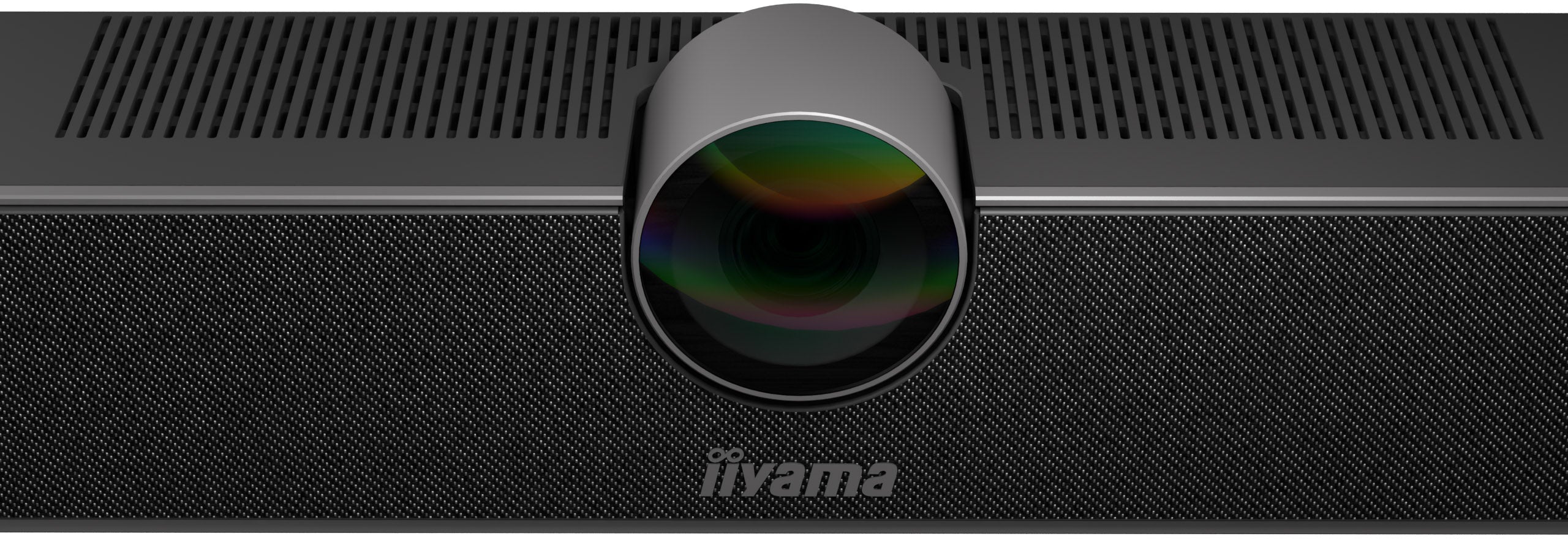

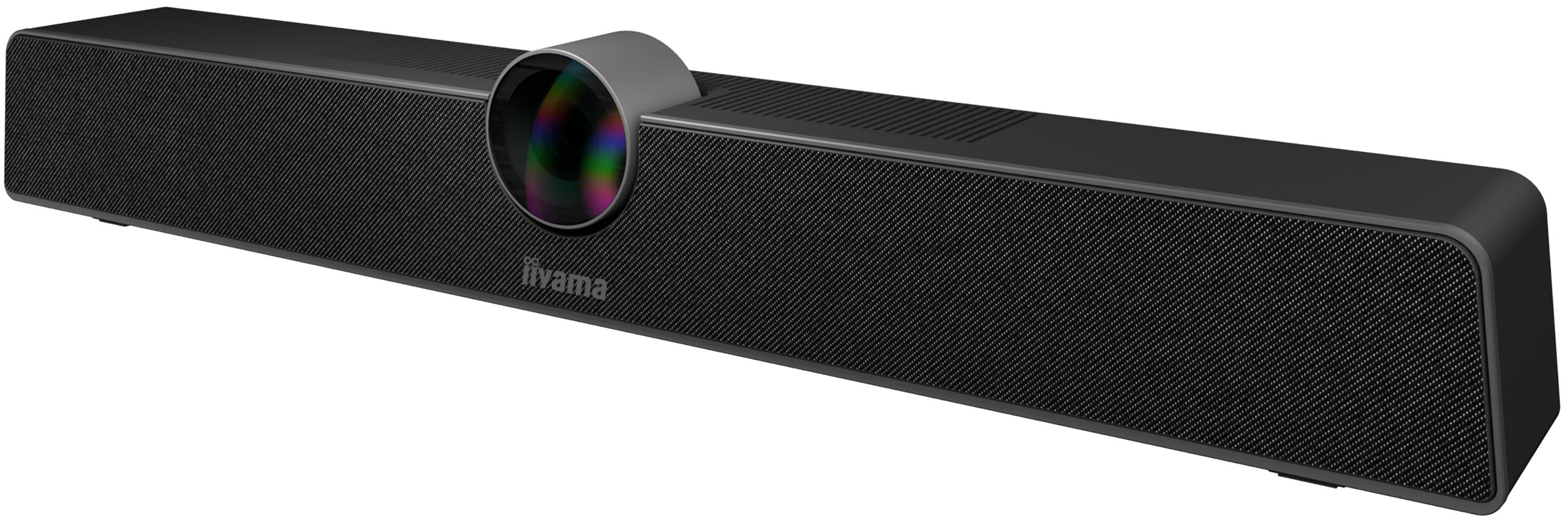

UC CAM120ULB-1
All-in-one conference bar
Simplify your meetings via one collaboration solution, equipped with 12MP camera, 6 array microphone and 8W speakerphone. Intelligent face detection, auto tracking and voice localization provide seamless meeting experiences whilst zoom in/out and up to 3 camera position presets are all controlled using the remote control.
120° field of view
The field of view means the observable area one can see through the camera lens. It translates directly to how much of your meeting space will be visible to the participants joining remotely. A 120-degree FoV is the right solution for most standard meeting spaces.
Auto-framing
With intelligent face detection and voice localization, the camera tracks whoever is speaking and smoothly switches between presenters automatically adjusting to best fit participant location and quantity. It not only recognizes and zooms in on meeting participants, but also tracks speakers as they move about the room.
Camera position presets
Three predefined camera presets combined with 5x digital zoom allow for instant meeting start up. Just point the camera to your preferred focal point, save it and select between the saved options with one button when needed.
Studio-quality sound
6-element Microphone & 8W Speakerphone featuring Adaptive echo canceller, Automatic tracking, Noise reduction, Automatic gain control & Dereverberation deliver crisp, high quality sound free from any background noise or distortion.
Easy set up
Seamless connection via a USB cable. The webcam is instantly operational after connection.
Compatibility
Compatible with any conferencing software of your choice, this camera offers trouble-free operation with Zoom, Skype, Microsoft Teams and others. -
CAMERA
Pixels 12M Native resolution 4K UHD Supported resolutions 2160p/30fps, 1440p/30fps, 1080p/30fps Diagonal field of view (dFoV) 120° Focus mode fixed Focus distance 2m Zoom 5x digital zoom AutoFraming yes Number of camera position presets 3 AUDIO
Number of microphone arrays 6 Voice pickup distance 8m Adaptive echo canceller yes Automatic tracking yes Noise reduction yes Automatic gain control yes Dereverberation yes Speakers 1 x 8W CONNECTIVITY
Camera USB Type-C Audio In/Out x1 ACCESSORIES INCLUDED
Cables USB 2.0 (type A to C) Wall mount yes Anti peeping cover yes Remote control yes (batteries included) Power adapter yes SUSTAINABILITY
Regulations CE, RoHS support, ErP, WEEE, REACH DIMENSIONS / WEIGHT
Product dimensions W x H x D 462 x 76 x 93mm Box dimensions W x H x D 538 x 160 x 169mm Weight (without box) 1kg Weight (with box) 2.3kg EAN code 4948570032983 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
