SPC51001BC-1
An Intel® i5 slot PC with Windows® 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)

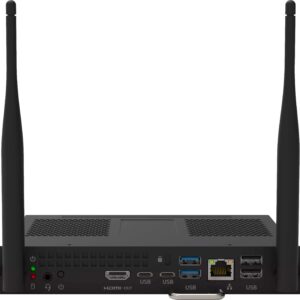

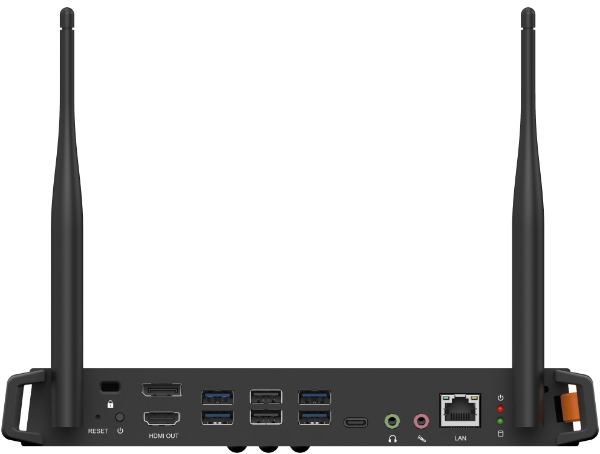

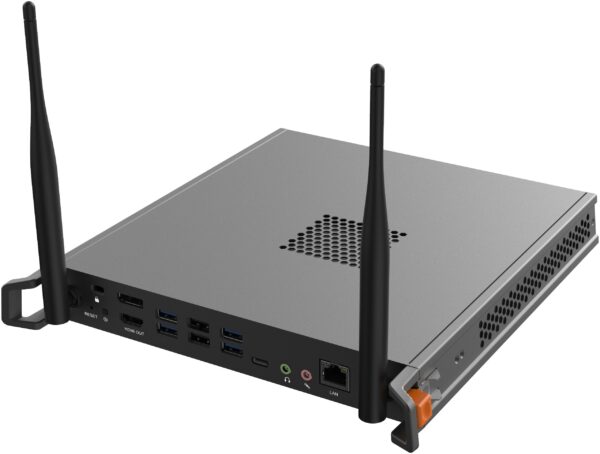

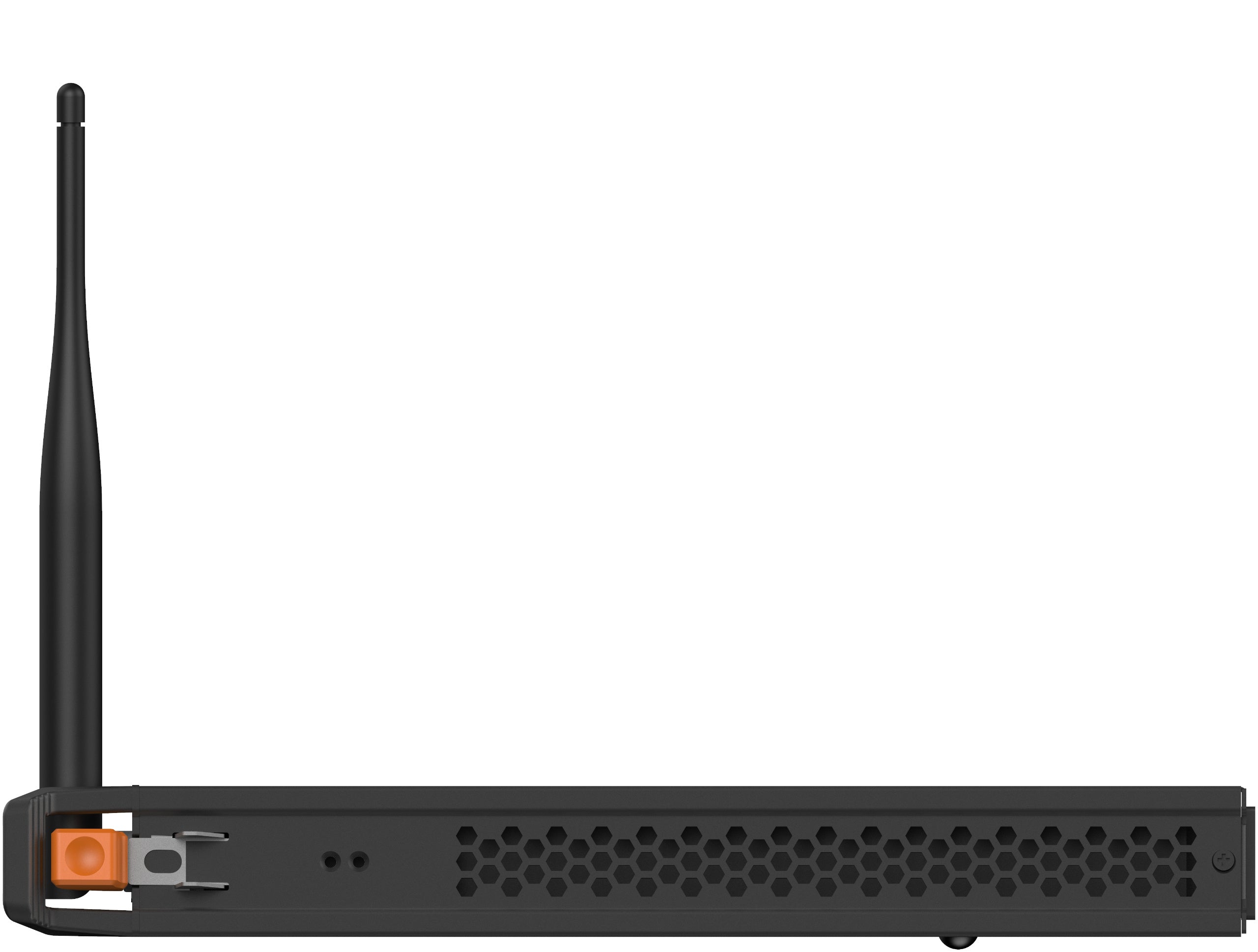

This mini PC with Intel® Core™ i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama slot PC and get started right away.
The module is only compatible with the iiyama TExx04MIS* Series; 65”: TE6504MIS-B1AG / TE6504MIS-B2AG , 75″: TE7504MIS-B1AG / TE7504MIS-B2AG, 86”: TE8604MIS-B1AG / TE8604MIS-B2AG
*Excluding the 98″ ProLite TE9804MIS-B1AG
-
DEVICE
Type slot PC CPU Intel® Core™ i5-10400, TPM 2.0 (Trusted Platform Module) RAM 8GB DDR4 SSD 256GB M.2 Graphics Intel® HD Graphics UHD630 Chipset Intel® H410 Sound card Cmedia HS-100B Networking 10/100/1000M Adapter WiFi 802.11/a/b/g/n/ac/ax (M.2) (2.4GHz/5GHz) Bluetooth 5.2 Operating system Win 10 IoT Enterprise 64-bit, Windows 11 compatible LAN (RJ45) x1 USB 3.0 x4, 3.1 (Type C) x1, 2.0 x2 DisplayPort Out x1 HDMI Out x1 Headphone connector yes Microphone In x1 POWER MANAGEMENT
Power supply unit internal Power supply AC AC – 100V, 240/V, 50Hz Power usage 105W typical, 5W stand by DIMENSIONS / WEIGHT
Product dimensions W x H x D 265.3 x 34.9 x 246.2mm Box dimensions W x H x D 317 x 103 x 358mm Weight (without box) 1.95kg Weight (with box) 3.25kg EAN code 4948570033065 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
