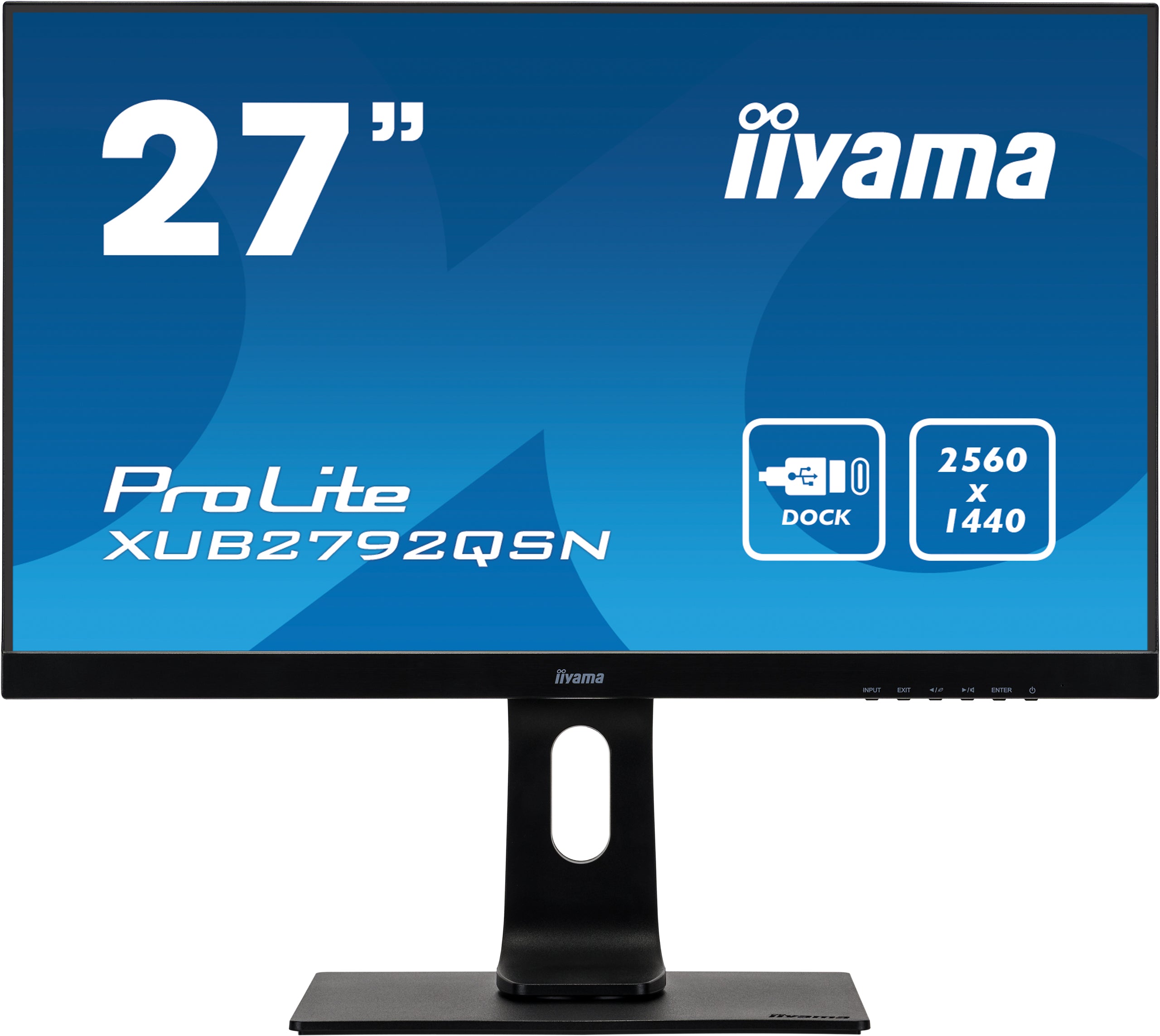

iiyama ProLite XUB2792QSN-B1 27″ WQHD IPS Desktop Monitor
- Description
- Specifications
- Warranty
-
27’’ WQHD IPS technology panel with USB-C dock and RJ45 (LAN)
Equipped with a USB-C dock connector, the XUB2792QSN-B1 allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. WQHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 13cm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.
-
DISPLAY CHARACTERISTICS
Design ultra slim Diagonal 27″, 68.5cm Panel IPS Panel Technology LED, matte finish Native resolution 2560 x 1440 @75Hz (3.7 megapixel WQHD) Aspect ratio 16:9 Panel brightness 350 cd/m² Static contrast 1000:1 Advanced contrast 80M:1 Response time (GTG) 4ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 1.07B 10bit (8bit + Hi-FRC) (sRGB: 99%; NTSC: 72%) Horizontal Sync 30 – 120kHz Viewable area W x H 596.7 x 335.7mm, 23.5 x 13.2″ Pixel pitch 0.233mm Colour matte, black INTERFACES / CONNECTORS / CONTROLS
Signal input HDMI x1 (2560 x 1440@ 75Hz)
DisplayPort x1 (2560 x 1440@ 75Hz)Signal output DisplayPort x1 (Daisy Chain MST max. 2560 x 1440) USB HUB x2 (v.3.0) USB-C dock x1 (Power delivery 65W, LAN, DP out, USB 3.0) HDCP yes Headphone connector yes RJ45 (LAN) x1 FEATURES
Blue light reducer yes Flicker free yes OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL Control buttons Power, Menu/ Select, Up/ Volume, Down/ ECO, Exit, Input User controls picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, MST, USB, RGB Range, information), input select, audio settings (volume, mute) Speakers 2 x 2W Convenience Kensington-lock™ prepared, DDC2B MECHANICAL

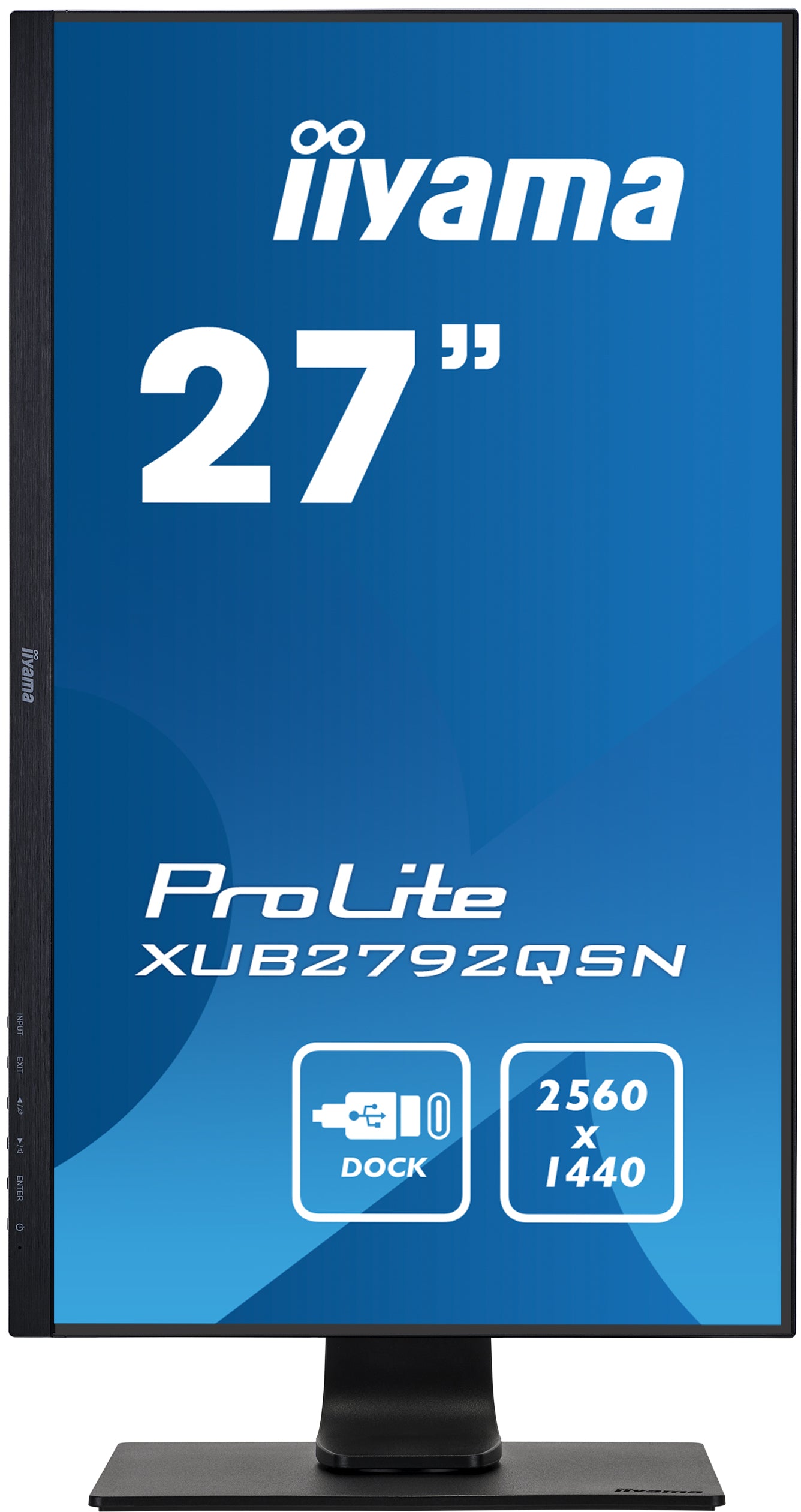

Display position adjustments height, swivel, tilt, pivot (rotation both sides) Height adjustment 130mm Rotation (PIVOT function) 90° Swivel stand 90°; 45° left; 45° right Tilt angle 22° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED
Cables power, HDMI, DP, USB-C Other quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 33W typical, 0.5W stand by, 0.5W off mode SUSTAINABILITY
Regulations TCO, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA Energy efficiency class (Regulation (EU) 2017/1369) F REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 611 x 413 x 543mm Box dimensions W x H x D 745 x 207 x 455mm Weight (without box) 7.8kg Weight (with box) 9.6kg EAN code 4948570117925 COMPATIBLE ACCESSORIES
Mounts/stands/brackets MD BRPCV04 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
