iiyama ProLite XUB2792QSC-B5 27″ Desktop Monitor
- Description
- Specifications
- Warranty
-

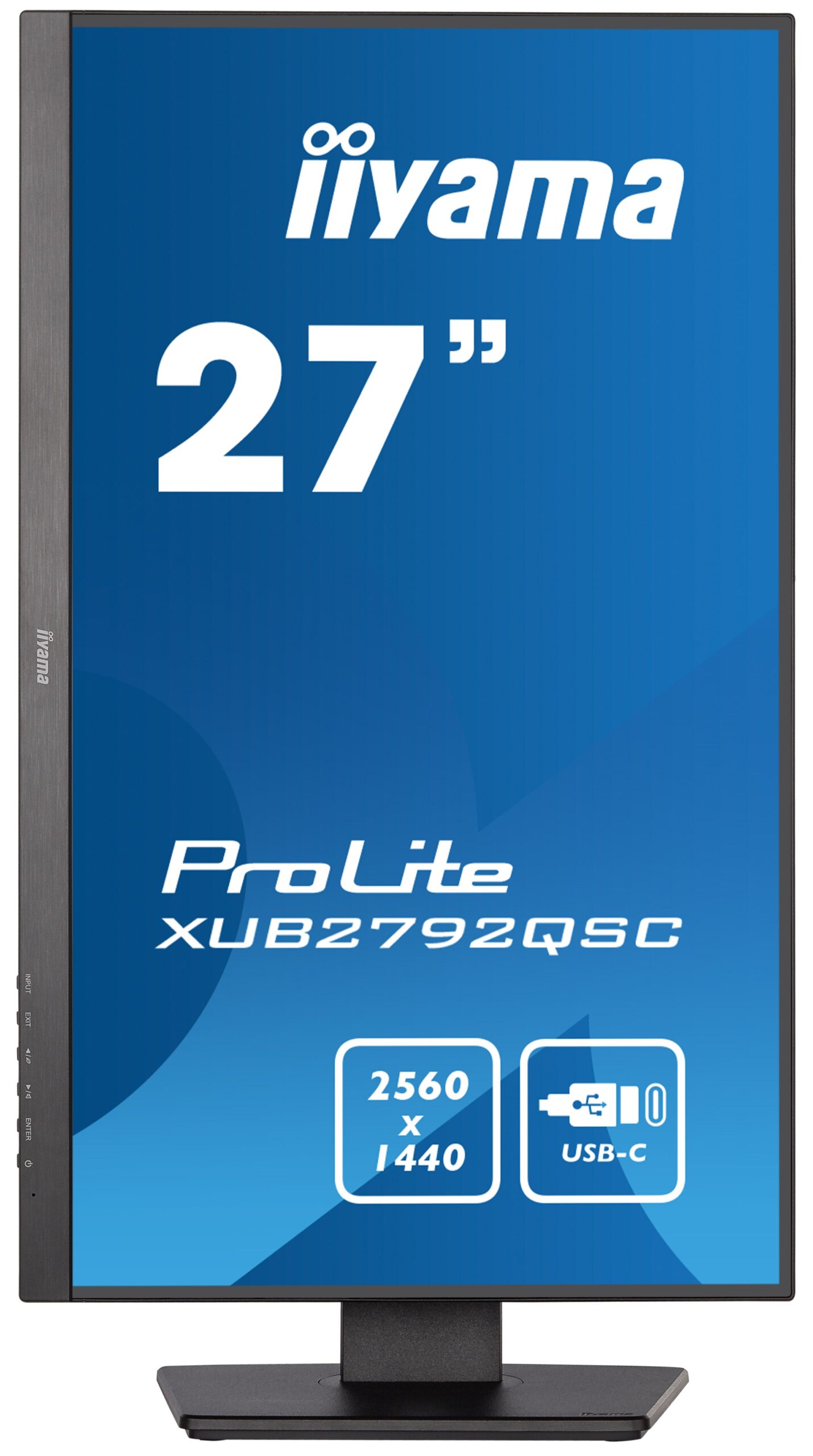

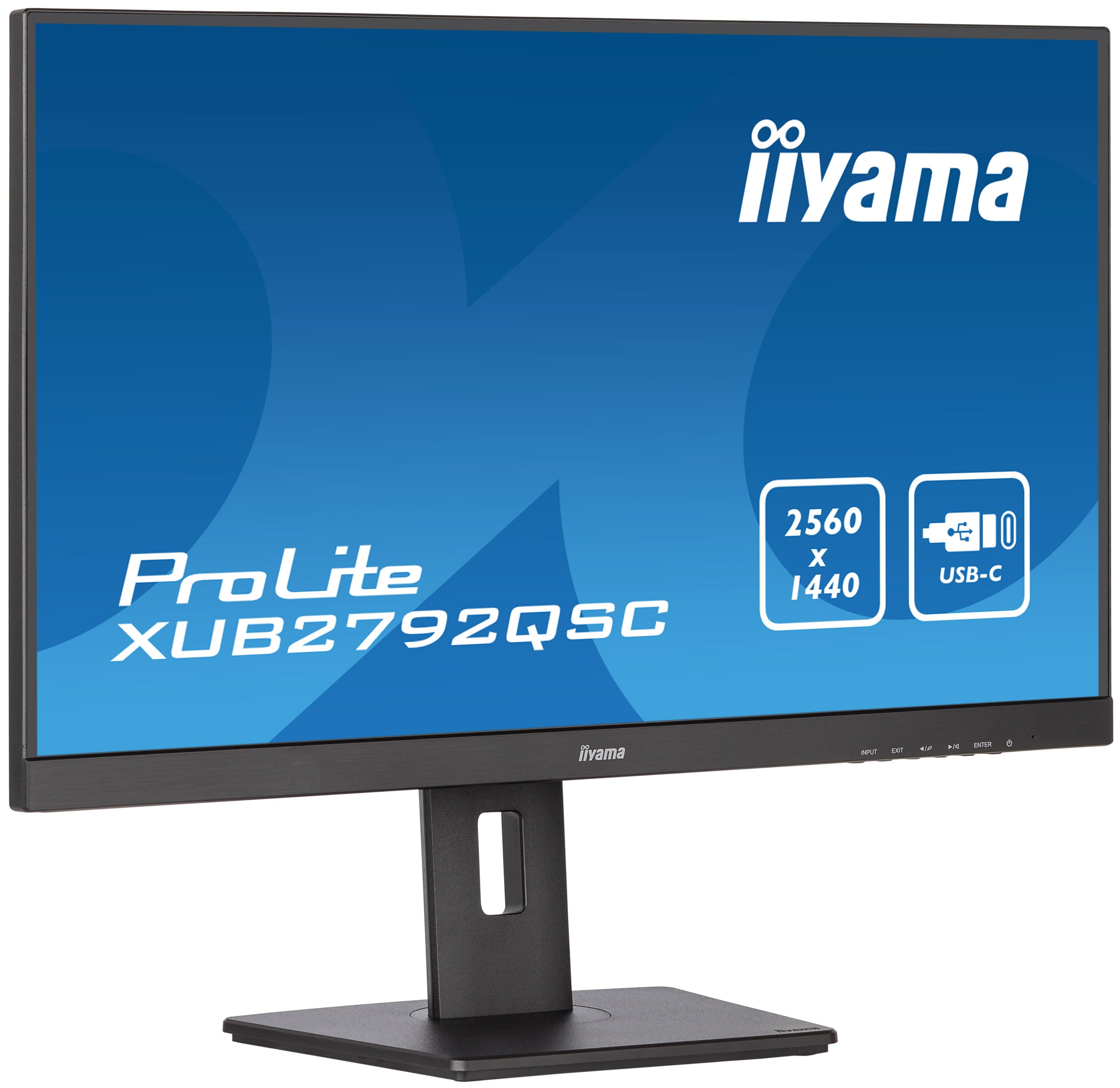

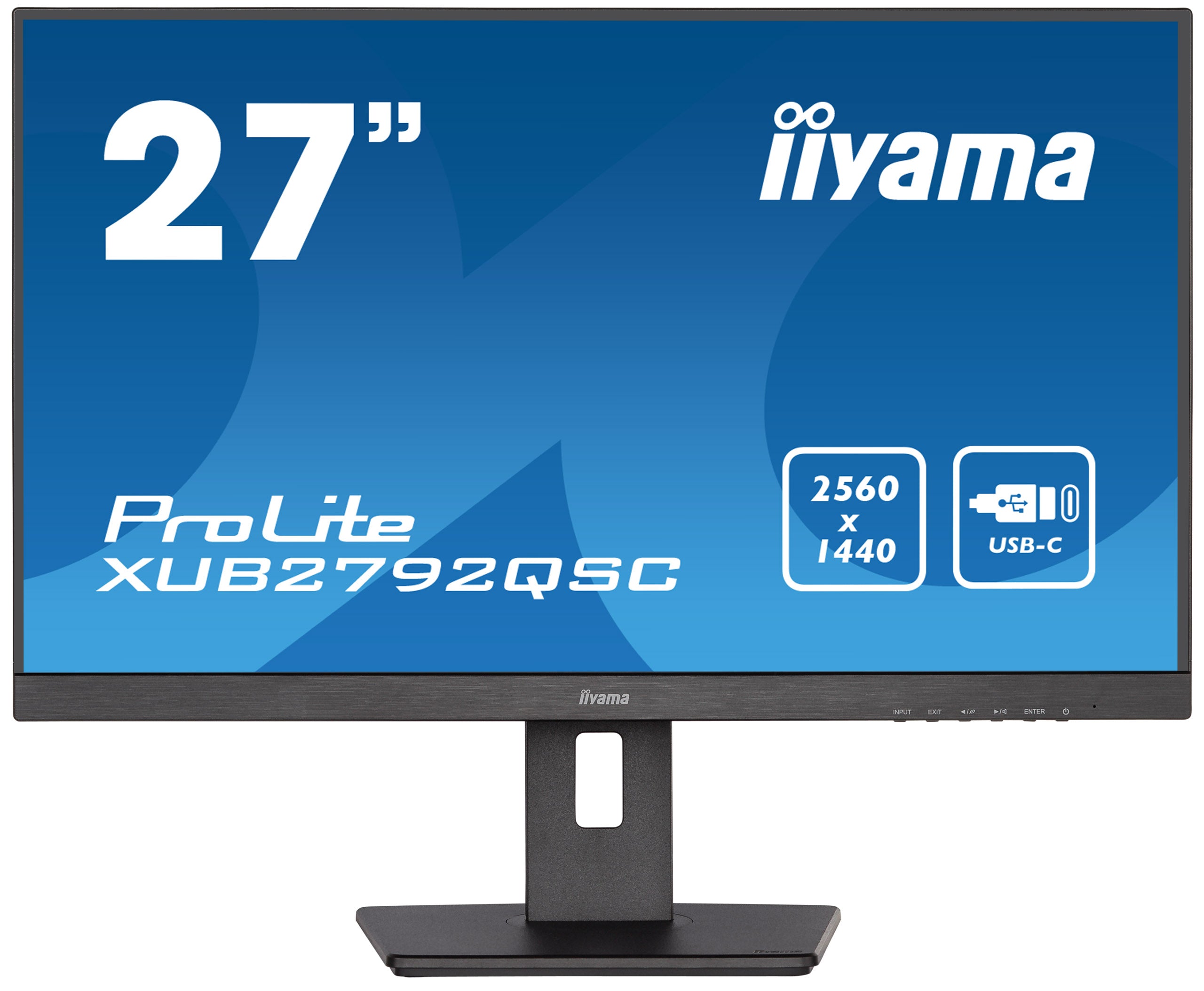

iiyama PROLITE XUB2792QSC-B5
27’’ WQHD IPS panel with an ergonomic stand and USB-C Connectivity
Supplying USB Type-C connectivity, the XUB2792QSC allows you to simplify your workspace by using a single cable to connect, power (65W power delivery) and charge the notebook from the monitor, providing the foundation for hybrid office spaces. The IPS panel and WQHD (2560×1440) resolution offer noticeably shaper images, excellent colour performance, wide viewing angles, making this ideal for productivity solutions, demanding office applications as well as CAD. Equipped with speakers, headphone socket, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort.
TCO conformity and low power consumption make this XUB2792QSC an ideal display for the modern environmentally conscious, yet productive workplace.
IPS TECHNOLOGYIPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications
USB-C
With one wire you can charge your laptop, connect video (DP-alt mode) and connect with your peripherals through the build in USB 3.0 HUB.
WQHD
With true WQHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers
-
DISPLAY CHARACTERISTICS
Design 3-side borderless Diagonal 27″, 68.5cm Panel IPS Panel Technology LED, matte finish Native resolution 2560 x 1440 @75Hz (3.7megapixel WQHD) Aspect ratio 16:9 Panel brightness 350 cd/m² Static contrast 1000:1 Advanced contrast 80M:1 Response time (GTG) 4ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln (sRGB: 99%; NTSC: 72%) Horizontal Sync 30 – 120kHz Viewable area W x H 596.7 x 335.7mm, 23.5 x 13.2″ Pixel pitch 0.233mm Colour matte, black INTERFACES / CONNECTORS / CONTROLS
Signal input HDMI x1
DisplayPort x1
USB-C x1 (PD 65W)USB HUB x2 (v.3.0 (DC5V, 900mA)) HDCP yes Headphone connector yes FEATURES
Blue light reducer yes Flicker free yes Extra i-style Colour OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL Control buttons Power, Menu/ Select, Up/ Volume, Down/ Eco, Exit, Input User controls picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, MST, USB, RGB Range, information), input select, audio settings (volume, mute) Speakers 2 x 2W Convenience Kensington-lock™ prepared, DDC2B, Mac OSX MECHANICAL
Display position adjustments height, swivel, tilt, pivot (rotation both sides) Height adjustment 150mm Rotation (PIVOT function) 90° Swivel stand 90°; 45° left; 45° right Tilt angle 23° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED
Cables power, HDMI, DP, USB-C Other quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 21W typical, 0.5W stand by, 0.3W off mode SUSTAINABILITY
Regulations TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA Energy efficiency class (Regulation (EU) 2017/1369) E REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 613.5 x 394.5 (544.5) x 209.5mm Box dimensions W x H x D 693 x 170 x 446mm Weight (without box) 6.8kg Weight (with box) 8.4kg EAN code 4948570121663 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
iiyama has always strived to achieve maximum reliability and to prove our belief in our products we were the first manufacturer to confidently guarantee our display products with a 3-year on-site warranty as standard changing and shaping the warranty landscape forever.
Visioncare is our comprehensive warranty support scheme for standard desktop display products. We understand that should a fault occur, downtime needs to be minimised and vision care was designed to do just that.1-) If your display should develop a fault within the first 2 years of purchase, iiyama will arrange a replacement unit of an equivalent or higher specification.
2-) iiyama endeavours to dispatch the replacement unit within 24hrs whenever possible.
3-) iiyama takes care of the swap out and all carraige charges.And it’s not just us at iiyama that believes we provide great service, our customers think so too. iiyama has been proud to receive many reader-voted magazine awards for customer satisfaction and reliability.
For Desktop and Touchscreen displays (below 42″) service
Call 01926 819189 between 9:00am – 5:30pm Monday to Friday
For Large Format Displays (42″ and above) service
Call 03302 020 463 between 9:00am – 5:30pm Monday to FridayService request form
