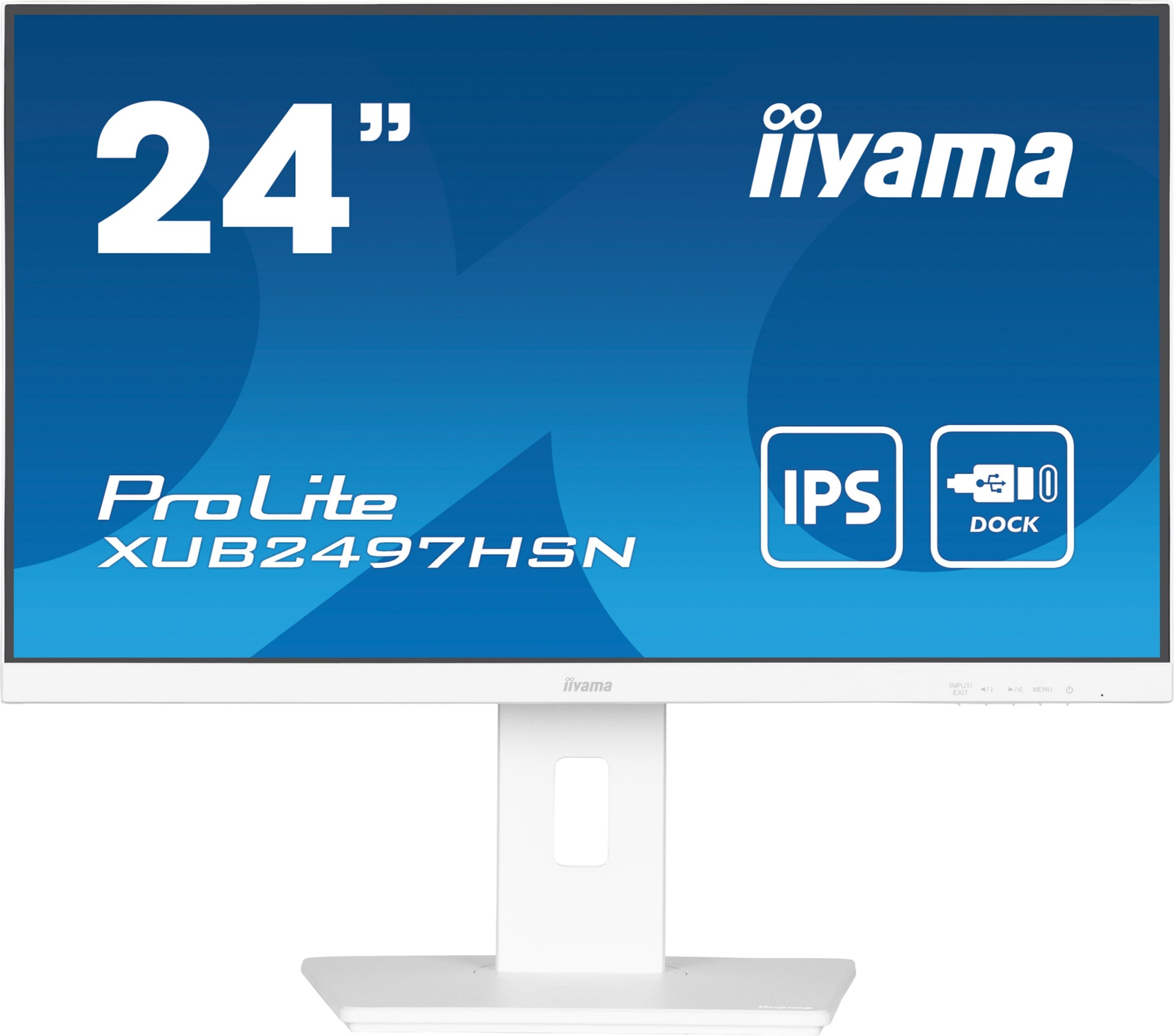

iiyama ProLite XUB2497HSN-W1 23.8″ 100Hz 1ms IPS Full HD Desktop Monitor

• Description
• Specifications
• Downloads

• iiyama ProLite XUB2497HSN-W1 23.8″ 100Hz 1ms IPS Full HD Desktop Monitor

  Equipped with a USB-C dock connector, the XUB2497HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2497HSN allows you to easily adjust the screen position to your preferences.


  USB-C Dock
  The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
  *Functions vary depending on your laptop USB-C support.


  IPS Technology
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.


  Flicker-free + Blue light
  The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.


  HAS (150mm) + Pivot (rotation both sides)
  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.


  USB-C Dock
  The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
  *Functions vary depending on your laptop USB-C support.

• Category	Details
  DISPLAY CHARACTERISTICS
  Design	3-side borderless
  Diagonal	23.8″, 60.5cm
  Panel	IPS Panel Technology LED, matte finish
  Native resolution	1920 x 1080 @100Hz (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1300:1
  Advanced contrast	80M:1
  Response time (MPRT)	1ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 110kHz
  Viewable area W x H	527 x 296.5mm, 20.7 x 11.7″
  Pixel pitch	0.275mm
  Colour	matte, white
  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x1 (v.1.4), DisplayPort x1 (v.1.2), USB-C x1 (PD 65W)
  Signal output	DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)
  USB HUB	x4 (3x USB 3.2 Gen 1, 1x Type C)
  USB-C DOCK	x1 (Power delivery 65W, LAN, DP out, USB 3.2 Gen 1)
  HDCP	yes
  Headphone connector	yes
  RJ45 (LAN)	x1
  FEATURES
  Blue light reducer	yes
  Flicker free	yes
  Adaptive Sync support	yes
  Extra	i-Style colour
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu, Volume, Shortcut, Input / Exit
  User controls	Various (picture adjust, color settings, OSD, audio settings)
  Speakers	2 x 2W
  Convenience	Kensington-lock™, DDC/CI, DDC2B, Mac OSX
  MECHANICAL
  Display position adjustments	height, swivel, tilt, pivot
  Height adjustment	150mm

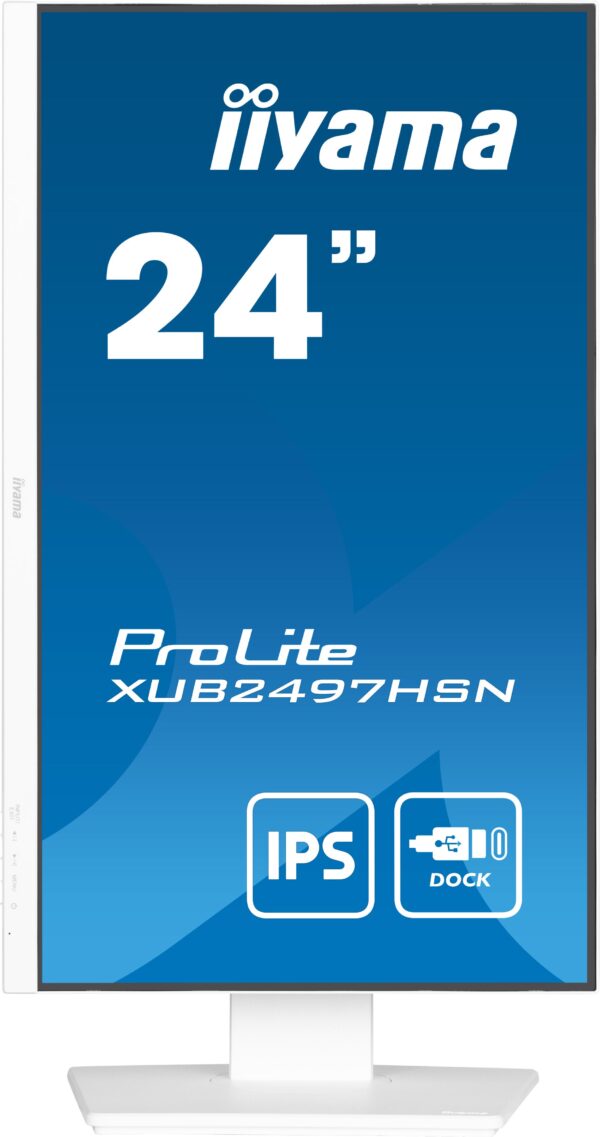

  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes
  ACCESSORIES INCLUDED
  Cables	power, HDMI, USB-C
  Other	quick start guide, safety guide
  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	18W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY
  Regulations	TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS, ErP, WEEE, REACH, UKCA
  Energy efficiency class	E (Regulation (EU) 2017/1369)
  REACH SVHC	above 0.1%: Lead
  Warranty	5 years
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	538.5 x 350 (500) x 209.5mm
  Box dimensions W x H x D	685 x 405 x 126mm
  Weight (without box)	5.3kg
  Weight (with box)	7.4kg
  EAN code	4948570123223
