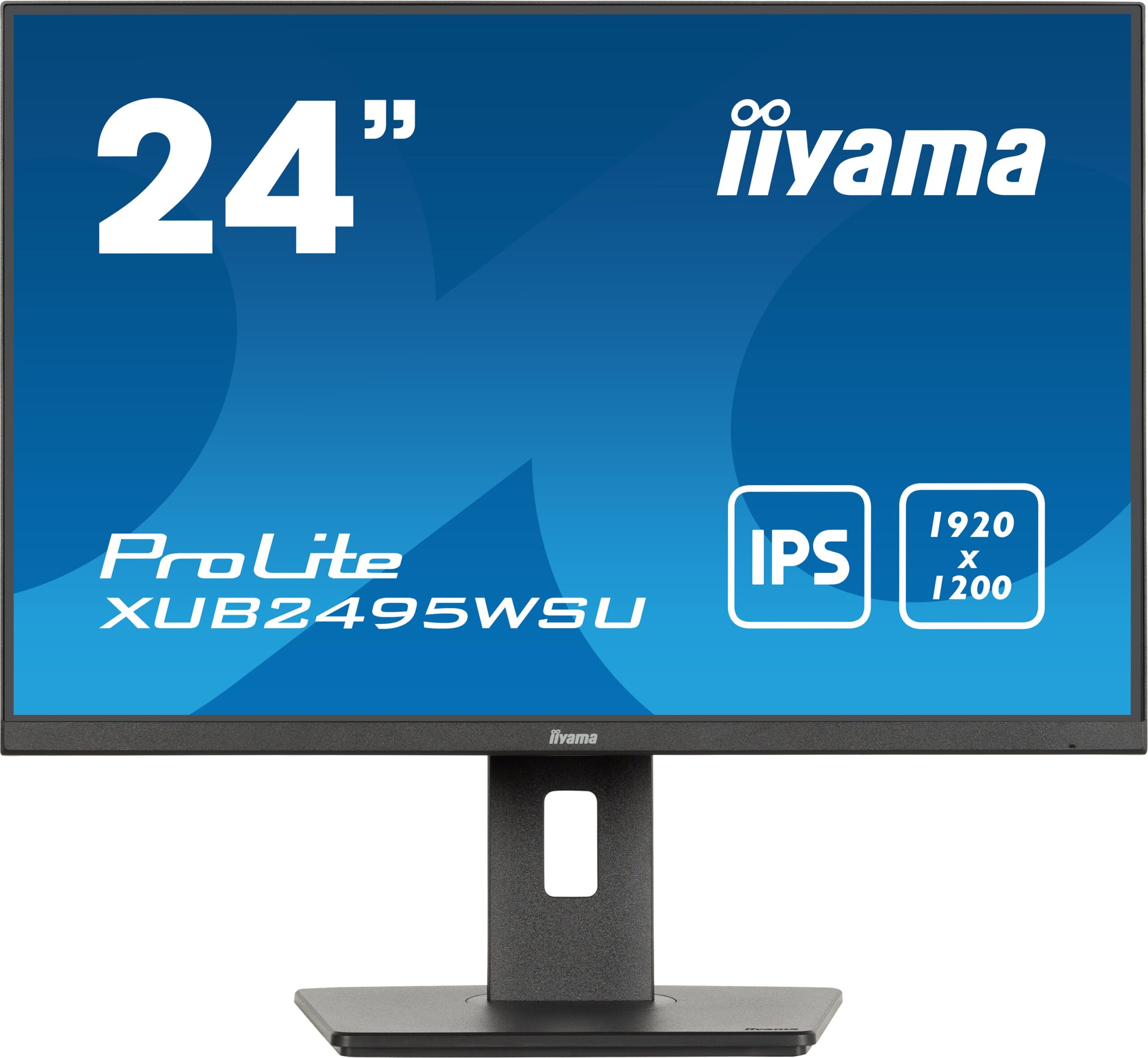

• iiyama ProLite XUB2495WSU-B7 24″ 75Hz IPS Desktop Monitor

  Providing excellent performance for graphics applications in CAD, and ideal for Universities, Corporate and Financial Markets. The ProLite XUB2495WSU-B7 features an IPS panel offering accurate and consistent colour reproduction with wide viewing angles. The 1920 x 1200 native screen resolution and a 150mm height-adjustable stand featuring pivot and swivel functions deliver great versatility and comfort of use.

  IPS TECHNOLOGY
  IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

  HAS (150MM) + PIVOT (ROTATION BOTH SIDES)
  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  BLUE LIGHT REDUCER
  As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor’s brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.

  OVERDRIVE ON / OFF
  When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.

  SPEAKERS AND HEADPHONES
  Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

• DISPLAY CHARACTERISTICS
  Design	3-side borderless
  Diagonal	24.1″, 61.1cm
  Panel	IPS (In-Plane-Switching), matte finish
  Native resolution	1920 x 1200 @75Hz (2.3 megapixel)
  Aspect ratio	16:10
  Panel brightness	300 cd/m²
  Static contrast	1000:1
  Advanced contrast	80M:1
  Response time (GTG)	4ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	60 – 95kHz
  Viewable area W x H	518.4 x 324mm, 20.4 x 12.8″
  Pixel pitch	0.27mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x1 (v.1.4)
  	DisplayPort x1 (v.1.2)
  USB HUB	x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W)
  	1x Type C (5Gbps, 15W))
  HDCP	yes
  Headphone connector	yes

  FEATURES
  Blue light reducer	yes
  Flicker free	yes
  Extra	i-Style colour
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Joystick/Power Button: Power/Menu, Up/Input Select, Down, Right/Volume, Left/Submenu
  User controls	picture adjust (brightness, contrast, ECO, ACR, OD, blue light reducer, X-Res technology), colour settings (6-Axis, i-Style colour, colour temp.), OSD settings (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI, information), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, LED, RGB range), input select (source), audio settings (volume, mute)
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

  MECHANICAL
  Display position adjustments	height, swivel, tilt, pivot (rotation both sides)
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED
  Cables	power, USB, HDMI
  Other	quick start guide, safety guide

  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	17W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY
  Regulations	CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class	(Regulation (EU) 2017/1369) D
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	533.5 x 371 (521) x 209.5mm
  Box dimensions W x H x D	613 x 437 x 130mm
  Weight (without box)	5.1kg
  Weight (with box)	6.6kg

  EAN code
  4948570123827

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Description	Downloads
  User manual	Download
  Technical specification	Download
  Drawing	Download
  UK Energy Label	Download
