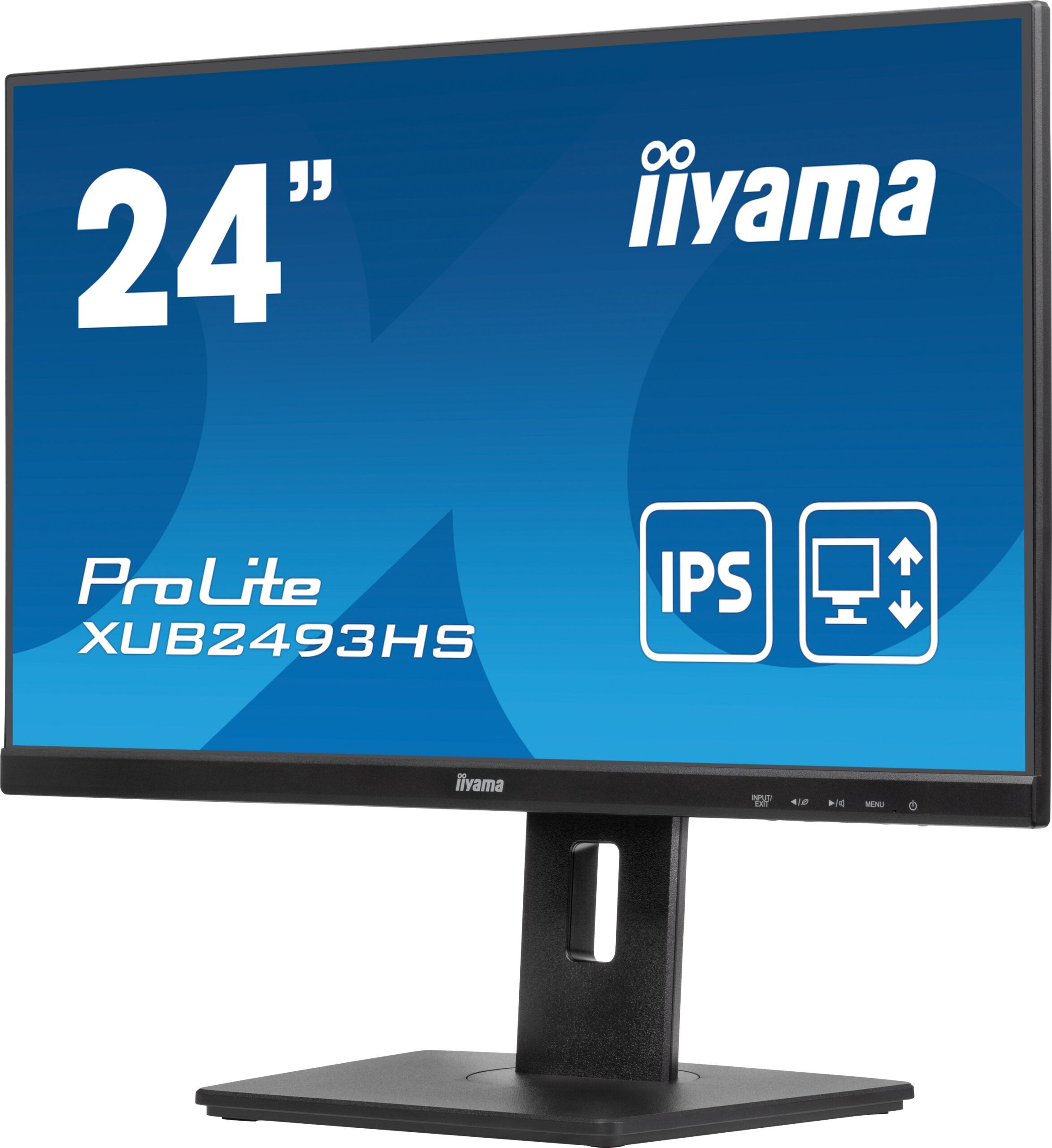

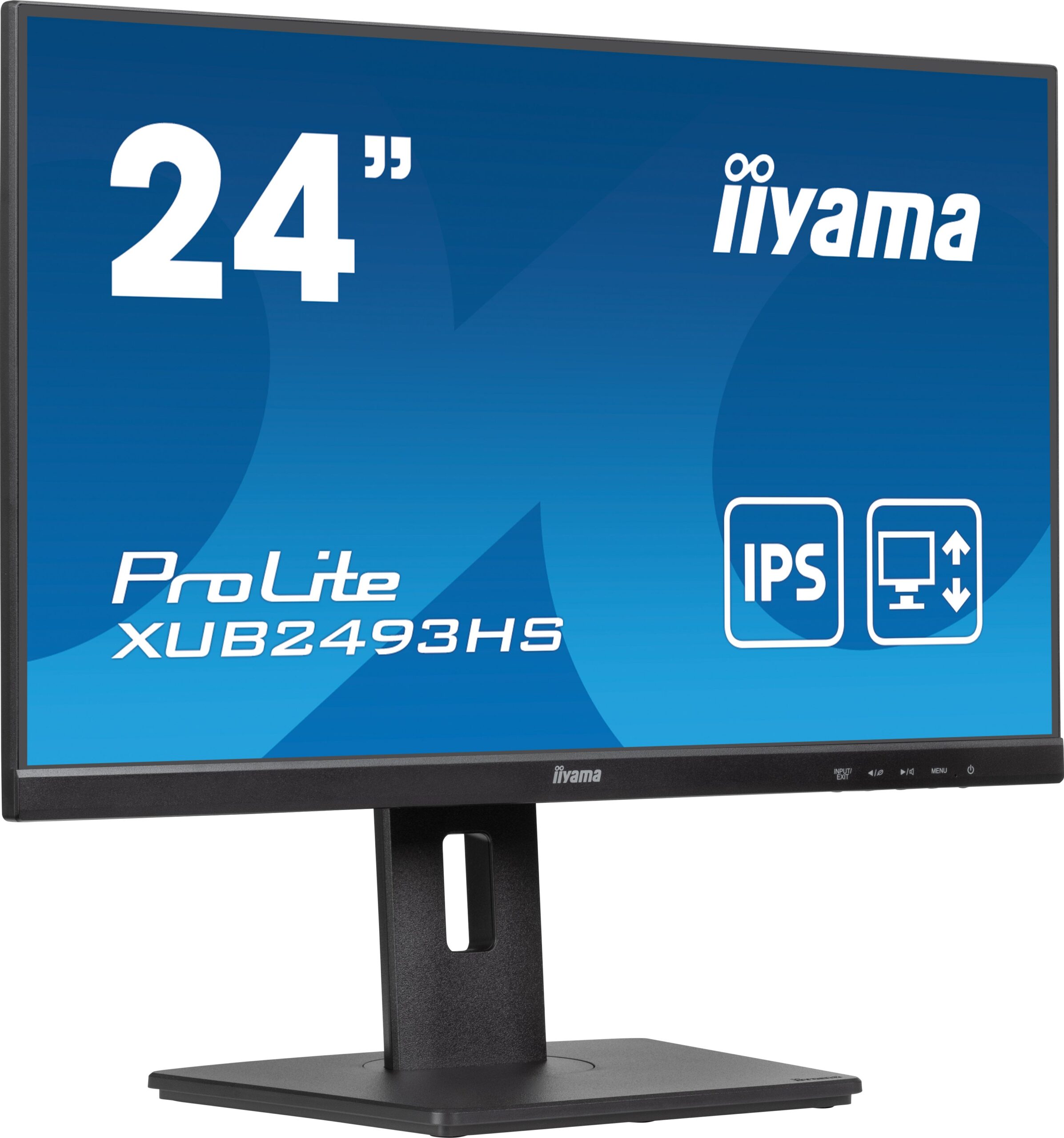

• iiyama ProLite XUB2493HS-B6 24″ 100Hz IPS Full HD Desktop Monitor


  IPS TECHNOLOGY
  IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

  HAS (150MM) + PIVOT
  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  100HZ
  A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

  FLICKER-FREE + BLUE LIGHT
  The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

  SPEAKERS AND HEADPHONES
  Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

• DISPLAY CHARACTERISTICS
  Design	3-side borderless
  Diagonal	23.8″, 60.5cm
  Panel	IPS panel technology LED, matte finish
  Native resolution	1920 x 1080 @100Hz (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1300:1
  Advanced contrast	80M:1
  Response time (MPRT)	0.5ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 96%; NTSC: 72%)
  Horizontal Sync	30 – 115kHz
  Viewable area W x H	527 x 296.5mm, 20.7 x 11.7″
  Pixel pitch	0.275mm
  Colour	matte, black
  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x1
  	DisplayPort x1
  HDCP	yes
  Headphone connector	yes
  FEATURES
  Blue light reducer	yes
  Flicker free	yes
  Adaptive Sync support	yes
  Extra	i-style Colour
  OSD languages	EN, DE, FR, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu, + / Volume, – / Eco, Signal / Exit
  User controls	picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft, MBR, AdaptiveSync), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, language, display information), extra (reset, DDC / CI, signal select, LED, opening logo)
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX
  MECHANICAL
  Display position adjustments	height, pivot (rotation), swivel, tilt
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes
  ACCESSORIES INCLUDED
  Cables	power, HDMI
  Other	quick start guide, safety guide
  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	16W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY
  Regulations	TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	539.5 x 343 (493) x 209,5mm
  Weight (without box)	5.1kg
  EAN code	4948570123834

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
