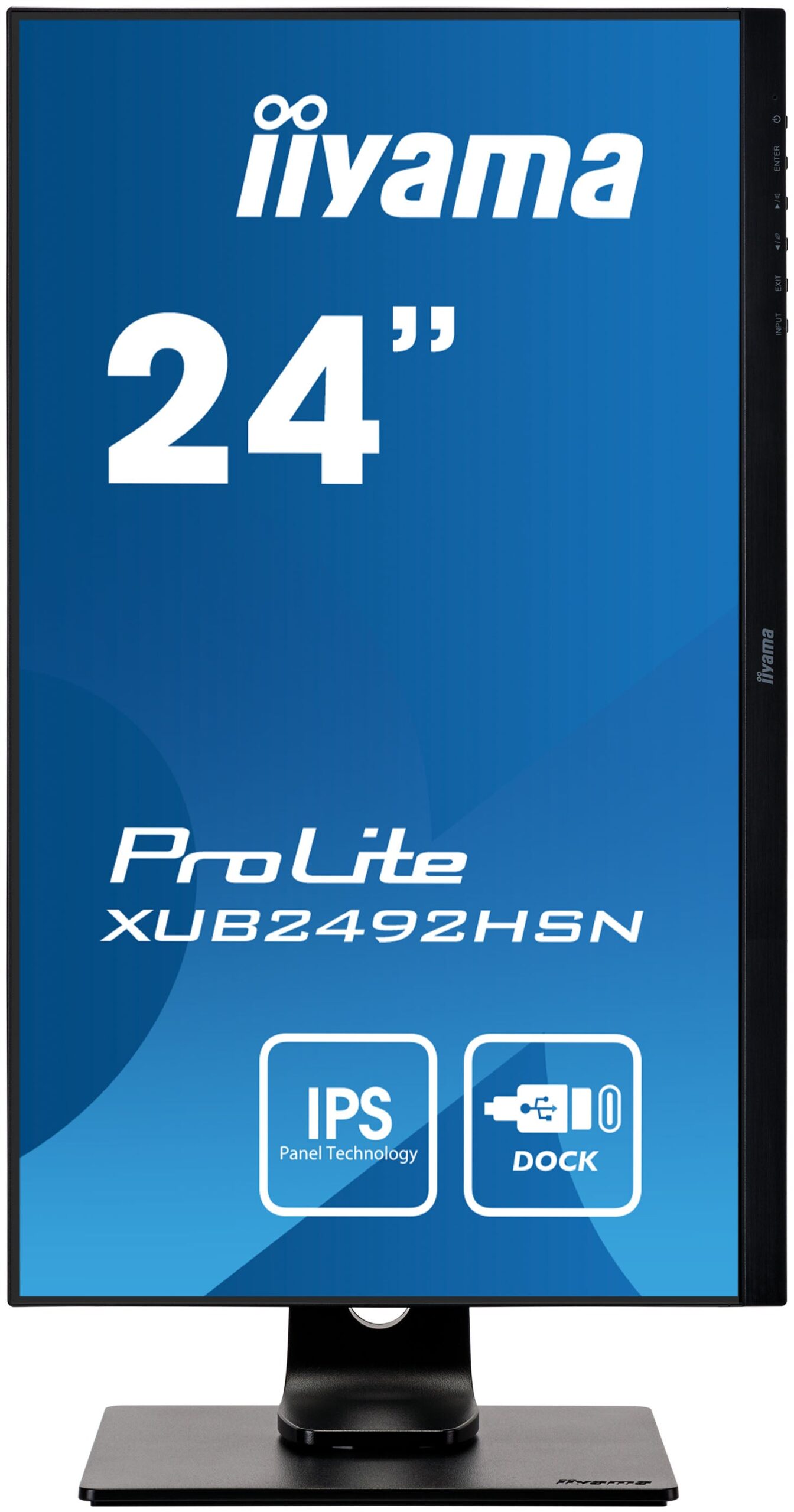

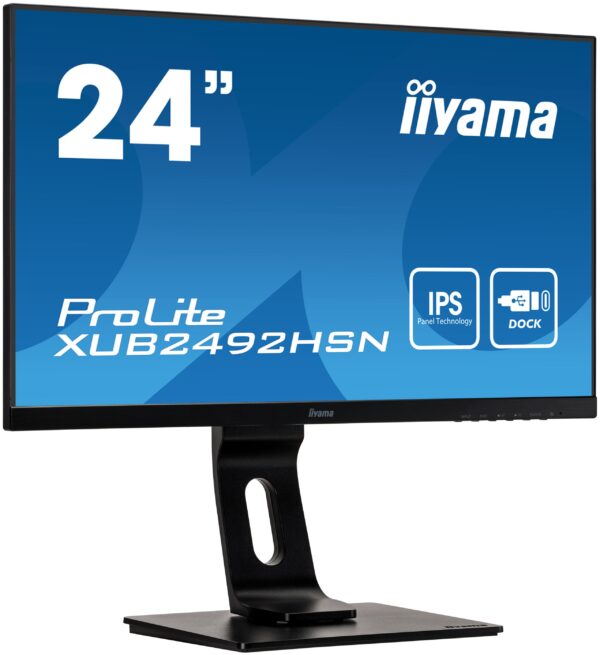

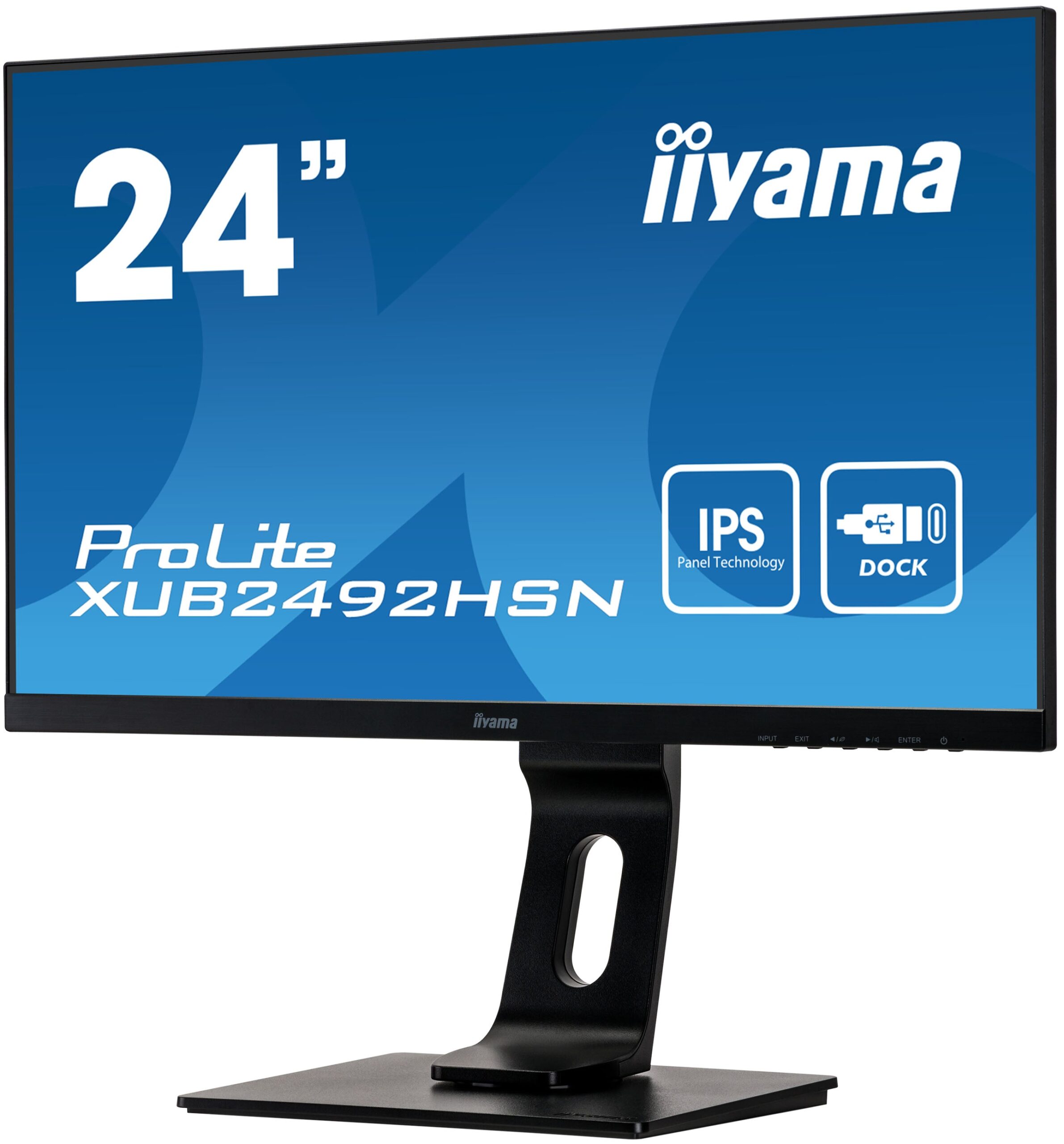

iiyama ProLite XUB2492HSN-B1 24″ IPS Desktop Monitor

• Description
• Specifications
• Warranty

• iiyama ProLite XUB2492HSN-B1 24″ IPS Desktop Monitor

  Equipped with a USB-C dock connector, the XUB2492HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up.

  • USB-C DOCK

    The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
    *Functions vary depending on your laptop USB-C support.

  • IPS TECHNOLOGY

    IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  • FLICKER-FREE + BLUE LIGHT

    The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

  • HAS + PIVOT (ROTATION BOTH SIDES)

    With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  • SPEAKERS AND HEADPHONES

    Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

• DISPLAY CHARACTERISTICS

  Design	ultra slim
  Diagonal	23.8″, 60.5cm
  Panel	IPS Panel Technology LED, matte finish
  Native resolution	1920 x 1080 @75Hz (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	80M:1
  Response time (GTG)	4ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 85kHz
  Viewable area W x H	527 x 296.5mm, 20.7 x 11.7″
  Pixel pitch	0.275mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS

  Signal input	HDMI x1 (1920 x 1080 @75Hz) DisplayPort x1 (1920 x 1080 @75Hz)
  Signal output	DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)
  USB HUB	x2 (v.3.0)
  USB-C dock	x1 (Power delivery 65W, LAN, DP out, USB 3.0)
  HDCP	yes
  Headphone connector	yes
  RJ45 (LAN)	x1

  FEATURES

  Blue light reducer	yes
  Flicker free	yes
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu/ Select, Up/ Volume, Down/ ECO, Exit, Input
  User controls	picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, USB BC, MST, information), input select, audio settings (volume, mute)
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B

  MECHANICAL

  Display position adjustments	height, swivel, tilt, pivot (rotation both sides)
  Height adjustment	130mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	22° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, HDMI, USB-C
  Other	quick start guide, safety guide

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	19W typical, 0.5W stand by, 0.5W off mode

  SUSTAINABILITY

  Regulations	TCO, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	F
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	539.5 x 366.5 (496.5) x 210mm
  Box dimensions W x H x D	688 x 401 x 206mm
  Weight (without box)	5.4kg
  EAN code	4948570117864
