iiyama ProLite XUB2390HS-B5 23″ Desktop Monitor

• Description
• Specifications
• Warranty

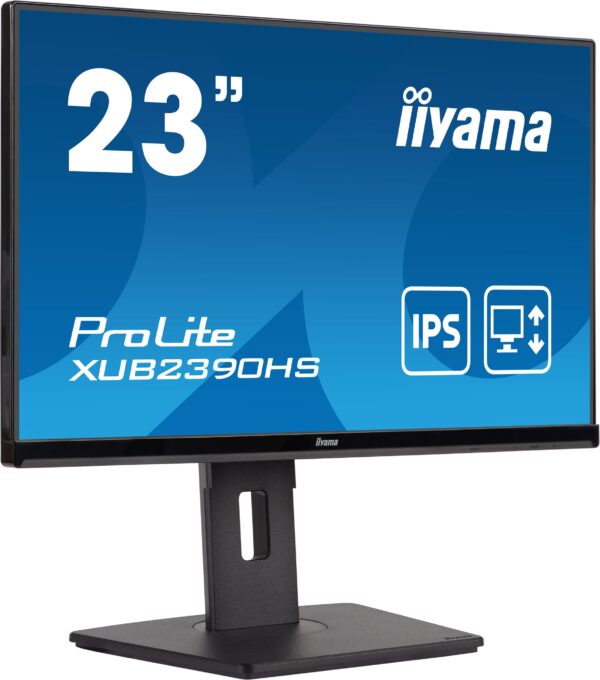

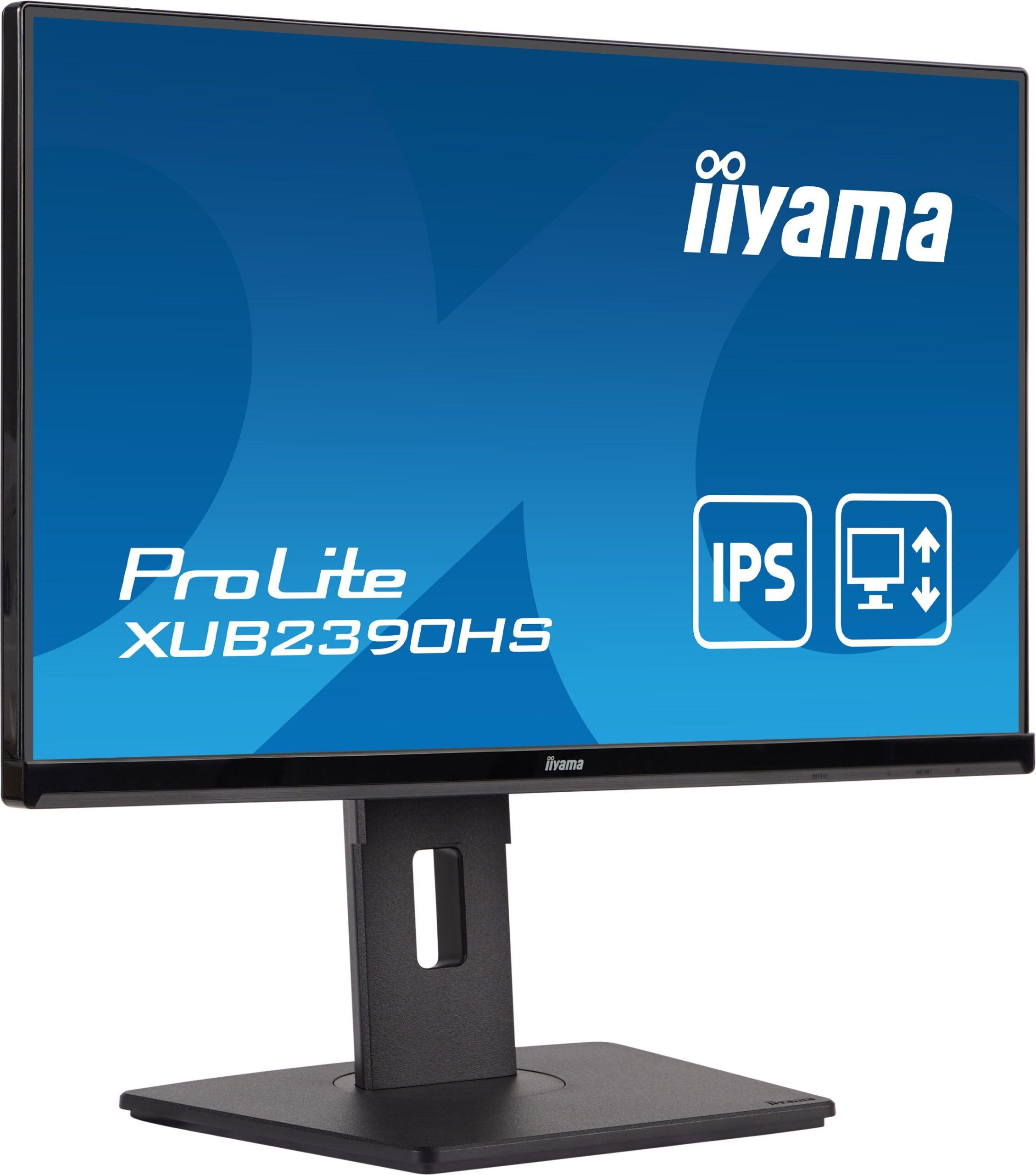

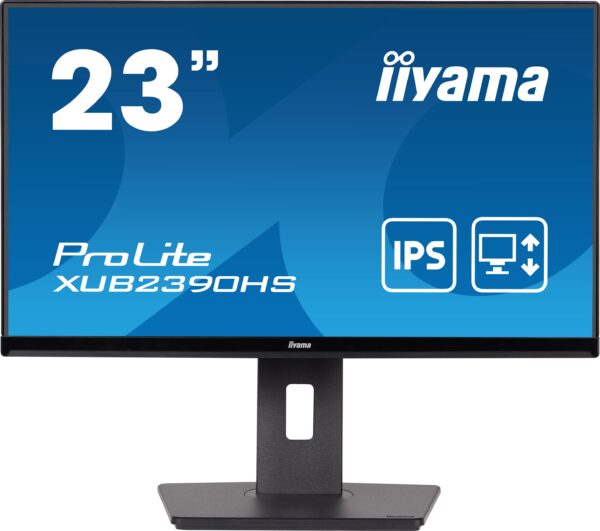

• IIYAMA PROLITE XUB2390HS-B5

  23” IPS monitor with and height adjustable stand

  ProLite XUB2390HS is a 23” LED monitor equipped with IPS panel technology, offering accurate and consistent colour reproduction with wide viewing angles and a fast response time. The XUB2390HS has a truly ergonomic stand including a 150mm height-adjustment, featuring pivot and swivel functions whilst guaranteeing superb performance for photographic design, web design and standard office use. It’s the perfect choice for multi-monitor applications.


  IPS

  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

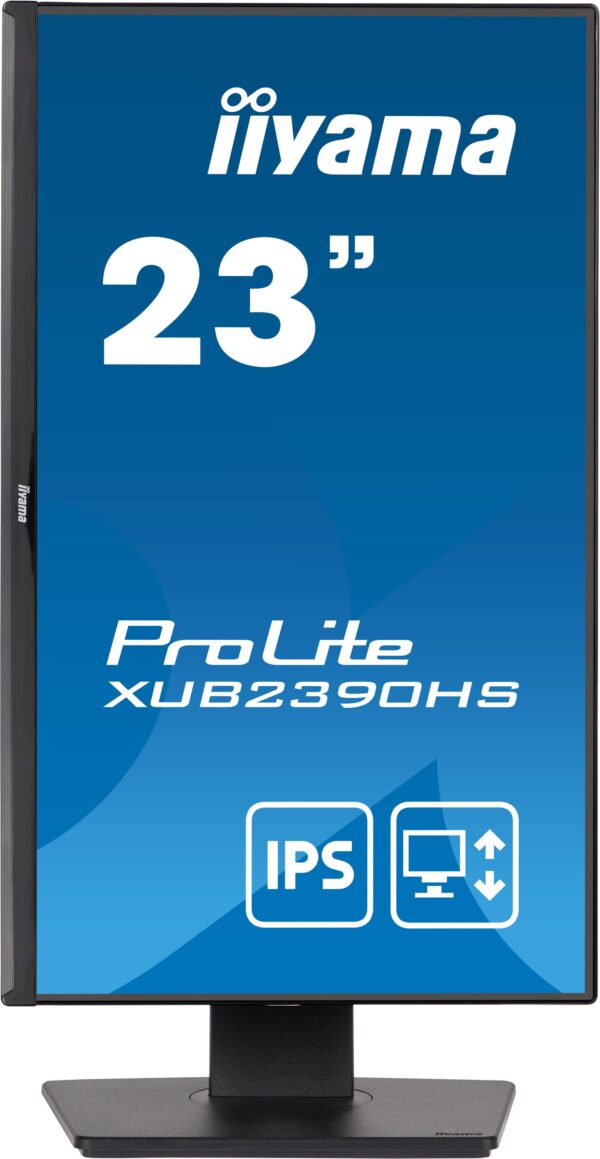

  HAS (150MM) + PIVOT (ROTATION BOTH SIDES)

  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  OVERDRIVE ON / OFF

  When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.

  ACR

  Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

  SPEAKERS AND HEADPHONES

  Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!

• DISPLAY CHARACTERISTICS

  Design	3-side borderless
  Diagonal	23″, 58.4cm
  Panel	AH-IPS LED, matte finish
  Native resolution	1920 x 1080 @60Hz (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	5M:1
  Response time (GTG)	4ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	24 – 80kHz
  Viewable area W x H	509.2 x 286.4mm, 20 x 11.3″
  Pixel pitch	0.265mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS

  Signal input	VGA x1 DVI x1 HDMI x1
  HDCP	yes
  Headphone connector	yes

  FEATURES

  Blue light reducer	yes
  Extra	i-Style colour
  OSD languages	EN, DE, FR, RU, JP, NL, PL
  Control buttons	Power, Menu, +/ Volume, -/ ECO, Auto/ Signal Select
  User controls	luminance (contrast, brightness, i-Style colour, ACR, ECO), image (pixel clock, phase, H. position, V. position, aspect ratio), colour (gamma, colour temp.), OSD (H. position, V. position, OSD time, language), extra (reset, DDC/CI, signal select, OD, HDMI audio, opening logo, information), volume, auto adjust
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

  MECHANICAL

  Display position adjustments	height, swivel, tilt, pivot (rotation both sides)
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, DVI, Audio
  Other	quick start guide, safety guide

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	24W typical, 0.45W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	532.5 x 354.5 (504.5) x 209.5mm
  Box dimensions W x H x D	615 x 418 x 160mm
  Weight (without box)	5.1kg
  Weight (with box)	6kg
  EAN code	4948570121434

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

  iiyama has always strived to achieve maximum reliability and to prove our belief in our products we were the first manufacturer to confidently guarantee our display products with a 3-year on-site warranty as standard changing and shaping the warranty landscape forever.
  Visioncare is our comprehensive warranty support scheme for standard desktop display products.  We understand that should a fault occur, downtime needs to be minimised and vision care was designed to do just that.

  1-) If your display should develop a fault within the first 2 years of purchase, iiyama will arrange a replacement unit of an equivalent or higher specification.
  2-) iiyama endeavours to dispatch the replacement unit within 24hrs whenever possible.
  3-) iiyama takes care of the swap out and all carraige charges.

  And it’s not just us at iiyama that believes we provide great service, our customers think so too. iiyama has been proud to receive many reader-voted magazine awards for customer satisfaction and reliability.

  For Desktop and Touchscreen displays (below 42″) service
  Call 01926 819189 between 9:00am – 5:30pm Monday to Friday
  For Large Format Displays (42″ and above) service
  Call 03302 020 463 between 9:00am – 5:30pm Monday to Friday

  Service request form
