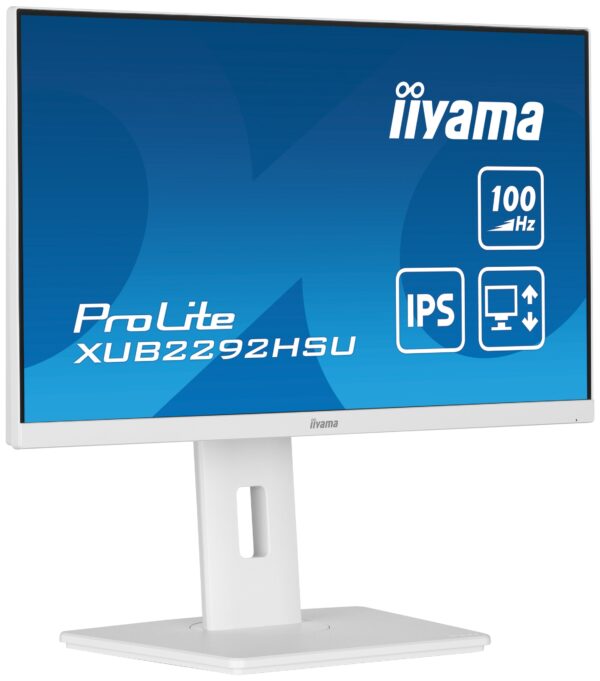

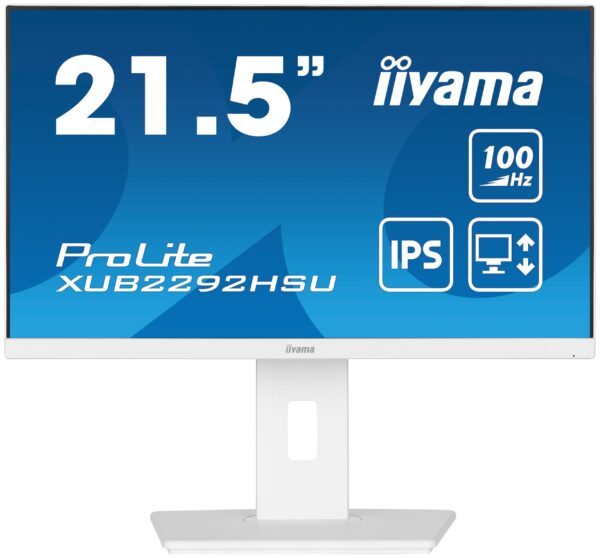

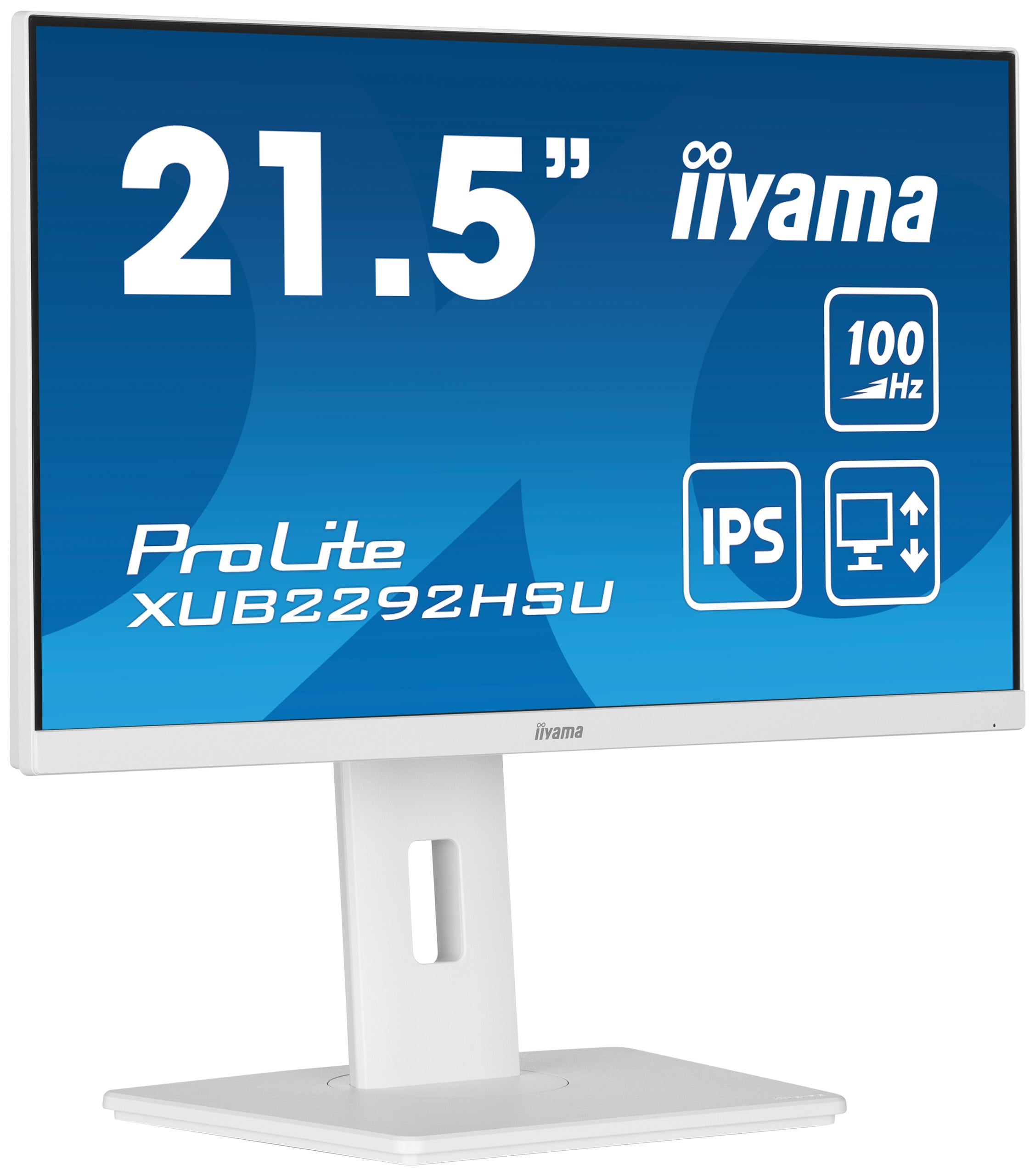

iiyama ProLite XUB2292HSU-W6 21.5″ IPS 100Hz Full HD Desktop Monitor
Stylish edge-to-edge design makes the ProLite XUB2292HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, make this monitor a great choice for both multi-monitor configuration and office applications.
100HZ
A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.FREESYNC™ TECHNOLOGY
AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.HAS (150MM) + PIVOT

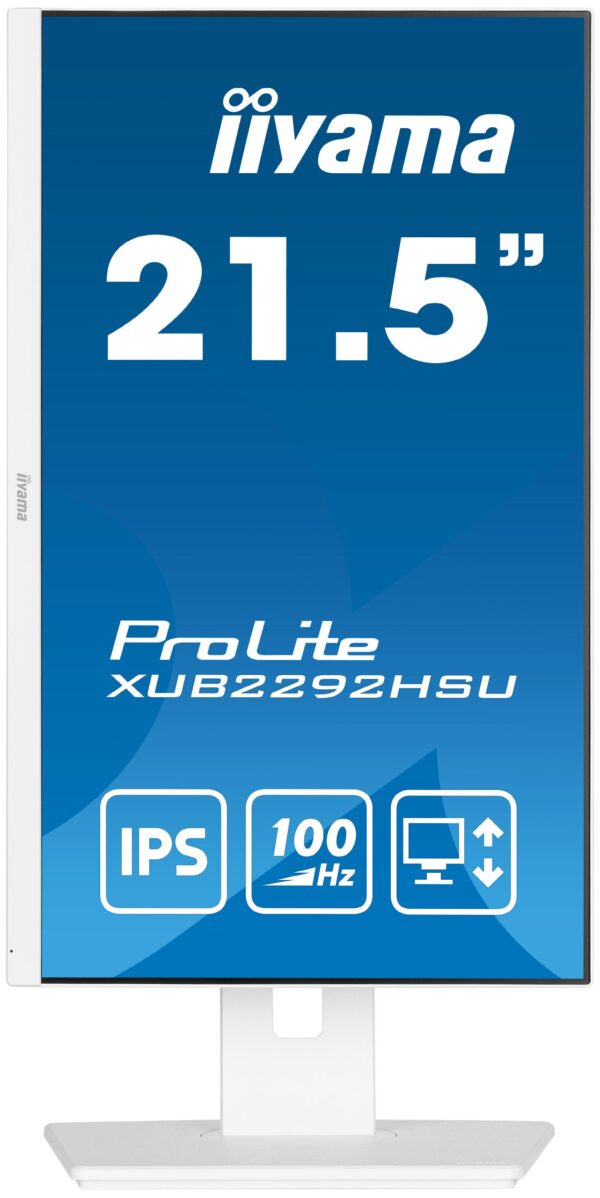

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.SPEAKERS
This LED monitor is equipped with two high quality stereo speakers. -
DISPLAY CHARACTERISTICS Design 3-side borderless Diagonal 21.5″, 54.6cm Panel IPS Panel Technology LED, matte finish Native resolution 1920 x 1080 @100Hz (2.1 megapixel Full HD) Aspect ratio 16:9 Panel brightness 250 cd/m² Static contrast 1000:1 Advanced contrast 80M:1 Response time (MPRT) 0.4ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln (sRGB: 99%; NTSC: 72%) Horizontal Sync 30 – 115kHz Viewable area W x H 476.1 x 267.8mm, 18.7 x 10.5″ Pixel pitch 0.248mm Colour matte, white INTERFACES / CONNECTORS / CONTROLS Signal input HDMI x1 DisplayPort x1 USB HUB x4 (v. 3.2 Gen 1 (5Gbps, DC5V, 900mA)) HDCP yes Headphone connector yes FEATURES Blue light reducer yes Flicker free yes FreeSync support yes Extra i-Style colour OSD languages EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL Control buttons Signal Select / Exit, + / Volume, – / Eco +, Menu , Power User controls picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image settings (blue light reducer, sharp&soft, video mode adjust), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (OSD H. position, OSD V. position, OSD time, OSD rotate, language), extra1 (MBR, FreeSync, USB BC), extra2 (reset, DDC/CI, signal select, HDMI range, opening logo, LED, information) Speakers 2 x 2W Convenience Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX MECHANICAL Display position adjustments height, swivel, tilt, pivot (rotation both sides) Height adjustment 150mm Rotation (PIVOT function) 90° Swivel stand 90°; 45 ° left; 45° right Tilt angle 22° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED Cables power, USB, HDMI Other quick start guide, safety guide POWER MANAGEMENT Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 14W typical, 0.5W stand by, 0.3W off mode SUSTAINABILITY Regulations TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT Product dimensions W x H x D 489.5 x 336.5 (486.5) x 109.5mm Box dimensions W x H x D 560 x 380 x 159mm Weight (without box) 4.5kg Weight (with box) 5.9kg EAN code 4948570123322 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
-
Category Downloads User manual Downloads Technical specification Downloads Drawing Downloads EU Energy Label Downloads UK Energy Label Downloads
