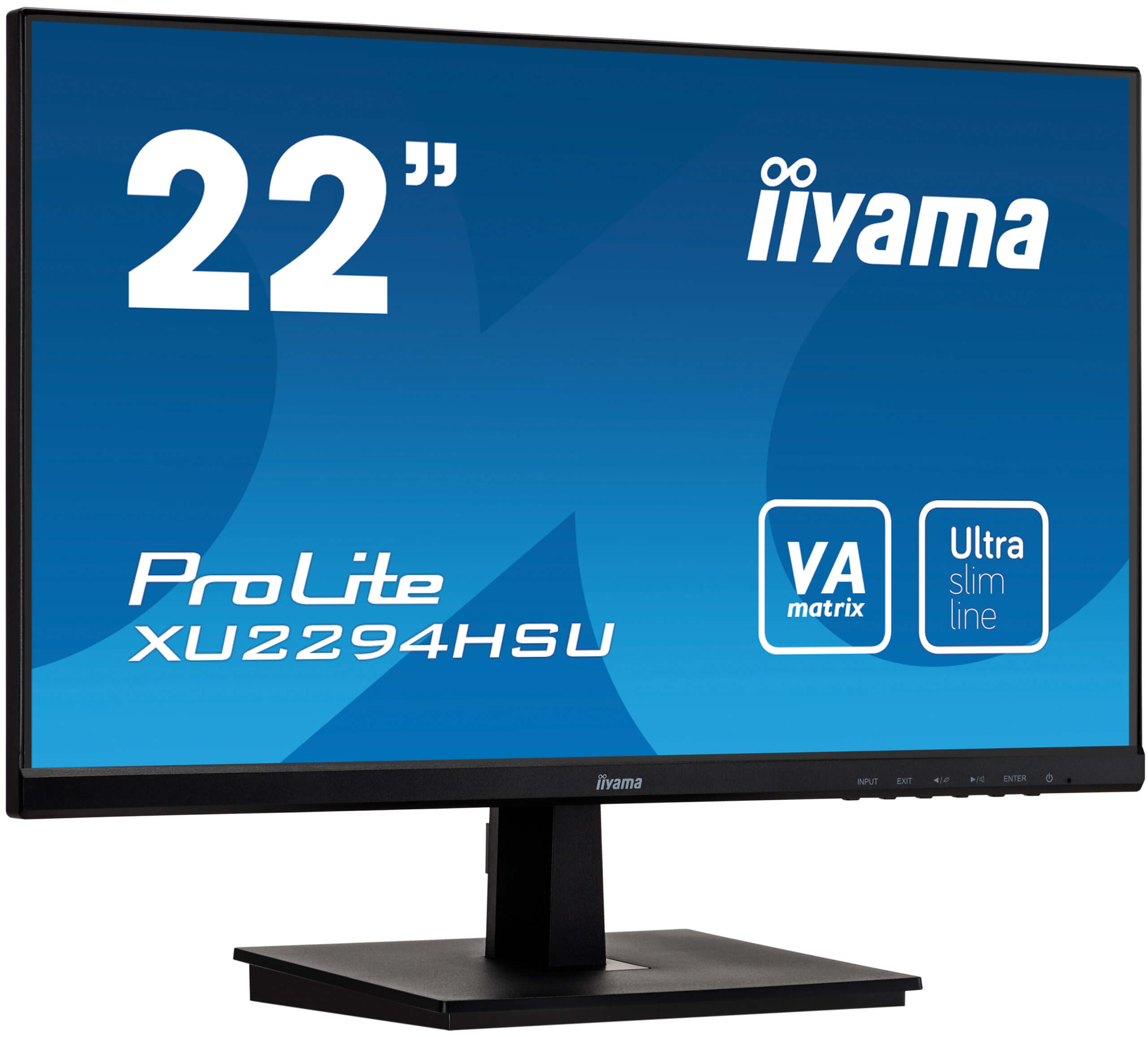

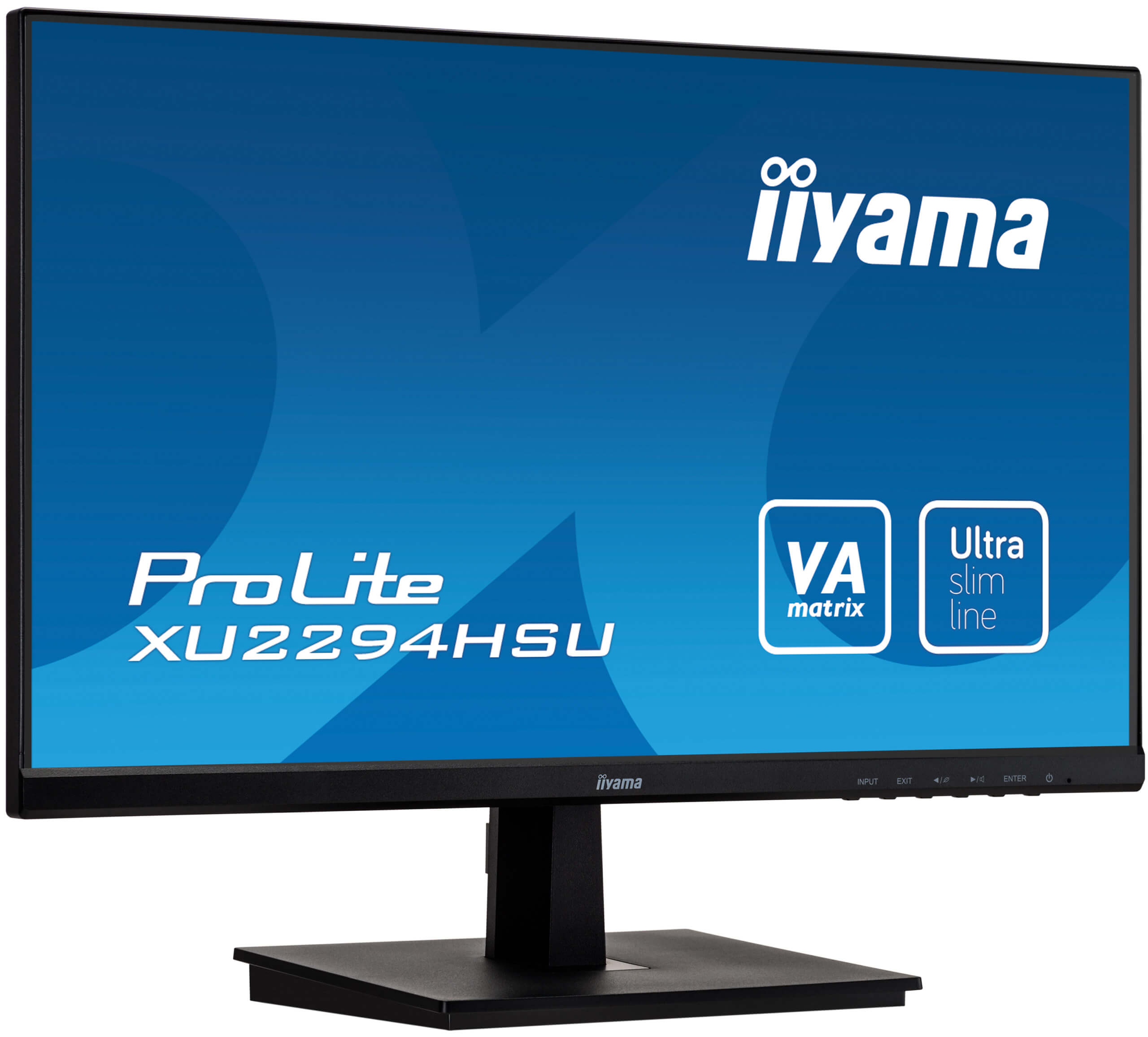

iiyama ProLite XU2294HSU-B1 22″ inch IPS, HDMI, Full HD Desktop Monitor
- Descriptions
- Features
- Specifications
- Documentations
- Warranty
-
PROLITE XU2294HSU-B1 22” Full HD monitor with VA panel The ProLite XU2294HSU featuring VA panel technology guarantees accurate and consistent colour reproduction with wide viewing angles. Triple input configuration (VGA, HDMI, DisplayPort) and a USB hub assure compatibility with many platforms. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design.
-
The ProLite XU2294HSU featuring VA panel technology guarantees accurate and consistent color reproduction with wide viewing angles. Triple input configuration (VGA, HDMI, DisplayPort) and a USB hub assure compatibility with many platforms. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
LED-backlit
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
ULTRA SLIM LINE
VA MATRIX
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
-
DISPLAY CHARACTERISTICS
Design ultra slim Diagonal 21.5″, 54.6cm Panel VA, matte finish Native resolution 1920 x 1080 @75Hz (HDMI&DisplayPort, 2.1 megapixels Full HD) Aspect ratio 16:9 Panel brightness 250 cd/m² Static contrast 3000:1 Advanced contrast 80M:1 Response time (GTG) 4ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln (sRGB: 99%; NTSC: 72%) Horizontal Sync 30 – 85kHz Viewable area W x H 476 x 267.8mm, 18.7 x 10.5″ Pixel pitch 0.248mm Colour matte INTERFACES / CONNECTORS / CONTROLS
Signal input VGA x1 (1920 x 1080 @60Hz)
HDMI x1 (1920 x 1080 @75Hz)
DisplayPort x1 (1920 x 1080 @75Hz)USB HUB x2 (v.2.0) HDCP yes Headphone connector yes FEATURES
Blue light reducer yes Flicker free yes OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL Control buttons Power, Menu/ Select, Scroll up/ Volume, Scroll Down/ ECO, Exit, Input User controls auto adjust, picture adjust (brightness, contrast, ECO, Blue Light Reducer, ACR, OD), geometry (H. position, V. position, pixel clock, phase), colourr settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, display information), input select (input source), audio settings (volume, mute, audio input) Speakers 2 x 1W Convenience Kensington-lock™ prepared, DDC2B, Mac OSX MECHANICAL
Display position adjustments tilt Tilt angle 22° up; 5° down VESA mounting 100 x 100mm Operation temperature range 5°C – 35°C Storage temperature range – 20°C – 60°C ACCESSORIES INCLUDED
Cables power, USB, HDMI Other quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 16W typical, 0.3W stand by, 0.26W off mode SUSTAINABILITY
Regulations TCO, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH Energy efficiency class (Regulation (EU) 2017/1369) E Other REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 488.5 x 376 x 187mm Box dimensions W x H x D 555 x 319 x 140mm Weight (without box) 3kg EAN code 4948570117291 -
DOWNLOADS
User manual XUB_XU2294_2292-user manual-e-revE.pdf DOWNLOAD Technical specification ProLite XU2294HSU-B1 – gb_en.pdf DOWNLOAD Drawing XU2294HSU.pdf DOWNLOAD UK Energy Label XU2294HSU-B1 UK Energy Label pdf data(366776).pdf DOWNLOAD -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
