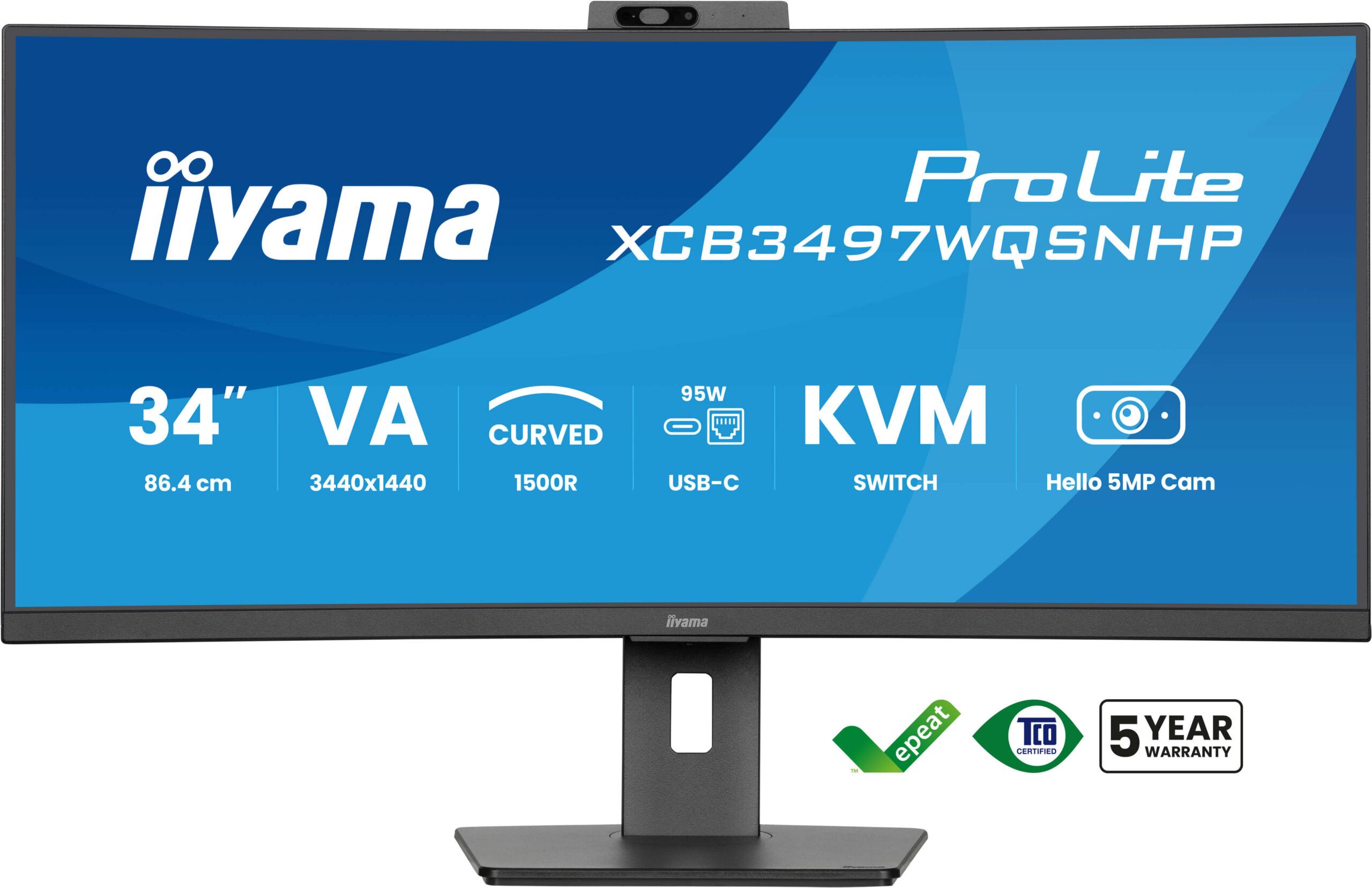

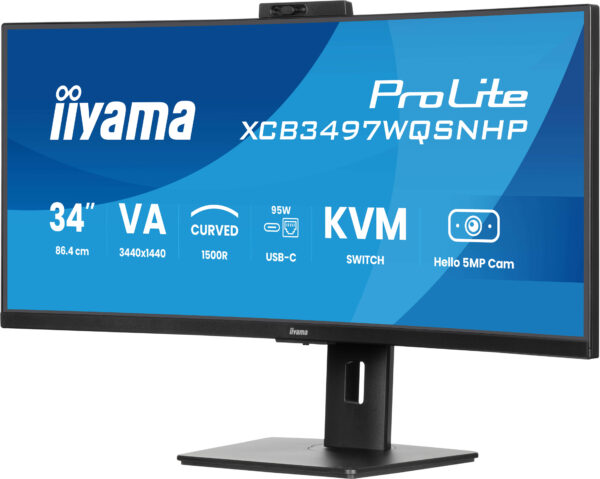

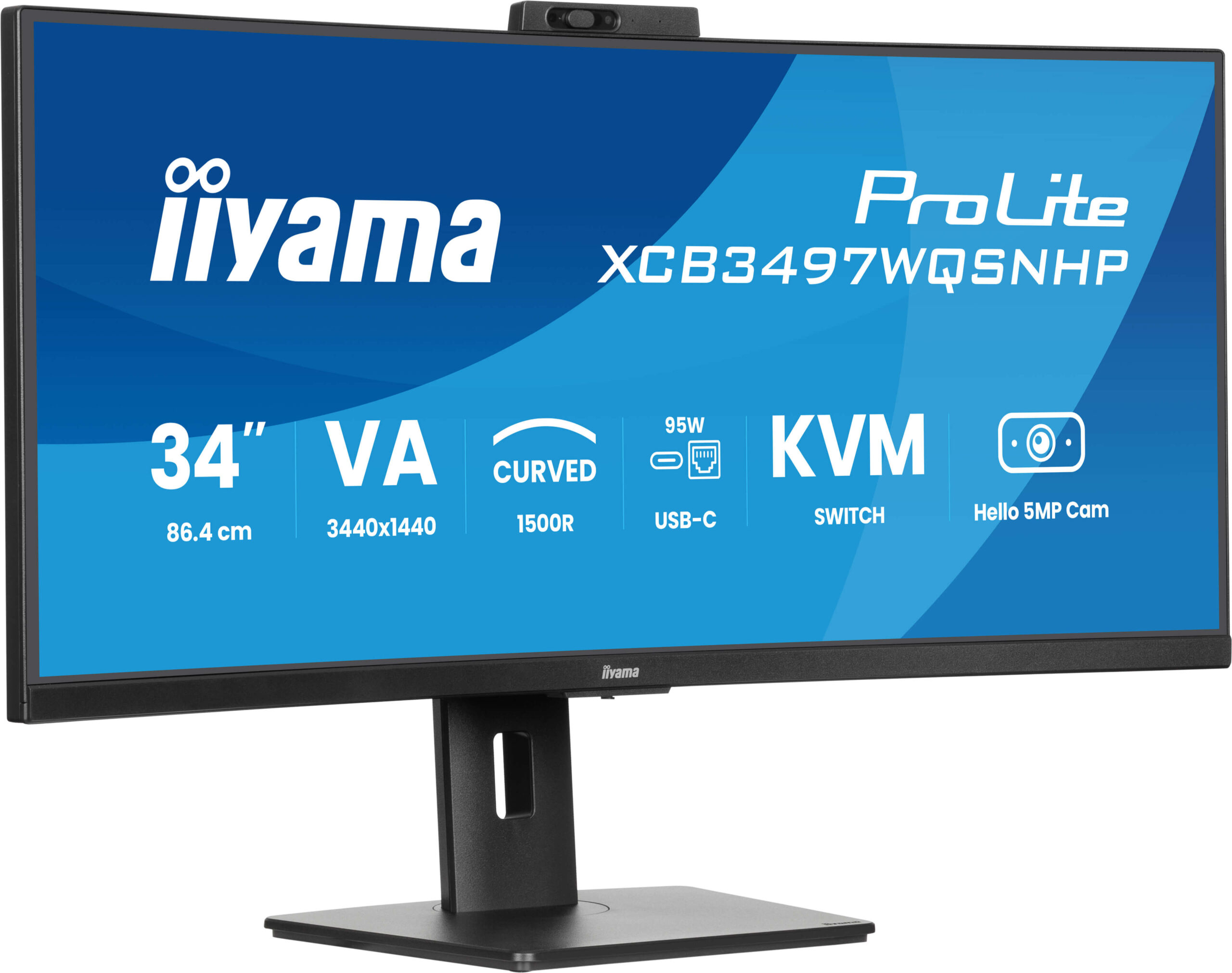

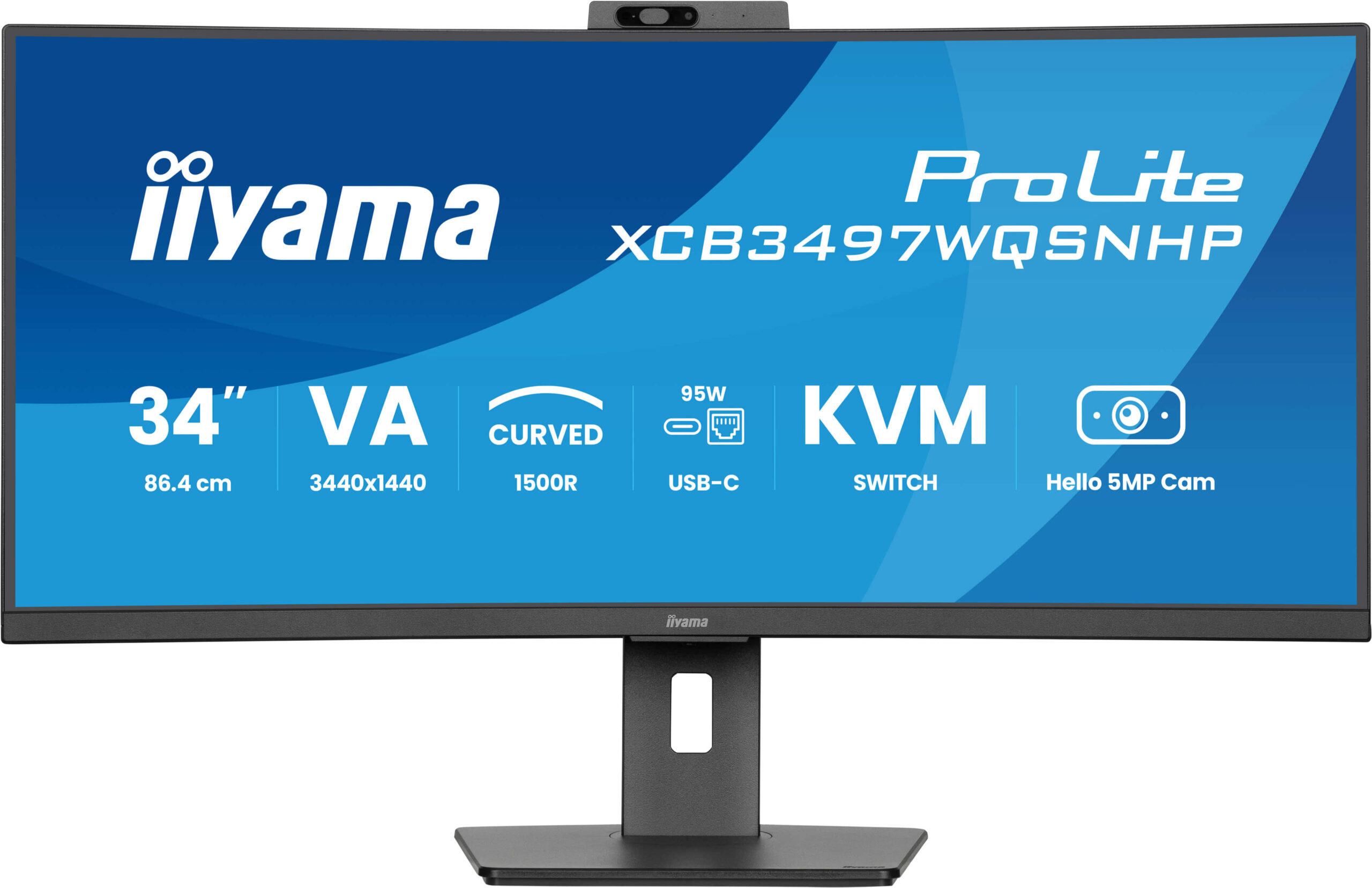

• iiyama ProLite XCB3497WQSNPH-B1 34″ 120Hz UWQHD Desktop Monitor

  Meet the XCB3497WQSNPH — a 34″ curved all-in-one monitor designed for effortless efficiency. With a built-in KVM switch and USB-C dock, you can seamlessly control multiple devices and connect your laptop with a single cable. The vibrant VA panel delivers stunning colors, deep contrast, and wide viewing angles for an immersive experience. Plus, smart features like a 5MP autofocus webcam with Windows Hello, a height-adjustable ergonomic stand, and eye-care technologies keep you comfortable and productive all day.

  USB-C Dock
  The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
  *Functions vary depending on your laptop USB-C support.

  KVM SWITCH
  Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

  Windows Hello webcam
  The built-in web camera with microphone and autofocus guarantees seamless compatibility with any video or web conferencing platform. Compliance with Windows Hello allows users to sign in to their devices using biometric authentication methods. It provides a convenient and secure way to access devices and applications without the need for passwords.

  CURVED DESIGN 1500R
  The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.

  ULTRA WIDE – UWQHD
  UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.

• Category	Specification
  DISPLAY CHARACTERISTICS
  Design	Curved
  Diagonal	34″, 68.7 cm
  Panel	VA panel, matte finish
  Curved	1500R
  Native resolution	3440 x 1440 @120Hz (UWQHD)
  Aspect ratio	21:9
  Panel brightness	350 cd/m²
  Static contrast	3000:1
  Advanced contrast	80M:1
  Response time (MPRT)	0.4ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	16.7mln 8bit (sRGB: 99%; NTSC: 72%, DCI-P3 >90%)
  Horizontal Sync	30 – 180kHz
  Viewable area W x H	797.2 x 333.7mm (31.3 x 13.1″)
  Pixel pitch	0.232mm
  Colour	Matte, black
  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x2 (v.2.0 and v.1.4, 3440×1440 @100Hz, 2560×1440 @120Hz)
  DisplayPort	x1 (v.1.4, 3440 x 1440 @120Hz)
  USB-C	x1 (3440 x 1440 @120Hz, PD 95W)
  USB HUB	x4 (2x Type A v.3.2 Gen 1 (5Gbps, 4.5W), 2x Type C (5Gbps, 7.5W))
  USB-C DOCK	x1 (PD 95W, LAN, USB v.3.2 (Gen 1, 5Gbit))
  HDCP	Yes
  Headphone connector	Yes
  RJ45 (LAN)	x1
  FEATURES
  KVM switch	Yes
  Blue light reducer	Yes
  Flicker free	Yes
  Adaptive Sync support	FreeSync Premium (HDMI: 2560×1440 @48-100Hz, DP/USB-C: 3440×1440 @48-120Hz)
  Extra	Built-in 5MP webcam with autofocus, microphone, and privacy shutter
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Joystick (Power/Menu, Signal Select, Volume, i-Style colour, Blue Light Reducer)
  MECHANICAL
  Display position adjustments	Height, swivel, tilt
  Height adjustment	150mm
  Swivel stand	90° (45° left, 45° right)
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	Yes
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI, DP, USB-C
  Other	Quick start guide, safety guide
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	55W typical, 0.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	TCO Certified, CE, TÜV-GS, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA
  Energy efficiency class	F
  EPEAT Silver	*Registration varies by country
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	807 x 443 (592.5) x 239.5mm
  Box dimensions W x H x D	940 x 500 x 198mm
  Weight (without box)	9.7kg
  Weight (with box)	14.2kg
  EAN code	4948570125296
