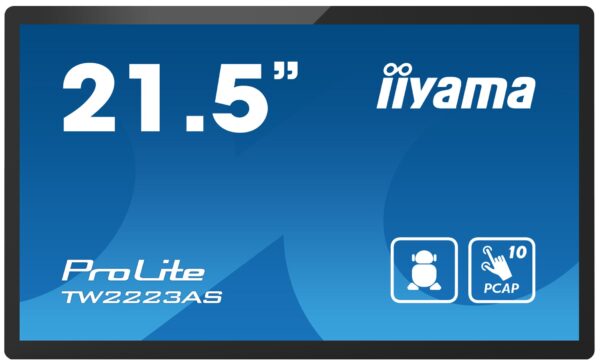

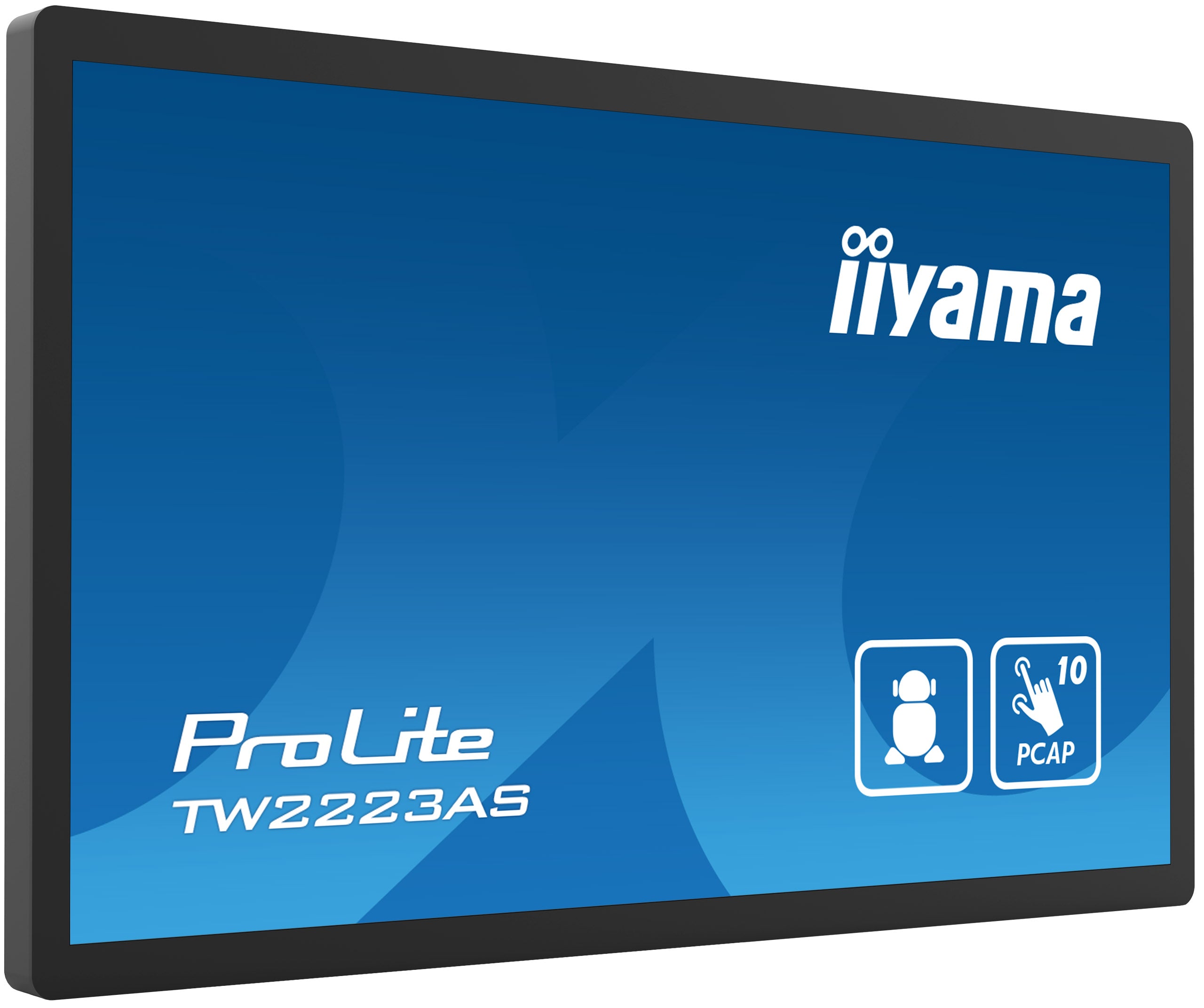

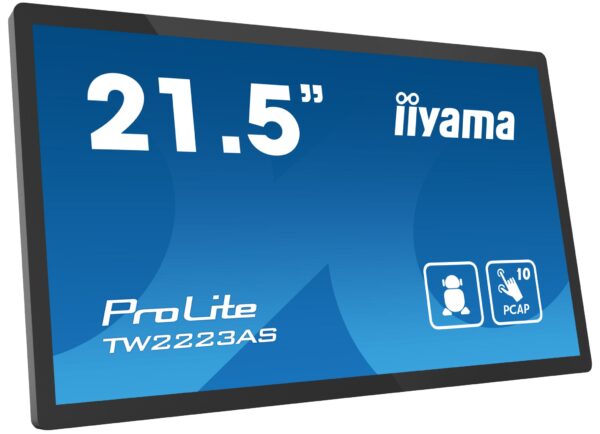

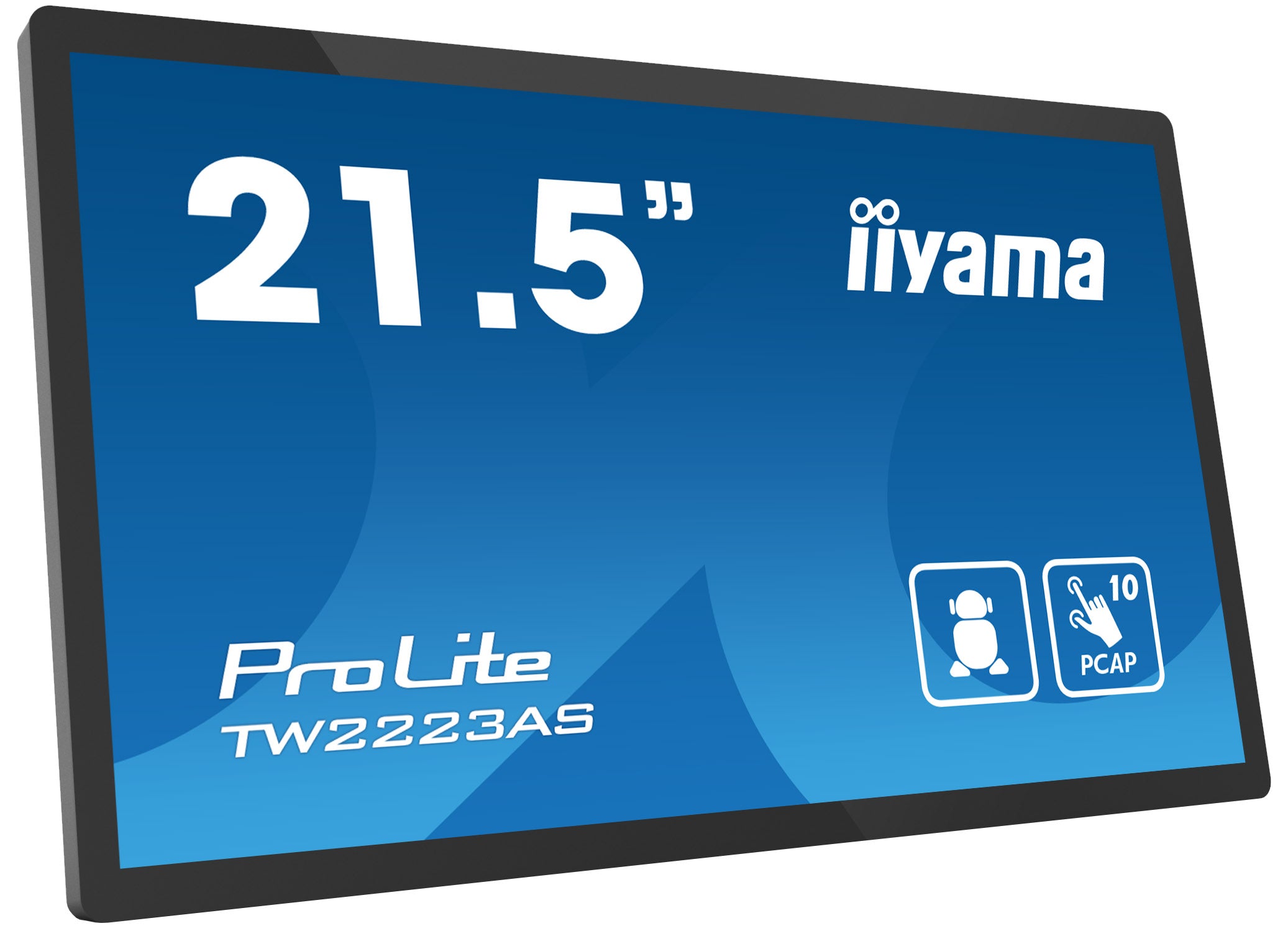

PROLITE TW2223AS-B1
21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design
The ProLite TW2223AS-B1 interactive Touchpanel-PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate in landscape, portrait, and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 16GB storage, Wi-Fi connection, LAN (RJ45), and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when a human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human fingers (also latex gloved) and stylus pens.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
24/7
24/7 displays are designed for continuous operation.
SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up. -
DISPLAY CHARACTERISTICS Design Edge-to-edge glass Diagonal 21.5″, 54.6cm Panel VA Native resolution 1920 x 1080 (2 megapixel HD) Aspect ratio 16:9 Panel brightness 400 cd/m² Brightness (with touch) 350 cd/m² Light transmittance 85% Static contrast 3000:1 (with touch) Response time (GTG) 18ms Viewing zone Horizontal/vertical: 178°/178° Right/left: 89°/89° Up/down: 89°/89° Colour support 16.7 million Horizontal Sync 30. – 84.kHz Viewable area W x H 478 x 269.5mm, 18.8 x 11.8″ Pixel pitch 0.248mm Bezel color and finish Black, matte TOUCH Touch technology Projective capacitive Touchpoints 10 (HID, only with supported OS) Touch accuracy ±2mm Touch method Finger, glove (latex), capacitive stylus Touch interface USB INTERFACES / CONNECTORS / CONTROLS Digital signal output HDMI x1 (1920×1080 @60Hz) Audio output Speakers 2 x 2W HDCP Yes USB ports 5 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 2x serial port (for maintenance use), 1x USB OTG) RJ45 (LAN) x1 FEATURES Integrated software Android 12 with GMS CPU Rockchip RK3399 (1.8GHz, 16Gb storage) GPU Dual-core A72 + Quad-core A53 Storage 16Gb eMMC Memory 2Gb LPDDR4 WiFi IEEE802.11a/b/g/n/ac Bluetooth 5.2 Extra Auto-rotation, SD card slot, anti-glare coating Max. non-stop operating time 24/7 Anti-image retention Yes Glass thickness 2.9mm Glass hardness 6H OSD key lock Yes GENERAL Control buttons Power switch Applications Lock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/clock, timer, stopwatch, manage files, organize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos Flicker-free Yes MECHANICAL Orientation Landscape, portrait, face-up VESA mounting 100 x 100mm MTBF 50,000 hours (excluding backlight) ACCESSORIES INCLUDED Cables Power Guides Quick start guide, safety guide Other AC adapter Cable cover Yes POWER MANAGEMENT Power supply unit External Power supply DC 12V Power usage 23W typical, 0.5W standby, 0.3W off mode SUSTAINABILITY Regulations CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA REACH SVHC Above 0.1%: Lead DIMENSIONS / WEIGHT Product dimensions W x H x D 504.5 x 302 x 32mm Box dimensions W x H x D 640 x 410 x 121mm Weight (without box) 3.61kg Weight (with box) 5.98kg EAN code 4948570122936 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number, and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
-
Document Type Download Link User Manual Download Technical Specification Download Drawing Download Quick Start Guide Download
