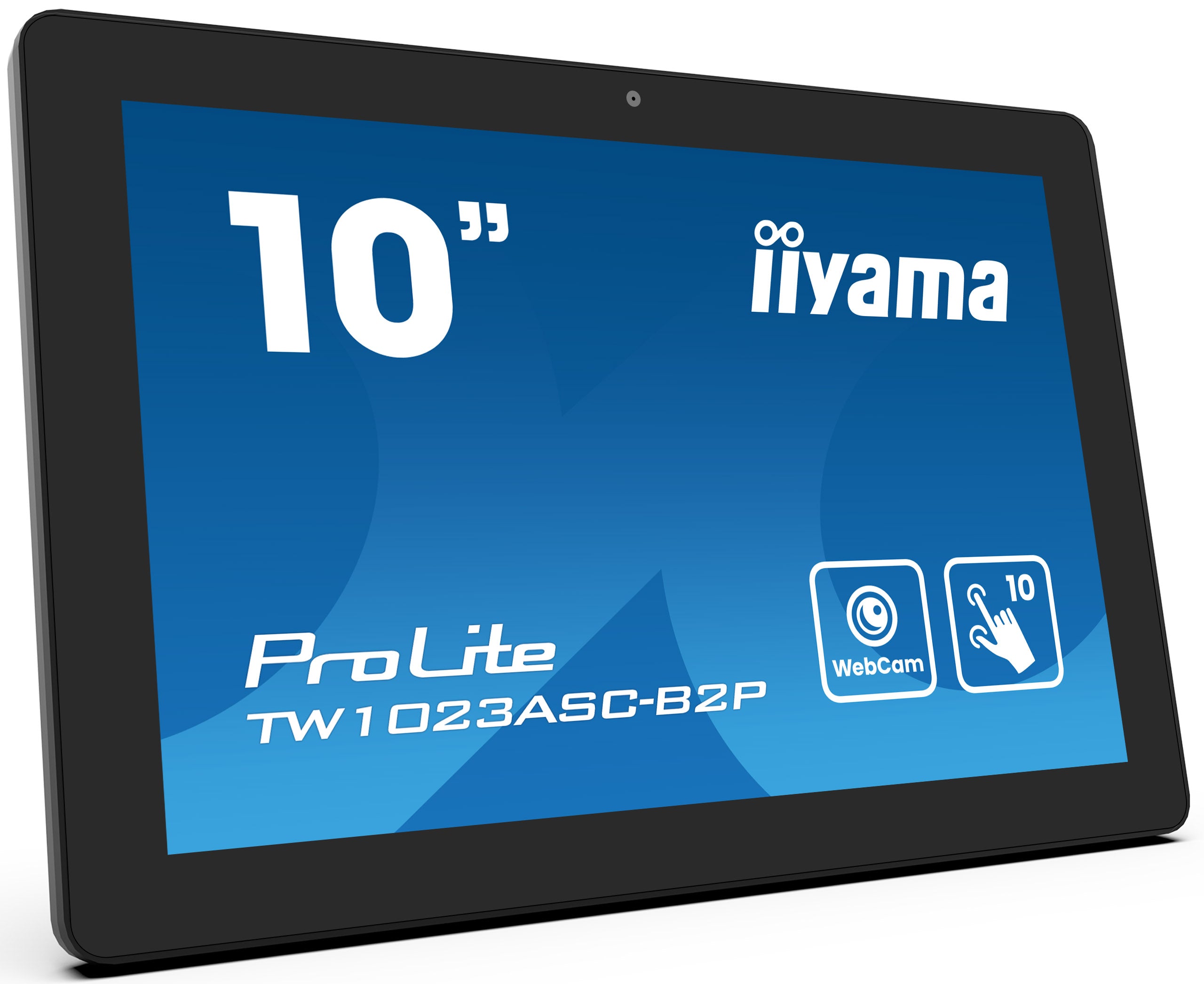

• iiyama ProLite TW1023ASC-B2P 10.1″ IPS PCAP 10pt Touchscreen

  The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it.

  The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.


  Connectivity
  The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.


  Built-in webcam, microphone & speakers
  Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.


  Android OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.


  Anti-fingerprint coating
  This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.


  Touch technology – Capacitive
  This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

• Category	Specifications
  Display Characteristics
  Design	Edge to edge glass
  Diagonal	10.1″, 25.5cm
  Panel	IPS
  Native Resolution	1280 x 800 (1 megapixel HD)
  Aspect Ratio	16:10
  Panel Brightness	450 cd/m²
  Brightness (with touch)	387 cd/m²
  Light Transmittance	86%
  Static Contrast	1000:1 with touch
  Response Time (GTG)	25ms
  Viewing Zone	160°/160° horizontal/vertical
  Colour Support	16.7mln 8bit
  Viewable Area W x H	216.6 x 135.4mm, 8.5 x 5.3″
  Pixel Pitch	0.1692mm
  Bezel Colour and Finish	Black, matte
  Touch
  Touch Technology	Projective capacitive
  Touch Points	10 (HID, only with supported OS)
  Touch Method	Finger, glove (latex), capacitive stylus
  Touch Interface	USB
  Interfaces / Connectors / Controls
  Audio Input	Mini jack x1
  Digital Signal Output	HDMI x1 (mini HDMI, 1280×720 @60Hz)
  Audio Output	Speakers 2 x 1.5W
  USB Ports	4 (1 x 3.2 Gen1, 2 x 2.0, 1 x MICRO with OTG)
  RJ45 (LAN)	1 (PoE – IEEE802.3 at/Max. 30W)
  Microphone	1
  Features
  Integrated Software	Android 13
  CPU	Rockchip RK3568, quad-core Cortex-A55 up to 2GHz
  GPU	Quad-core Cortex A55
  Storage	32GB eMMC
  Memory	4GB DDR4
  WiFi	IEEE802.11a/b/g/n/ac
  Bluetooth	5.2
  Extra	Auto-rotation, webcam (5MP), SD card slot, anti-fingerprint coating
  Kiosk Mode	Yes
  Max Operating Time	24/7
  Glass Thickness	1.25mm
  Glass Hardness	6H
  OSD Key Lock	Yes
  Mechanical
  Orientation	Landscape, portrait, face-up
  VESA Mounting	75 x 75mm
  Accessories Included
  Guides	Quick start guide, safety guide
  Cable Cover	Yes
  Power Management
  Power Supply Unit	External
  Power Supply	DC 12 V
  Power Usage	18W typical, 0.5W stand by
  Sustainability
  Regulations	CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
  REACH SVHC	Above 0.1%: Lead
  Dimensions / Weight
  Product Dimensions	255 x 172 x 30.5mm
  Box Dimensions	398 x 223 x 68mm
  Pallet Volume	256pcs
  Pallet Dimensions	1000 x 1200 x 2150mm
  Weight (without box)	0.8kg
  Weight (with box)	1.36kg
  EAN Code	4948570124541
