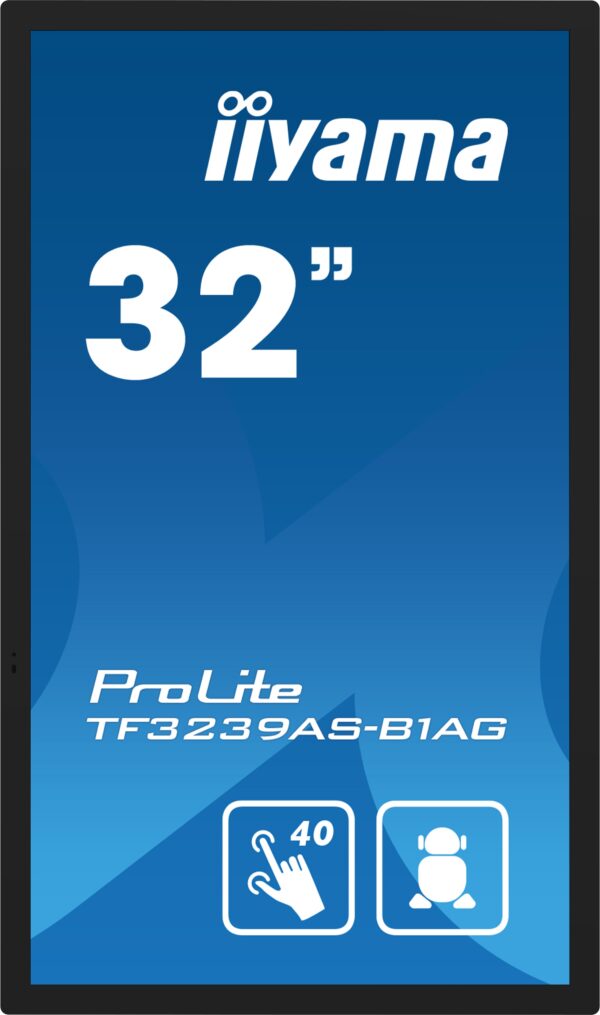

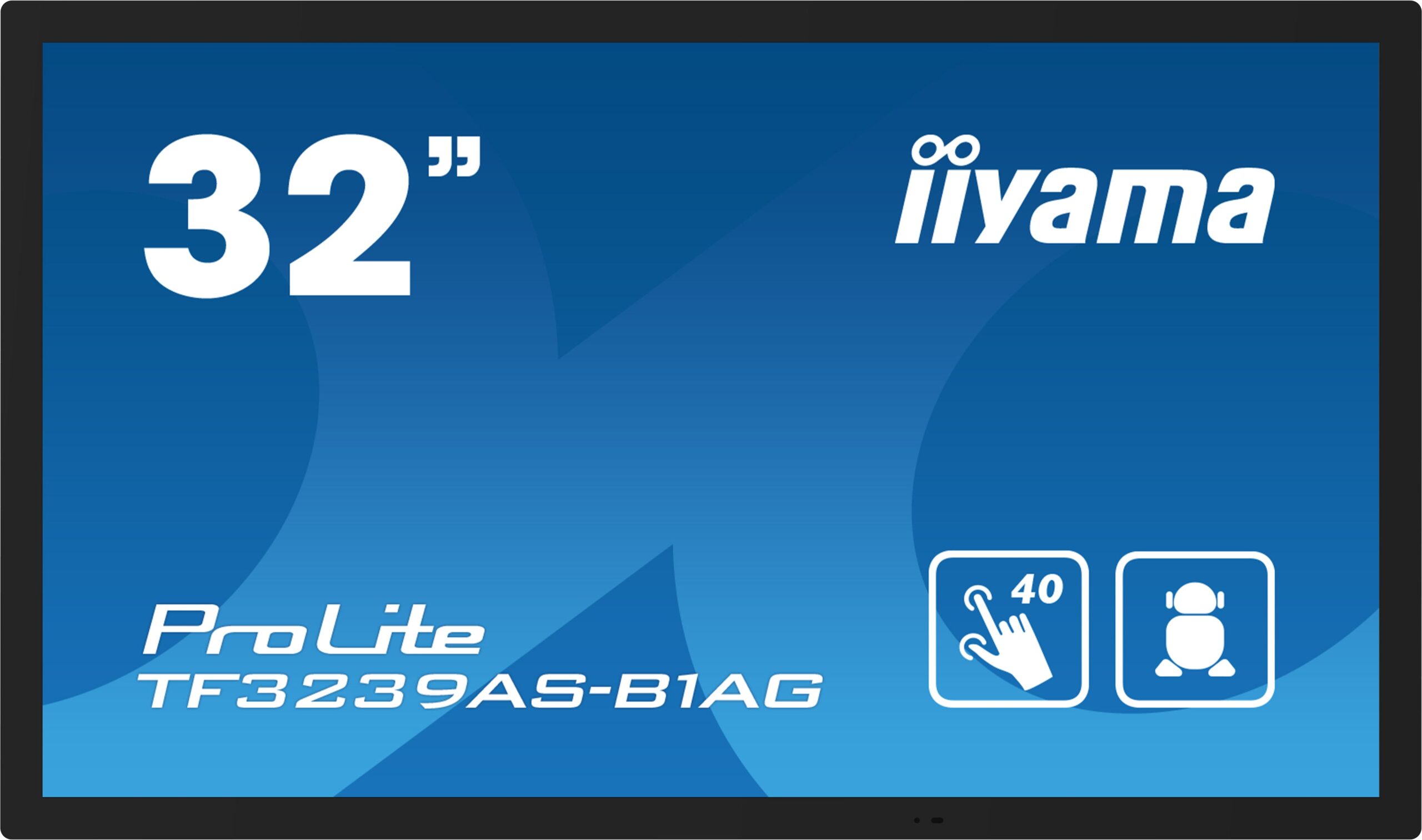

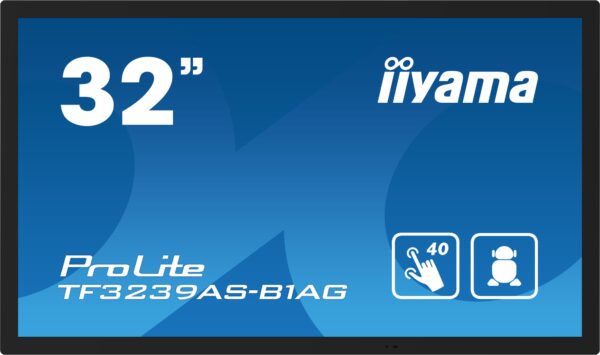

iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touchscreen Display

• Description
• Specifications
• Downloads

• iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touchscreen Display

  Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

  The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

  The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs

  Android OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  iiSignage²
  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.


  Retail Instalations
  The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.


  Huddle Spaces
  Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.


  Signal FailOver
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.


  Touch Through-Glass
  This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

• Attribute	Details
  Design	Edge to edge glass, Open Frame
  Diagonal	31.5″, 80cm
  Panel	IPS LED, AG coated glass, matte finish, haze 25%
  Native resolution	1920 x 1080 @60Hz (Full HD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Brightness with touch	435 cd/m²
  Light transmittance	87%
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	178°/178° (horizontal/vertical)
  Colour support	16.7 million (8-bit) (72% NTSC)
  Horizontal Sync	28 – 160kHz
  Viewable area (W x H)	698.4 x 392.8mm (27.5 x 15.5″)
  Bezel width (sides, top, bottom)	22mm, 22mm, 22mm
  Pixel pitch	0.363mm
  Bezel colour and finish	Black, matte
  Touch technology	Bonded PCAP
  Touch points	40
  Touch accuracy	+- 2.5mm
  Touch method	Stylus, finger, glove (latex)
  Touch interface	USB
  Supported OS	Windows, Linux
  Through-Glass	6mm
  Palm rejection	Yes
  Digital signal input	HDMI x2 (2.0, max. 3840×2160 @60Hz), DisplayPort x1 (1.2, max. 3840×2160 @60Hz)
  Monitor control input	RS-232c x1 (Get/Set Command)
  RJ45 (LAN)	x1 (Control and Internet)
  Audio output	Mini jack x1
  Speakers	2 x 10W
  HDCP	2.2
  USB ports	x3 OUT (2.0 x1 (up Type B), 2.0 x2 (Type A))
  Integrated software	Android 11 OS, iiSignage², EShare, FailOver
  Hardware	CPU: A734 + A534, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
  Extra features	Handles, Touch Through-Glass
  Kiosk mode	Yes
  Max. non-stop operating time	24/7
  Anti image retention	Yes
  Glass thickness	3mm
  Glass hardness	3H
  60950 Ball drop test	Yes
  Water and dust protection	IP65 (front)
  Housing (bezel)	Metal
  OSD key lock	Yes
  Remote control lock	Yes
  OSD languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
  Control buttons	Power
  User controls	Picture, screen, audio, configuration, advanced options
  Plug&Play	DDC2B

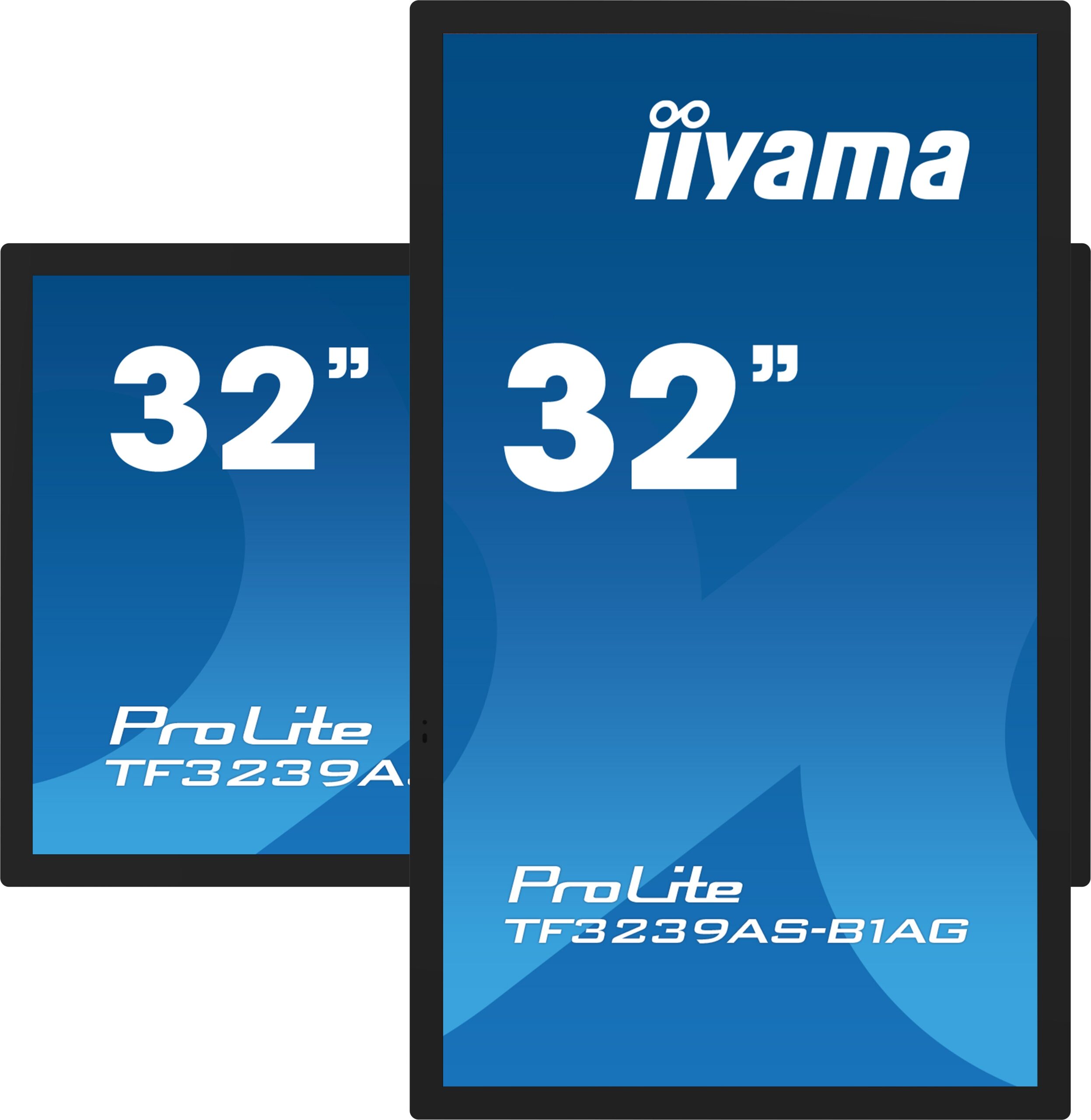

  Orientation	Landscape, portrait, face-up
  VESA mounting	200 x 200mm
  Mini PC mount	VESA 100 x 100, NUC INTEL
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	50,000 hours (excluding backlight)
  Cables included	Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
  Guides	Quick start guide, safety guide
  Cable cover	Yes
  Remote control	Yes (batteries included)
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	50W typical, 0.5W standby, 0.3W off mode
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus
  Energy efficiency class	F
  REACH SVHC	Above 0.1%: Lead
  Product dimensions (W x H x D)	746.2 x 440.7 x 62.4mm
  Box dimensions (W x H x D)	840 x 560 x 149mm
  Weight (without box)	13.2kg
  Weight (with box)	16.6kg
  EAN code	4948570123865
