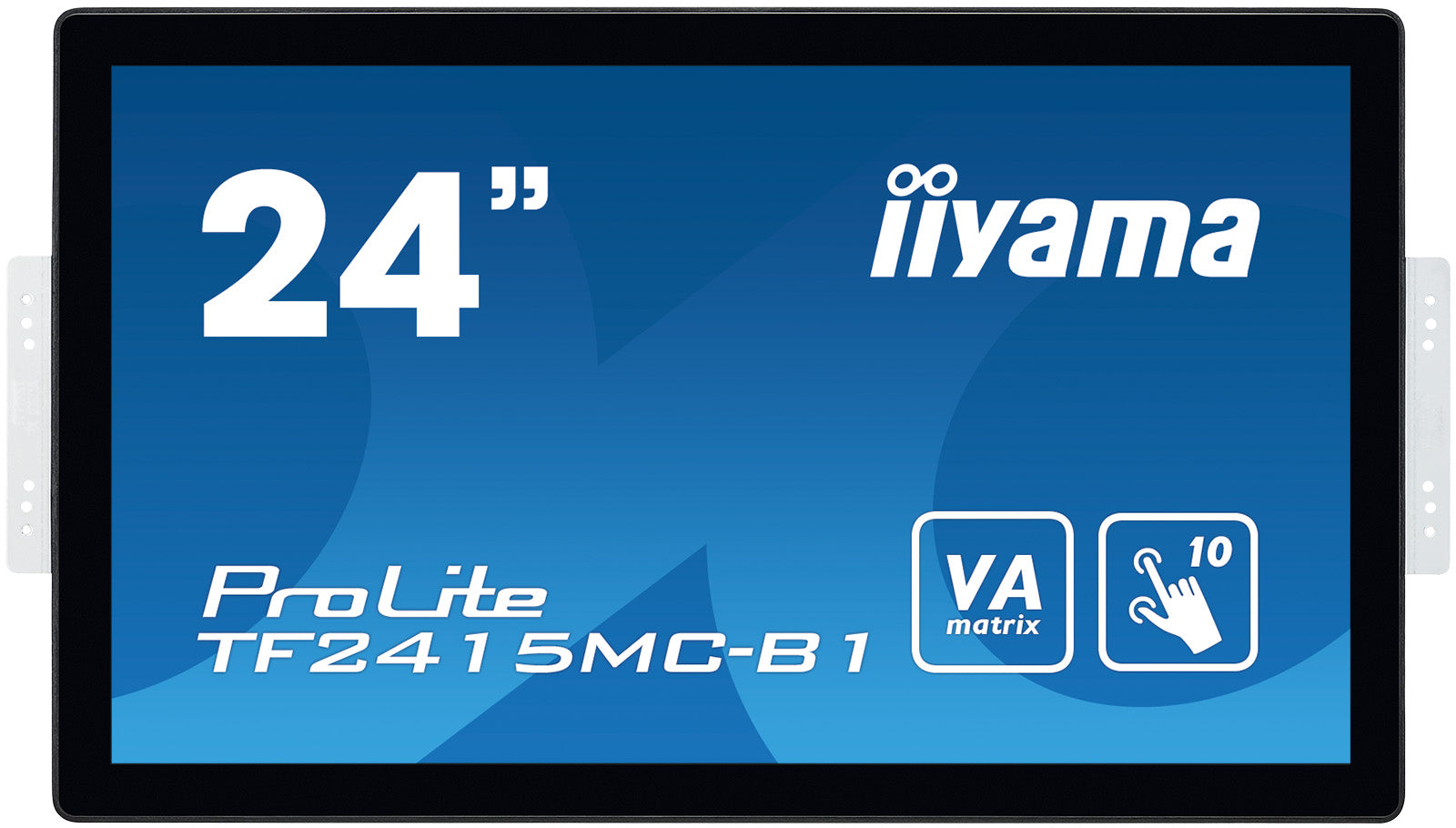

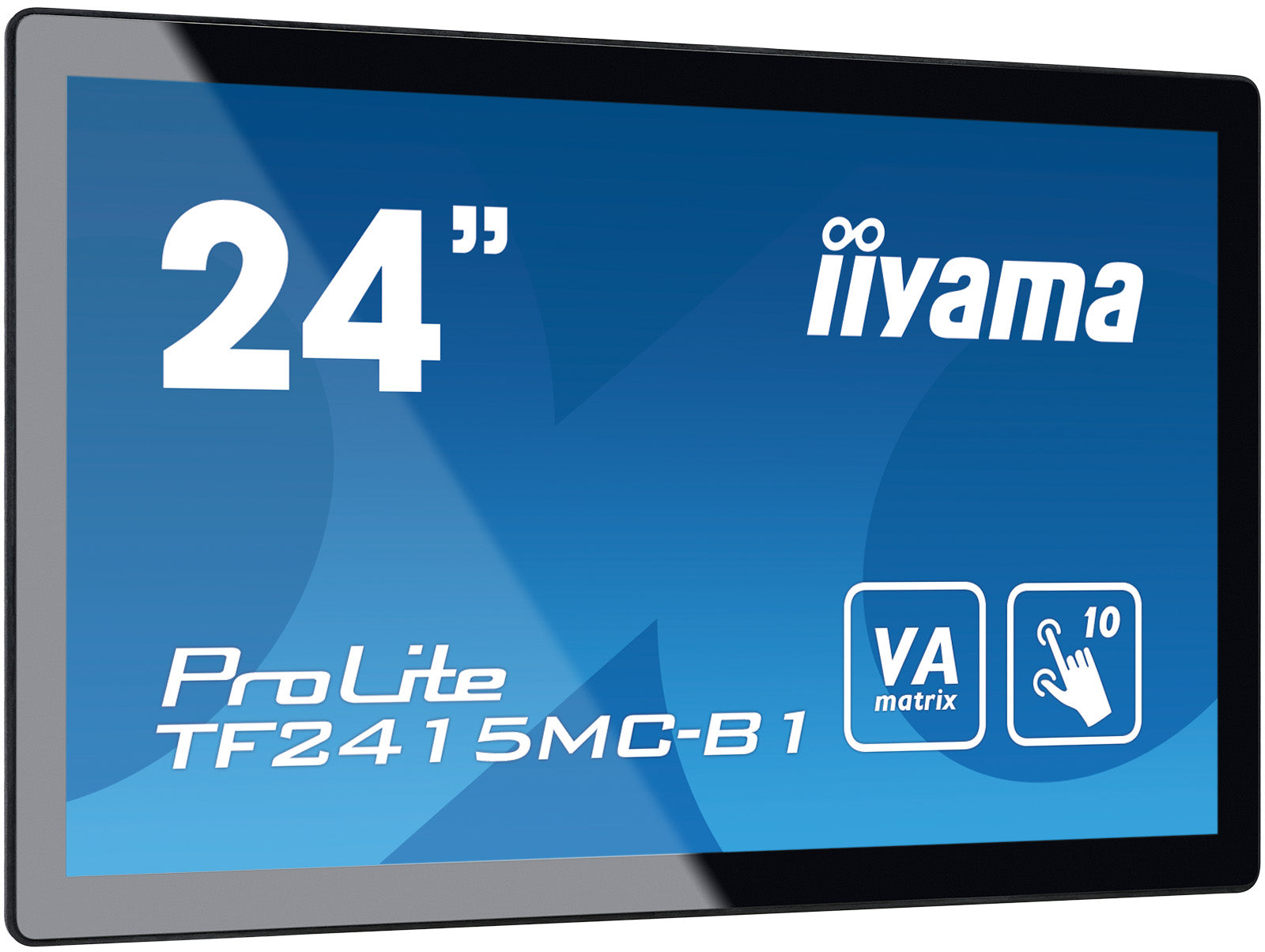

iiyama ProLite TF2415MC-B1 – 10pt PCAP 24″ Open Frame Touchscreen Monitor

• Description
• Specifications
• Warranty

• iiyama ProLite TF2415MC-B1 – 10pt PCAP 24″ Open Frame Touchscreen Monitor

  Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration

  The ProLite TF2415MC-B1 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B1 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

  TOUCH TECHNOLOGY – CAPACITIVE
  This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  FOAM SEAL
  A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

  CABLE MANAGEMENT
  Cables can be neatly tied and routed with the special cable cover, so they cannot come loose or move around. A lockable DC connector ensures fixing the power cable.

  OPEN FRAME BRACKETS

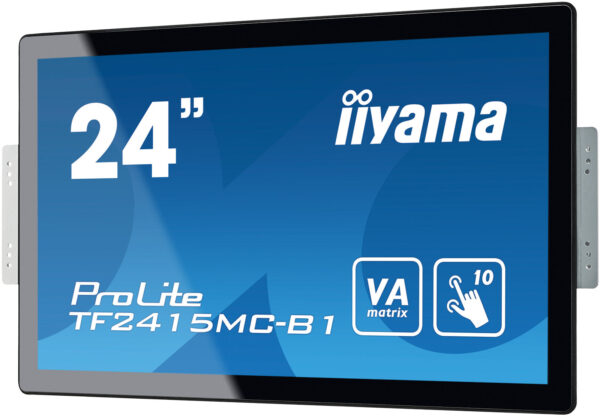

  This open frame monitor is equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.



  BALL-DROP-TEST PROOF

  The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

• DISPLAY CHARACTERISTICS

  Design	Open Frame
  Diagonal	23.8″, 60.5cm
  Panel	VA LED
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Brightness	215 cd/m² with touch
  Light transmittance	85%
  Static contrast	3000:1 with touch
  Response time (GTG)	16ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Horizontal Sync	31.4 – 82kHz
  Viewable area W x H	527.04 x 296.46mm, 20.7 x 11.7″
  Pixel pitch	0.2745mm
  Bezel colour and finish	black

  TOUCH

  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1
  Digital signal input	HDMI x1 DisplayPort x1
  Audio output	Mini jack x1
  HDCP	yes

  FEATURES

  60950 Ball drop test	yes
  Water and dust protection	IP65 (front)
  Water tight seal	yes
  OSD key lock	yes

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, JP
  Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
  User controls	contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature
  Plug&Play	DDC2B

  MECHANICAL

  Orientation	landscape, portrait, face-up
  VESA mounting	100 x 100mm

  ACCESSORIES INCLUDED

  Cables	power, USB, HDMI, DP
  Guides	quick start guide, safety guide
  Other	AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket, external control pad

  POWER MANAGEMENT

  Power supply unit	external
  Power supply	DC 12 V
  Power usage	25W typical, 1.2W stand by, 1.2W off mode

  SUSTAINABILITY

  Regulations	CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	575 x 347 x 42.5mm
  Weight (without box)	5.8kg
  EAN code	4948570115921
