iiyama ProLite TF2238MSC-B1 21.5″ 10pt PCAP Touch Screen Monitor

iiyama ProLite TF2238MSC-B1

21.5″ 10pt PCAP Touch Screen Monitor

• Description
• Specifications
• Warranty
• Downloads

• PROLITE TF2238MSC-B1

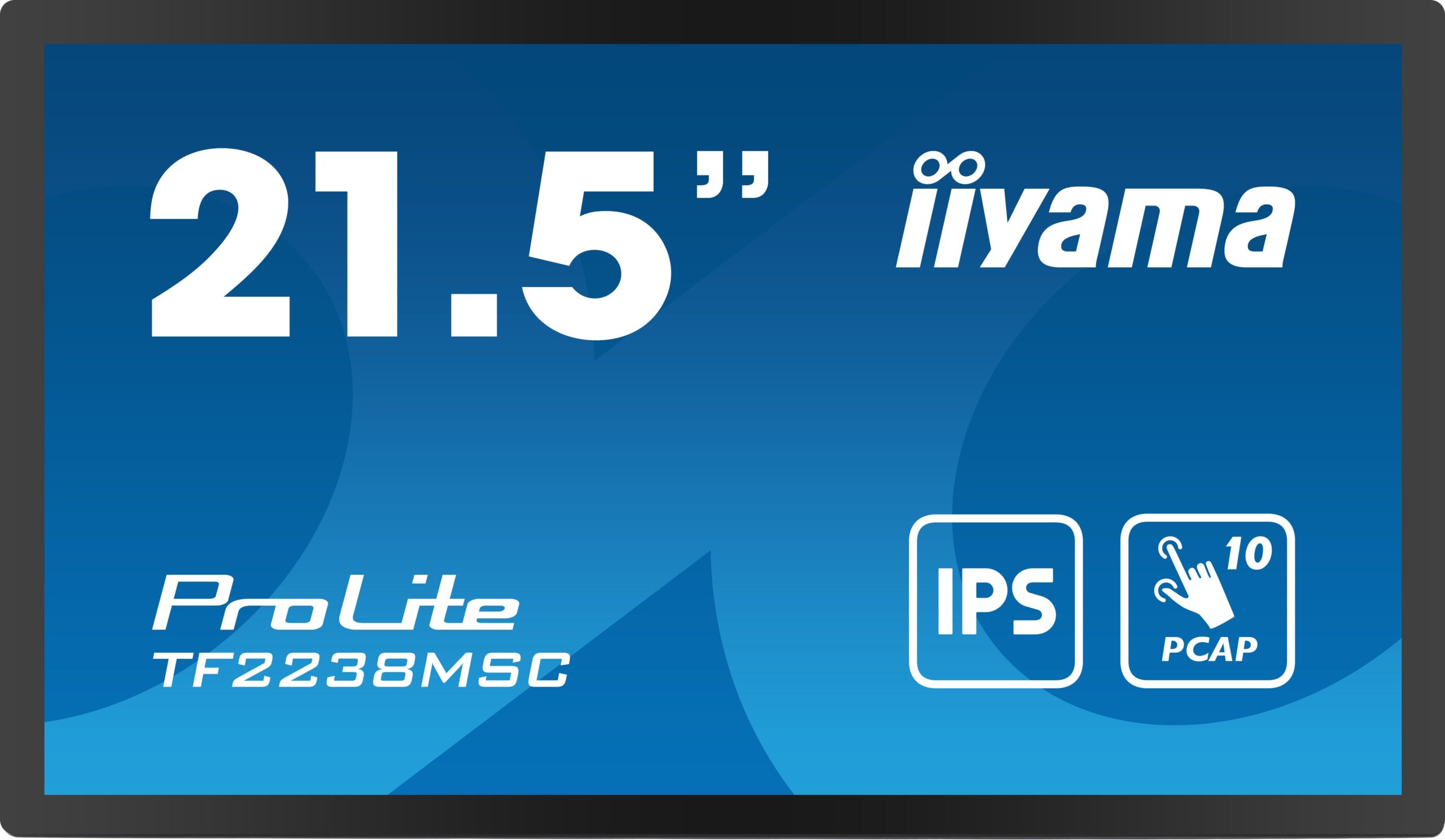

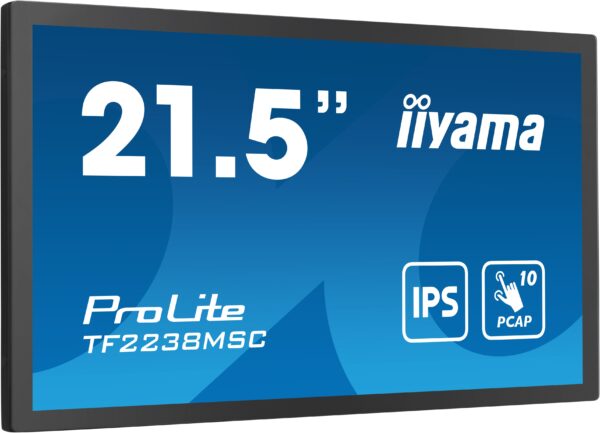

  21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

  The Full HD (1920×1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

  OPTICAL BONDED PCAP
  The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

  IPS TECHNOLOGY
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  OPEN FRAME LFD
  Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

  SCRATCH RESISTANCE
  Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  SPEAKERS
  This LED monitor is equipped with two high quality stereo speakers.

• DISPLAY CHARACTERISTICS
  Design	Edge to edge glass, Open Frame
  Diagonal	21.5″, 54.5cm
  Panel	IPS
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	600 cd/m²
  Brightness	525 cd/m² with touch
  Light transmittance	87%
  Static contrast	1000:1
  Response time (GTG)	5ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7 million
  Horizontal Sync	30 – 83kHz
  Viewable area W x H	479 x 260mm, 20.2 x 11.8″
  Bezel width (sides, top, bottom)	17mm, 19.8mm, 19.8mm
  Pixel pitch	0.249mm
  Bezel colour and finish	Black, matte
  TOUCH
  Touch technology	Bonded PCAP
  Touch points	10 (HID, only with supported OS)
  Touch method	Stylus, finger, glove
  Touch interface	USB
  Supported operating systems	Windows and Linux (refer to driver instruction file for touch models)
  INTERFACES / CONNECTORS / CONTROLS
  Digital signal input	HDMI x1, DisplayPort x1
  Audio output	Speakers 2 x 2W
  HDCP	Yes
  USB HUB	x2 (USB3.2 Gen 1)
  FEATURES
  Extra	Optical bonding PCAP, metal housing, anti-fingerprint coating, waterproof touch function
  Glass thickness	3.6mm
  Glass hardness	7H
  60950 Ball drop test	Yes
  Water and dust protection	IP1X (front)
  Housing (bezel)	Metal
  OSD key lock	Yes
  GENERAL
  OSD languages	EN, DE, FR, CN, RU, JP, NL, PL
  Control buttons	Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
  User controls	Picture adjust, color settings, image settings, OSD settings, extra
  Blue light reducer	Yes
  Plug & Play	DDC2B
  MECHANICAL

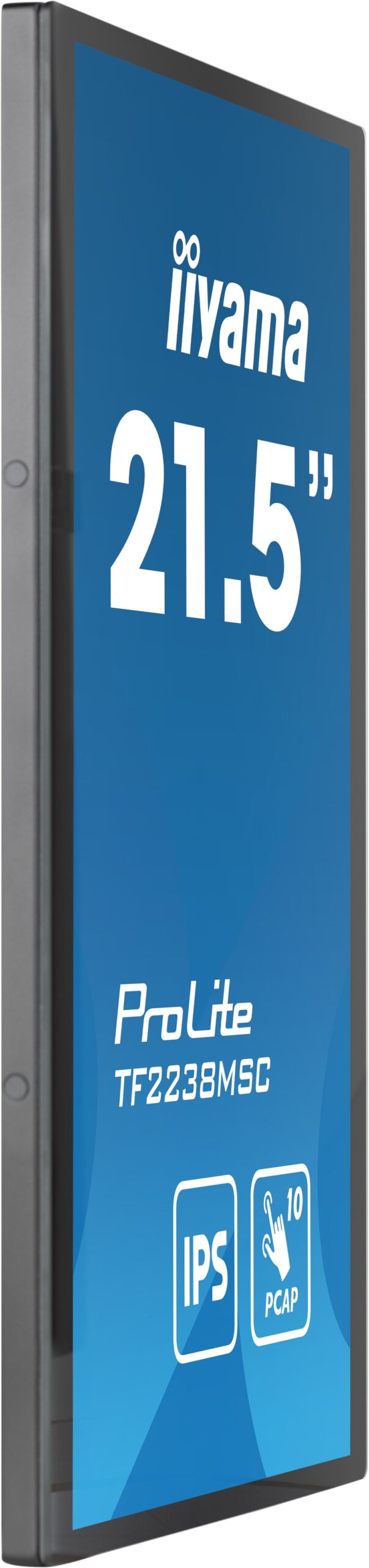

  Orientation	Landscape, portrait, face-up
  Fanless design	Yes
  VESA mounting	100 x 100mm
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI
  Guides	Quick start guide, safety guide
  Cable cover	Yes
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	17W typical, 1.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class	D
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	512.5 x 300 x 47mm
  Box dimensions W x H x D	572 x 364 x 112mm
  Weight (without box)	5.1kg
  Weight (with box)	6.4kg
  EAN code	4948570121618
