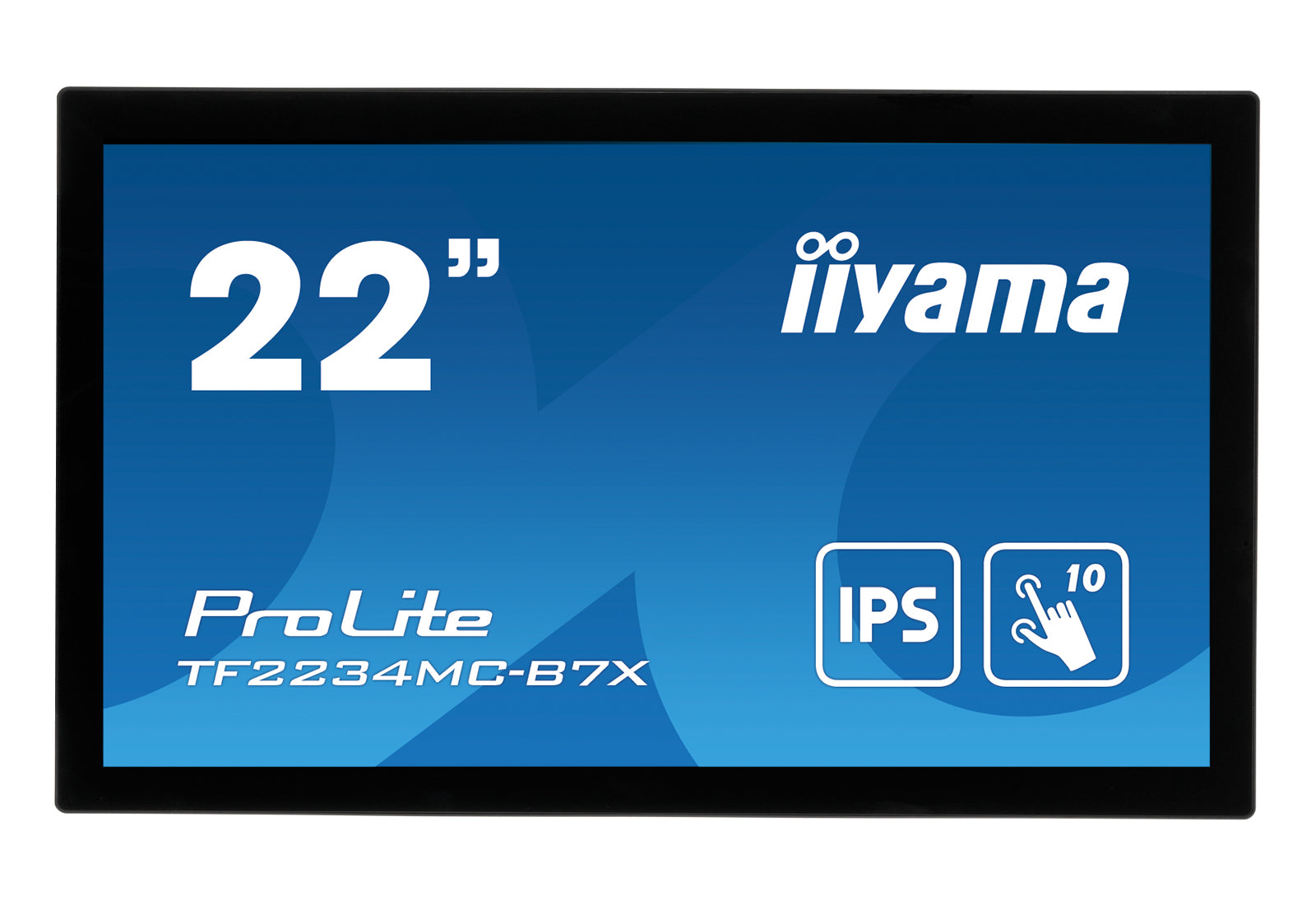

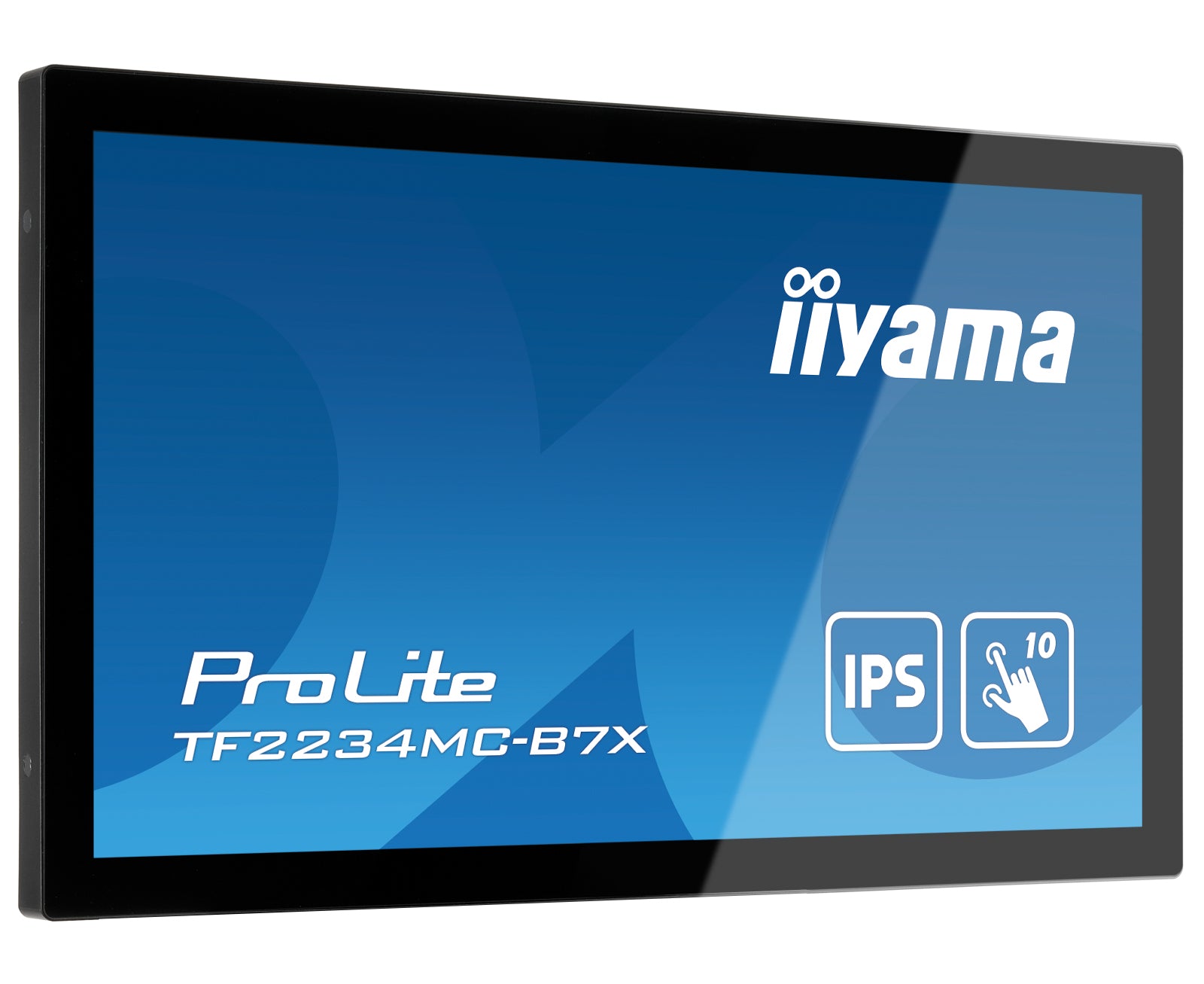

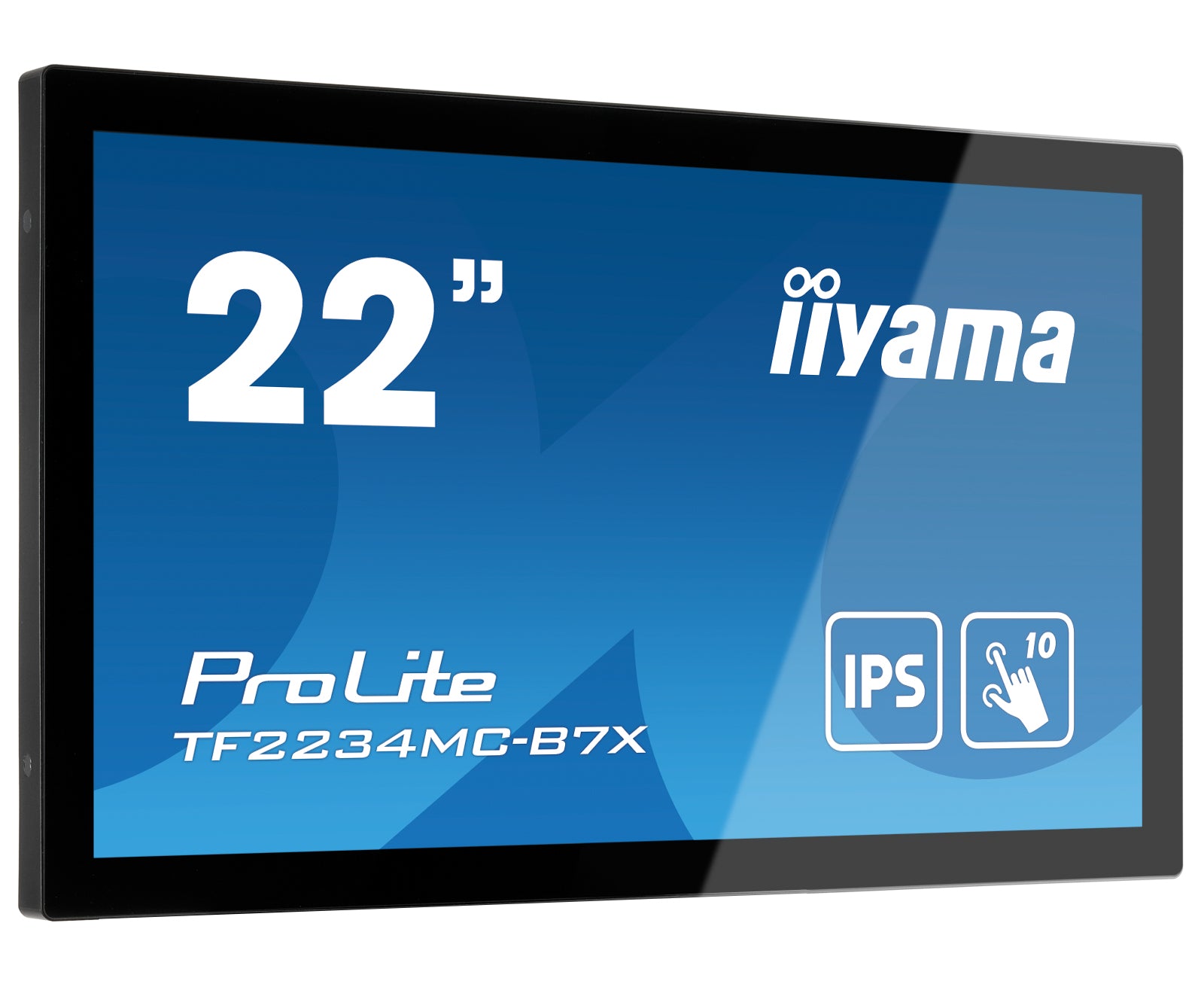

iiyama ProLite TF2234MC-B7X – 10pt PCAP 22″ Open Frame Touchscreen Monitor

iiyama ProLite TF2234MC-B7X

10pt PCAP 22″ Open Frame Touchscreen Monitor

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye-catching bezel with edge-to-edge glass.

• Description
• Specifications
• Warranty
• Downloads

• iiyama ProLite TF2234MC-B7X – 10pt PCAP 22″ Open Frame Touchscreen Monitor

  22″ 10pt touch Open Frame monitor with IPS panel and touch through glass function

  The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets

  IPS TECHNOLOGY
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  TOUCH THROUGH-GLASS
  This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

  TOUCH TECHNOLOGY – CAPACITIVE
  This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  SCRATCH RESISTANCE
  Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  ANTI-FINGERPRINT COATING
  This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.



• Feature	Description
  DISPLAY CHARACTERISTICS
  Design	Open Frame
  Diagonal	21.5″, 54.6cm
  Panel	IPS LED
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	350 cd/m²
  Brightness	305 cd/m² with touch
  Light transmittance	87%
  Static contrast	1,000:1 with touch
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Horizontal Sync	30 – 84kHz
  Viewable area W x H	476.0 x 267.7mm, 18.7 x 10.5″
  Pixel pitch	0.247mm
  Bezel color and finish	Black, matte
  TOUCH
  Touch technology	Projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	Stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Through-Glass	6mm
  Palm rejection	Yes
  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1
  Digital signal input	HDMI x1, DisplayPort x1
  HDCP	Yes
  Extra	Anti-fingerprint coating, touch through-glass
  Glass thickness	1.5mm
  Glass hardness	7H
  Water and dust protection	IP65 (front)
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, PL
  Control buttons	Menu, Scroll up/Brightness, Scroll down/Contrast, Select, Power
  User controls	Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (timeout, position, H.position, V.position, touch switch), option (reset, language, source select, display mode, factory)
  Plug & Play	DDC2B

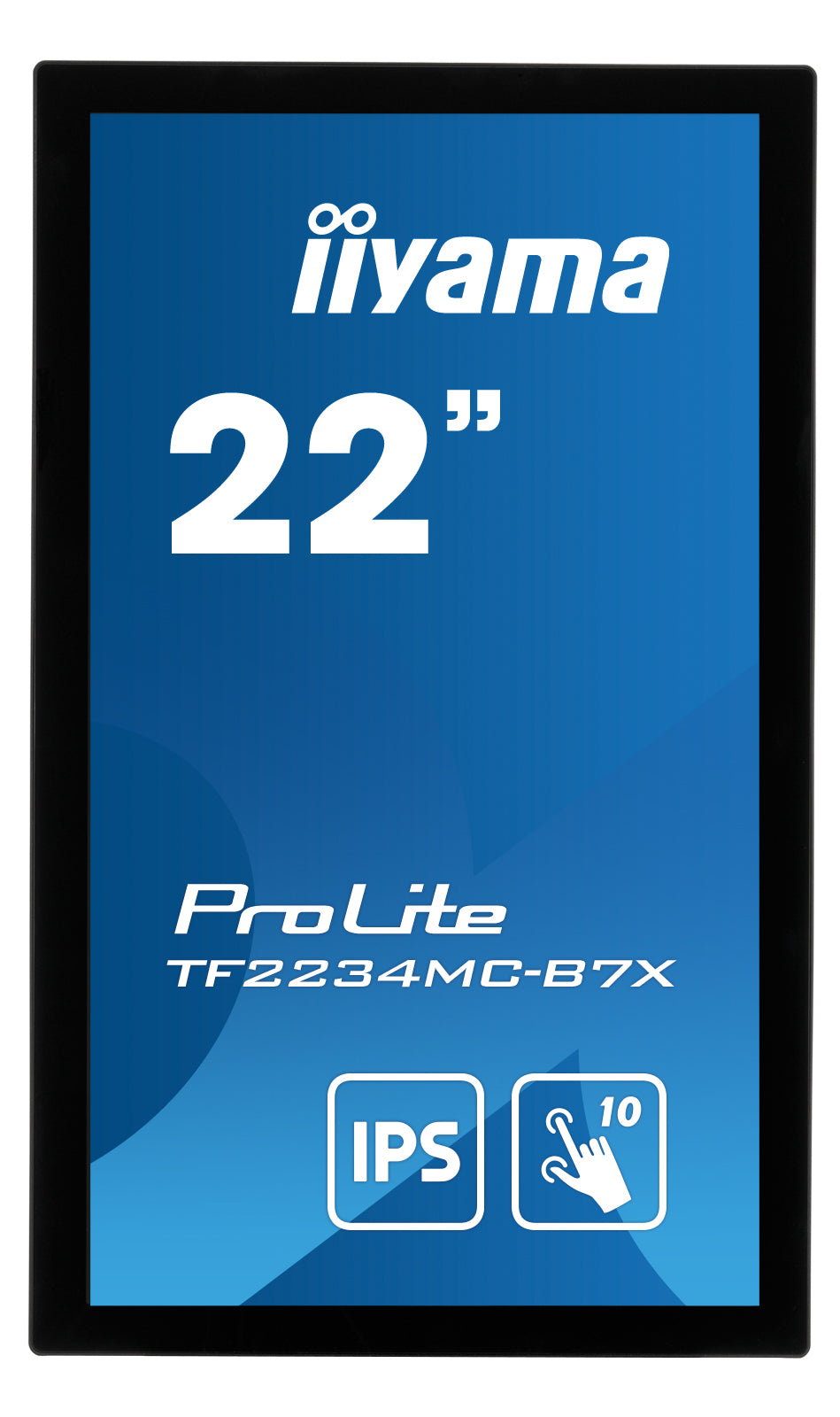

  Orientation	Landscape, portrait, face-up
  VESA mounting	100 x 100mm
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI, DP
  Guides	Quick start guide, safety guide
  Other	AC adapter, cable cover
  POWER MANAGEMENT
  Power supply unit	External
  Power supply	DC 12 V
  Power usage	18W typical, 1.5W standby, 0.3W off mode
  Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	F
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	517.5 x 313.5 x 46mm
  Box dimensions W x H x D	610 x 405 x 160mm
  Weight (without box)	4.4kg
  Weight (with box)	6.8kg
  EAN code	4948570118366
