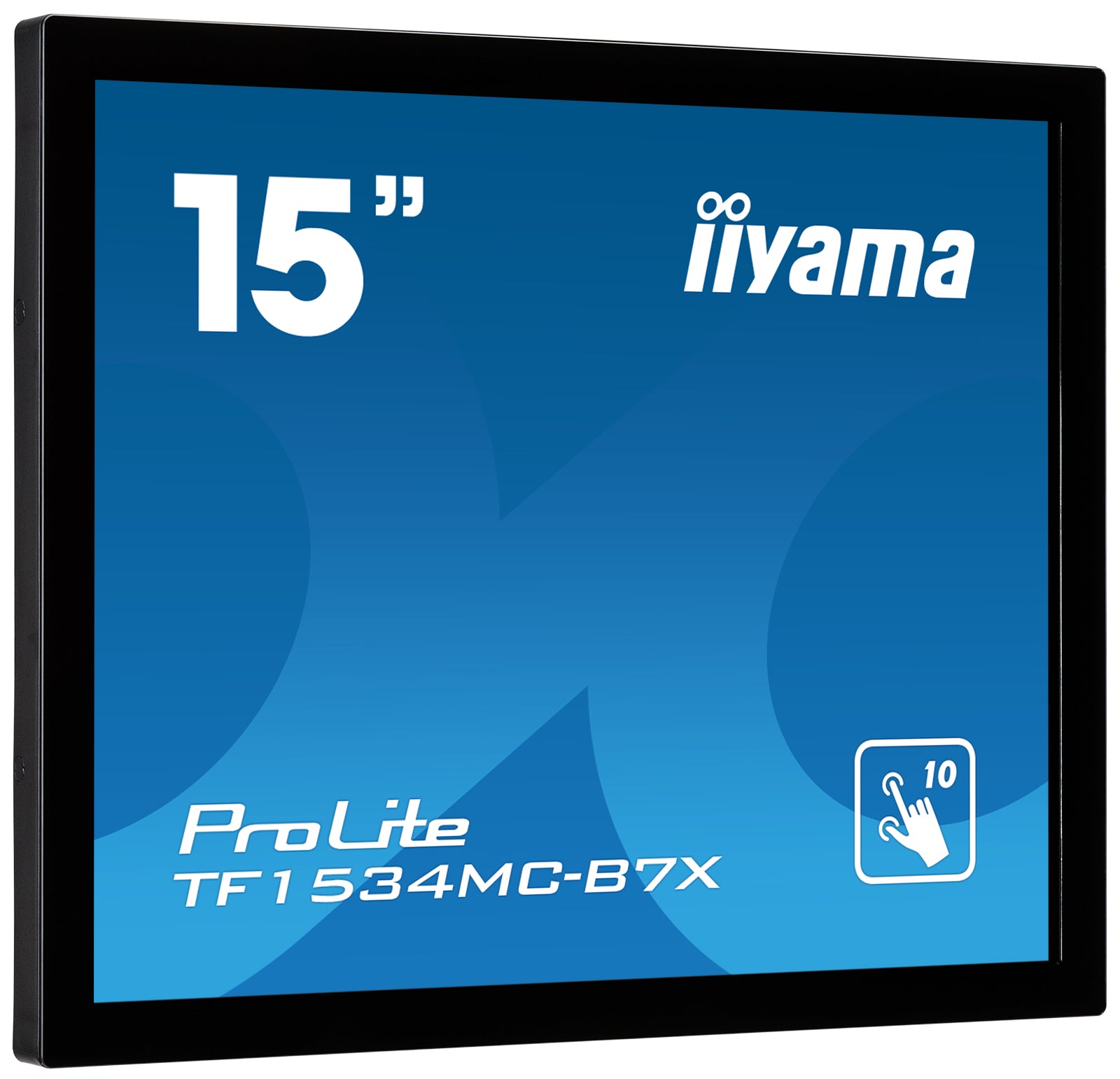

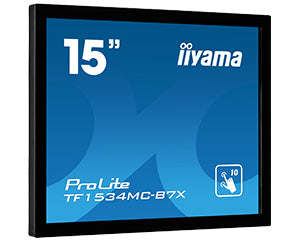

iiyama ProLite TF1534MC-B7X – 10pt PCAP 15″ Open Frame Touchscreen Monitor

iiyama ProLite TF1534MC-B7X – 10pt PCAP 15″ Open Frame Touchscreen Monitor

• Description
• Specifications
• Warranty

• 15’’ 10pt touch Open Frame monitor with Touch Through-Glass function

  The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail.



  • TOUCH TECHNOLOGY – CAPACITIVE

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  • TOUCH THROUGH-GLASS

    This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

  • SCRATCH RESISTANCE

    Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  • IP

    The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

  • OPEN FRAME BRACKETS

    This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

• DISPLAY CHARACTERISTICS

  Design	Open Frame
  Diagonal	15″, 38cm
  Panel	TN LED
  Native resolution	1024 x 768 (0.8 megapixel)
  Aspect ratio	4:3
  Panel brightness	370 cd/m²
  Brightness	330 cd/m² with touch
  Light transmittance	90%
  Static contrast	700:1
  Response time (BTB)	8ms
  Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour support	16.2mln (6bit + Hi-FRC)
  Horizontal Sync	31.4 – 60kHz
  Viewable area W x H	304 x 228mm
  Pixel pitch	0.297mm
  Bezel colour and finish	black, matte

  TOUCH

  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Through-Glass	6mm
  Palm rejection	yes

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1
  Digital signal input	HDMI x1 DisplayPort x1
  HDCP	yes

  FEATURES

  Extra	anti-fingerprint coating, touch through-glass
  Glass hardness	7H
  Water and dust protection	IP65 (front)
  OSD key lock	yes

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, JP
  Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
  User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
  Plug&Play	DDC2B

  MECHANICAL

  Orientation	landscape, portrait, face-up
  VESA mounting	100 x 100mm

  ACCESSORIES INCLUDED

  Cables	power, USB, HDMI, DP
  Guides	quick start guide, safety guide
  Other	AC adapter
  Cable cover	yes

  POWER MANAGEMENT

  Power supply unit	external
  Power supply	DC DC 12 V
  Power usage	9W typical, 1.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	337.5 x 265.5 x 44.5mm
  Box dimensions W x H x D	435 x 335 x 165mm
  Pallet volume	78pcs
  Pallet dimensions W x H x D	910 x 1140 x 1987mm
  Weight (without box)	2.7kg
  Weight (with box)	4kg
  EAN code	4948570118380

  COMPATIBLE ACCESSORIES

  Mounts/stands/brackets

  OMK1-1

  RELATED INFORMATION

  Product series	ProLite TF1634MC-B7X, ProLite TF1734MC-B7X, ProLite TF2234MC-B7X, ProLite TF1934MC-B7X
  Related products	RC TOUCHV01, OMK1-1

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
