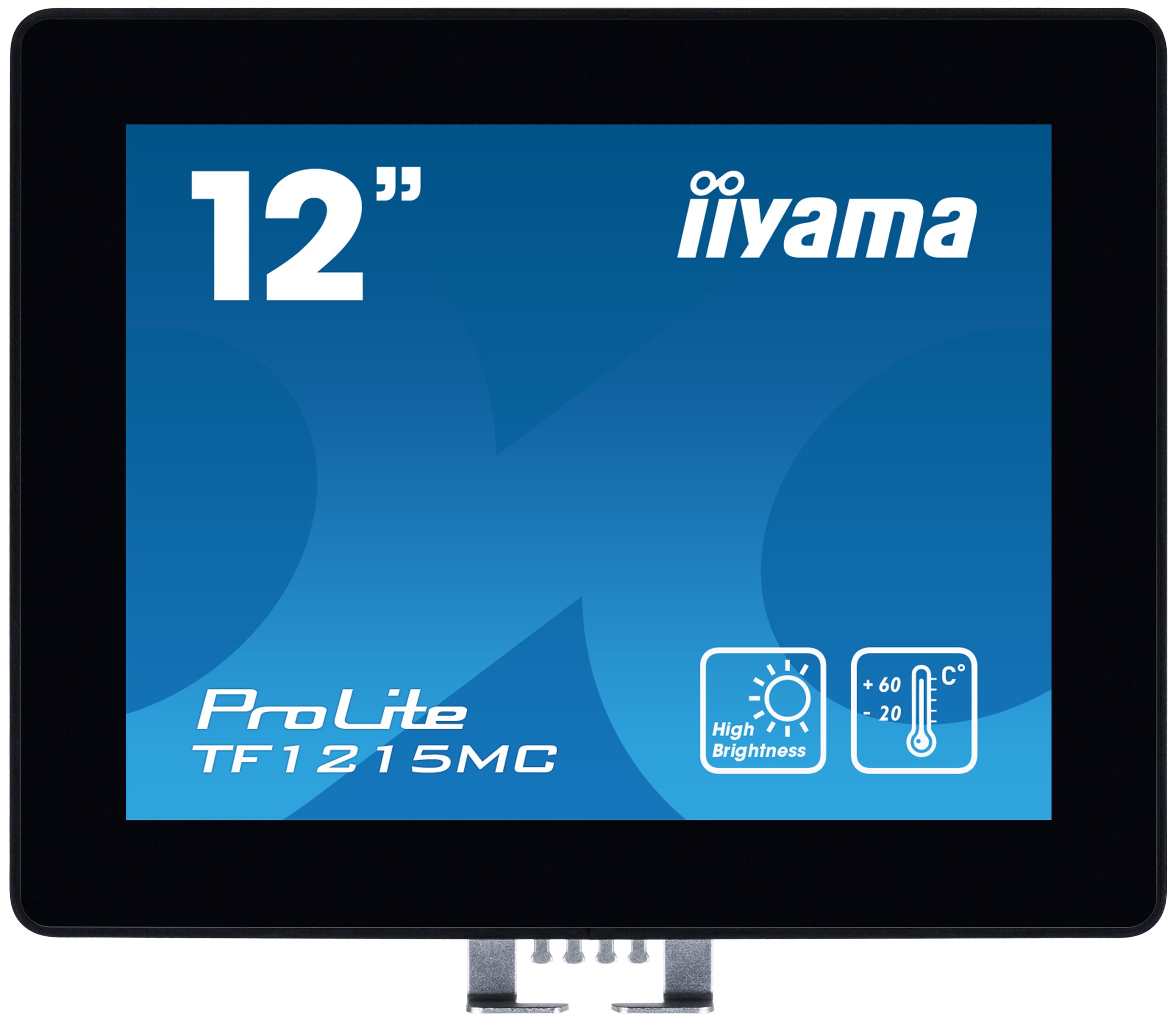

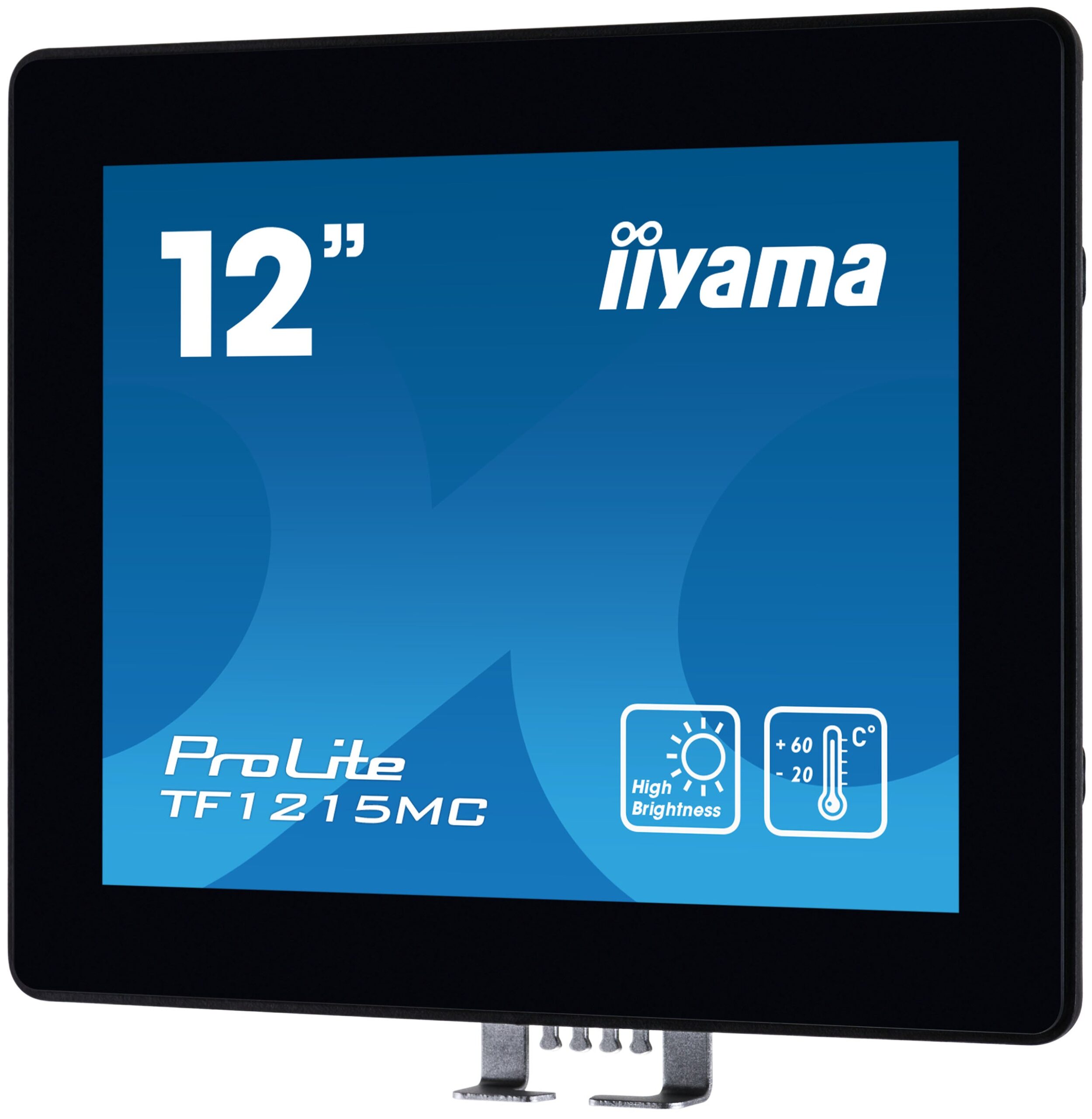

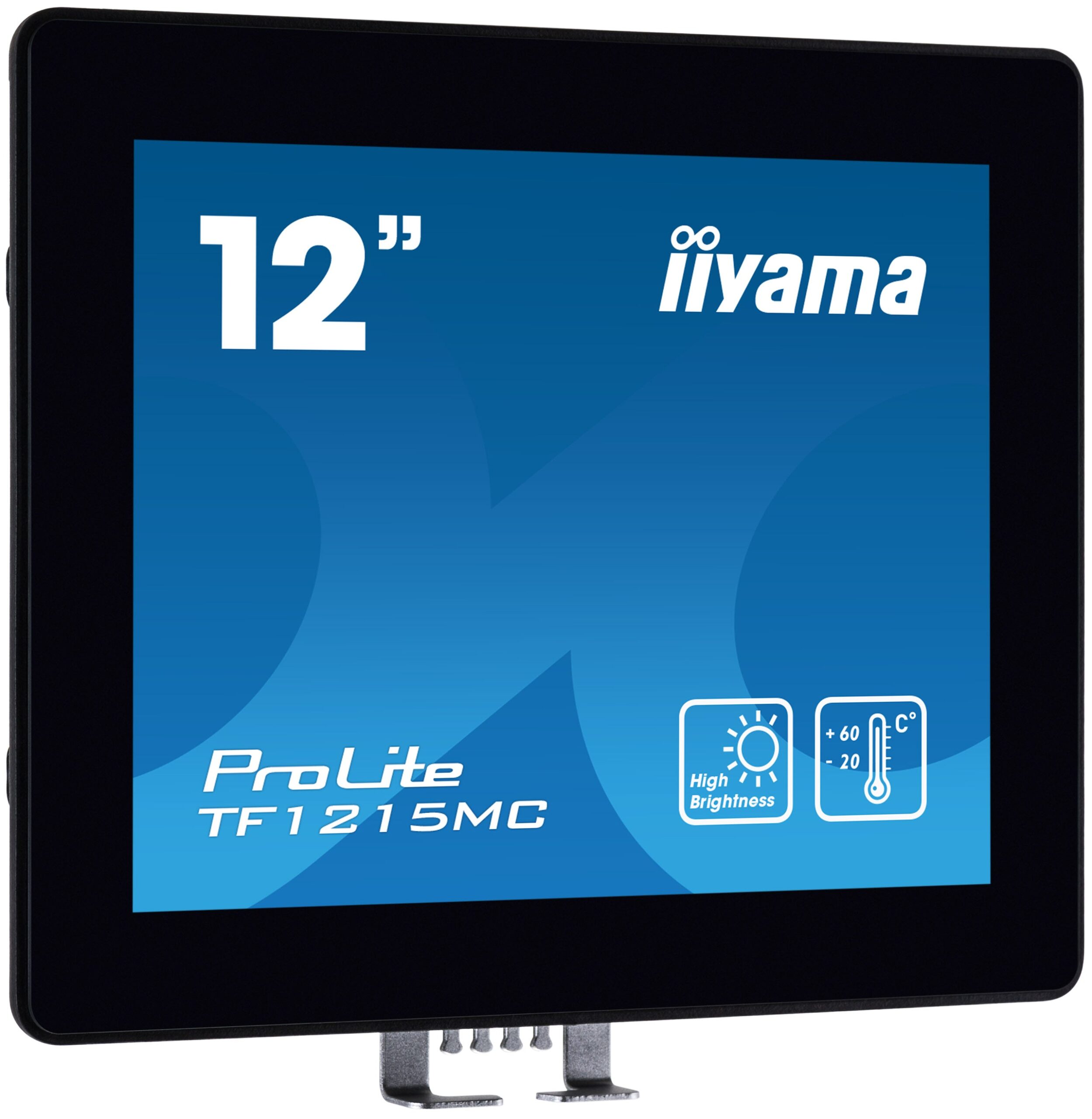

iiyama ProLite TF1215MC-B1 – 10pt PCAP 12″ Open Frame Touchscreen Monitor

iiyama ProLite TF1215MC-B1 – 10pt PCAP 12″ Open Frame Touchscreen Monitor

• Description
• Specifications
• Warranty

• PROLITE TF1215MC-B1

  12.1’’ PCAP 10pt touchscreen solution for pick-up points

  Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

  TOUCH THROUGH-GLASS
  This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

  ANTI-FINGERPRINT COATING
  This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

  TOUCH TECHNOLOGY – CAPACITIVE
  This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  OPEN FRAME BRACKETS
  This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.


• DISPLAY CHARACTERISTICS

  Design	Open Frame
  Diagonal	12.1″, 31cm
  Panel	IPS Technology
  Native resolution	1024 x 768 (0.8 megapixel)
  Aspect ratio	4:3
  Panel brightness	540 cd/m²
  Brightness	450 cd/m² with touch
  Light transmittance	85%
  Static contrast	1000:1
  Response time (BTB)	25ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.2mln (6bit + Hi-FRC)
  Horizontal Sync	31.4 – 60kHz
  Viewable area W x H	245.8 x 184.3mm, 9.7 x 7.2″
  Pixel pitch	0.24mm
  Bezel colour and finish	black

  TOUCH

  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	finger, glove (latex), capacitive stylus
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Through-Glass	6mm
  Palm rejection	yes

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1
  Digital signal input	HDMI x1 DisplayPort x1
  Audio output	Mini jack x1
  HDCP	yes

  FEATURES

  Extra	anti-fingerprint coating, touch through-glass
  Glass thickness	3.15mm
  Glass hardness	7H
  60950 Ball drop test	yes
  Water and dust protection	IP65 (front)
  OSD key lock	yes

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, JP
  Control buttons	Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
  User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
  Plug&Play	DDC2B

  MECHANICAL

  Orientation	landscape, portrait, face-up
  VESA mounting	100 x 100mm
  Operation temperature range (-°/+°)	-20°C – 60°C
  Storage temperature range	– 20°C – 60°C

  ACCESSORIES INCLUDED

  Cables	power, USB, HDMI, DP
  Guides	quick start guide, safety guide
  Other	AC adapter, external control pad
  Remote control	external control pad

  POWER MANAGEMENT

  Power supply unit	external
  Power supply	DC 12 V
  Power usage	10W typical, 0.55W stand by, 0.5W off mode

  SUSTAINABILITY

  Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	F

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	308.5 x 248 x 41.5mm
  Box dimensions W x H x D	435 x 355 x 165mm
  Weight (without box)	2.1kg
  Weight (with box)	3.9kg
  EAN code	4948570118007
