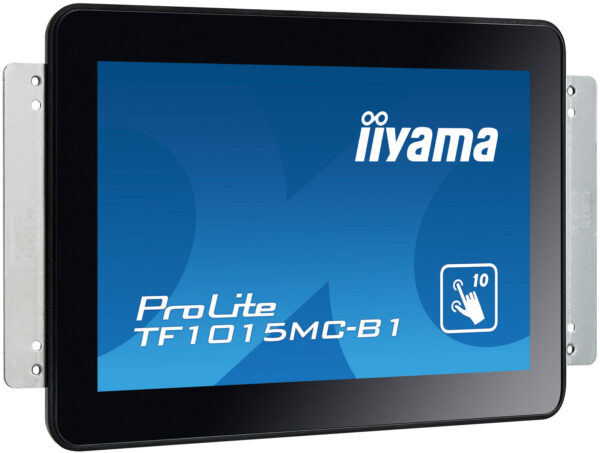

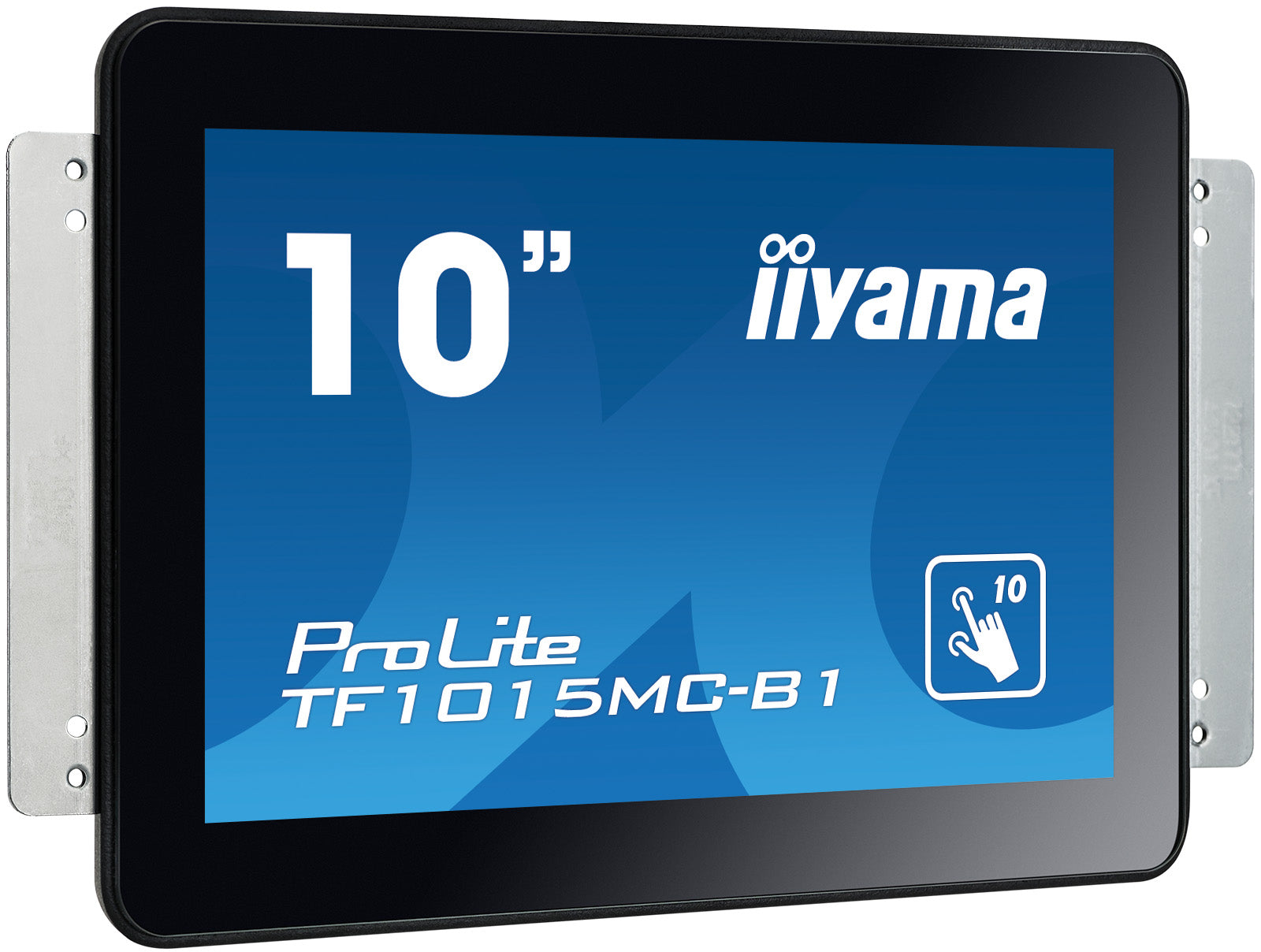

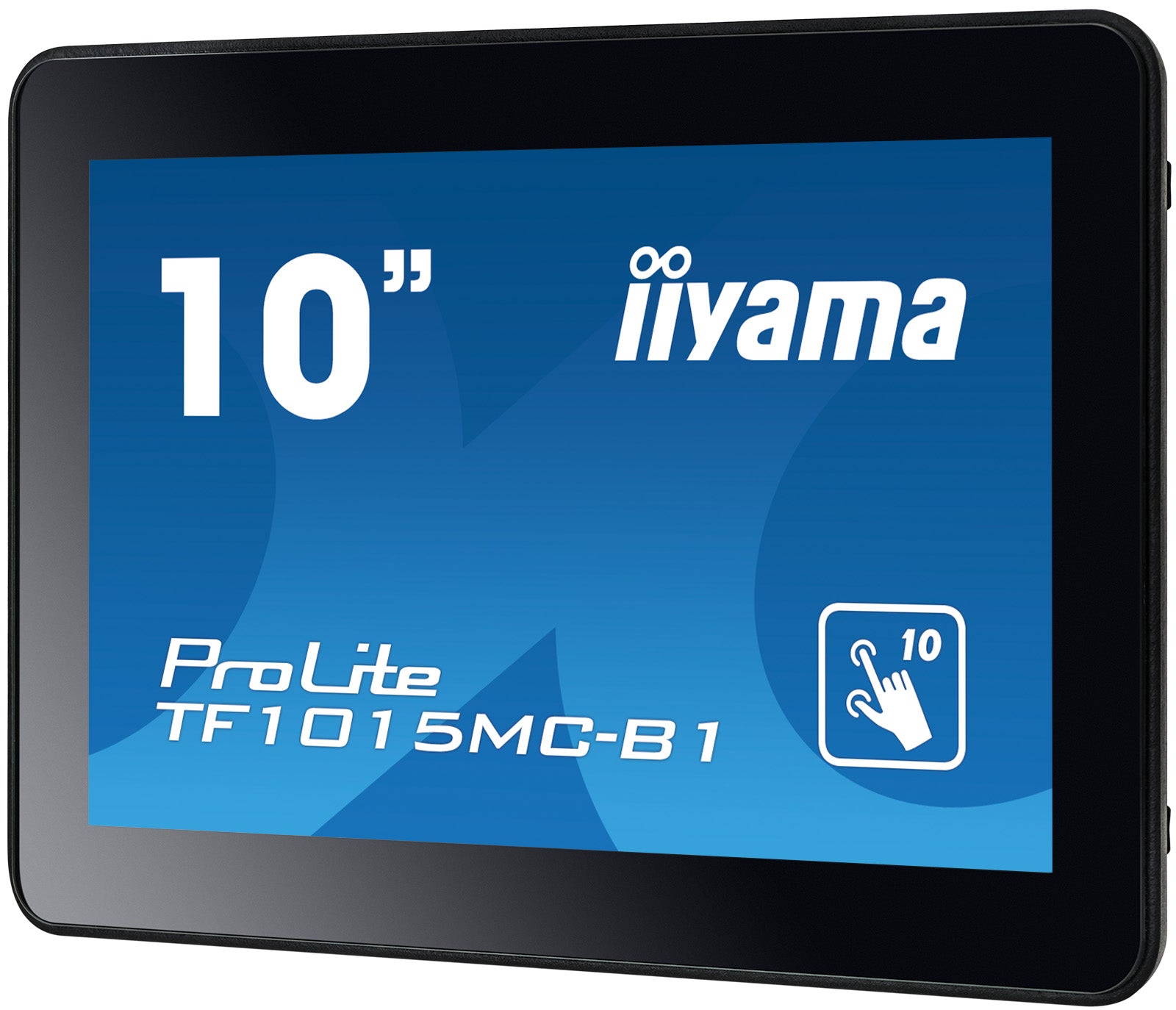

iiyama ProLite TF1015MC-B1 10.1″ PCAP Touch Screen Monitor
- Description
- Specifications
- Warranty
-
Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration
The ProLite TF1015MC-B1 (10.1 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC-B1 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
-
DISPLAY CHARACTERISTICS
Design Open Frame Diagonal 10.1″, 25.7cm Panel VA LED Native resolution 1280 x 800 (1 megapixel) Aspect ratio 16:10 Panel brightness 500 cd/m² Brightness 425 cd/m² with touch Light transmittance 85% Static contrast 1300:1 with touch Response time (GTG) 25ms Viewing zone horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° Horizontal Sync 30 – 60kHz Viewable area W x H 216.96 x 135.6mm, 8.5 x 5.3″ Pixel pitch 0.1695mm Bezel colour and finish black TOUCH
Touch technology projective capacitive Touch points 10 (HID, only with supported OS) Touch method stylus, finger, glove (latex) Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 Digital signal input HDMI x1
DisplayPort x1Audio output Mini jack x1 HDCP yes FEATURES
60950 Ball drop test yes Water and dust protection IP65 (front) OSD key lock yes GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power User controls contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature Plug&Play DDC2B MECHANICAL
Orientation landscape, portrait, face-up VESA mounting 100 x 100mm Operation temperature range 0°C – 40°C Storage temperature range – 20°C – 60°C ACCESSORIES INCLUDED
Cables power, USB, HDMI, DP Guides quick start guide, safety guide Other AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket, external control pad POWER MANAGEMENT
Power supply unit external Power supply DC 12 V Power usage 8W typical, 2W stand by, 2W off mode SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 260.5 x 183.5 x 39.5mm Weight (without box) 1.4kg EAN code 4948570115891 RELATED INFORMATION
Product series ProLite TF1515MC-B1, ProLite TF2215MC-B1, ProLite TF2415MC-B1 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
