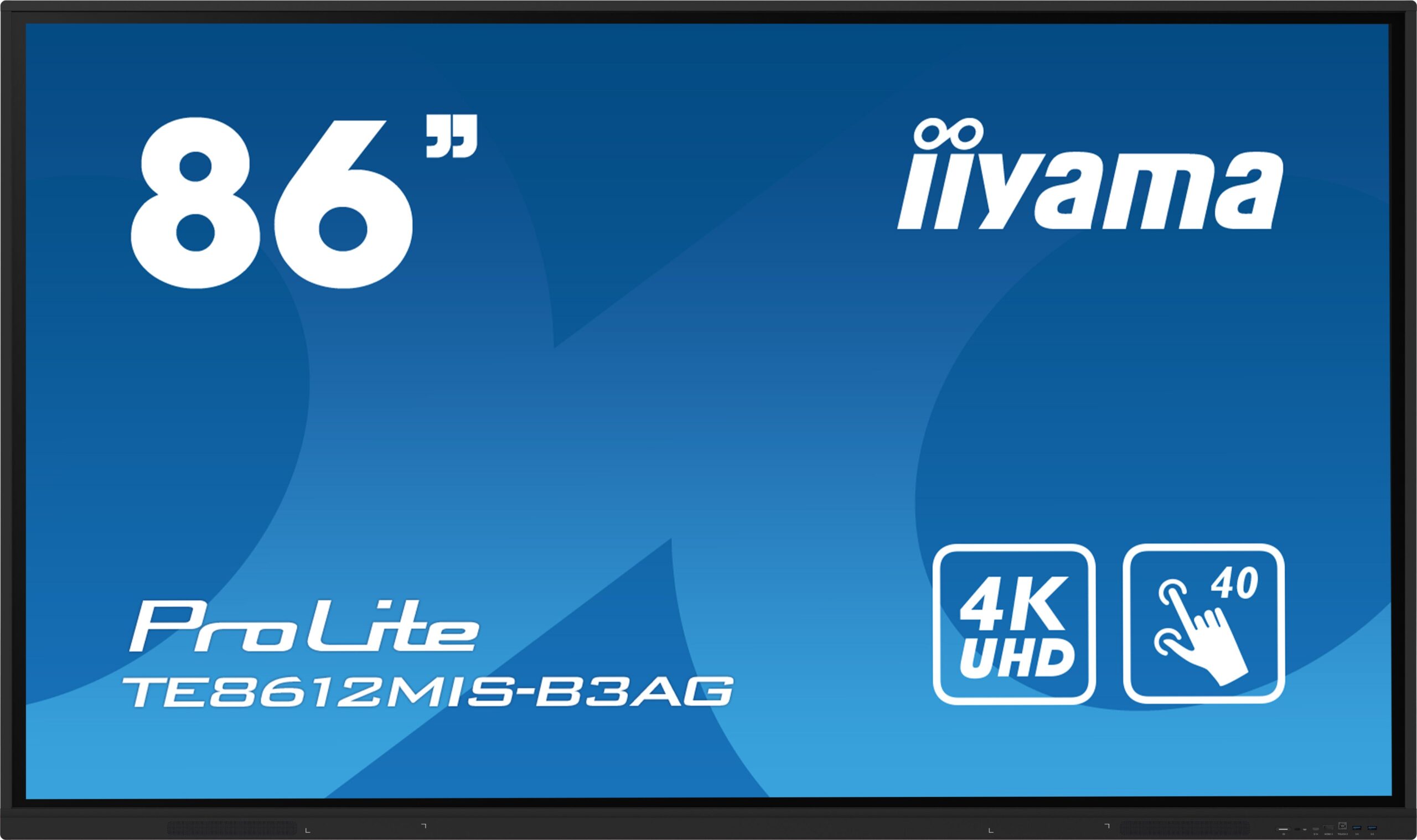

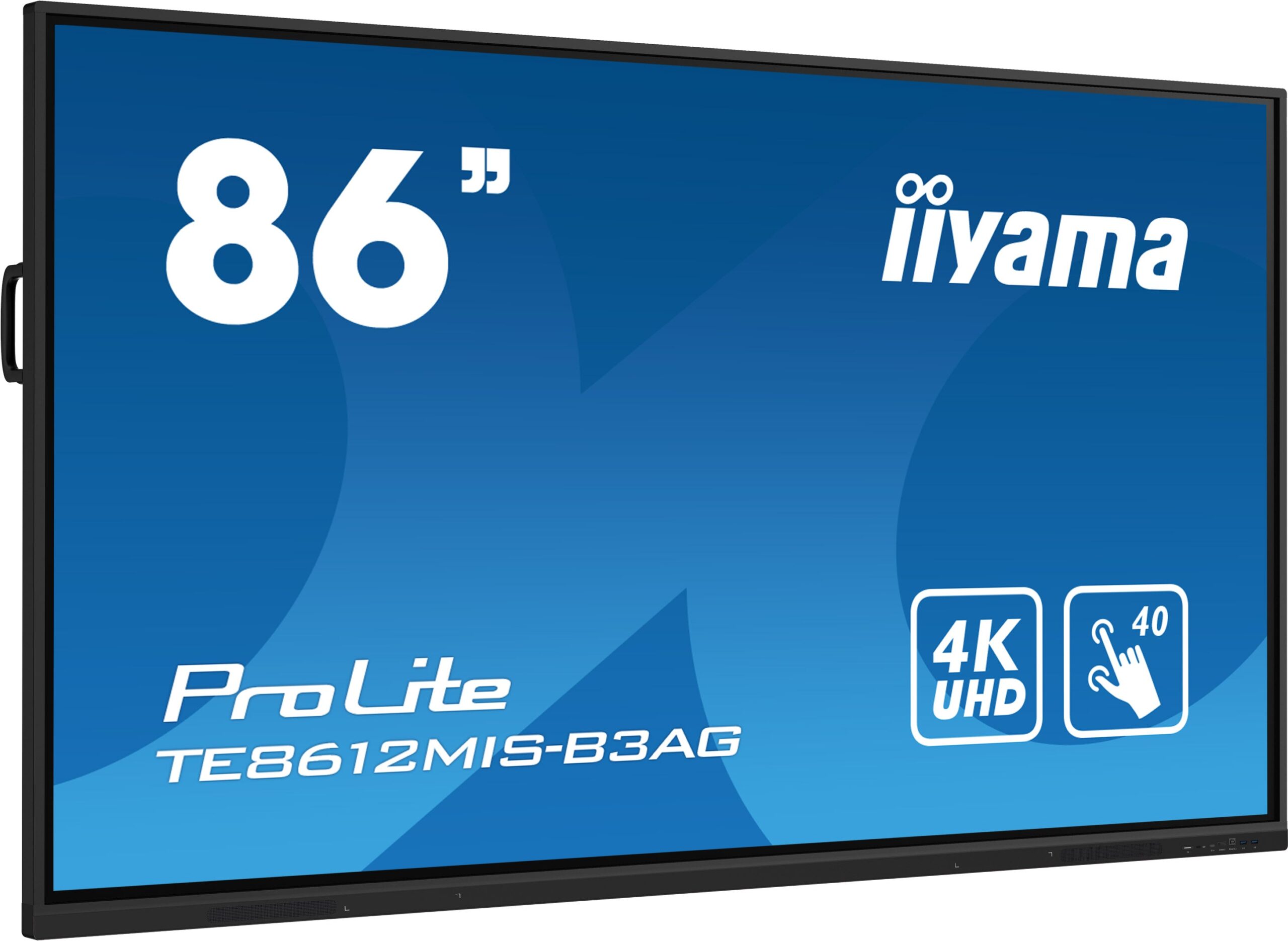

iiyama ProLite TE8612MIS-B3AG 86″ 4K Ultra HD Interactive Touchscreen Display

• Description
• Specifications
• Warranty
• Downloads

• iiyama ProLite TE8612MIS-B3AG 86″ 4K Ultra HD Interactive Touchscreen Display

  The TE8612MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.

  Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE8612MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.

  Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.

  PURETOUCH-IR
  PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.

  IIWARE
  iiWare 10 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.

  IIYAMA SHARE
  Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

  IIYAMA DMS
  This software provides organizations a suitable and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office environment and makes campus/office management more convenient.

  SECURITY
  Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.

• Category	Description
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	85.6″, 217.4cm
  Panel	VA
  Touch Glass	AG coated glass, zero air-gap
  Native resolution	3840 x 2160 (8.3 megapixel 4K UHD)
  Aspect ratio	16:9
  Panel brightness	400 cd/m²
  Brightness with touch	350 cd/m²
  Light transmittance	92%
  Static contrast	4000:1
  Dynamic contrast	8000:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07B 8bit+FRC
  Horizontal Sync	30 – 135kHz
  Viewable area W x H	1895 x 1066mm, 74.6 x 42″
  Bezel width	Sides, Top: 16.5mm, Bottom: 30mm
  Pixel pitch	0.493mm
  Bezel color and finish	Black, matte
  TOUCH
  Touch technology	PureTouch-IR
  Touch points	40 (5pt writing, HID, only with supported OS)
  Touch accuracy	±1.5mm
  Touch method	Stylus, finger, glove
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux.
  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1 (max. 1920×1080 @60Hz)
  Digital signal input	HDMI x3 (v.2.0, max. 3840×2160 @60Hz, YUV444)
  	USB-C x1 (v.3.2 (Gen 1, 5Gbit), 3840×2160 @60Hz – RGB444 – (65W charging, Touch)
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1 (DSUB 9pin)
  	RJ45 (LAN) x1 (LAN Control)
  	IR x1
  Digital signal output	HDMI x1 (3840×2160 @60Hz)
  Audio output	S/PDIF (Optical) x1
  	Mini jack x1
  Speakers	2 x 16W (Front)
  HDCP	HDMI 1: 2.1, USB-C: 2.2
  USB ports	x5 (Media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2
  RJ45 (LAN)	x2 (Auto switch for PC & Android, 1000MB)
  FEATURES
  Integrated software	iiWare 10 (Android 11 OS) featuring iiyama DMS, Note, web browser, file manager, cloud drives,
  	WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
  WiFi	Yes (WiFi 6 Module OWM002 – Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IEEE 802.11 a/b/g/n/ac,
  	Bluetooth Support: 2.1/3.0/4.2/5.0)
  Hardware	CPU: Quad core A55, GPU: Mali G52, RAM: 8GB, ROM: 64GB
  Extra	WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
  Kiosk mode	Yes
  Max. non-stop operating time	24/7
  Media playback	Yes
  Glass thickness	3mm
  Glass hardness	7H
  Housing (bezel)	Metal
  OSD key lock	Yes
  GENERAL
  OSD languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
  Control buttons	Power, Power Indicator, Remote Sensor, Light Sensor
  User controls	General settings (input, volume, backlight), audio settings, screen settings, display settings, adjust settings, settings
  Blue light reducer	Yes
  Plug&Play	DDC2B
  Warranty	5 years
  MECHANICAL
  Orientation	Landscape
  Fanless design	Yes
  VESA mounting	800 x 600mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – %2°C
  MTBF	50,000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI
  Touch pen	4 (Dual function tips)
  Guides	Quick start guide, Safety guide
  Other	WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
  Remote control	Yes (batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	208W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions	1957 x 1160 x 100mm
  Box dimensions	2110 x 1283 x 225mm
  Weight (without box)	58.6kg
  Weight (with box)	75.9kg
  EAN code	4948570123711

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Description	Downloads
  User Manual	Downloads
  Technical Specification	Downloads
  Drawing	Downloads
