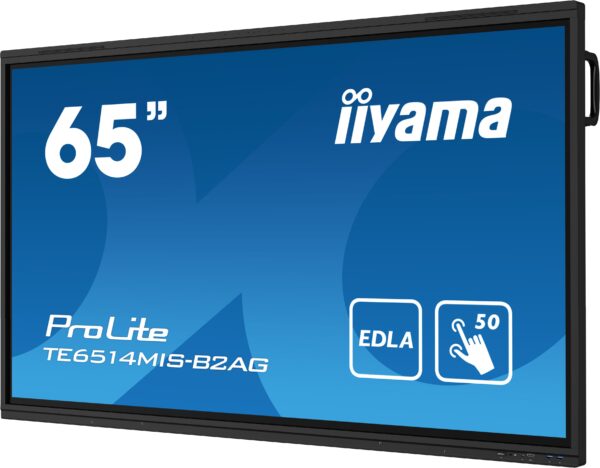

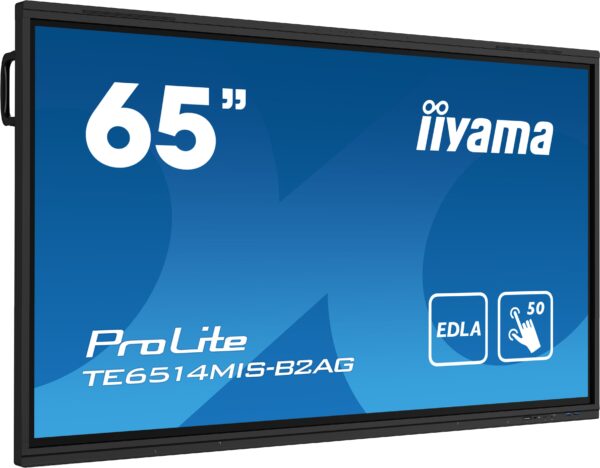

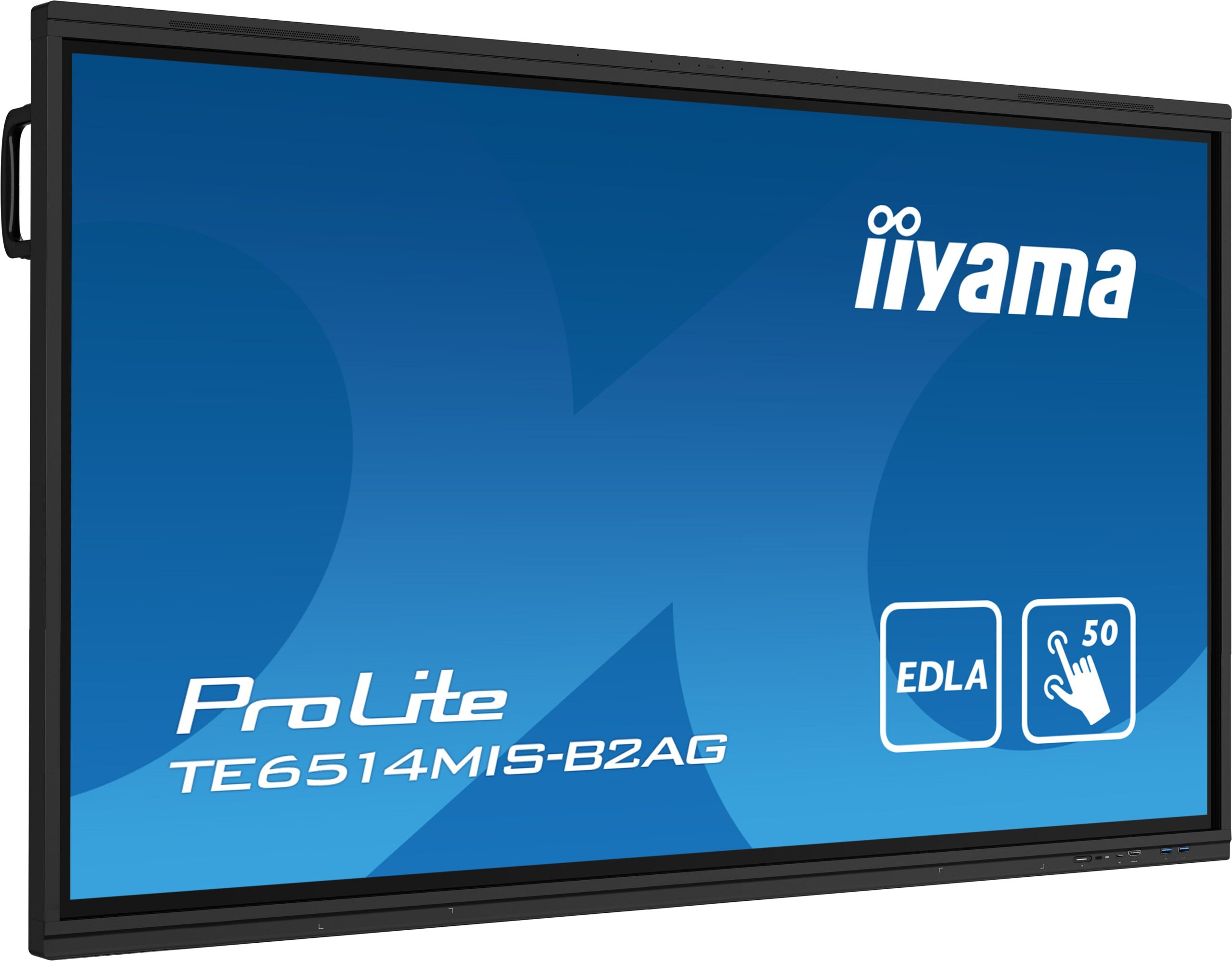

iiyama ProLite TE6514MIS-B2AG 65″ Google EDLA Certified 4K UHD Interactive Display

• Description
• Specifications
• Downloads

• iiyama ProLite TE6514MIS-B2AG 65″ Google EDLA Certified 4K UHD Interactive Display

  The TE6514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform.

  Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution.

  With its innovative 4K Interface and customizable User Profiles, the TE6514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement.

  Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.

  Google EDLA Certified
  Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.


  PURETOUCH-IR+
  The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.

  iiyama DMS
  iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.

  iiWare 12E
  Empower your presentations with iiWare 12E, featuring Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.


  iiyama Share
  Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.


  Built-in speakers & microphone
  The high quality built-in 8 Array Microphone and Dual Directional Speakers support conferencing configurations with ultra clear sound and 8m voice pick-up.

  USB-C Connection
  Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 100W power delivery.

• Category	Specifications
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	65″, 163.9cm
  Panel	VA, haze 25%
  Touch Glass	Anti-Gloss treatment, Anti-Glare glass, Matt polished surface, Ultra smooth writing, Zero Air-Gap
  Native Resolution	3840 x 2160 (8.3 megapixel 4K UHD)
  Aspect Ratio	16:9
  Brightness	450 cd/m² (max.)
  Light Transmittance	92%
  Static Contrast	4000:1
  Dynamic Contrast	5000:1
  Response Time (GTG)	6.5ms
  Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour Support	1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
  Horizontal Sync	30 – 135kHz
  Viewable Area W x H	1428 x 804mm, 56.3 x 31.7″
  Bezel Width	16.5mm (sides, top), 41mm (bottom)
  Pixel Pitch	0.372mm
  Bezel Colour and Finish	black, matte
  TOUCH
  Touch Technology	PureTouch-IR⁺
  Touch Points	50, 10pt writing, 40pt Touch with Android
  Touch Accuracy	+- 1mm
  Touch Method	stylus, finger, glove
  Touch Interface	USB
  Palm Rejection	yes
  INTERFACES / CONNECTORS / CONTROLS
  Digital Signal Input	HDMI x4, DisplayPort x1, USB-C x2
  Audio Input	Mini jack x1
  Monitor Control Input	RS-232c x1
  RJ45 (LAN)	x1 (LAN Control)
  IR	x1
  Digital Signal Output	HDMI x1, USB-C x1
  Audio Output	S/PDIF (Optical) x1, Mini jack x1
  Speakers	2 x 18W (Up), 2 x 8W (Front)
  HDCP	HDMI: 2.3 + 1.4, DP: 2.3 + 1.3, USB-C: 2.3 + 1.3
  USB Ports	x6
  FEATURES
  Integrated Software	iiWare 12E (Android 13 OS) featuring various apps and connectivity solutions
  WiFi	WiFi 6 Module OWM002 – Dual WiFi Bandwidth: 2.4GHz/5GHz, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0
  Hardware	CPU: A764+A554(2.4GHz), GPU: Mali G610 MC4, RAM: 8GB, ROM: 64GB
  Kiosk Mode	yes
  Max. Non-stop Operating Time	24/7
  Glass Thickness	3mm
  Glass Hardness	7H
  Housing (Bezel)	metal
  OSD Key Lock	yes
  GENERAL
  OSD Languages	Multiple languages supported
  Control Buttons	Power button, indicators, sensors, USB-C Connector
  User Controls	Comprehensive settings for display, audio, screen, and applications
  Plug&Play	DDC2B
  Warranty	5 years
  MECHANICAL
  Orientation	landscape
  Fanless Design	yes
  VESA Mounting	600 x 400mm
  Operation Temperature Range	0°C – 40°C
  Storage Temperature Range	-20°C – 60°C
  MTBF	50.000 hours (excluding backlight)
  ACCESSORIES INCLUDED	Power cable, USB cable, HDMI cable, touch pens, guides, WiFi module, mounting brackets, remote control
  POWER MANAGEMENT	Internal power supply, AC 100 – 240V, 50/60Hz, 150W typical usage, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, Lead SVHC
  DIMENSIONS / WEIGHT	Product: 1488 x 908 x 86mm, Box: 1628 x 1005 x 208mm, Weight without box: 39kg, Weight with box: 48.3kg
  EAN Code	4948570124022
  COMPATIBLE ACCESSORIES	OPS PC Slot

• Description	Downloads
  User manual	Downlaods
  Technical specification	Downlaods
  Drawing	Downlaods
