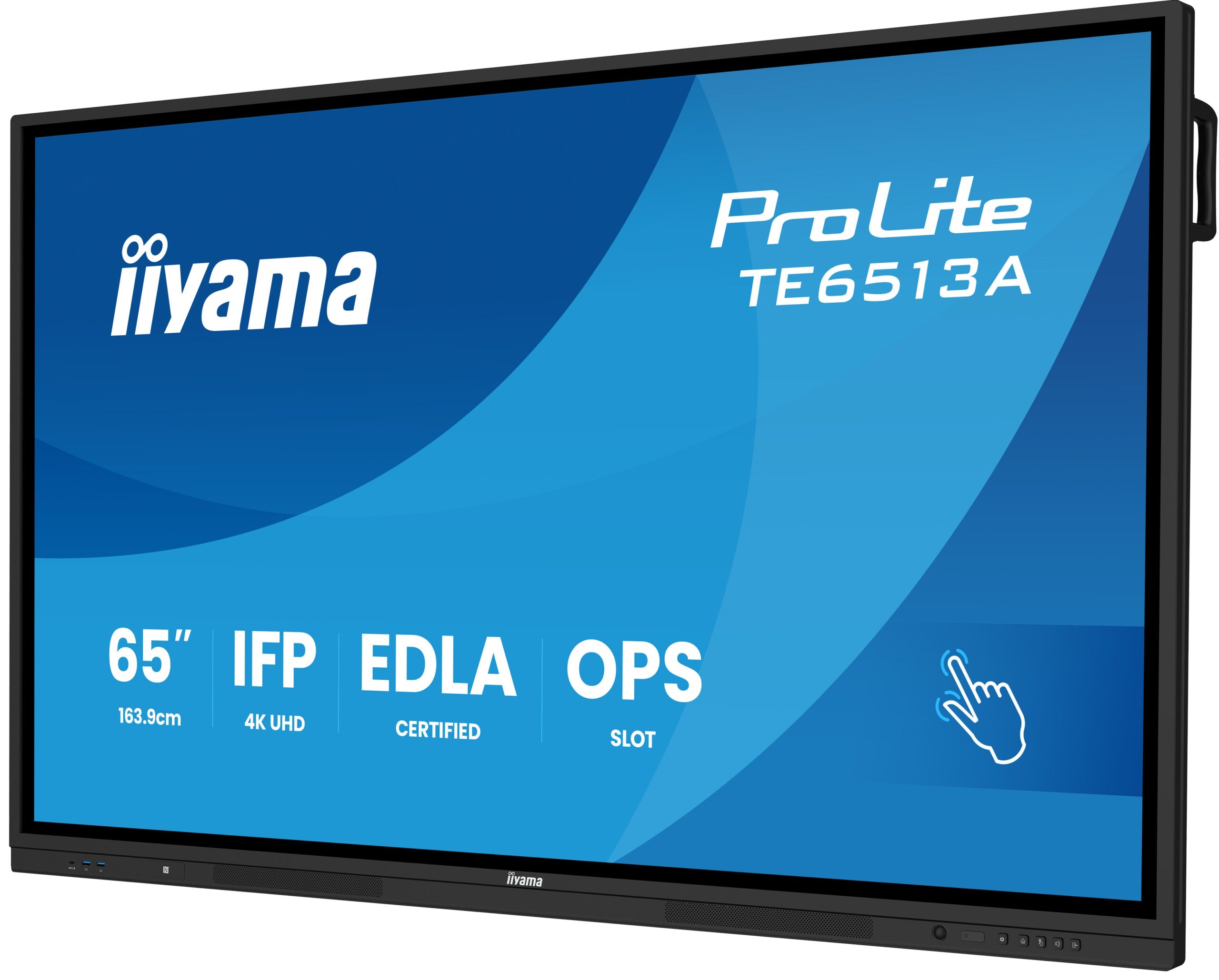

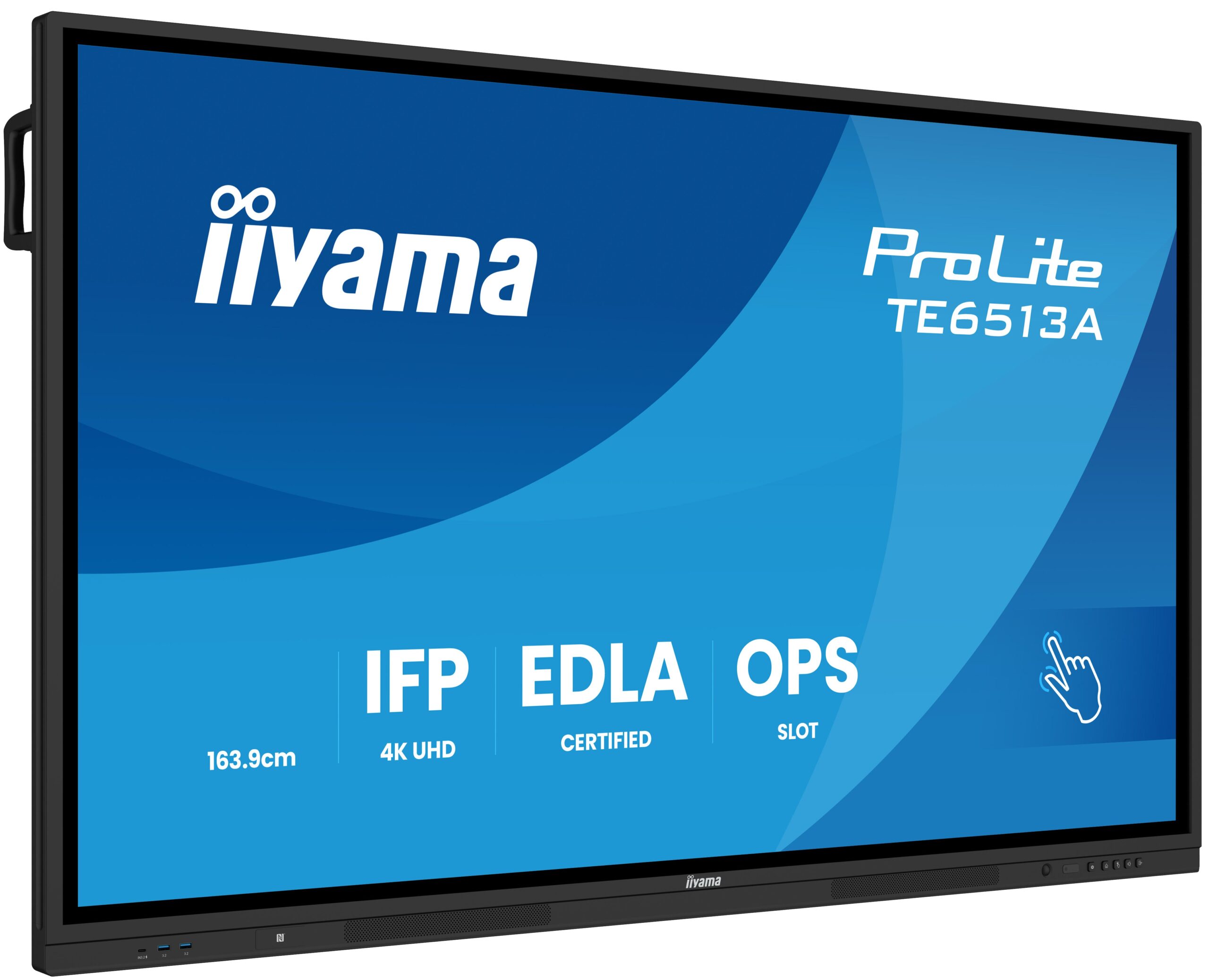

• iiyama ProLite TE6513A-B1AG 65″ 4K Ultra HD Google EDLA Certified Interactive display

  Google EDLA Certified

  Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.

  iiWare 21E (Android 14 OS)

  Empower your presentations with iiWare 2a1E, featuring featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.

  Quick Radial Menu

  This feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.

  iiControl – DMS

  iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.

  PURETOUCH-IR+

  The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.

  PIR Motion Sensor

  The PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.

  Pen PickUp Sensor

  The Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.

  NFC Reader

  The built-in NFC reader enables secure and fast authentication, allowing users to log in with a simple tap. Ideal for business and education, it enhances security and access control while streamlining user management. Perfect for seamless integration into modern workflows.

  Standalone Solution Connectivity

  The OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.

  Wall Mount

  The included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.

  Speakers, Subwoover and Webcam Bracket

  The built-in front-facing speakers with an integrated subwoofer support conferencing configurations with ultra clear sound. The included webcam bracket ensures secure and stable installation of a webcam. Ideal for conferencing, presentations, and interactive applications.

• Category	Specification
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	64.5″, 163.9cm
  Panel	IPS
  Touch Glass	Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero Bonding
  Native Resolution	3840 x 2160 (8.3 megapixel 4K UHD)
  Aspect Ratio	16:9
  Panel Brightness	450 cd/m²
  Light Transmittance	88%
  Static Contrast	1200:1
  Response Time (GTG)	8ms
  Viewing Zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour Support	1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
  Horizontal Sync	30 – 135kHz
  Viewable Area W x H	1428.5 x 803.5mm, 56.2 x 31.6″
  Pixel Pitch	0.372mm
  Bezel Colour and Finish	Black, matte
  TOUCH
  Touch Technology	PureTouch-IR⁺
  Touch Points	40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
  Scan Rate	200Hz
  Touch Accuracy	±1mm
  Touch Method	Stylus, finger, glove (Passive pen, Opaque objects)
  Touch Interface	USB
  Supported Operating Systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux
  Palm Rejection	Yes
  INTERFACES / CONNECTORS / CONTROLS
  Digital Signal Input	HDMI x2 (2.0, max. 3840×2160 @60Hz, YUV444, ARC on HDMI #1), DisplayPort x1 (1.2, max. 3840×2160 @60Hz), USB-C x2 (3.2 Gen 1, 5Gbit)
  Audio Input	Mini jack x1 (Microphone)
  Monitor Control Input	RS-232c x1
  Digital Signal Output	HDMI x1 (2.0, max. 3840×2160 @60Hz, YUV444/RGB444, MSD)
  Audio Output	S/PDIF (Optical) x1, Mini jack x1 (Headphone)
  Speakers	2 x 20W (Front facing + 20W Subwoofer)
  Monitor Control Output	OPS Slot x1 (Intel OPS 80pin)
  HDCP	2.3
  USB Ports	x5 (media playback / peripherals / storage – front: 2x 3.2 Gen 1, 5Gbit, 1x USB-C 3.2, 5Gbit, 100W PD; side: 1x 3.2 Gen 1, 5Gbit, 1x USB-C 3.2)
  RJ45 (LAN)	x2 (IN/OUT, Auto switch for PC & Android, 1000MB)
  FEATURES
  Integrated Software	iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection
  WiFi	Yes (WiFi-6, Bluetooth 5.0)
  Hardware	CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
  Extra	Ambient light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating)
  Kiosk Mode	Yes
  Max. Non-Stop Operating Time	18/7
  Media Playback	Yes
  Glass Thickness	3.2mm
  Glass Hardness	7H
  Housing (Bezel)	Metal
  OSD Key Lock	Yes
  GENERAL
  OSD Languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
  Control Buttons	Power, Home, Touch-freeze, Volume, Input (source)
  User Controls	General settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings, etc.
  Blue Light Reducer	Yes
  Flicker Free	Yes
  Plug&Play	DDC2B
  Warranty	5 years (check website for details)
  MECHANICAL
  Orientation	Landscape
  Fanless Design	Yes
  VESA Mounting	600 x 400mm
  Operation Temperature Range	0°C – 40°C
  Storage Temperature Range	-20°C – 60°C
  MTBF	50,000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power (EU 3m, UK 3m), USB (3m), HDMI (3m)
  Touch Pen	x4 (Dual function tips, anti-bacterial coating)
  Guides	Quick start guide, safety guide
  Other	Wall Mounting Bracket (VESA 600×400), Webcam Mounting Bracket
  Remote Control	Yes (batteries included)
  POWER MANAGEMENT
  Power Supply Unit	Internal
  Power Supply	AC 100 – 240V, 50/60Hz
  Power Usage	182W typical, 0.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product Dimensions W x H x D	1489 x 891.5 x 87mm
  Box Dimensions W x H x D	1640 x 1010 x 185mm
  Weight (Without Box)	39.4kg
  Weight (With Box)	48.5kg
  EAN Code	4948570124800
