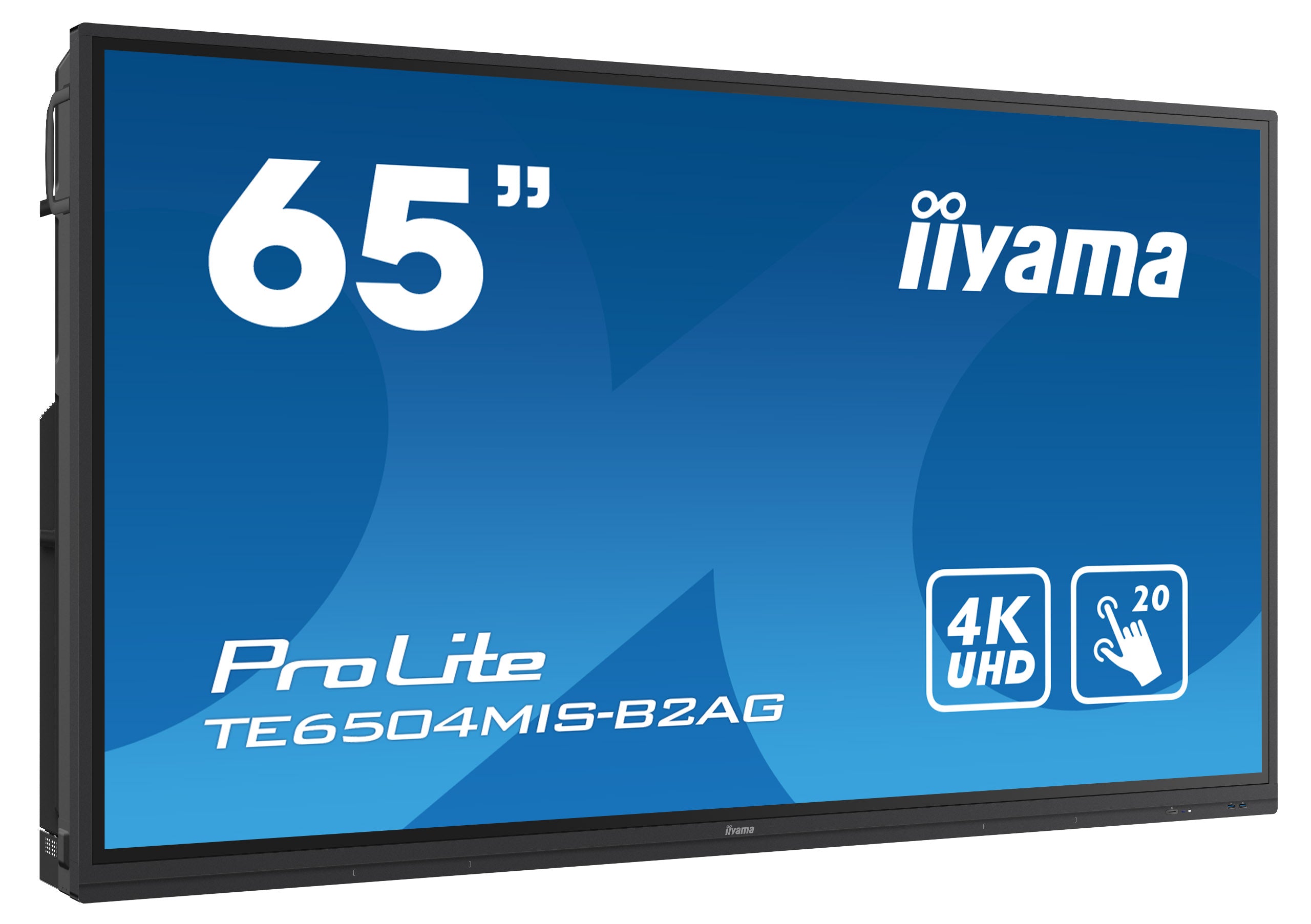

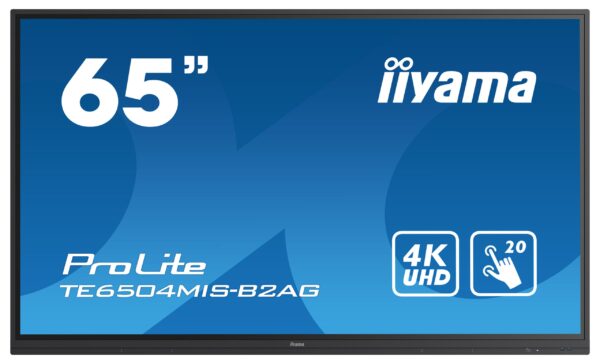

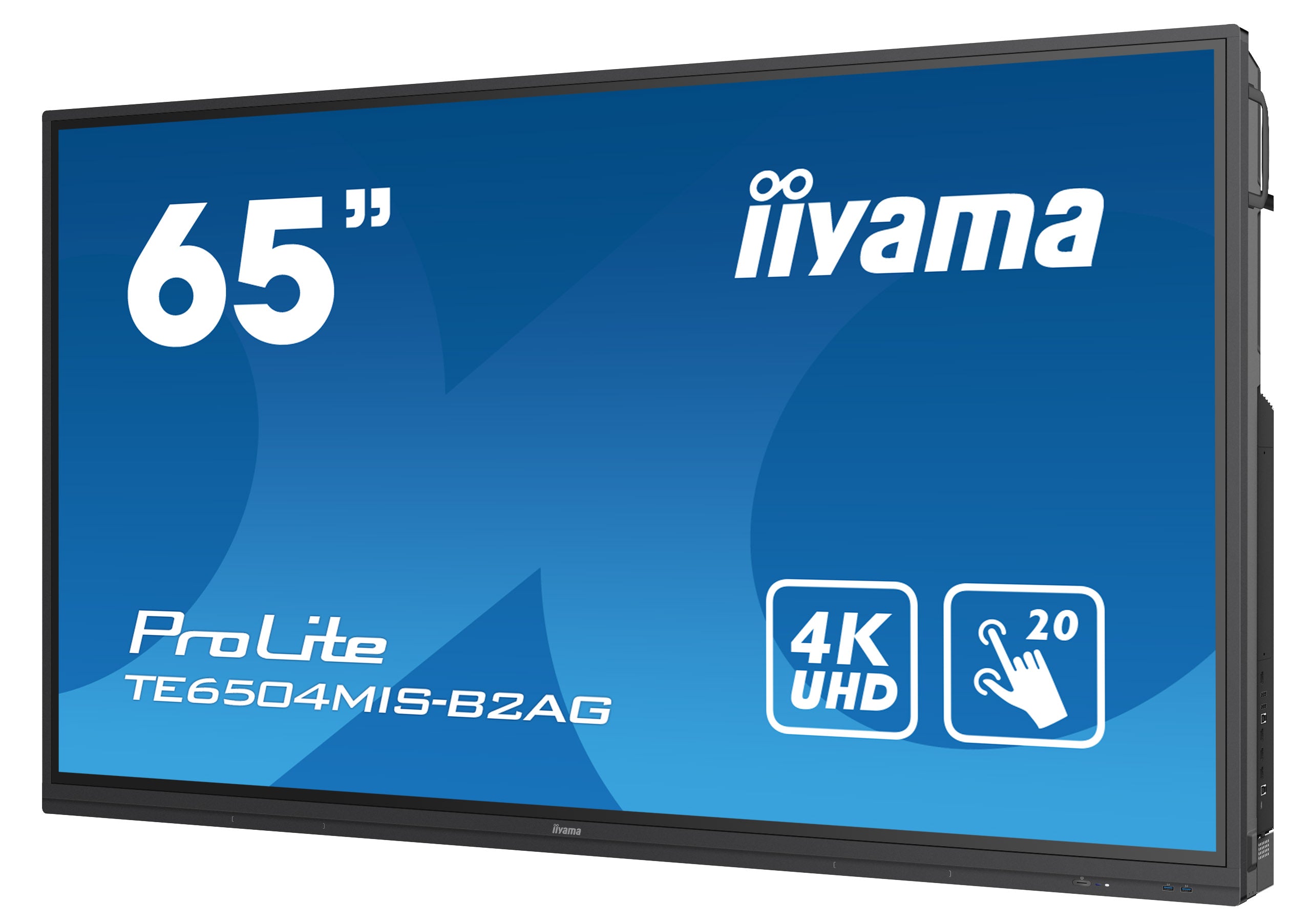

iiyama ProLite TE6504MIS-B2AG 65″ 4K UHD LCD Interactive Touch Screen Display

iiyama ProLite TE6504MIS-B2AG

65″ 4K UHD LCD Interactive Touch Screen Display

Share Your Vision with the ProLite TE6504MIS-B2AG; a perfect solution for educational and corporate use.

• Description
• Specifications
• Warranty
• Downloads

• 65’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software

  Share Your Vision with the ProLite TE6504MIS-B2AG; a perfect solution for educational and corporate use. This 65’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) is featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.

  The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840×2160), 400cd/m2 and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.

  Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.

  PURETOUCH IR
  PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.

  IIWARE
  iiWare 9.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.

  SLOTPC
  The Slot PC unlocks all of the control, security and flexibility of Windows 10 IoT including the entirety of the Microsoft eco system.

  IIYAMA SHARE
  Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

  SECURITY
  Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.

  24/7
  24/7 displays are designed for a continuous operation.

  AG COATING
  The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

  4K
  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

• Feature	Description
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	65″, 163.9cm
  Panel	IPS, AG coated glass, zero air-gap
  Native resolution	3840 x 2160 (8.3 megapixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	400 cd/m²
  Light transmittance	88%
  Static contrast	1200:1
  Dynamic contrast	3500:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	1.07 billion 8-bit+FRC
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	1429 x 804mm, 56.3 x 31.7″
  Bezel width (sides, top, bottom)	14mm, 14mm, 43mm
  Pixel pitch	0.372mm
  Bezel colour and finish	Black, matte
  TOUCH
  Touch technology	PureTouch-IR
  Touch points	20 (HID, only with supported OS)
  Touch accuracy	±1mm
  Touch method	Stylus, finger, glove
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1 (max. 1920×1080 @60Hz)
  Digital signal input	HDMI x3 (2.0 – max. 3840×2160 @60Hz, RGB444)<br>USB-C x1 (3.1, 3840×2160 @60Hz – RGB444 – (65W charging, Touch)
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1 (DSUB 9pin)
  RJ45 (LAN)	x1 (LAN Control)<br>x2 (Auto switch for PC & Android, 1000MB)
  Audio output	S/PDIF (Optical) x1<br>Mini jack x1<br>Speakers 2 x 16W
  HDCP	Yes
  USB ports	x5 (media playback / peripherals / storage – front side: 2x v.3.0, right side: 2x v.3.0, 1x USB-C v.3.1)
  FEATURES
  Integrated software	iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices
  WiFi	Yes (WiFi Module OWM002 – Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
  Hardware	Quad-core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
  Extra	Ambient light sensor, OTA firmware update<br>Kiosk mode: Yes<br>Max. non-stop operating time: 24/7<br>Media playback: Yes
  Glass thickness	3mm
  Glass hardness	7H
  Housing (bezel)	Metal
  OSD key lock	Yes
  OSD languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL
  Control buttons	Power, Power Indicator, Remote Sensor, Light Sensor, USB Connector (3.0)
  User controls	Common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift, eye care, auto light, ECO, ECR), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
  Plug & Play	DDC2B
  Warranty	5 years (for details and eligible countries, please check the Warranty section of our website)
  Orientation	Landscape
  Fanless design	Yes
  VESA mounting	600 x 400mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF (excluding backlight)	50,000 hours
  ACCESSORIES INCLUDED
  Cables	Power, HDMI, USB for Touch
  Touch pen	x4 (Dual function tips)
  Guides	Quick start guide, safety guide
  Other	Mounting bracket for NUC, Mounting bracket for webcam
  Remote control	Yes (batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	190W typical, 0.5W standby, 0.5W off mode
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, PFOS, PFC)
  Other	REACH SVHC above 0.1%: Lead
  Product dimensions W x H x D	1489 x 897 x 86mm
  Box dimensions W x H x D	1697 x 220 x 1005mm
  Pallet volume	5 pcs
  Weight (without box)	38kg
  Weight (with box)	50kg
  EAN code	4948570118991

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Document	Download Link
  User Manual	DOWNLOAD
  Technical Specification	DOWNLOAD
  Drawing	DOWNLOAD
