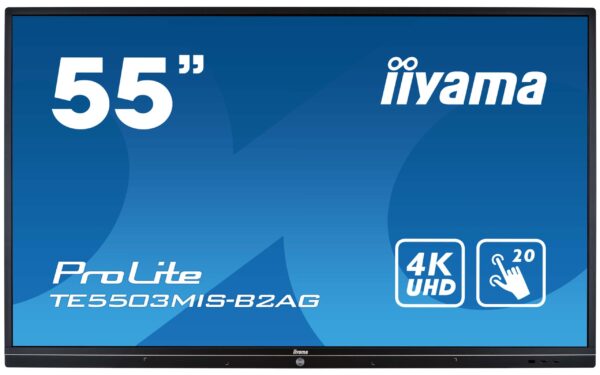

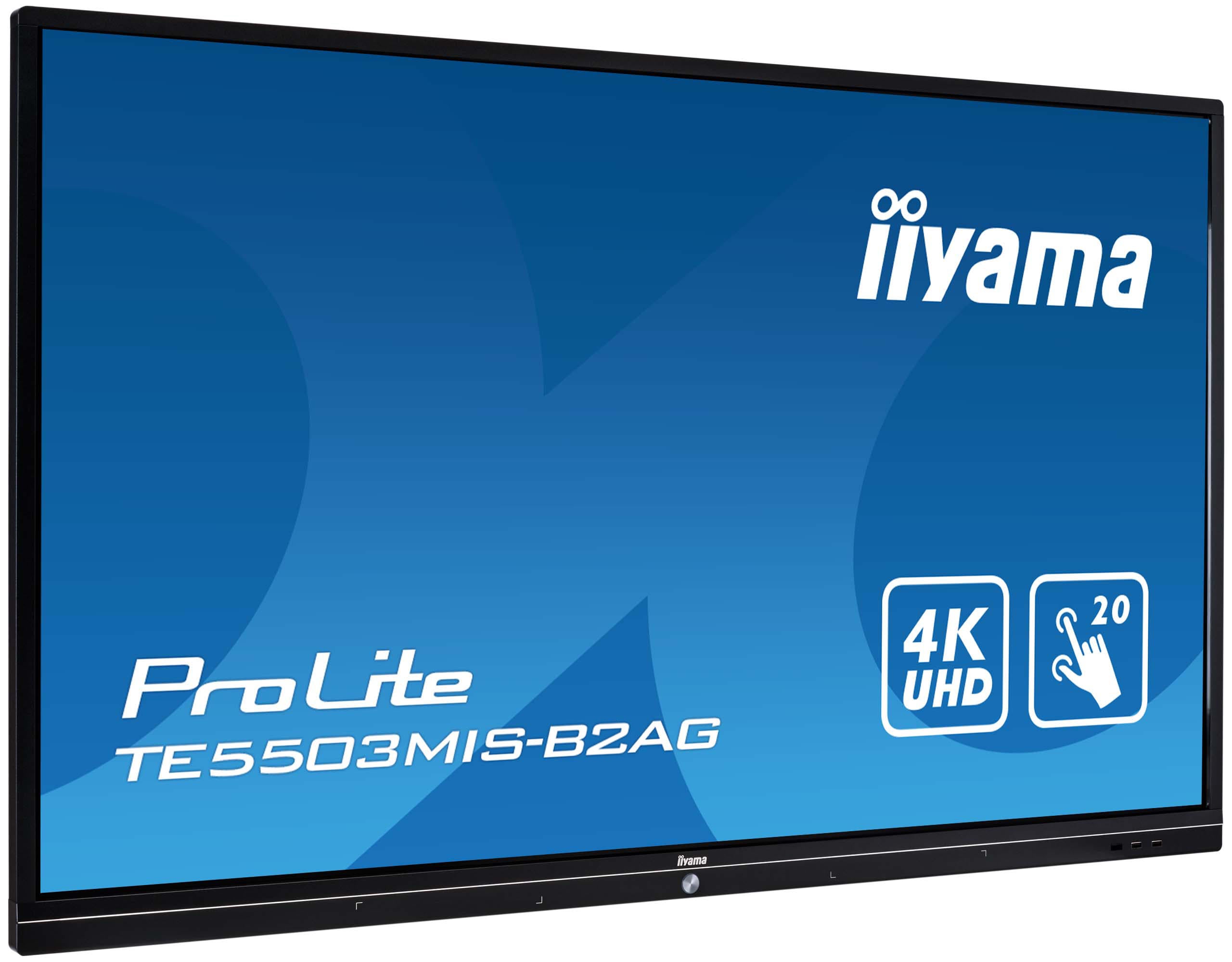

iiyama ProLite TE5503MIS-B2AG 55″ 4K UHD LCD Interactive Touchscreen Display

iiyama ProLite TE5503MIS-B2AG

55″ 4K UHD LCD Interactive Touchscreen Display

The 55’’ infrared 20-point touchscreen with iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and Eshare.

• Description
• Specifications
• Warranty
• Downloads

• PROLITE TE5503MIS-B2AG

  55’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software

  Share Your Vision with the ProLite TE5503MIS-B2AG; a perfect solution for educational and corporate use. The 55’’ infrared 20-point touchscreen with iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and Eshare. It comes with dual touch pens, allowing users to annotate easily in 4K on files and on-screen content, which can be saved directly on a USB device, 16GB internal memory or on a connected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content.

  The high-quality commercial IPS LCD screen with 4K UHD resolution (3840×2160 – 8.3 megapixel), 390cd/m² and a contrast ratio of 1200:1 provides vibrant, detailed and high-quality images from anywhere in the class- or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen is equipped with an all-metal bezel and 3mm thick hardened glass to ensure long durability in high-use environments, such as classrooms or meeting rooms.

  Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM001) and the ScreenSharePro app.

  IIWARE 8.0 (ANDROID OS)
  iiWare 8.0 features 6 different applications for collaboration and content sharing, plus it contains Note, a web browser, file manager, cloud drive manager, WPS Office and ScreenSharePro. Note is the digital whiteboard app for 4K annotations on screen as well as in content and with ScreensharePro users can share, stream and capture content from any device directly on screen and transform team meetings or lessons into easy, fast and seamless interactive sessions. iiWare supports presentation playback, high-resolution video and almost any other type of content from a USB drive, online or internal memory.

  SLOT PC
  Transform your display into a stand-alone solution with the optional slot PC*.

  No more hassle with cables and having to mount a NUC or PC at the back of the monitor or on the floor lift. Simply slide in an iiyama slot PC (sold separately) and get started right away.

  *Not suited for OPS Slot PC’s.

  TOUCH TECHNOLOGY – INFRARED
  The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically “wear out” the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.

  4K
  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

  AG COATING
  The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.



• Feature	Description
  Design	Thin bezel
  Diagonal	55″, 138.8cm
  Panel	IPS Direct LED, AG coated glass
  Native resolution	3840 x 2160 (8.3 megapixel 4K UHD)
  Aspect ratio	16:9
  Panel brightness	390 cd/m²
  Light transmittance	88%
  Static contrast	1200:1
  Dynamic contrast	4000:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	1.07B 8bit+FRC
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	1209.6 x 680.4mm, 47.6 x 26.8″
  Pixel pitch	0.315mm
  Bezel color and finish	Black, matte
  Touch technology	Infrared
  Touch points	20 (HID, only with supported OS)
  Touch accuracy	± 2mm
  Touch method	Stylus, finger, glove
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1 (max. 1920×1080 @60Hz)
  Digital signal input	HDMI x3 (v.2.0, max. 3840×2160 @60Hz (YUV420))
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1
  RJ45 (LAN)	x1 (Internet for Android only)
  Digital signal output	HDMI x1 (2.0, 3840×2160 @60Hz)
  Audio output	S/PDIF (Optical) x1, Mini jack x1
  Speakers	2 x 12W
  HDCP	v.2.2
  USB ports	x6 (media playback / peripherals / storage (front: 2x 2.0, bottom: 1x 2.0, right side: 3x 3.0))
  FEATURES
  Integrated software	iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro for wireless connection with Windows/iOS/Android devices
  WiFi	Yes (WiFi Module OWM001 – Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
  Hardware	Dual core A73+A53 CPU, Quad core Mali G51 GPU, 3GB RAM, 16GB internal memory
  Extra	Slot for optional slot PC, two touch pens
  Kiosk mode	Yes
  Max. non-stop operating time	18/7
  Media playback	Yes
  Glass thickness	3mm
  Glass hardness	7H
  Housing (bezel)	Metal
  OSD key lock	Yes
  OSD languages	EN, DE, FR, ES, IT, RU, CZ, NL, PL
  Control buttons	Power, Power Indicator, Remote Sensor, USB Connector (2.0)
  User controls	General settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, color temp), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, share, device, personal, system)
  Plug & Play	DDC2B
  Warranty	5 years (for details and eligible countries please check the Warranty section of our website)
  Orientation	Landscape
  Fanless design	Yes
  VESA mounting	400 x 200mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	50,000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI
  Touch pen	x2 (ø3 x1 & ø7 x1)
  Guides	Quick start guide, safety guide
  Other	WiFi Module (OWM001), Remote control (batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	160W typical, 0.5W standby, 0.5W off mode
  SUSTAINABILITY
  Regulations	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  REACH SVHC	Above 0.1%: Lead
  Product dimensions W x H x D	1269 x 773 x 86mm
  Box dimensions W x H x D	1432 x 881 x 225mm
  Pallet volume	5pcs
  Weight (without box)	26.8kg
  Weight (with box)	34.4kg
  EAN code	4948570119356
