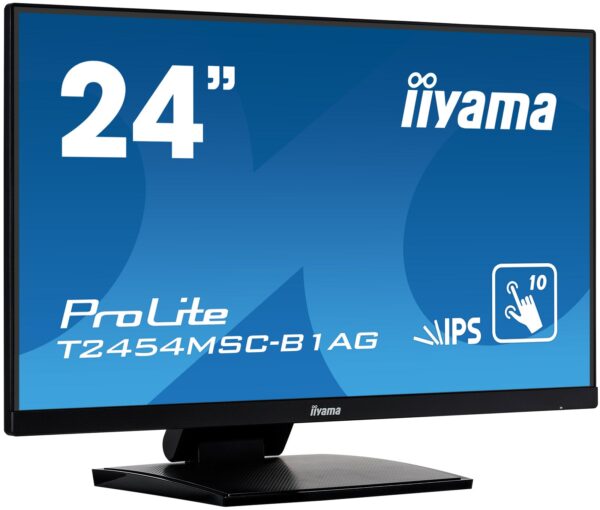

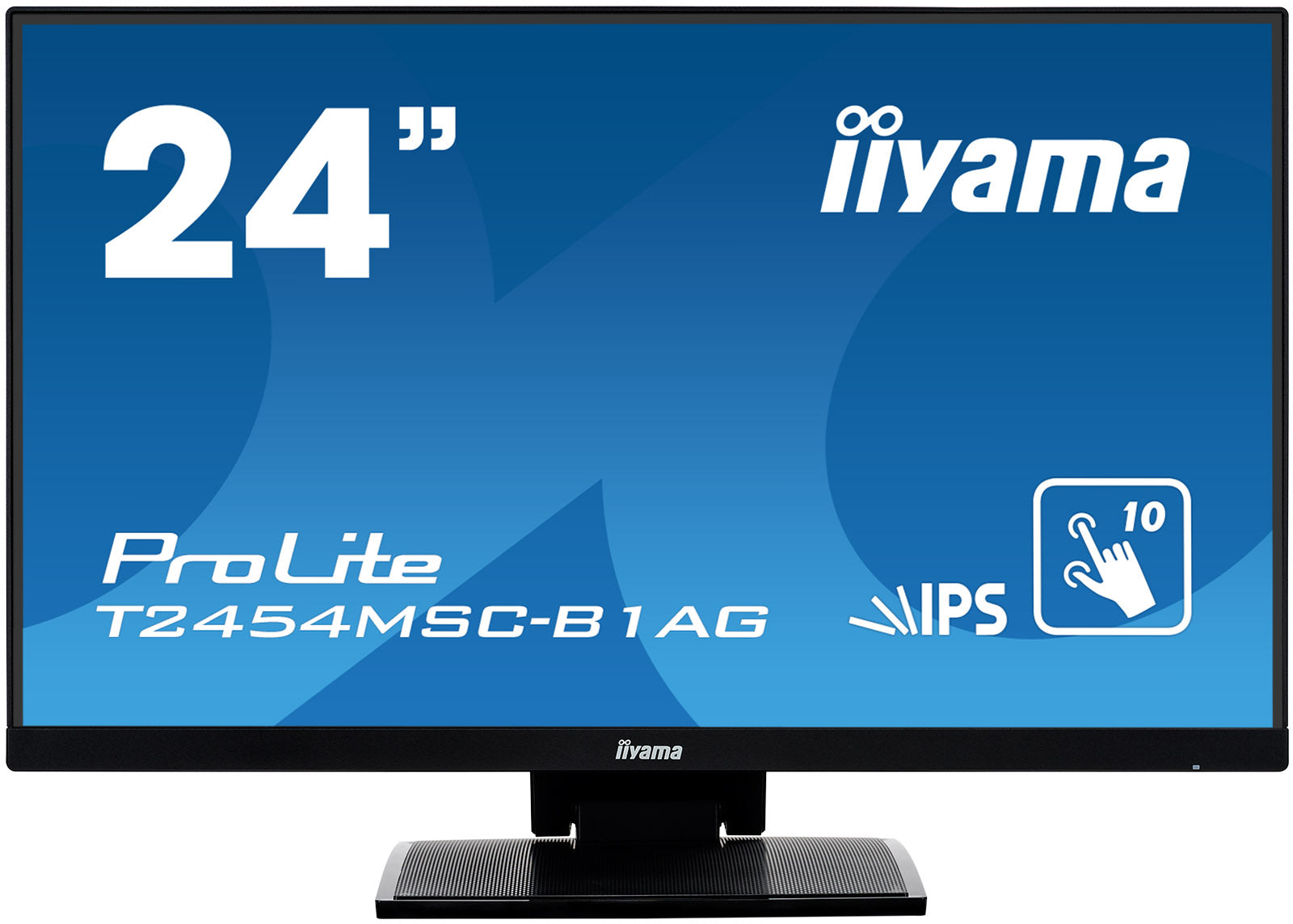

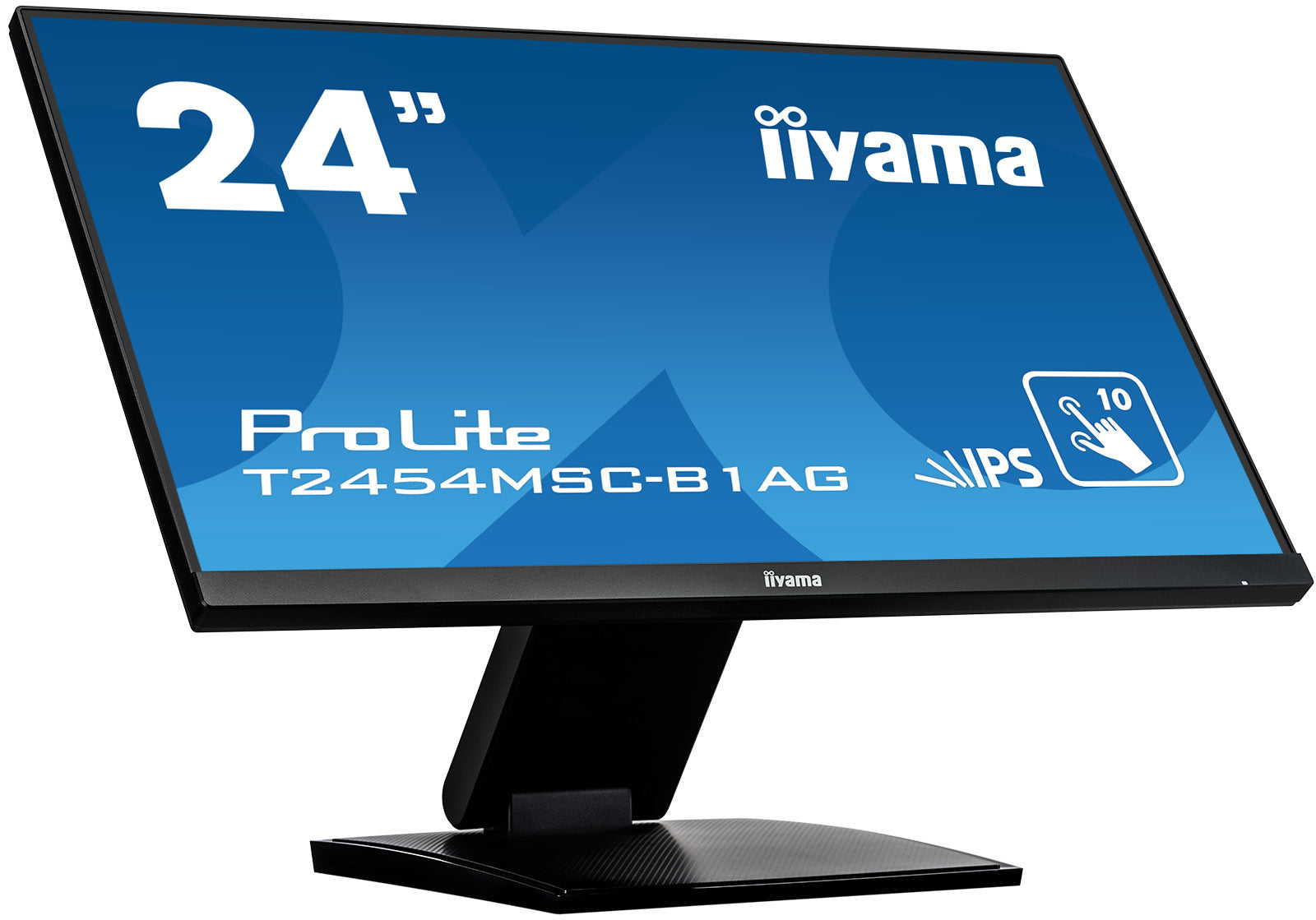

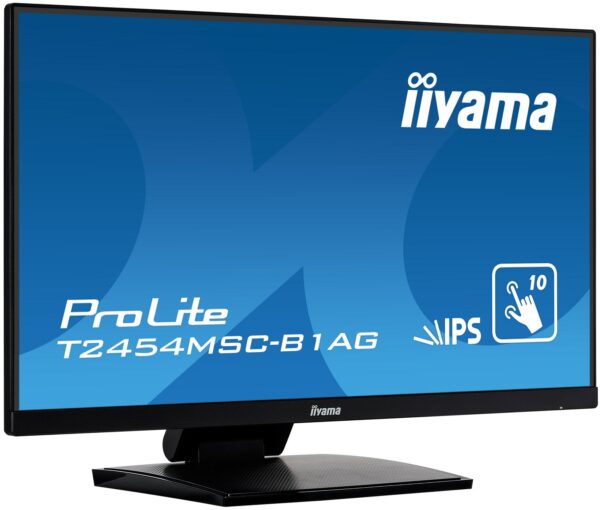

iiyama ProLite T2454MSC-B1AG 24″ PCAP Touch Screen Monitor
- Description
- Specifications
- Warranty
-
24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
-
DISPLAY CHARACTERISTICS
Design Ultra thin bezel Diagonal 23.8″, 60.5cm Panel IPS LED, AG coated glass Native resolution 1920 x 1080 @60Hz (2.1 megapixel Full HD) Aspect ratio 16:9 Panel brightness 250 cd/m² Static contrast 1000:1 Advanced contrast 5M:1 Response time (GTG) 4ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln 8bit Horizontal Sync 30 – 80kHz Viewable area W x H 527.04 x 296.46mm, 20.7 x 11.7″ Pixel pitch 0.274mm Bezel colour and finish black, matte TOUCH
Touch technology projective capacitive Touch points 10 (HID, only with supported OS) Touch method stylus, finger, glove (latex) Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. Palm rejection yes INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 Digital signal input HDMI x1 Audio output Speakers 2 x 2W HDCP yes USB HUB x2 (v.3.0) FEATURES
OSD key lock yes GENERAL
OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL Control buttons Auto, + Up, – Down, Menu, Power User controls Picture adjust (brightness, contrast, Eco, i-Style Color, adv. contrast), Geometry (pixel clock, phase, horizontal position, vertical position, aspect), Color settings (gamma, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language, auto power off, touch wake up), Extra (reset, signal select, audio input, opening logo, LED, Overdrive, Information, volume, auto adjust) Convenience Kensington-lock™ prepared Blue light reducer yes Plug&Play DDC2B MECHANICAL
Height adjustment 268mm Tilt angle 5° up; 90° down VESA mounting 100 x 100mm MTBF 30000 hours (excluding backlight) ACCESSORIES INCLUDED
Cables power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m) Guides quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 23.7W typical, 0.46W stand by, 0.29W off mode SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, EPEAT, REACH Energy efficiency class (Regulation (EU) 2017/1369) F REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 540.5 x 388 x 128mm Weight (without box) 5.5kg EAN code 4948570116416 RELATED INFORMATION
Product series ProLite T2754MSC-B1AG Related products ProLite T2754MSC-B1AG -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
