iiyama ProLite T2453MIS-B1 24″ – 10 Point Touch Screen Monitor
- Description
- Specifications
- Warranty
-

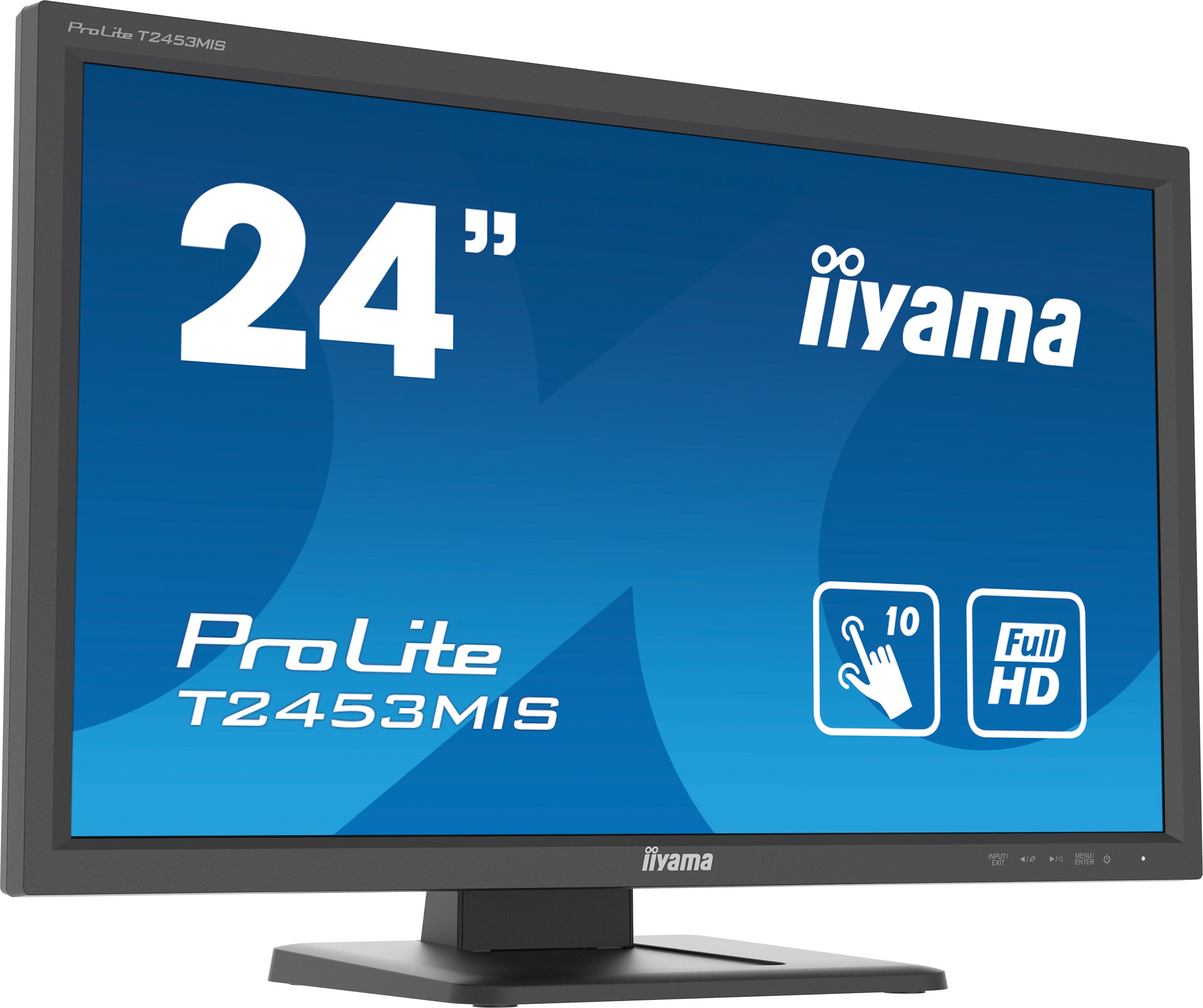

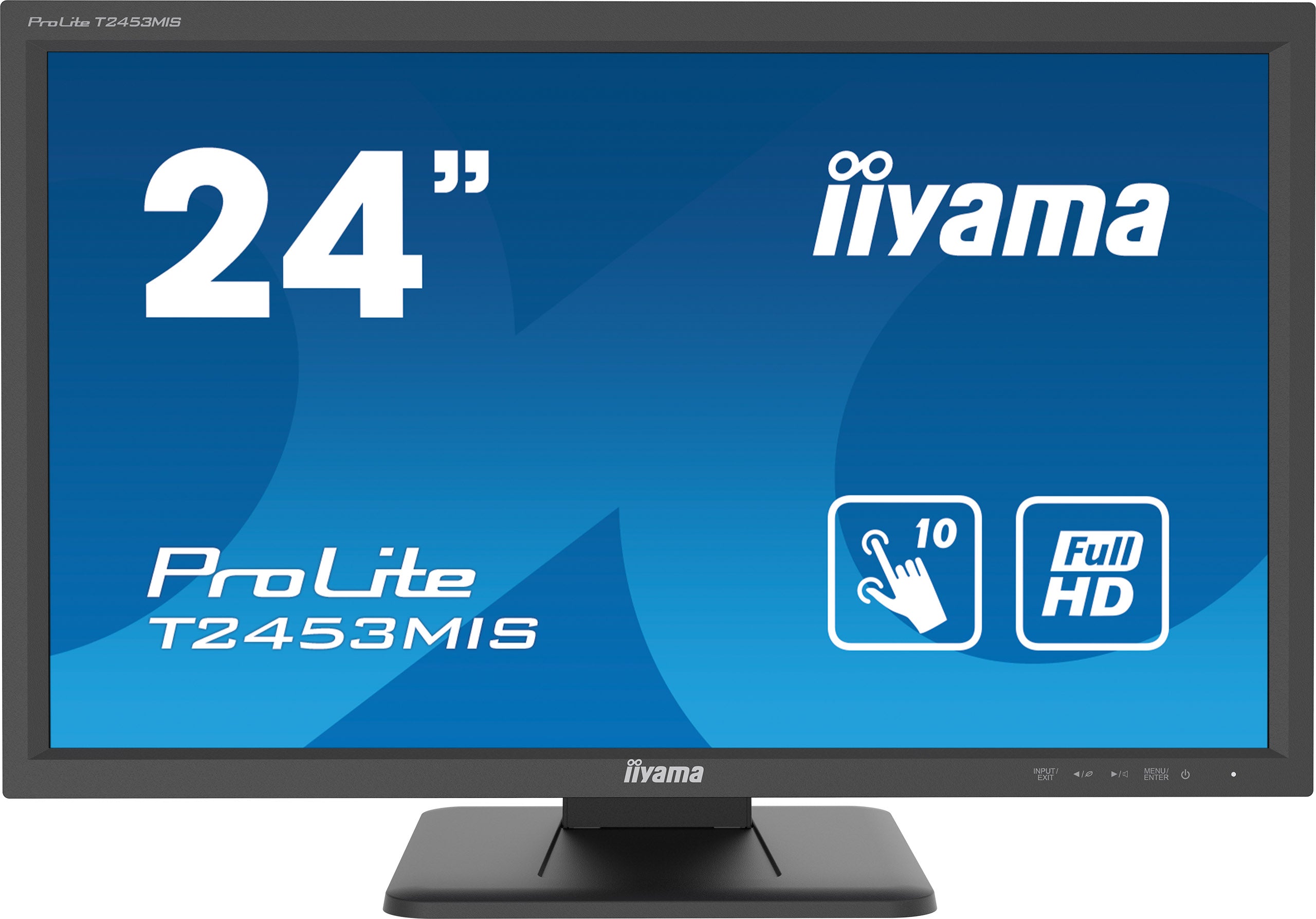

PROLITE T2453MIS-B1
24″ 10 point Touch monitor based on IR Touch technology
The ProLite T2453MIS-B1 is based on IR touch technology (10 touch points) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for several applications. The VA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. A solid and steady base supports the touchscreen with an adjustable stand. Multiple inputs (VGA, HDMI, DP) are available for flexible connectivity along with USB for the touch interface.
TOUCH TECHNOLOGY – INFRARED
The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically “wear out” the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.
OVERDRIVE ON / OFF
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
SPEAKERS AND HEADPHONESPlaying with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
-
DISPLAY CHARACTERISTICS
Diagonal 23.6″, 59.8cm Panel VA LED-backlit Native resolution 1920 x 1080 (2.1 megapixel Full HD) Aspect ratio 16:9 Panel brightness 250 cd/m² Brightness 225 cd/m² with touch Light transmittance 90% Static contrast 3000:1 Advanced contrast 12M:1 Response time (GTG) 4ms Viewing zone horizontal/vertical: 178°/ 178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln Horizontal Sync 30 – 80kHz Viewable area W x H 521.3 x 293.2mm, 20.5 x 11.5″ Pixel pitch 0.272mm Bezel colour and finish black, matte TOUCH
Touch technology infrared Touch points 10 (HID, only with supported OS) Touch accuracy +- 2mm Touch method stylus, finger, glove Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 Digital signal input HDMI x1
DisplayPort x1Audio output Mini jack x1
Speakers 2 x 2WHDCP yes USB HUB x2 (3.0) FEATURES
Glass thickness 1.85mm Glass hardness 7H OSD key lock yes GENERAL
OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL Control buttons Power, Menu/ Enter, Scroll up/ Audio, Scroll down/ ECO, Input/ Exit User controls auto adjust, picture adjust (brightness, contrast, ECO, Blue Light Reducer, ACR, OD, gamma, X-res technology), geometry (H. position, V. position, pixel clock, phase), colour settings (colour temperature, user preset, hue, saturation, i-Style colour), OSD (OSD H. position, OSD V. position, OSD time, after AC cut), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, DDC/CI, display information), input source, audio settings (volume, mute audio, audio input) Convenience Kensington-lock™ prepared Blue light reducer yes Plug&Play DDC/CI, DDC2B MECHANICAL
Tilt angle 95° up; 25° down VESA mounting 100 x 100mm ACCESSORIES INCLUDED
Cables power, USB, HDMI Guides quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 18W typical, 0.5W stand by, 0.3W off mode SUSTAINABILITY
Regulations CE, EAC, RoHS support, ErP, WEEE, VCCI, REACH, UKCA Energy efficiency class (Regulation (EU) 2017/1369) D REACH SVHC above 0.1%: Lead, Lead monoxide, Boric acid DIMENSIONS / WEIGHT
Product dimensions W x H x D 571 x 391 x 220.5mm Box dimensions W x H x D 645 x 190 x 490mm Weight (without box) 6kg EAN code 4948570118151 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
