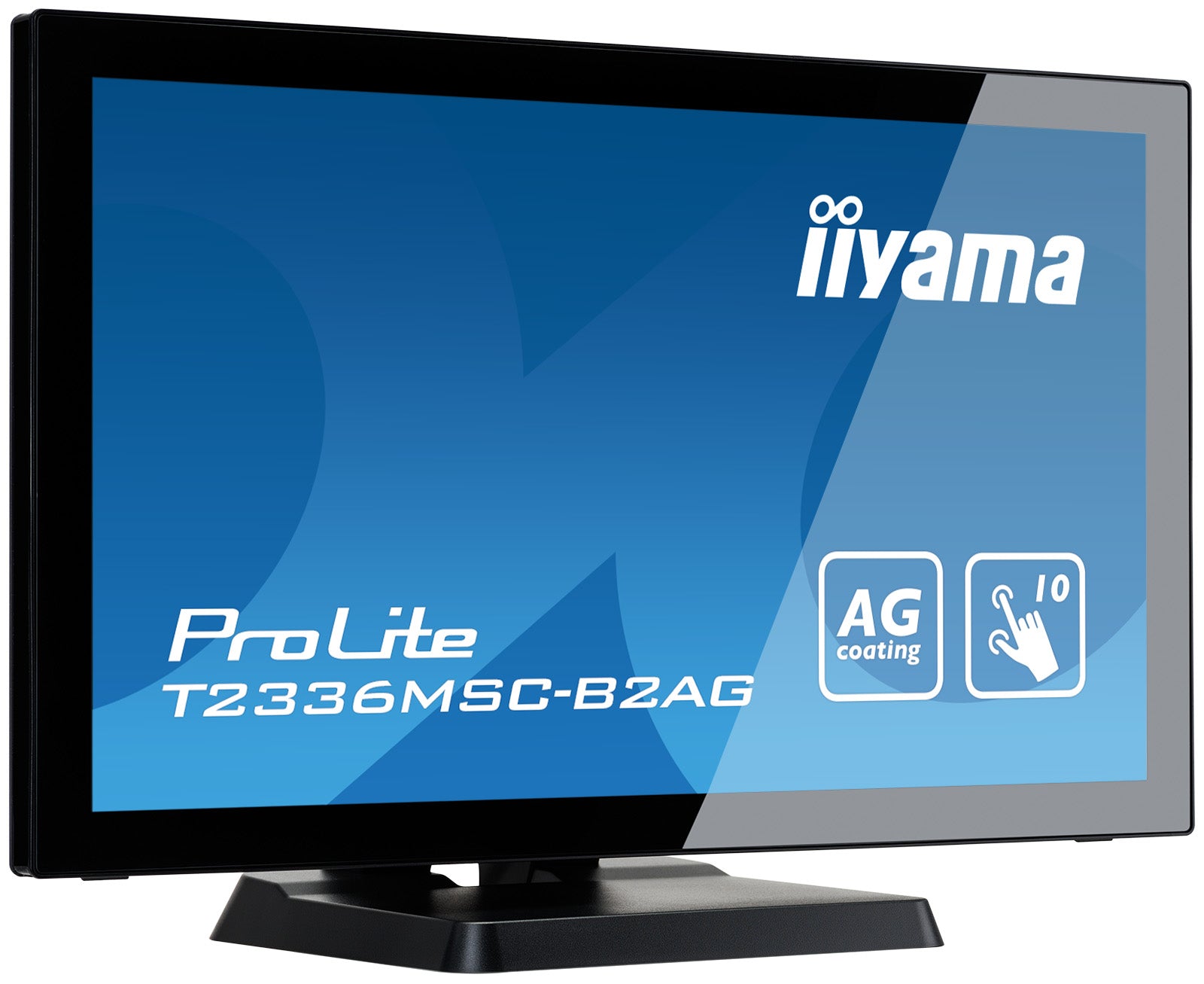

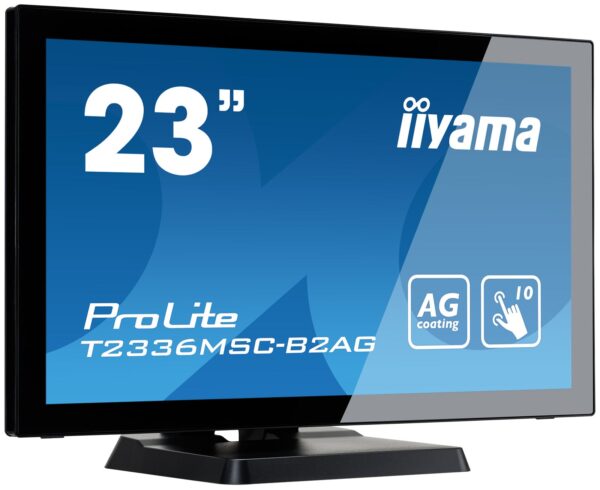

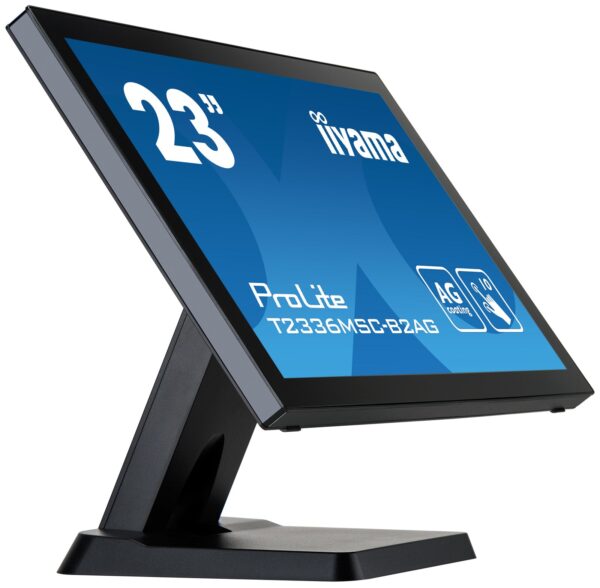

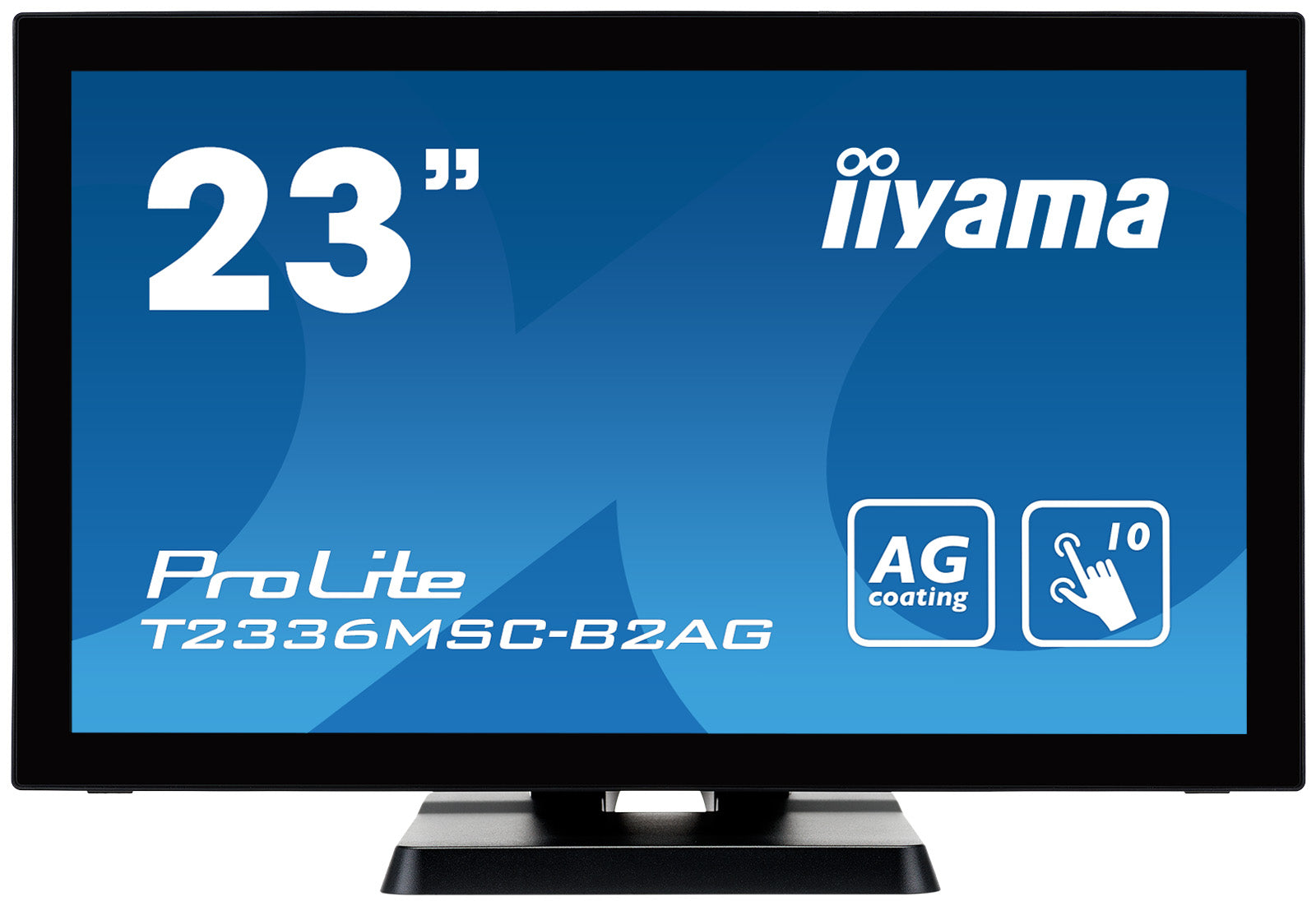

iiyama ProLite T2336MSC-B2AG 23″ PCAP Touch Screen Monitor
- Description
- Specifications
- Warranty
-
PROLITE T2336MSC-B2AG
23″ 10 point touch monitor with edge-to-edge glass and Anti Glare coatingWith its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.SPEAKERS
This LED monitor is equipped with two high quality stereo speakers. -
Category Feature Details Screen Features Screen Size 23″, 58.4cm Diagonal 58.4cm Panel IPS LED, AG coated glass Resolution 1920 x 1080 (Full HD) Aspect Ratio 16:9 Brightness 250 cd/m² (Normal), 215 cd/m² (with Touch) Light Transmittance 85% Contrast 1,000:1 (Static), 5M:1 (Enhanced) Response Time (GTG) 5ms Viewing Angle 178°/178° (H/V) Horizontal Sync 30 – 80kHz Viewable Area (W x H) 509.18 x 286.41mm (20 x 11.3″) Pixel Pitch 0.2652mm Touch Features Touch Points 10 (HID only with supported OS) Touch Method Finger, Stylus, Glove (Latex) Palm Rejection Yes Supported OS Windows & Linux (Plug & Play) Interfaces / Connections Analog Input VGA x1 Digital Input DVI x1, HDMI x1 Audio Output Speaker 2 x 2W USB HUB x4 (USB 3.2 Gen 1, 5Gbit) General Features OSD Key Lock Yes Control Buttons Scroll up/Volume Adjustment/Blue Light Reducer, Scroll down/ECO, Auto, Menu, Power User Controls Brightness, Contrast, ECO, i-Style Color, ACR, Image Adjustment, Color Temp, OSD Adjustment, Signal Selection, HDMI Audio, OD, Info, Volume, Auto Adjustment Blue Light Reducer Yes Mechanical Features Tilt Angle 90° up; 5° down Accessories Included Cables Power, VGA, DVI, USB, Audio Power Management Power Supply AC 100 – 240V, 50/60Hz Power Consumption 25.3W (Typical), 0.4W (Standby), 0.32W (Off Mode) Dimensions & Weight Product Dimensions (W x H x D) 561 x 379 x 254mm Weight (Without Box) 6.3kg EAN Code – 4948570115075 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
