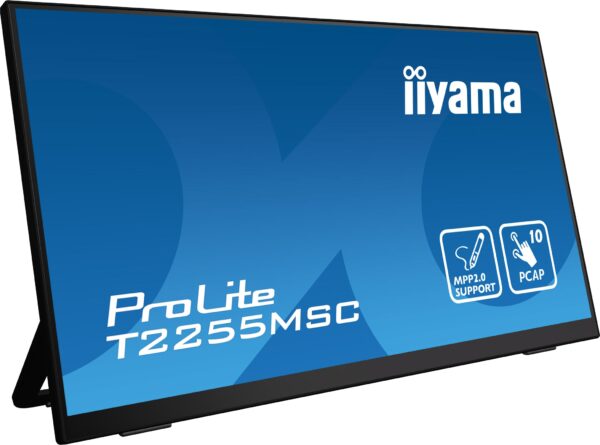

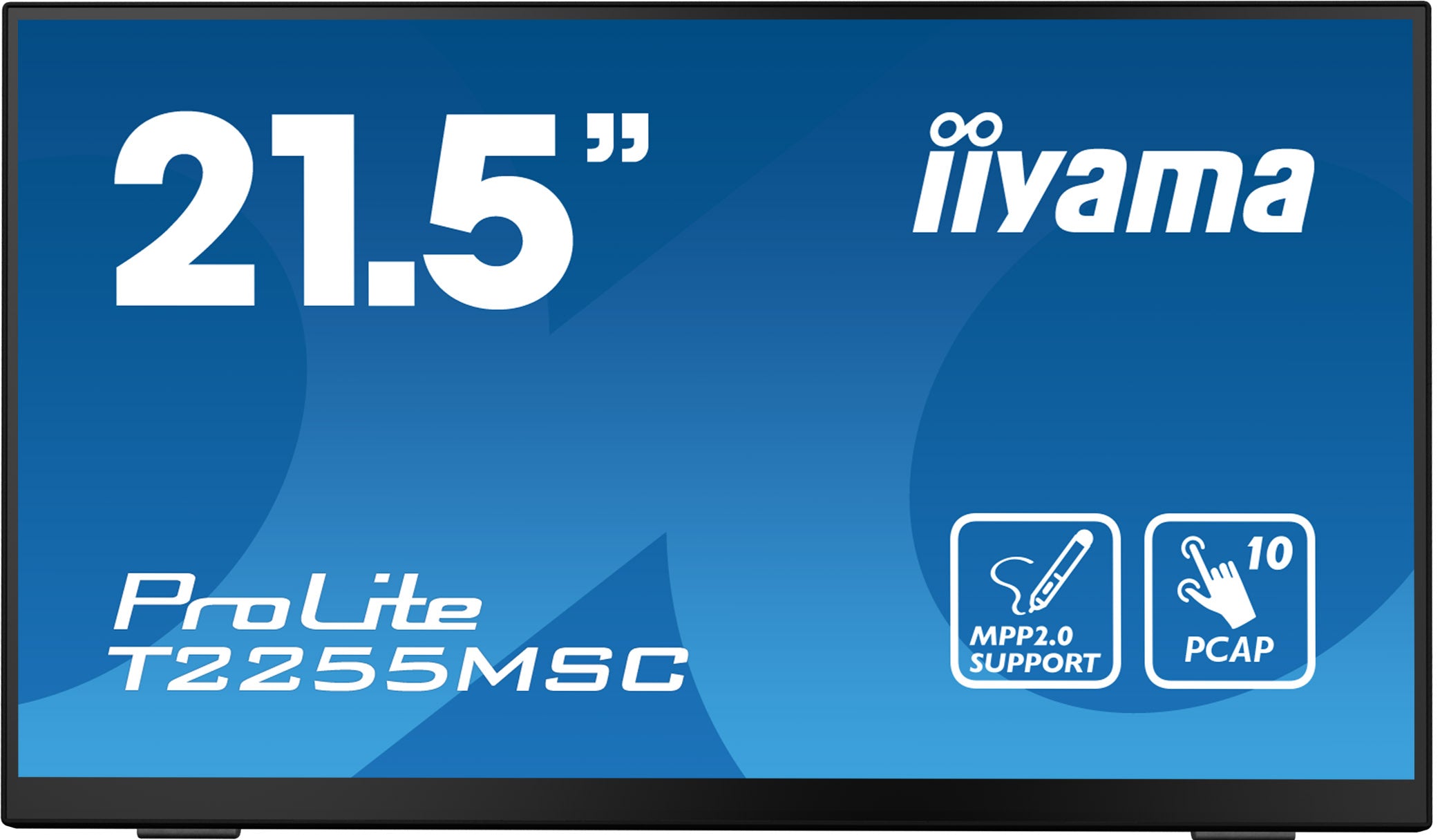

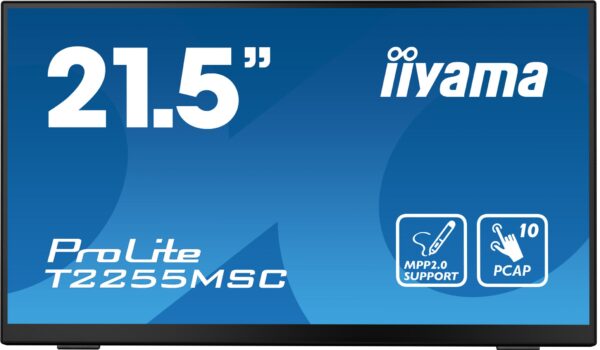

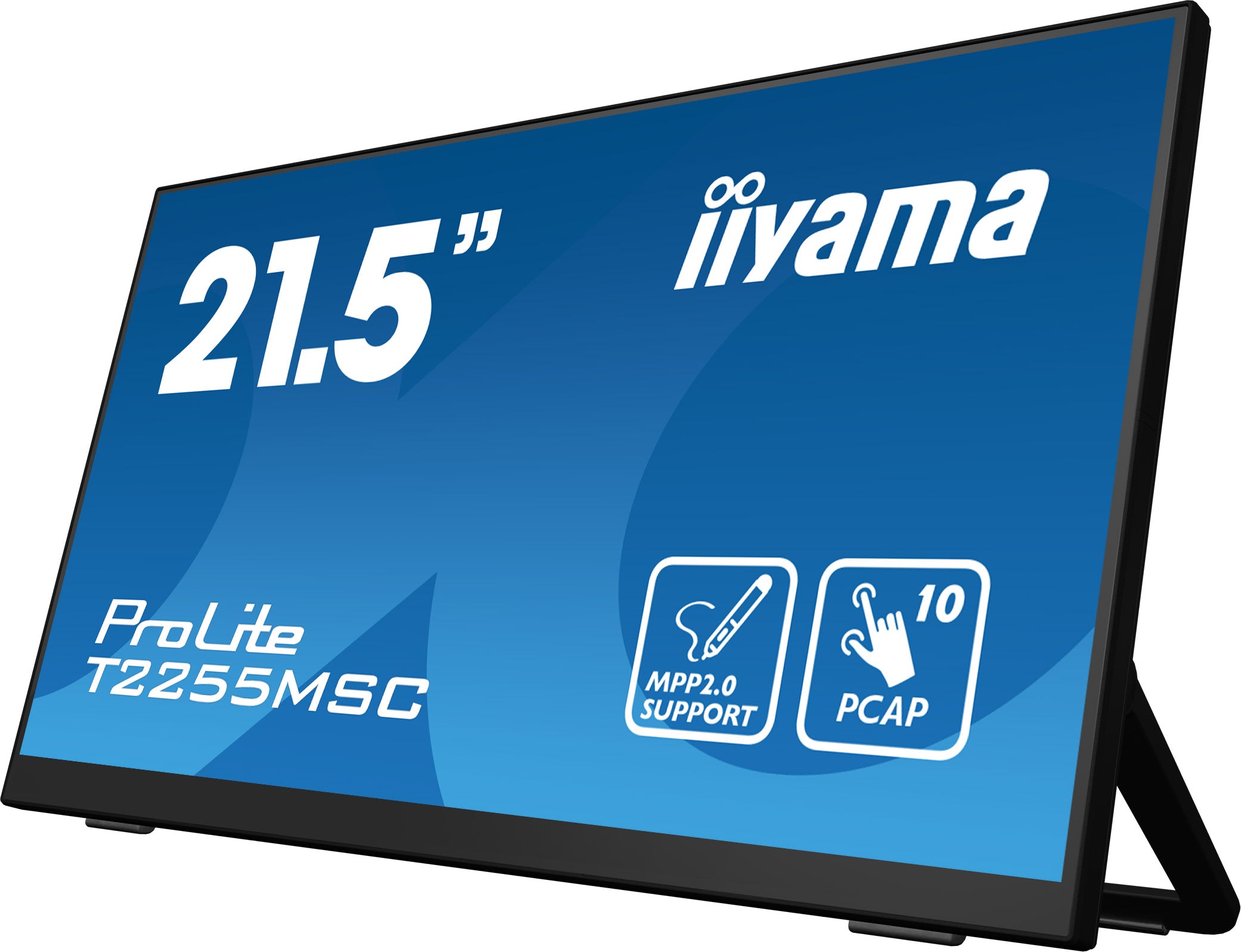

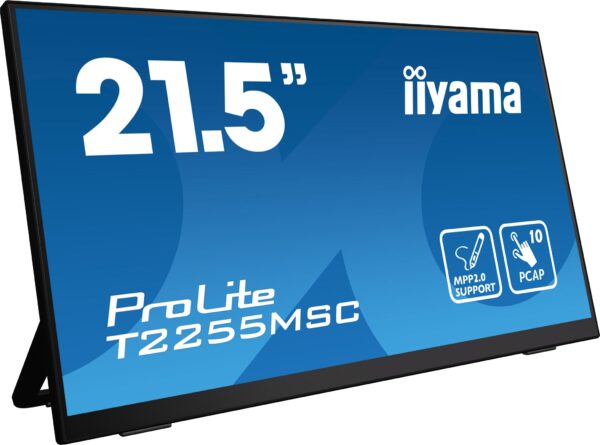

PROLITE T2255MSC-B1
21.5” multi-touch monitor with edge-to-edge glass, anti fingerprint coating, active stylus support (MPP 2.0) and a flexible stand
The ProLite T2255MSC with its Full HD (1920×1080) resolution and accurate PCAP 10 point touch technology, delivers a seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. The monitor supports MPP2.0 (Microsoft Pen Protocol) technology, which is used in digital pens and styluses for use with compatible devices. The pen or stylus can interact with the ProLite T2255MSC, allowing users to write, draw, and navigate on the screen. It is very precise and supports tilt functionality, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of creative applications.
MPP2.0 SUPPORT
Microsoft Pen Protocol (MPP) is a technology used in digital pens and styluses for use with compatible devices. The protocol enables the pen or stylus to interact with the device, allowing users to write, draw, and navigate on the screen. The 2.0 version is more responsive to the user’s touch giving a more precise control when writing or drawing on the screen. It also supports tilt functionality, which allows the pen to detect the angle at which it is held, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. -
Category Specification Design Edge to edge glass Diagonal 21.5″, 54.5cm Panel IPS Native resolution 1920 x 1080 @60Hz (2.1 megapixel Full HD) Aspect ratio 16:9 Panel brightness 400 cd/m² Brightness with touch 360 cd/m² Light transmittance 90% Static contrast 1000:1 Response time (GTG) 5ms Viewing zone Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Horizontal Sync 30 – 83kHz Viewable area W x H 478.7 x 260mm, 18.8 x 10.2″ Pixel pitch 0.249mm Bezel colour and finish Black, matte Touch technology Projective capacitive Touch points 10 (HID, only with supported OS) Touch accuracy +- 2mm Touch method Stylus, finger, glove (latex) Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. Palm rejection Yes Digital signal input HDMI x1 DisplayPort x1 Audio output Mini jack x1 Speakers 2 x 3W USB HUB x2 (v.3.0) Glass hardness 7H OSD key lock Yes OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL Control buttons Joystick: right / menu / enter, left / input / exit, up / eco, down User controls Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch) Blue light reducer Yes Flicker free Yes Plug & Play DDC2B Tilt angle 15° up; 70° down VESA mounting 100 x 100mm MTBF 50000 hours (excluding backlight) Accessories included Power, USB, HDMI Power supply unit Internal Power supply AC 100 – 240V, 50/60Hz Power usage 16W typical, 1.5W stand by, 0.3W off mode Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA Energy efficiency class D REACH SVHC Above 0.1%: Lead Product dimensions 493.5 x 289.5 x 48.5mm Weight (without box) 3.2kg EAN code 4948570121625 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
