• PROLITE T2236MSC-B3

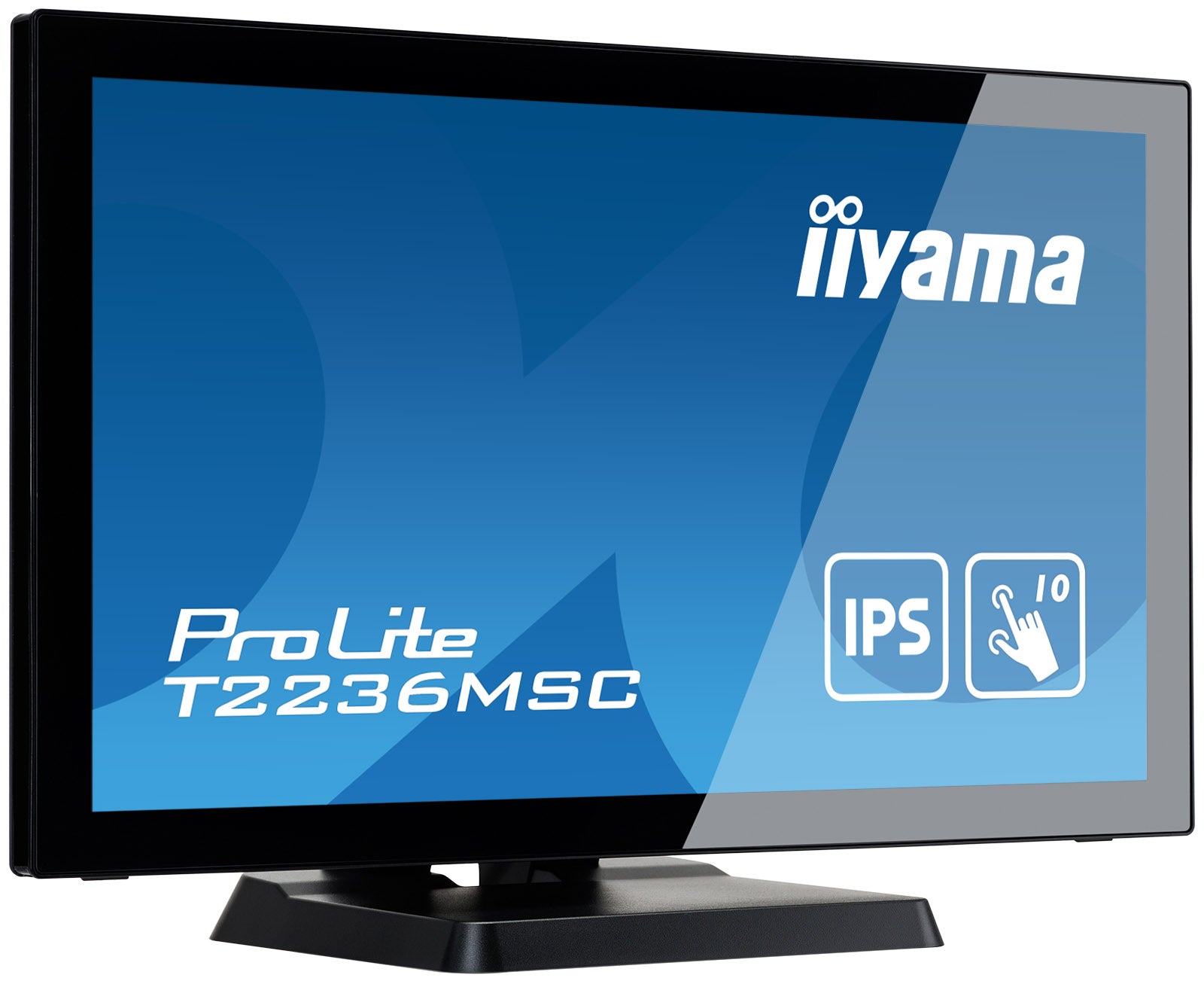

  21.5″ 10 point touch monitor with edge-to-edge glass and IPS panel

  With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2236MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.

  IPS
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  TOUCH TECHNOLOGY – CAPACITIVE
  This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  SCRATCH RESISTANCE
  Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  BLUE LIGHT REDUCER
  As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor’s brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.

  SPEAKERS
  This LED monitor is equipped with two high quality stereo speakers.

• DISPLAY CHARACTERISTICS
  Design	Edge to edge glass
  Diagonal	21.5″, 54.7cm
  Panel	IPS
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Brightness	215 cd/m² with touch
  Light transmittance	85%
  Static contrast	1000:1
  Advanced contrast	80M:1
  Response time (GTG)	5ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	476.1 x 267.8mm, 18.7 x 10.5″
  Pixel pitch	0.248mm
  Bezel colour and finish	black, matte

  TOUCH
  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Palm rejection	yes

  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1
  Digital signal input	HDMI x1, DisplayPort x1
  Audio output	Speakers 2 x 2W
  USB HUB	x4 (v.3.0)

  FEATURES
  OSD key lock	yes

  GENERAL
  OSD languages	EN, DE, FR, ES, IT, PT, CN, RU, JP
  Control buttons	Scroll up / Audio Adjust / Mute, Scroll down / ECO / Blue Light Reducer, Signal Select / Exit, Menu, Power
  User controls	picture adjust (contrast, brightness, i-Style-Color, adv. contrast, Eco mode, Overdrive, X-Res Technology), image settings (auto adjust, pixel clock, phase, horizontal pos., vertical pos., sharp & soft, aspect), color settings (gamma, 6-axis, color temp.), OSD (horizontal pos., vertical pos., OSD Time), language, extra (reset, DDC/CI, signal select, audio source, HDMI, range, opening logo, LED, Info, volume, mute)
  Convenience	Kensington-lock™ prepared
  Blue light reducer	yes
  Plug&Play	DDC2B

  MECHANICAL
  Tilt angle	90° up; 5° down
  VESA mounting	100 x 100mm

  ACCESSORIES INCLUDED
  Cables	power, USB, HDMI
  Guides	quick start guide, safety guide

  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	14W typical, 0.5W standby, 0.3W off mode

  SUSTAINABILITY
  Regulations	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	522.5 x 367 x 254mm
  Weight (without box)	5.8kg
  EAN code	4948570120338
