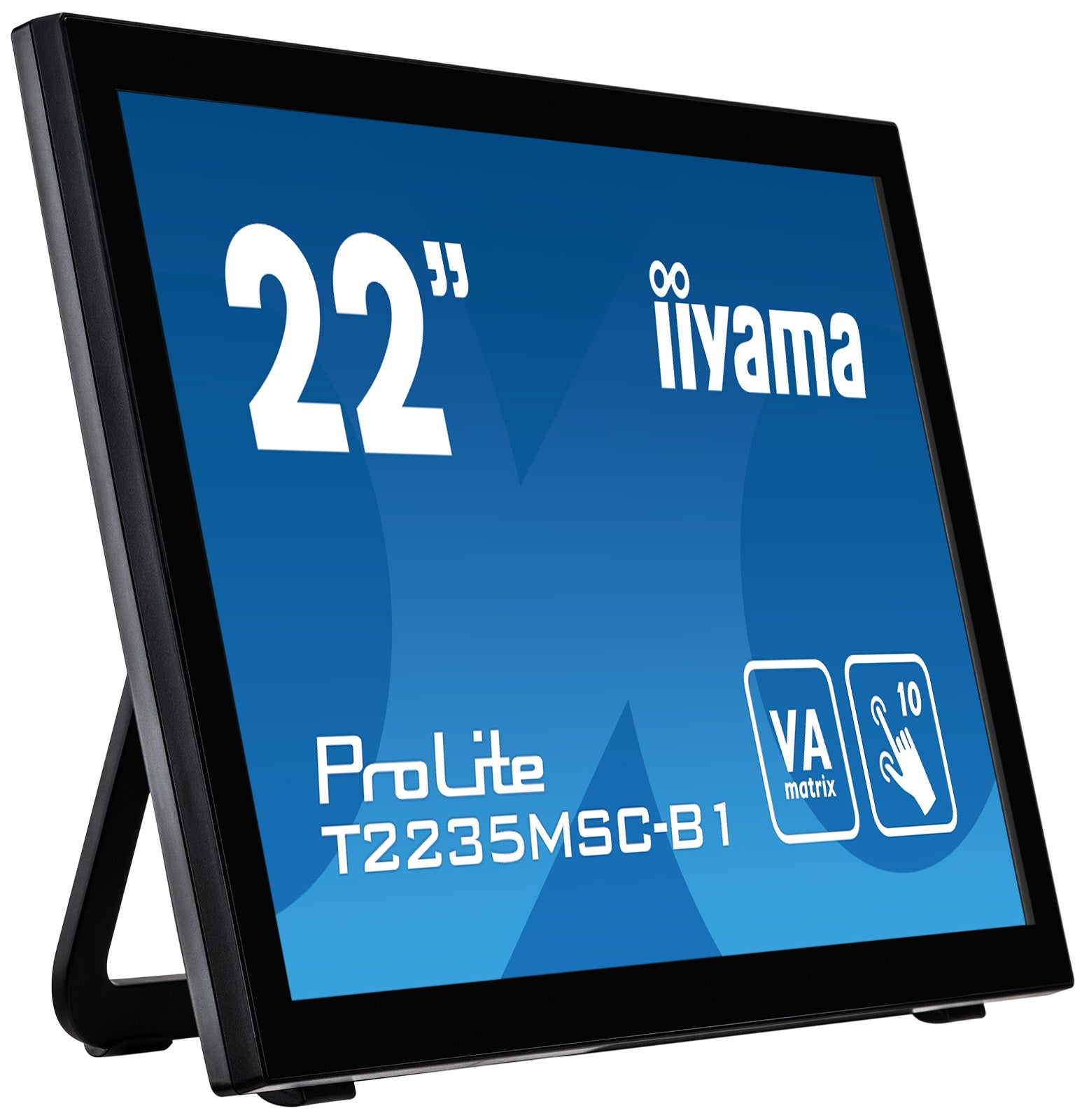

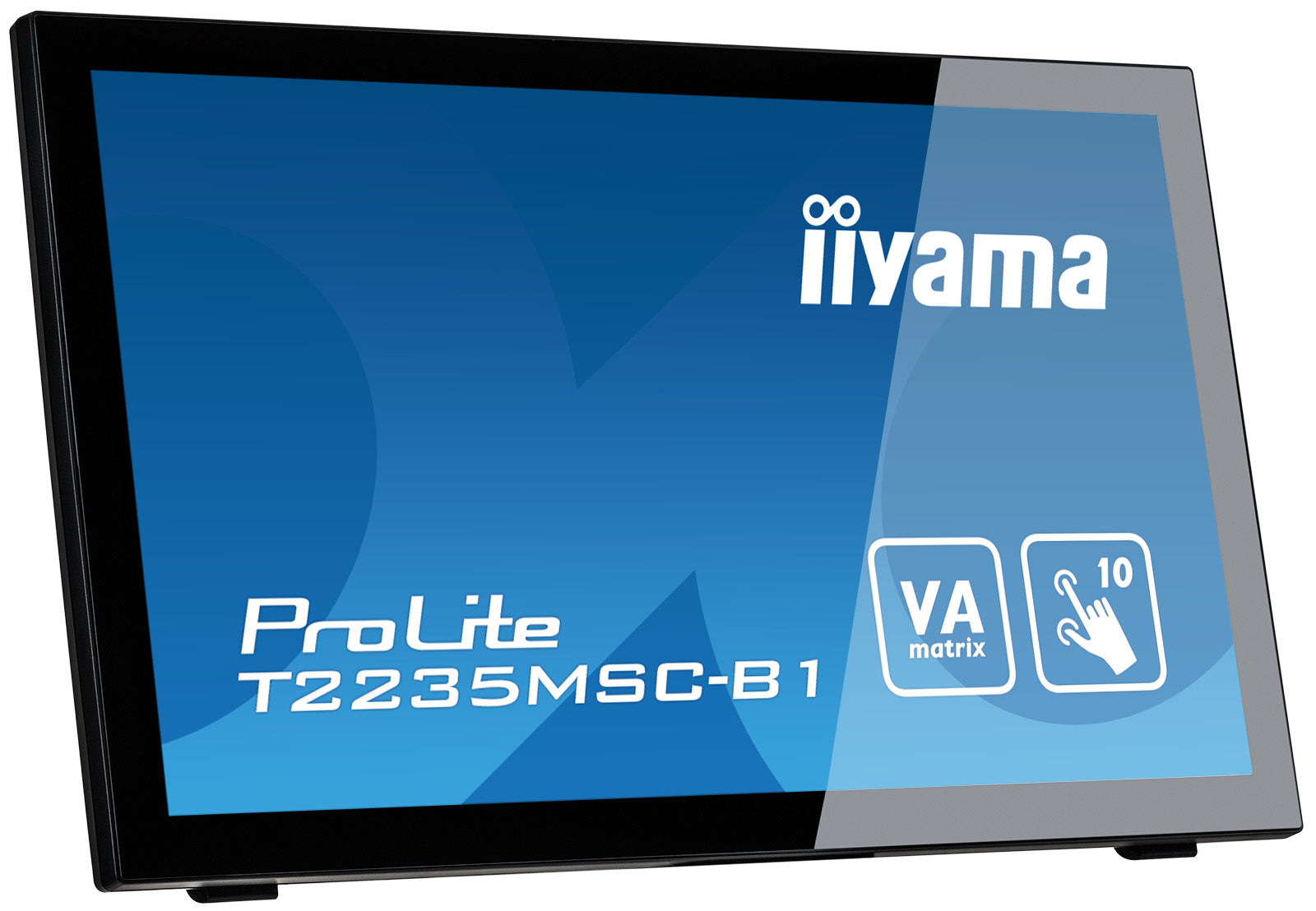

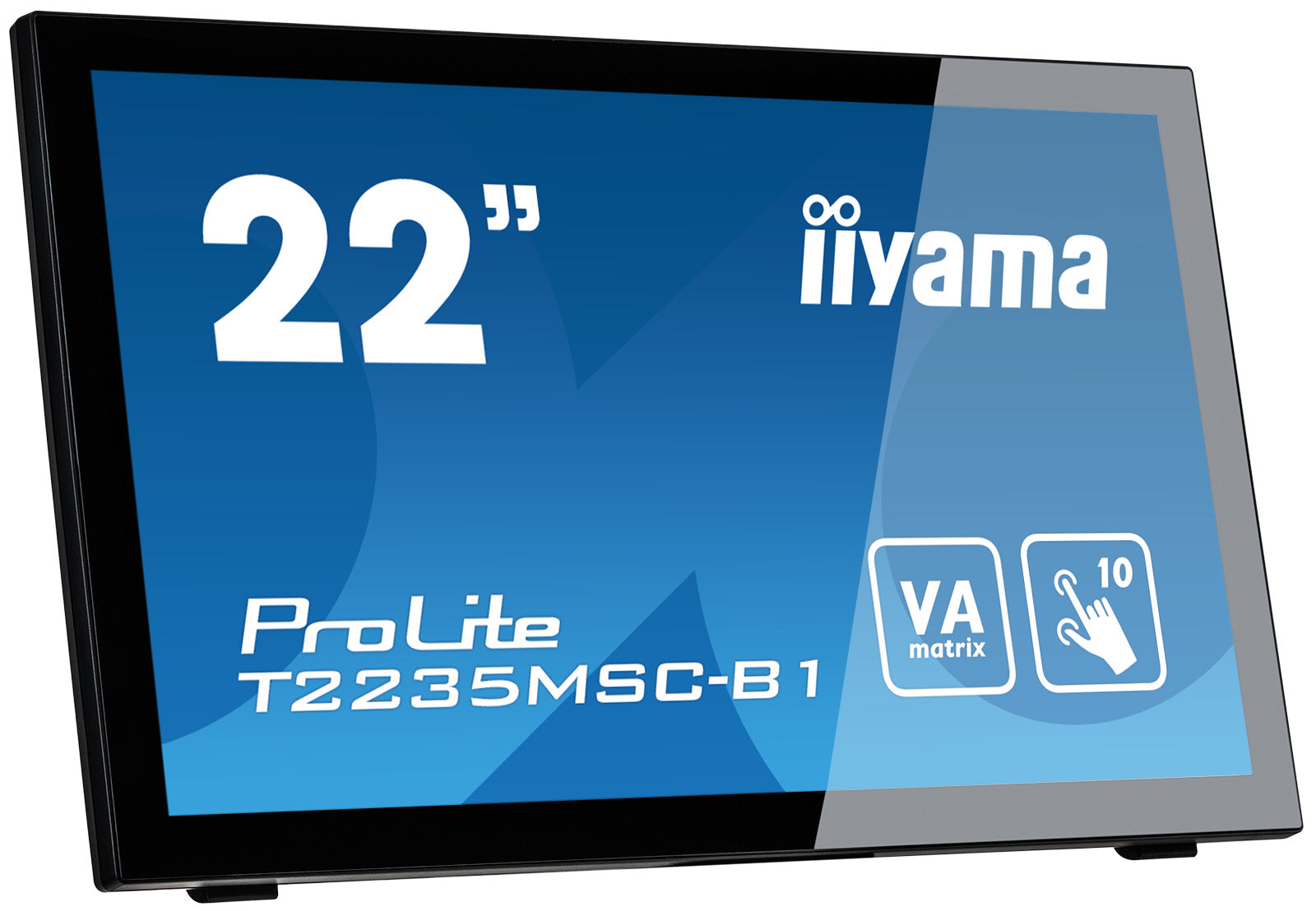

iiyama ProLite T2235MSC-B1 22″ PCAP Touchscreen Monitor

iiyama ProLite T2235MSC-B1 22″ PCAP Touchscreen Monitor

• Description
• Specifications
• Warranty

• 22″ 10 point multi-touch monitor with Edge to Edge glass

  With 1920×1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T2235MSC delivers seamless and accurate touch response. Featuring VA LED-backlit LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2235MSC comes equipped with several video inputs and stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, InStore Retail, Gaming and Interactive Presentations purposes.



  • TOUCH TECHNOLOGY – CAPACITIVE

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  • VA MATRIX

    VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

  • BLUE LIGHT REDUCER

    As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor’s brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.

  • SCRATCH RESISTANCE

    Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  • SPEAKERS

    This LED monitor is equipped with two high quality stereo speakers.

• DISPLAY CHARACTERISTICS

  Design	Edge to edge glass
  Diagonal	21.5″, 54.7cm
  Panel	VA LED
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Brightness	225 cd/m² with touch
  Light transmittance	90%
  Static contrast	3 000:1 with touch
  Advanced contrast	12M:1
  Response time (GTG)	6ms
  Viewing zone	horizontal/vertical: 176°/176°, right/left: 88°/88°, up/down: 88°/88°
  Colour support	16.7mln
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	476.1 x 267.8mm, 18.7 x 10.5″
  Pixel pitch	0.248mm
  Bezel colour and finish	black, matte

  TOUCH

  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1
  Digital signal input	DVI x1 DisplayPort x1
  Audio output	Speakers 2 x 2W

  FEATURES

  OSD key lock

  yes

  GENERAL

  OSD languages	EN, DE, FR, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Menu, Scroll up/ Audio Adjust, Scroll down/ i-Style Colour, Select/ Input select, Power
  User controls	auto image adjust, picture adjust (contrast, brightness, ACR, ECO, OD), input select, auto adjust (volume, mute, audio input), colour adjust, information, manual image adjust (H./V. position, clock, phase, sharpness, video mode adjust, blue light reducer, X-Res Technology), setup menu (langueage select, OSD position, OSD time out, OSD background, opening logo, LED), memory recall
  Convenience	Kensington-lock™ prepared
  Blue light reducer	yes
  Plug&Play	DDC2B

  MECHANICAL

  Tilt angle	15° up; 70° down
  VESA mounting	100 x 100mm

  ACCESSORIES INCLUDED

  Cables	power, DVI, USB, Audio
  Guides	quick start guide, safety guide

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	21W typical, 0.5W stand by, 0.5W off mode

  SUSTAINABILITY

  Regulations	CE, TÜV-Bauart, VCCI-B, RoHS support, ErP, WEEE, CU, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	F
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
