iiyama ProLite T2234MSC-B7X 22″ PCAP Touch Screen Monitor
- Descriptions
- Specifications
- Warranty
-

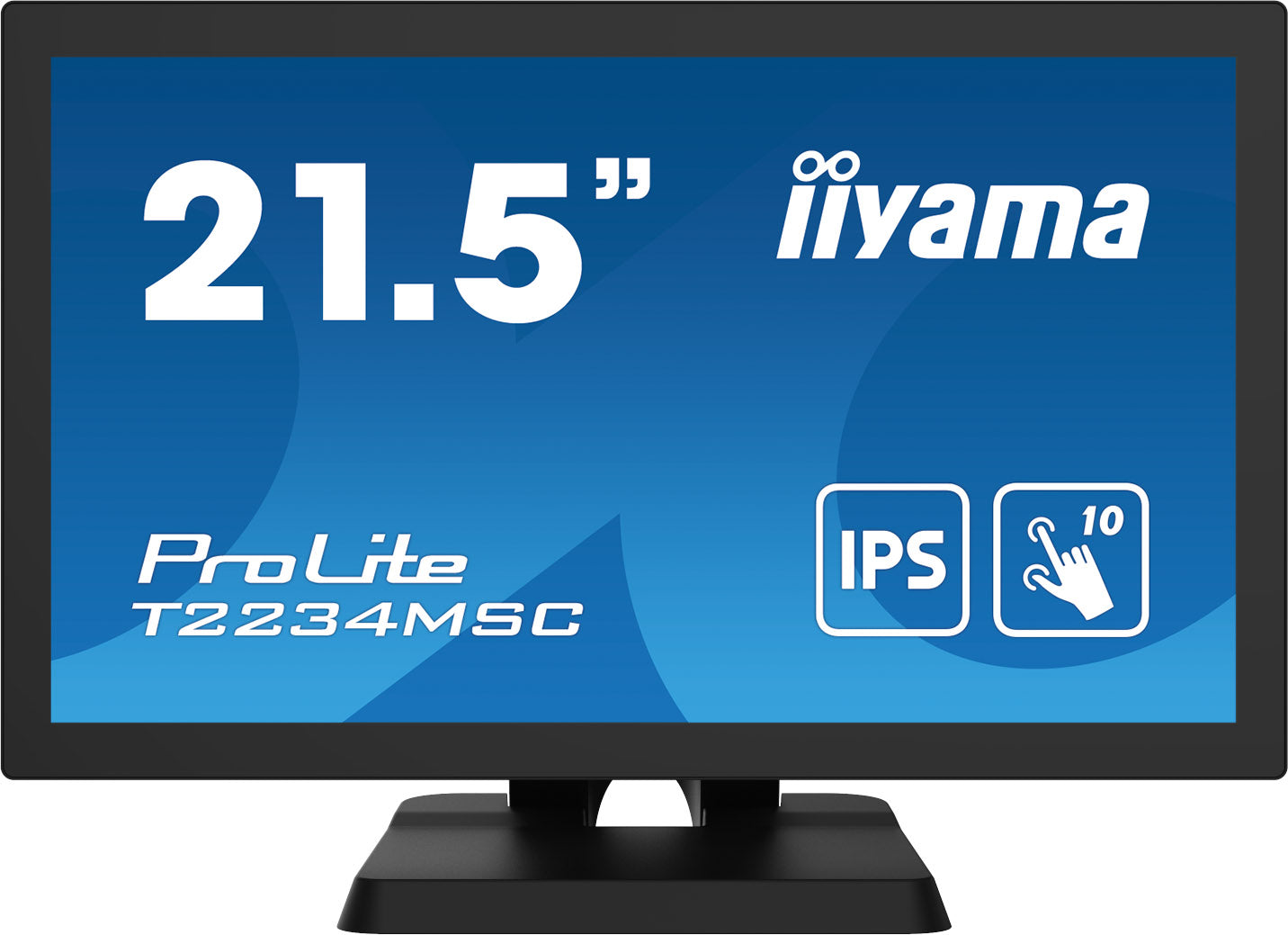

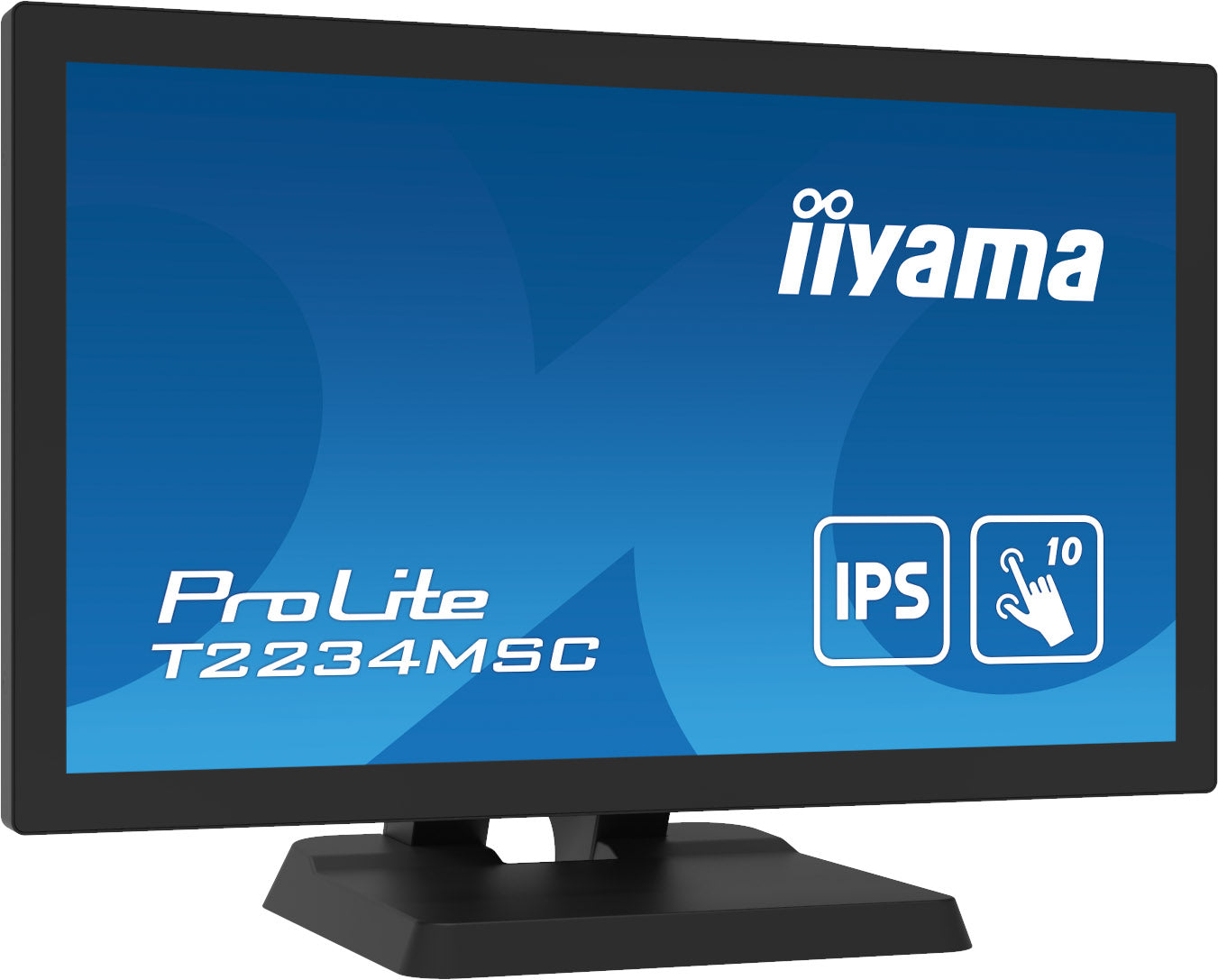

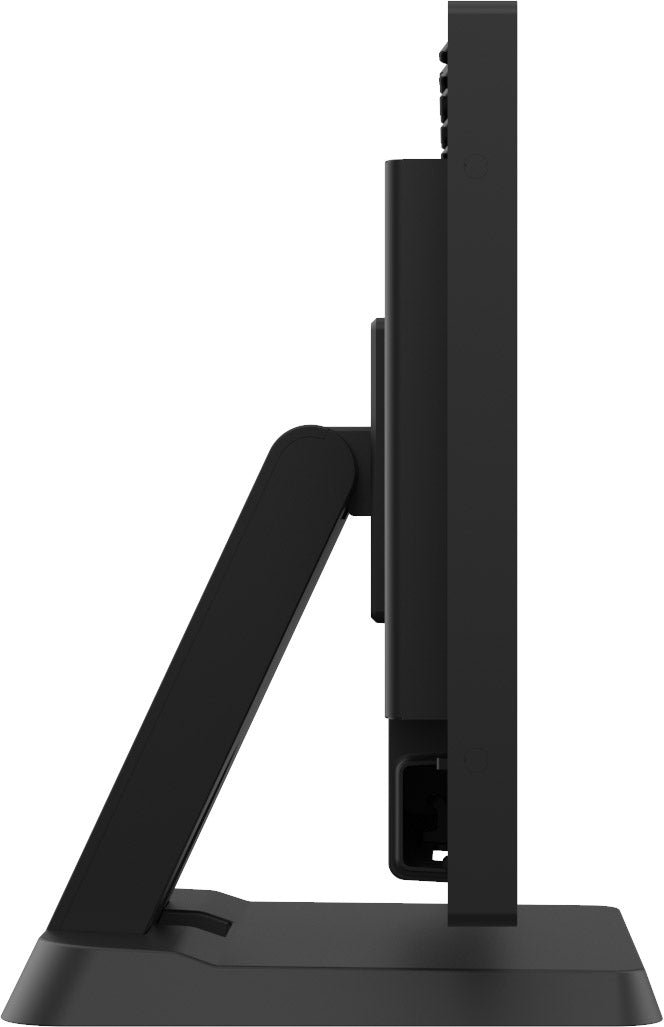

PROLITE T2234MSC-B7X
22″ Full HD 10pt touchscreen featuring IPS panel technology and touch through glass function
The ProLite T2234MSC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers. -
DISPLAY CHARACTERISTICS Diagonal 21.5″, 54.6cm Panel IPS LED Native resolution 1920 x 1080 (2.1 megapixel Full HD) Aspect ratio 16:9 Panel brightness 350 cd/m² Brightness (with touch) 305 cd/m² Light transmittance 87% Static contrast 1,000:1 (with touch) Response time (GTG) 8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7 million Horizontal Sync 30.0 – 84.0kHz Viewable area W x H 476.0 x 267.7mm Pixel pitch 0.247mm Bezel colour and finish black, matte TOUCH Touch technology projective capacitive Touch points 10 (HID, only with supported OS) Touch method stylus, finger, glove (latex) Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. Palm rejection yes INTERFACES / CONNECTORS / CONTROLS Analog signal input VGA x1 Digital signal input HDMI x1, DisplayPort x1 Audio output Speakers 2 x 3W HDCP yes FEATURES Extra Anti-fingerprint coating, touch through-glass Glass thickness 2.5mm Glass hardness 7H Water and dust protection IP65 (front) GENERAL OSD languages EN, DE, FR, ES, IT, CN, JP Control buttons Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power User controls Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, volume, mute, factory) Plug&Play DDC2B MECHANICAL Orientation landscape, portrait, face-up Tilt angle 90° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED Cables power, USB, HDMI, Audio, DP Guides quick start guide, safety guide Other AC adapter Cable cover yes POWER MANAGEMENT Power supply unit external Power supply DC 12 V Power usage 21W typical, 1.5W stand by, 0.3W off mode SUSTAINABILITY Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH Energy efficiency class F (Regulation (EU) 2017/1369) REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT Product dimensions W x H x D 517.5 x 351.5 x 219mm Box dimensions W x H x D 615 x 405 x 330mm Pallet volume 24pcs Pallet dimensions W x H x D 1090 x 1090 x 1987mm Weight (without box) 6.6kg Weight (with box) 7.2kg EAN code 4948570118359 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
