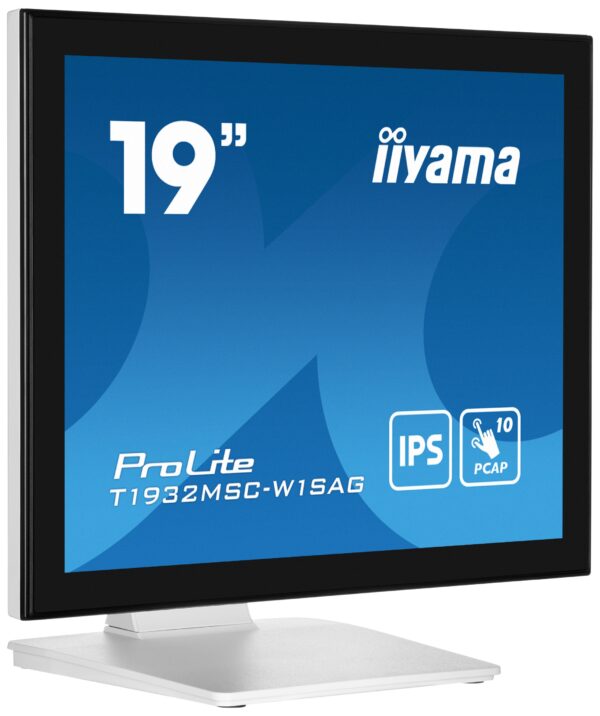

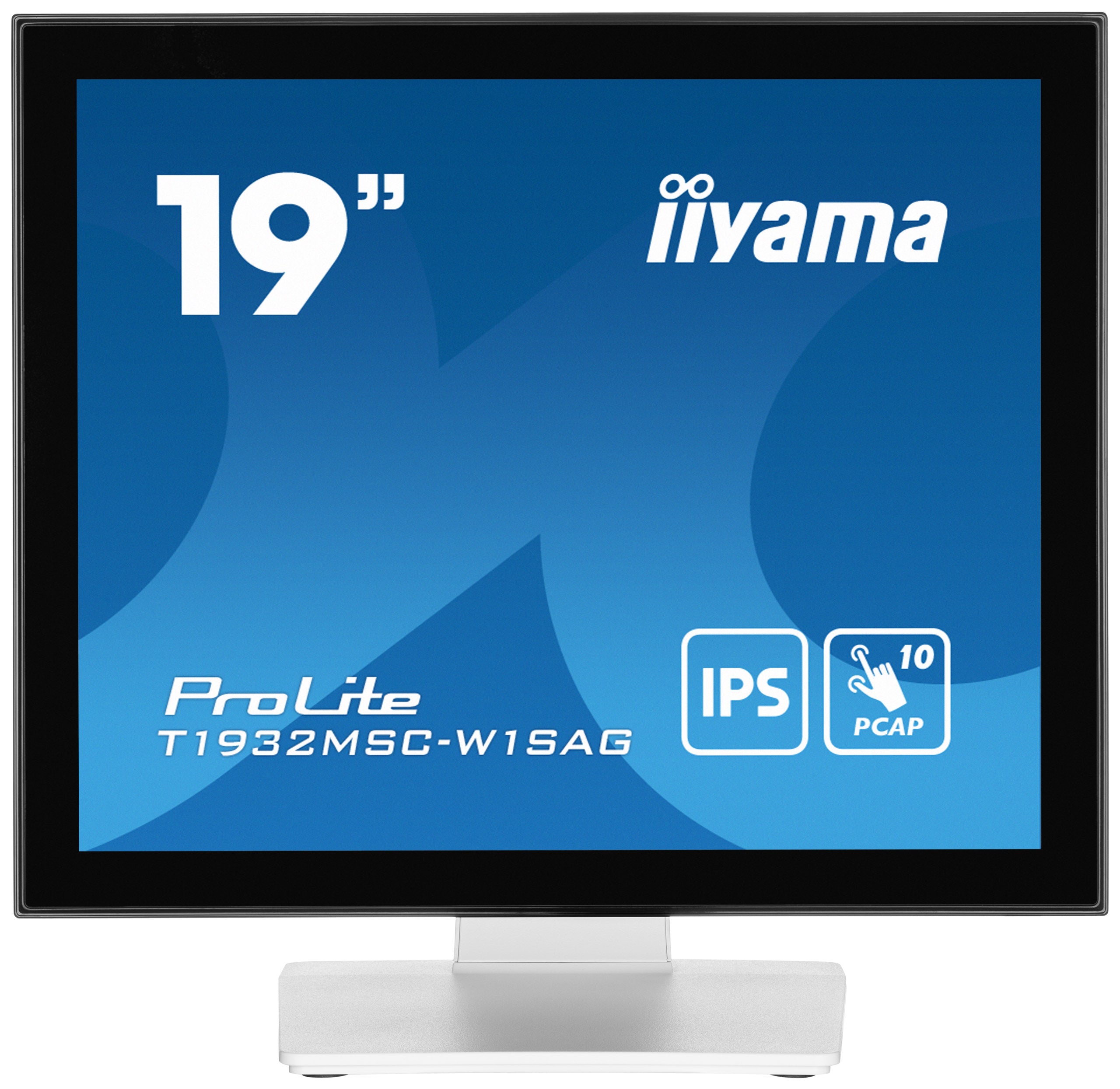

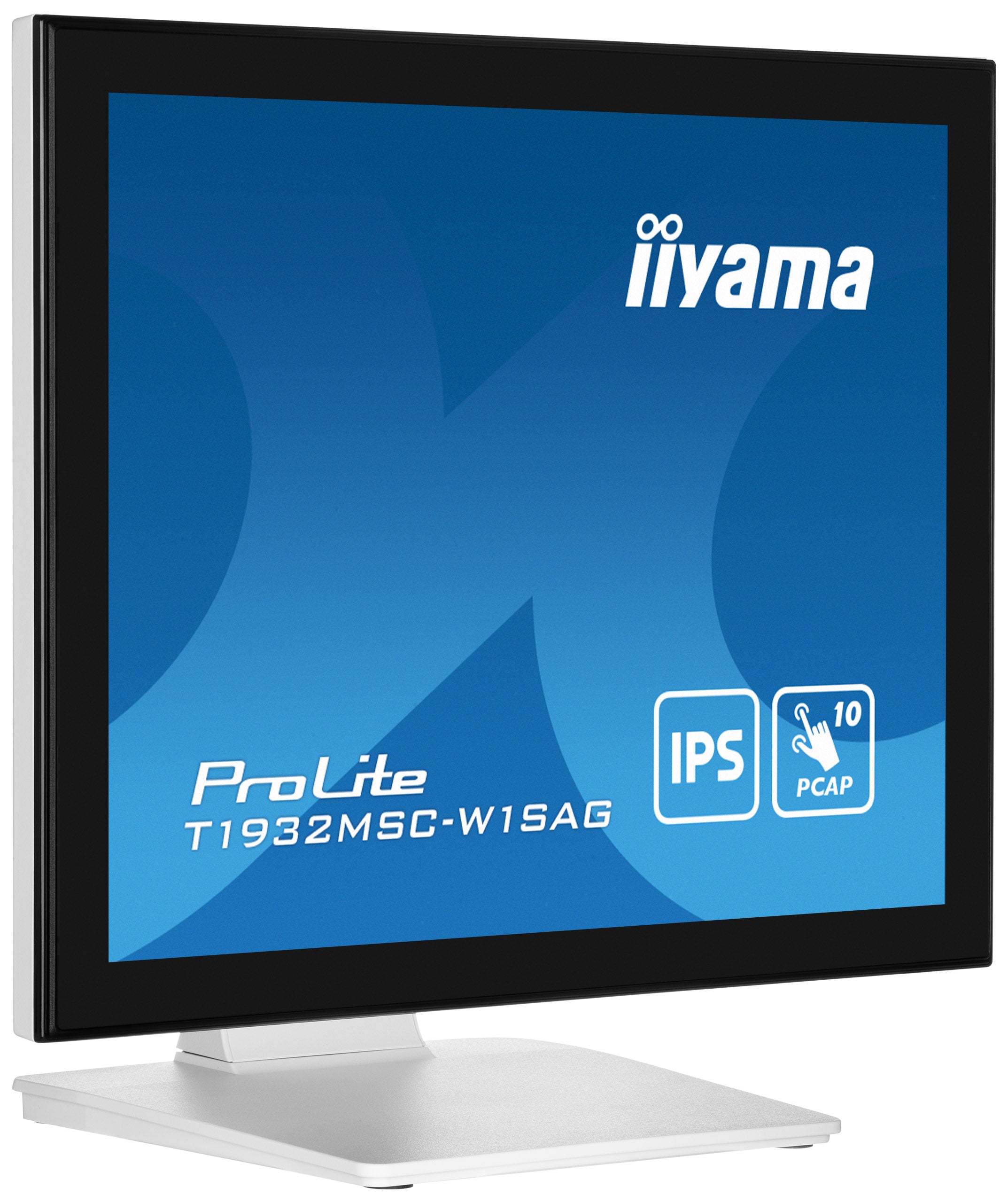

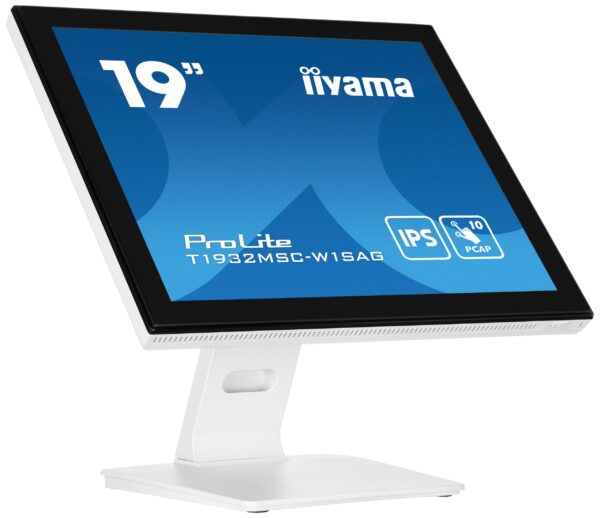

iiyama ProLite T1932MSC-W1SAG 19″ 10pt IPS Touch Monitor
The ProLite T1932MSC-W1SAG 19″ 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks. -
DISPLAY CHARACTERISTICS Design Edge to edge glass Diagonal 19″, 48cm Panel IPS Native resolution 1280 x 1024 Aspect ratio 5:4 Panel brightness 250 cd/m² Brightness 215 cd/m² with touch Light transmittance 85% Static contrast 1000:1 with touch Response time (GTG) 14ms Viewing zone Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7 million Horizontal Sync 31 – 80kHz Viewable area W x H 374.8 x 300mm Pixel pitch 0.2928mm Bezel colour and finish White, matte TOUCH Touch technology Projective capacitive Touch points 10 (HID, only with supported OS) Touch method Stylus, finger, glove Touch interface USB Supported operating systems Windows, Linux INTERFACES / CONNECTORS / CONTROLS Analog signal input VGA x1 Digital signal input HDMI x1, DisplayPort x1 Audio input Mini jack x1 Audio output Speakers 2 x 1W HDCP Yes FEATURES Water and dust protection IP54 (front) OSD key lock Yes GENERAL OSD languages EN, DE, FR, ES, IT, CN, JP Control buttons Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power User controls Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, factory) Convenience Kensington-lock™ prepared Plug&Play DDC2B MECHANICAL Tilt angle 90° up; 5° down VESA mounting 100 x 100mm Cable management system Yes ACCESSORIES INCLUDED Cables Power, USB, HDMI, DP Guides Quick start guide, Safety guide Cable cover Yes POWER MANAGEMENT Power supply unit Internal Power supply AC 100 – 240V, 50/60Hz Power usage 20W typical, 1.5W stand by, 0.3W off mode SUSTAINABILITY Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA Energy efficiency class E REACH SVHC Above 0.1%: Lead DIMENSIONS / WEIGHT Product dimensions W x H x D 432 x 413.5 x 239.5mm Weight (without box) 5.4kg EAN code 4948570122219 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
-
Description Downloads User manual Download Technical specification Download Drawing Download UK Energy Label Download
