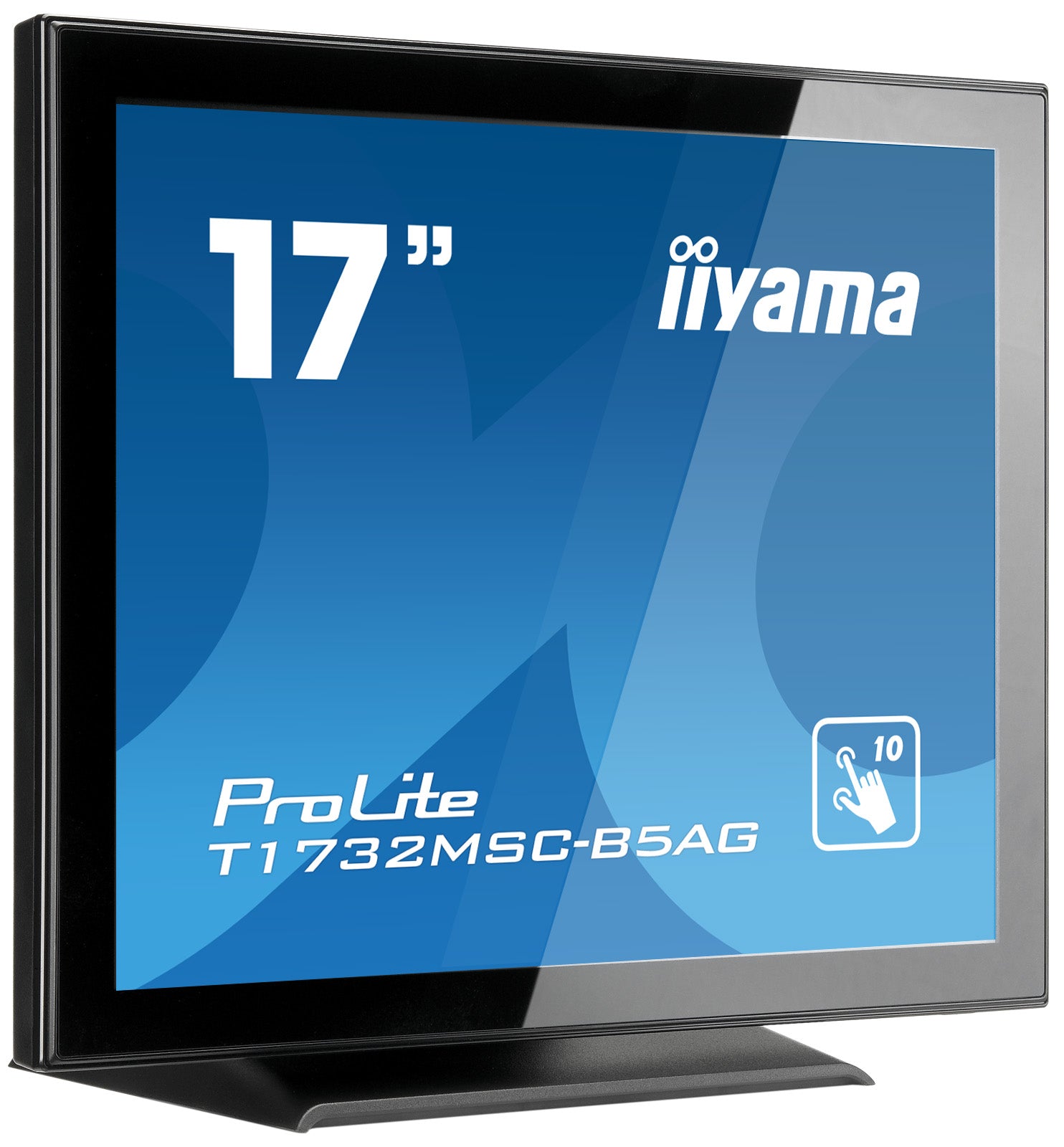

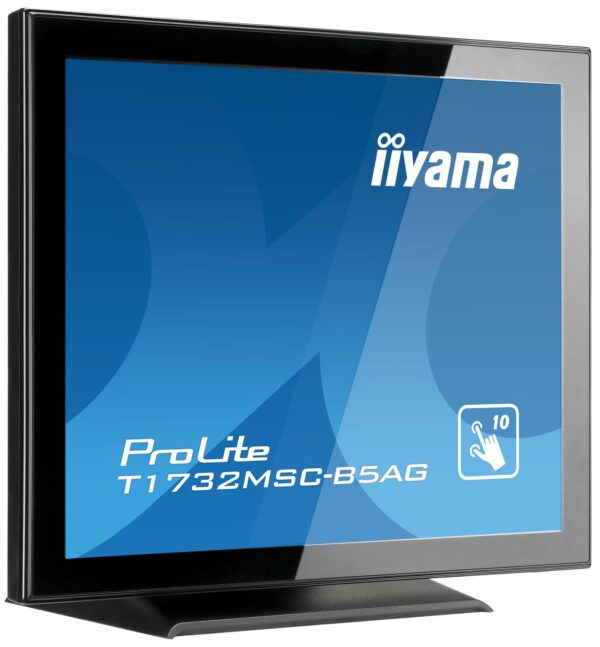

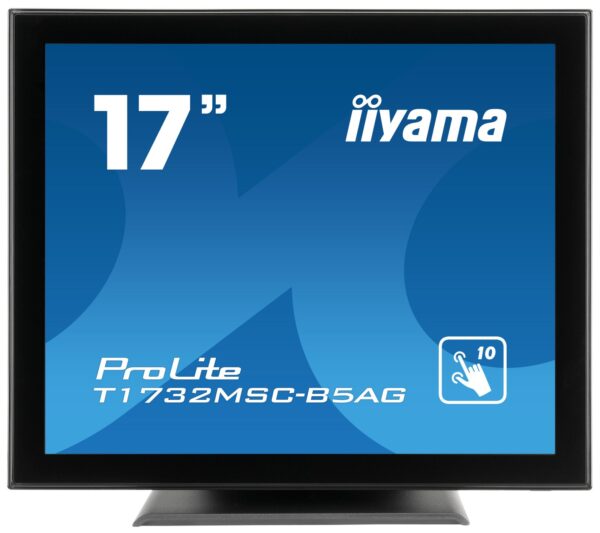

iiyama Prolite T1732MSC-B5AG 17″ PCAP Touch Screen Monitor

iiyama Prolite T1732MSC-B5AG 17″ PCAP Touch Screen Monitor

• Description
• Specifications
• Warranty

• 17″ Projective Capacitive 10pt touch screen with AG-coating

  The ProLite T1732MSC-B5AG 17″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. Available in black and white.



  • TOUCH TECHNOLOGY – CAPACITIVE

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  • AG COATING

    The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

  • IP54

    The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

  • SCRATCH RESISTANCE

    Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  • SPEAKERS

    This LED monitor is equipped with two stereo speakers.

• DISPLAY CHARACTERISTICS

  Design	Edge to edge glass
  Diagonal	17″, 43cm
  Panel	TN LED, AG coated glass
  Native resolution	1280 x 1024 (1.3 megapixel)
  Aspect ratio	5:4
  Panel brightness	250 cd/m²
  Brightness	215 cd/m² with touch
  Light transmittance	85%
  Static contrast	1 000:1 with touch
  Response time (GTG)	5ms
  Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour support	16.7mln
  Horizontal Sync	31,4 – 60kHz
  Viewable area W x H	338 x 270.5mm, 13.3 x 10.6″
  Pixel pitch	0.264mm
  Bezel colour and finish	black, matte

  TOUCH

  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	stylus, finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1
  Digital signal input	HDMI x1 DisplayPort x1
  Audio output	Speakers 2 x 1W
  HDCP	yes

  FEATURES

  Water and dust protection	IP54 (front)
  OSD key lock	yes

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, JP
  Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
  User controls	contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
  Convenience	Kensington-lock™ prepared
  Plug&Play	DDC2B

  MECHANICAL

  Tilt angle	90° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, USB, HDMI, Audio, DP
  Guides	quick start guide, safety guide
  Other	Touch Panel Driver Disk (CD-ROM)
  Cable cover	yes

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	20W typical, 1W stand by, 1W off mode

  SUSTAINABILITY

  Regulations	CB, CE, RoHS support, ErP, WEEE, CU, cULus, VCCI, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	387 x 342 x 202mm
  Weight (without box)	5.6kg
  EAN code	4948570116065

  RELATED INFORMATION

  Product series

  ProLite T1532MSC-B3AG, ProLite T1932MSC-W2AG, ProLite T1732MSC-W5AG

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
